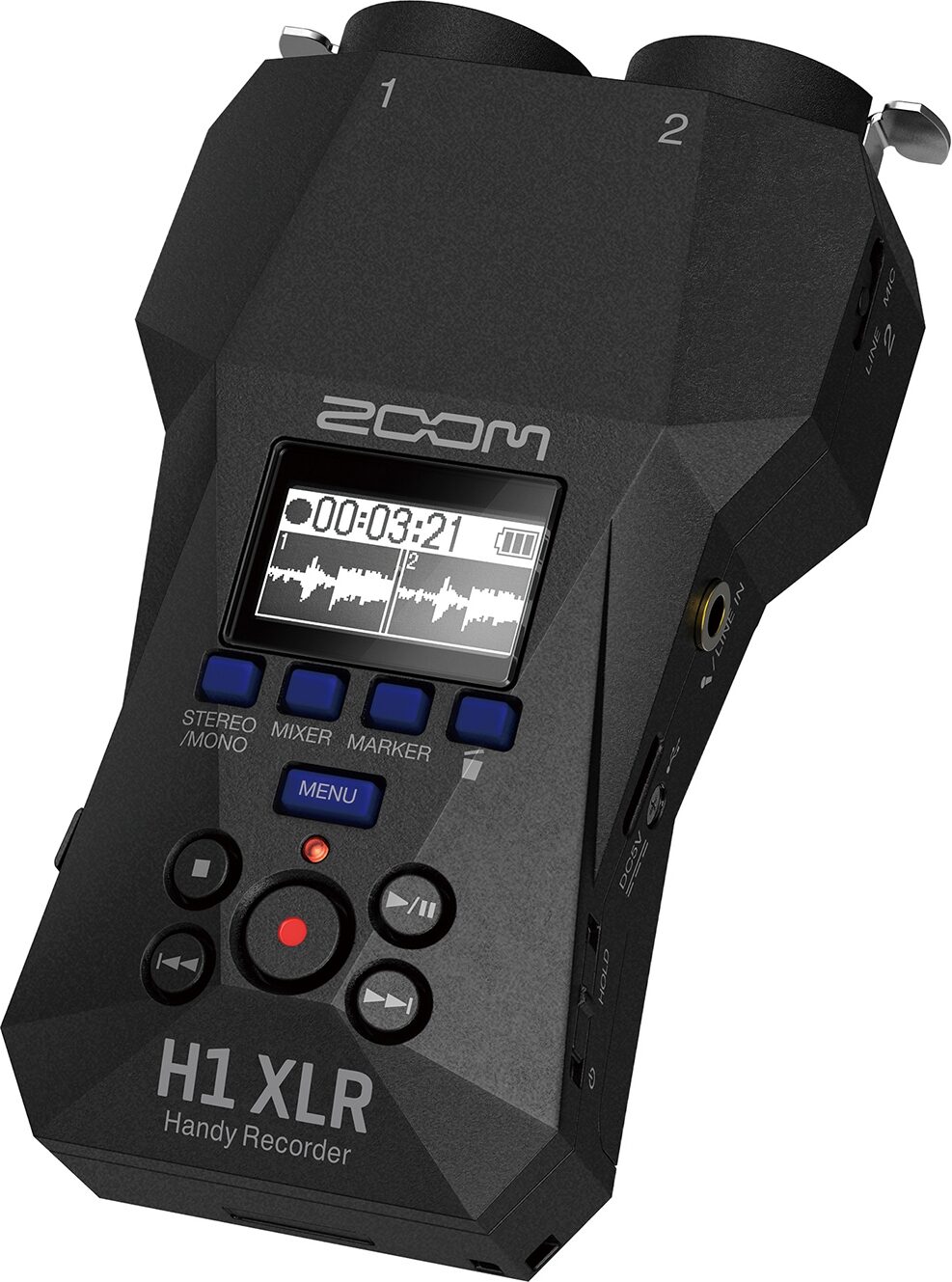

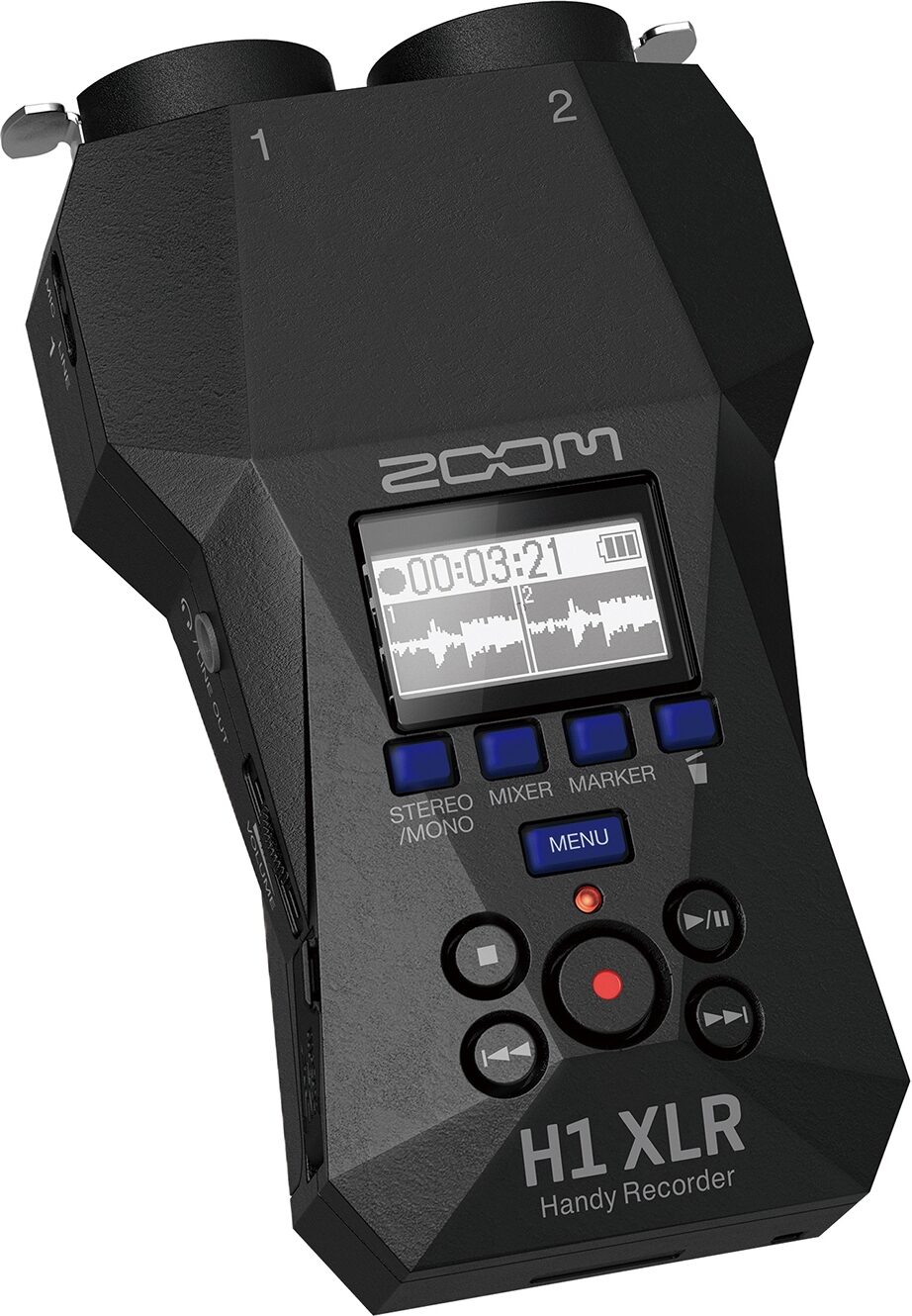

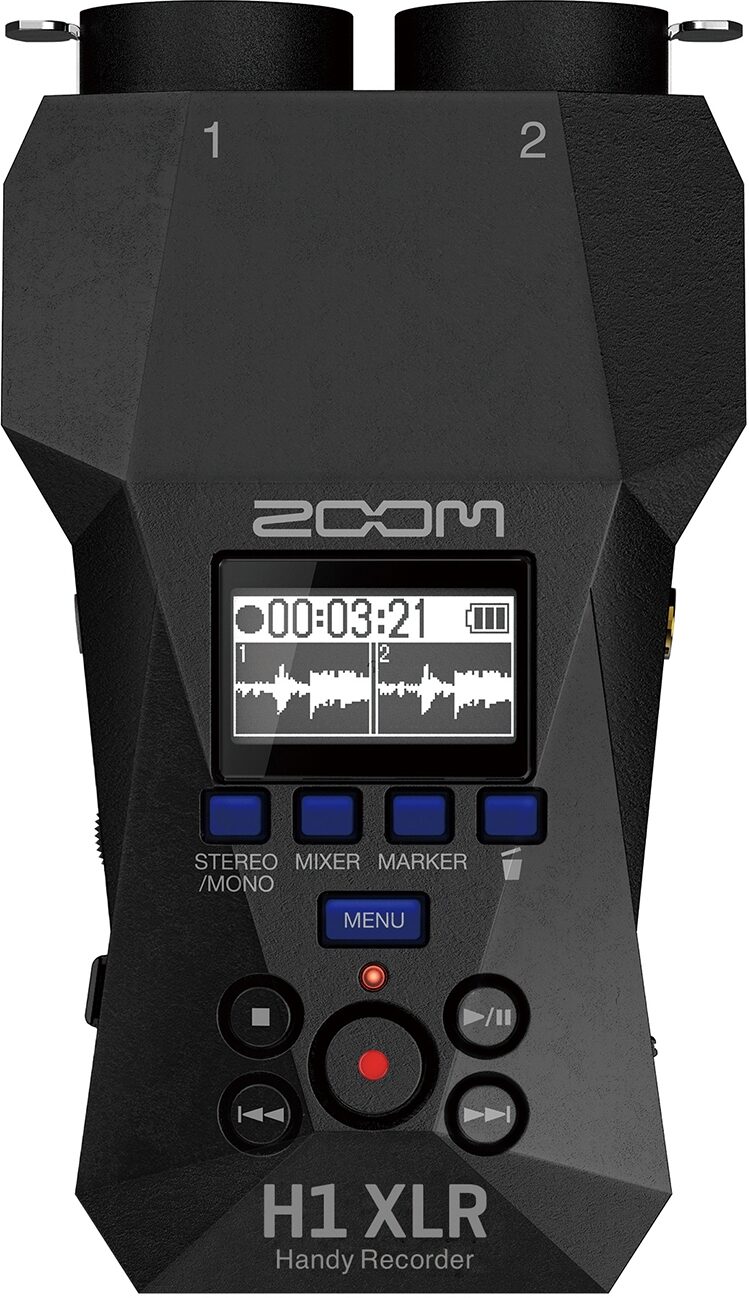

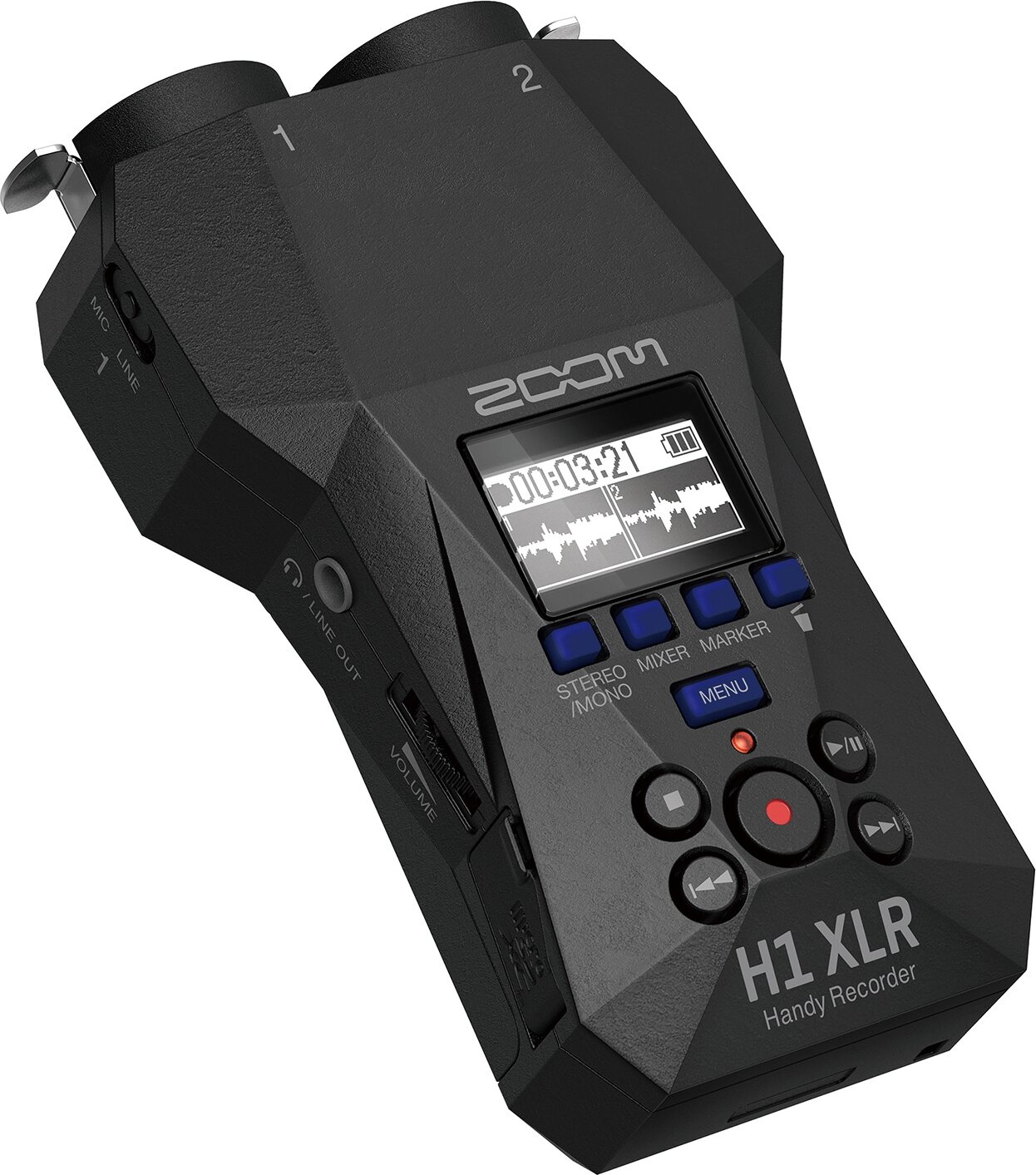

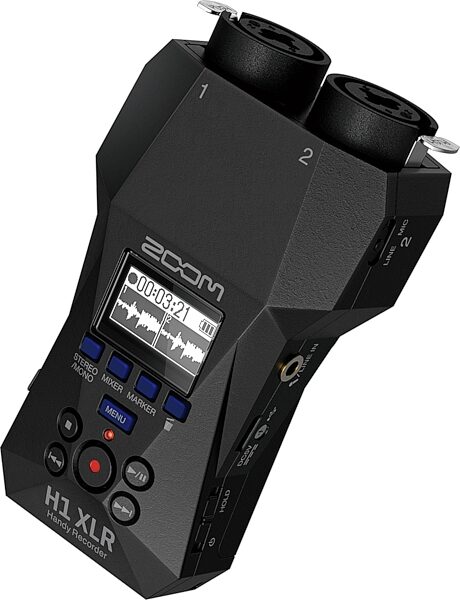

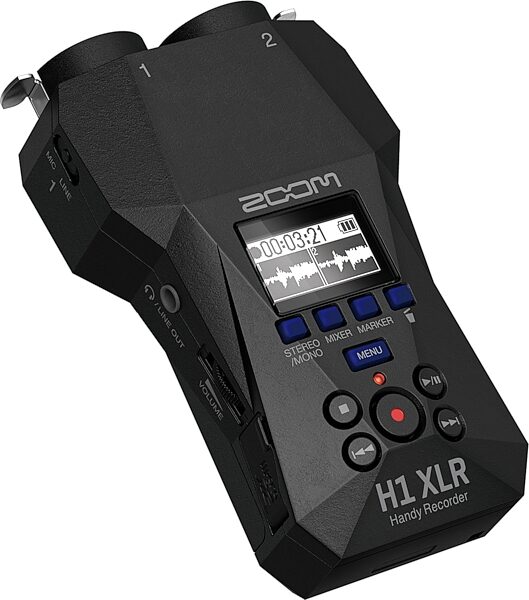

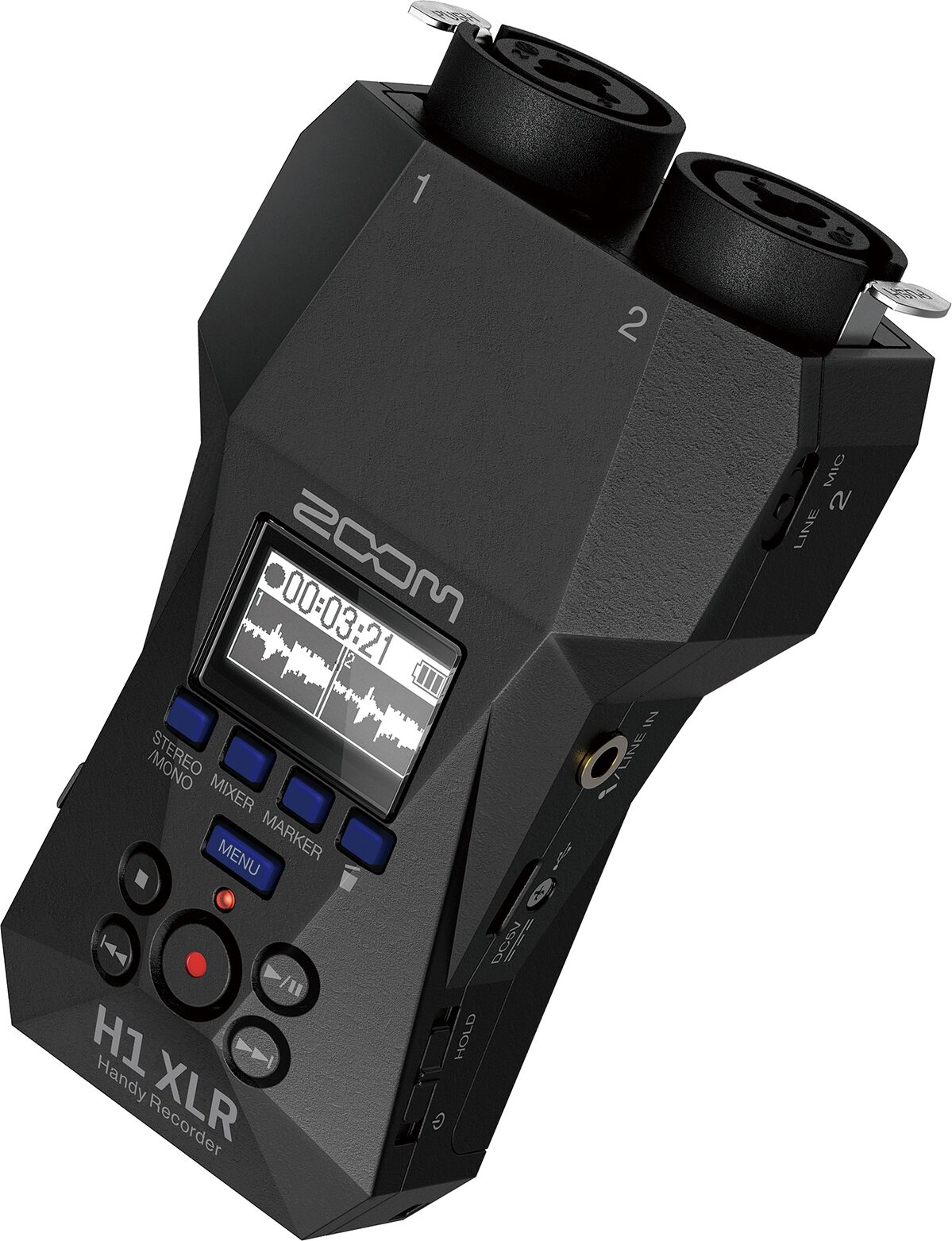

Zoom H1 XLR Handy Digital Recorder

Zoom made their H1 recorder even smaller, with two XLR/TRS inputs. Plug in a pair of mics or grab a stereo feed from the board with 32-bit float resolution!

Go anywhere, record anything! The H1 XLR is the recorder for creators who have no limits. Capture audio for video, direct feeds from mixers, songwriting and more.

Features:

- Compatible for multiple applications for creators who have no limits
- Two locking XLR/TRS combo inputs
- 3.5mm stereo input allows for recording on-camera mics, lavaliers, phones and other sources
- Preserves details in both quiet and loud recordings
- Preamps give you crystal clear audio
- Can record both stereo and mono files
- USB-C port for added versatility
- Can be used as an audio interface while simultaneously recording to the SD card
- Navigate the menu with audible descriptions for the visually impaired
- Built-in mixer to easily adjust audio levels
- High-contrast OLED screen
- Built-in speaker and 3.5mm headphone outputs
- Supports SDXC cards up to 1TB
- Phantom power equipped
- Powered via two AA batteries or USB-C port

Input Flexibility
Equipped with two locking XLR/TRS combo inputs the H1 XLR is ready to record microphones, stereo board feeds, instruments and more. The 3.5mm stereo input allows you to record on-camera mics, lavaliers, phones and other sources.

Never Worry About Gain... Again
Plug in, hit record, and capture your audio worry-free. 32-bit float's vast dynamic range preserves details in both quiet and loud recordings.

Ultra-Clean Preamps
The H1 XLR's preamps give you crystal clear audio with a-122dB EIN and sample rates up to 96khz.

Line Level Like a Pro
Capture +4dBu read more professional line level signals to record clip-free audio from any mixer or line output.

Stereo or Mono
The H1 XLR can record both stereo and mono files depending on your application.

Applications
- Attention Musicians: Capture live band performances or DJ sets by taking a stereo feed from your mixing board.
- Perfect On Camera: The H1 XLR is perfect for mounting on your rig to record great audio from shotgun or wireless mics.
- The Sound Designer's Companion: With 32-bit float recording, you can capture the roar of the loudest engines and the delicate whispers of nature in stunning quality.
- Podcast Anywhere: With the H1 XLR and 2 of your favorite mics it's easy to record podcasts anywhere you go.

Perfect Audio for Mobile Video
Connect the H1 XLR to your mobile device via the USB-C port and record professional audio directly onto your phone's video. Perfect for video podcasts, live streams, and more.

32-Bit Float Audio Interface
Connect to a PC, Mac, iOS, or Android device and use the H1 XLR as an audio interface while simultaneously recording to the SD card.

Accessibility
The H1 XLR is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.

Mic/Line Switch
Flip the switch from mic to line level without having to switch cables.

Built-In Mixer
Use the mixer to easily adjust each track's audio level.

OLED Waveform Display
The high-contrast OLED screen makes it easy to navigate through the H1 XLR's simple interface. The real-time waveform display lets you see your audio as it records.

Headphone Output
Use the 3.5mm headphone output for headphones or to connect directly to a camera.

Onboard Speaker
Use the onboard speaker to listen to your recordings for quick reference as well as to utilize the accessibility functions.

High Capacity Storage
The H1 XLR supports SDXC cards up to 1TB to record days of audio.

Phantom and Plug-In Power
Record condenser microphones with phantom power or lavaliers with plug-in power.

Power Options
The H1 XLR can be powered by two AA batteries or via the USB-C port. This includes bus-power as well as external USB battery packs.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

CHANNELS: 2
INPUTS: XLR/TRS Combo Jacks x2, 1/8" stereo mini jack
INPUT GAIN: Adjustment unnecessary
INPUT IMPEDANCE:
- MIC: 3.8 kOhm or more
- LINE: 39 kOhm or more
- Mini Jack: 2 kOhm or higher input impedance
Maximum input level:
- MIC: +4 dBu
- LINE: +24 dBu
Phantom power: +48 V, Channel total 10 mA or less
Mini Jack Plug-In Power: 2.5 V supported
Equivalent input noise:
- MIC: -122 dBu or less\0xFF08IHF-A) @150 Ohm input
- LINE: -95 dBu or less\0xFF08IHF-A) @600 Ohm input
OUTPUTS: 1/8" stereo mini jack, Built-In Speaker
MAXIMUM OUTPUT LEVEL:
- Mini Jack: 20 mW +20 mW (32 Ohm load)
- Speaker: 250mW
OUTPUT IMPEDANCE: 10 Ohm
BUILT-IN SPEAKER: 20 x 30mm elliptical dynamic speaker
RECORDING MEDIA:
- 4GB-32GB microSDHC cards
- 64GB-1TB microSDXC cards
- Not support SD card 1.5TB~
SUPPORTED FORMATS: 44.1/48/96kHz, 32-bit float mono/stereo BWF and iXML WAV
LCD: 0.96" monochrome OLED (128x64)
POWER SUPPLIES:
- BATTERIES: 2 AA (alkaline, NiMH or lithium)
- AC ADAPTER: ZOOM AD-17 (DC 5 V/1 A)
- USB bus power is supported
USB CONNECTOR: USB Type-C
USB MASS STORAGE CLASS: USB 2.0 High Speed
AUDIO INTERFACE WITH REC:
- CLASS: USB class compliant
- Transfer method: asynchronous
- SAMPLING RATE: 44.1/48kHzF35
- BIT RATE: 16-bit integer / 32-bit float
- CHANNELS: 2 in/2 out
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES: Approximately 10 hours (alkaline batteries, using stereo line input, 48 kHz/32-bit float)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.4 lbs
Shipping Dimensions: 6 x 4 x 2 in
Manufacturer Part Number (MPN): ZH1XLR
