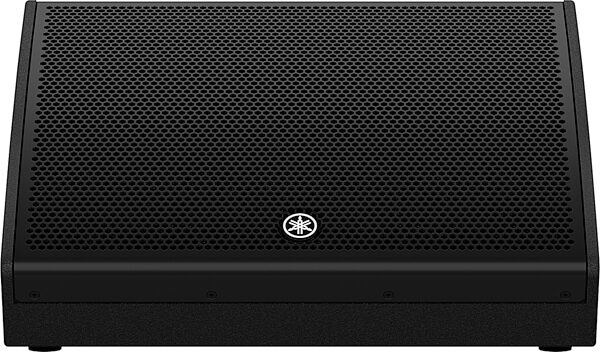

![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Front_886186-e0cc041574bd02e99e962e7f9120da1a.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Drivers_886186-623b2002bc9c31ec7358c6a3b20f37df.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Back_886186-ef6fae0b37d9ad230c4a7ee44de74893.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Angle_Right_886186-571e9f95910d5d2c41c765e6032ed232.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Top_886186-aaee37e0bf4376b88653c85b86e5ab7d.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Right_886186-cf60dbff697e833bc215dae7fac44943.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Left_886186-90fde99d2d1dd9ce80896e964e05d8dd.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Angle_Left_886187-7bc495460e3493d4a1b7709b4f9b1f44.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Angle_Right_886187-a9c57d93833a4b9b1d7a53fac1c7a372.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Back_886187-2b88b7e565022462f6e23ed3d42b6c85.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Drivers_886187-a42966128643b4fdc6132756841e4085.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Left_886187-1b68d502f9bccf1260f8b1780fdf996a.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Right_886187-a4c3ca00fc92406eeea3a8291d7c8e8a.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Top_886187-db6d75f4d30f88e3045425211d4e362f.jpg)
![Yamaha DHR15M 15 Inch Powered Speaker, New, Action Position Front](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/YAM_DHR15M_Front_High_Res_886188-7f9ea15630a7327092882516ddd15790.jpg)
Overview
The DHR15M is a 2-way bi-amp powered loudspeaker with a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Featuring a custom Coaxial Driver design that provides near perfect phase response, making it one of the most accurate floor monitors in its class. With 1000 Watts of Class D power, up to 131dB SPL is possible. A b steel grille and rugged plywood cabinet will stand up to well to stage use.
Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha's high-end DZR Series, the DHR15M offers best-in-class sound quality and durability.
- The DHR15M delivers extremely high power from its compact, low profile enclosure
- Equipped with a 1.75" HF compression driver coaxially mounted to a high-output 15"" LF unit
- Maximum 131dB SPL of power and wide frequency response range of 50Hz-20kHz
- Ultra-Precise 48bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
- Durable polyurea coated compact plywood enclosure
- 35mm socket to allow placement on a stand or pole
- The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
- A plywood cabinet that delivers a clear sound with minimal vibration
- A pole socket for use on a stand
-… read more Proprietary FIR-X tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
read less
Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha's high-end DZR Series, the DHR15M offers best-in-class sound quality and durability.
Features:
- 15" powered loudspeaker with 1000W of class-D power- The DHR15M delivers extremely high power from its compact, low profile enclosure
- Equipped with a 1.75" HF compression driver coaxially mounted to a high-output 15"" LF unit
- Maximum 131dB SPL of power and wide frequency response range of 50Hz-20kHz
- Ultra-Precise 48bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
- Durable polyurea coated compact plywood enclosure
- 35mm socket to allow placement on a stand or pole
- The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
- A plywood cabinet that delivers a clear sound with minimal vibration
- A pole socket for use on a stand
-… read more Proprietary FIR-X tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Specs
System Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Amplifier Class: Class-D
Cooling: Fan, 4 speeds
A/D D/A Converters: 24 bit 48 kHz Sampling
Frequency Range (-10dB): 50Hz-20kHz
Coverage Angle: H65* x V75*
Crossover Type: FIR-X tuning (Linear phase FIR filter)
Crossover Frequency: 1.8 kHz
Maximum SPL: 131dB SPL (*1)
LF Diameter: 15" cone
LF voice coil diameter: 3"
LF magnet: Ferrite
HF Diaphragm: 1.75" PET
HF type: 1" Throat Compression Driver, Coaxial
HF magnet: Ferrite
Inputs: Combo XLR/1/4", Combo x 1 + RCA pin x 2 (Unbalanced)
Output: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Cabinet Material: Plywood
Finish: Durable Polyurea Painting, Black
Dimensions (W\0xD7H\0xD7D, with rubber feet): 642 x 369 x 505mm (25.3"x14.5"x18.9")
Weight: 23.0 kg (50.7 lbs)
Handles: Side x 1, Pole Socket F35 mm x1
Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
Amplifier Class: Class-D
Cooling: Fan, 4 speeds
A/D D/A Converters: 24 bit 48 kHz Sampling
Frequency Range (-10dB): 50Hz-20kHz
Coverage Angle: H65* x V75*
Crossover Type: FIR-X tuning (Linear phase FIR filter)
Crossover Frequency: 1.8 kHz
Maximum SPL: 131dB SPL (*1)
LF Diameter: 15" cone
LF voice coil diameter: 3"
LF magnet: Ferrite
HF Diaphragm: 1.75" PET
HF type: 1" Throat Compression Driver, Coaxial
HF magnet: Ferrite
Inputs: Combo XLR/1/4", Combo x 1 + RCA pin x 2 (Unbalanced)
Output: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Cabinet Material: Plywood
Finish: Durable Polyurea Painting, Black
Dimensions (W\0xD7H\0xD7D, with rubber feet): 642 x 369 x 505mm (25.3"x14.5"x18.9")
Weight: 23.0 kg (50.7 lbs)
Handles: Side x 1, Pole Socket F35 mm x1
Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 58.1 lbs
- Shipping Dimensions: 27 x 24 x 18 in
- Manufacturer Part Number (MPN): DHR15M
