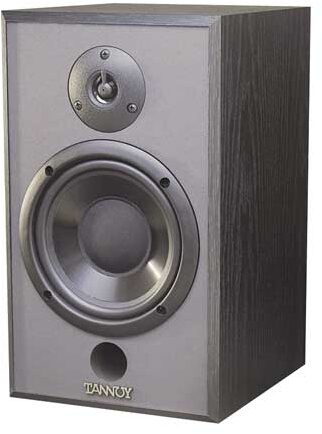

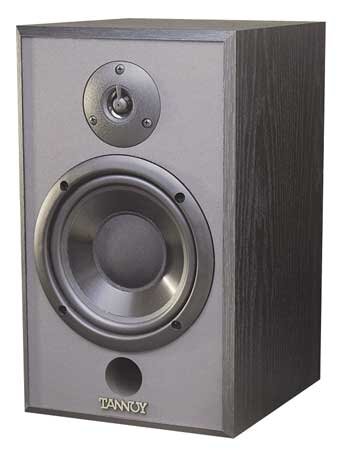

Tannoy ProtoJ Studio Monitor
No longer available at zZounds
zZounds Gear Experts Say...
Suited for 5.1 format project studios. 6.5 in. mid/bass driver. 3/4 in. high frequency.
Overview
This compact playback monitor packs a tremendous amount of quality and features into a small package. The Proto-J's extended low frequency response, controlled dispersion and dynamic character make it ideally suited for 5.1 format project studios. The system employs a durable 6.5 in. mid/bass driver and a new 3/4 in. high frequency, smartly housed in a front ported reflex enclosure. Each cabinet employs integral threaded inserts on the rear of the cabinet (Omni MountTM 20.0 Series) for ease of installation and surround system alignment. Best of all -- theyre truly affordable.
Specs
Frequency Response: 60 Hz - 20 kHz +/- 3 dB
Recommended Amplifier Power: 50 - 100 Watts rms into 8 Ohms
Power Handling (rms): 50 Watts Avg. 100 Watts program. 200 Watts peak
Nominal Impedance: 8 Ohms - Minimum 5 Ohms
Sensitivity (Anechoic): 90 dB SPL / 1 Watt @ 1 meter
Crossover Frequency: 3000 Hz
Driver Dispersion: 120 degrees conical
Driver Complement: 6.5 bass driver - 3/4 soft dome tweeter
Construction Volume: 10 Litres
Low Frequency Design: Optimized bass-reflex load
Cabinet Construction: MDF & high density particle board
Insert Spacing: 3 center / center (Omni MountTM 20.0 series)
Finish: Grained black vinyl
Dimensions ( H x W x D ): 13 3/4 (350 mm) x 8 1/4 (208 mm) x 9 1/8 (232 mm)
Shipping Weight: 24 lbs - 11 kg pr.
Recommended Amplifier Power: 50 - 100 Watts rms into 8 Ohms
Power Handling (rms): 50 Watts Avg. 100 Watts program. 200 Watts peak
Nominal Impedance: 8 Ohms - Minimum 5 Ohms
Sensitivity (Anechoic): 90 dB SPL / 1 Watt @ 1 meter
Crossover Frequency: 3000 Hz
Driver Dispersion: 120 degrees conical
Driver Complement: 6.5 bass driver - 3/4 soft dome tweeter
Construction Volume: 10 Litres
Low Frequency Design: Optimized bass-reflex load
Cabinet Construction: MDF & high density particle board
Insert Spacing: 3 center / center (Omni MountTM 20.0 series)
Finish: Grained black vinyl
Dimensions ( H x W x D ): 13 3/4 (350 mm) x 8 1/4 (208 mm) x 9 1/8 (232 mm)
Shipping Weight: 24 lbs - 11 kg pr.
Reviews
Reviewers gave this product an overall rating of 4.5 out of 5 stars.
(14 ratings)
Submitted February 18, 2008 by a customer from tampabay.rr.com
Tannoy Proto J Monitor Customer Review
I have had them for four years and hope to have them for the next decade. I use them every day.
Sound
Warm deep bass, nicely cris highs. Mids are not overpowering. Overall, a very well balanced speaker. Incredible bang for the buck on these. Highly recommend.
Features
No grills...
Musical Background:
DJ
Musical Style:
House, Dance, Alternative, Electronica, Rock, Soul, R&B, Jazz
11 of 11 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
No longer available at zZounds
In most cases, a product is unavailable because it has been discontinued by the manufacturer
