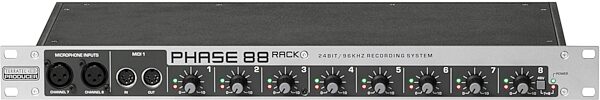

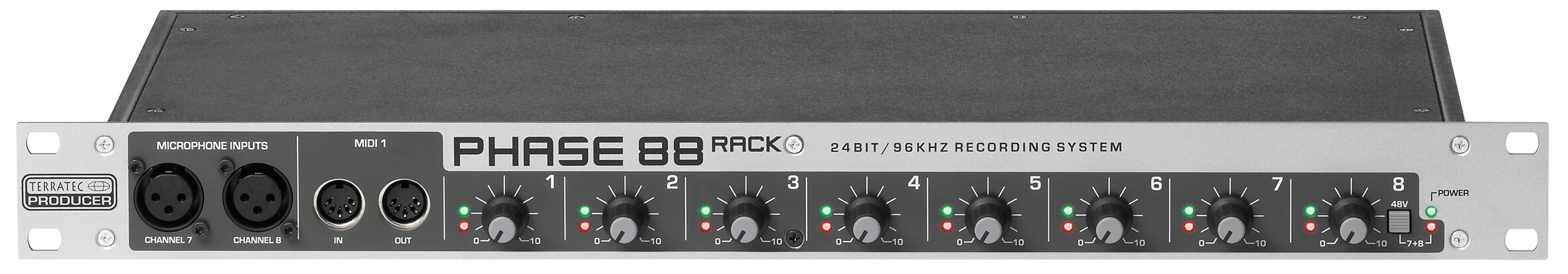

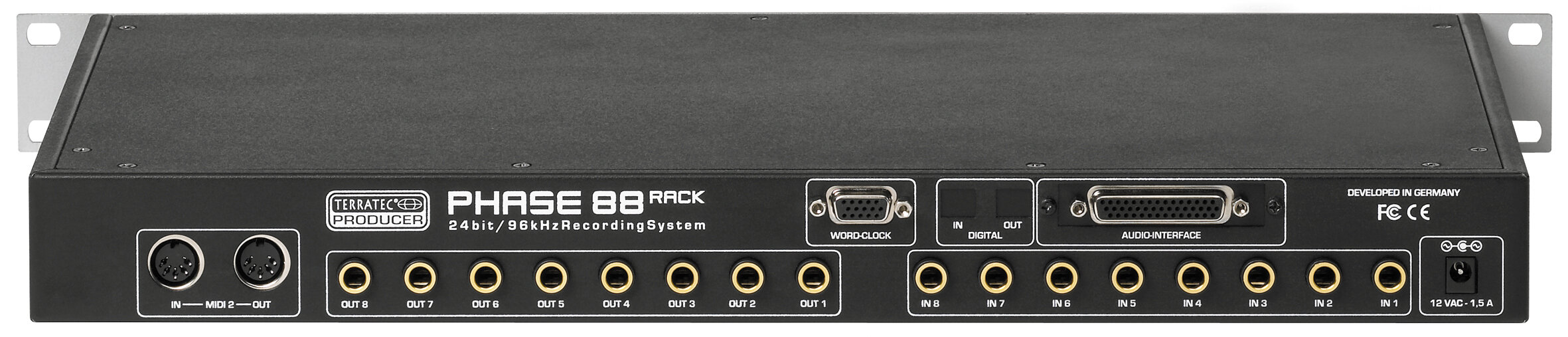

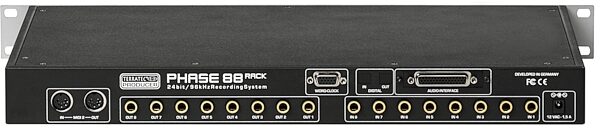

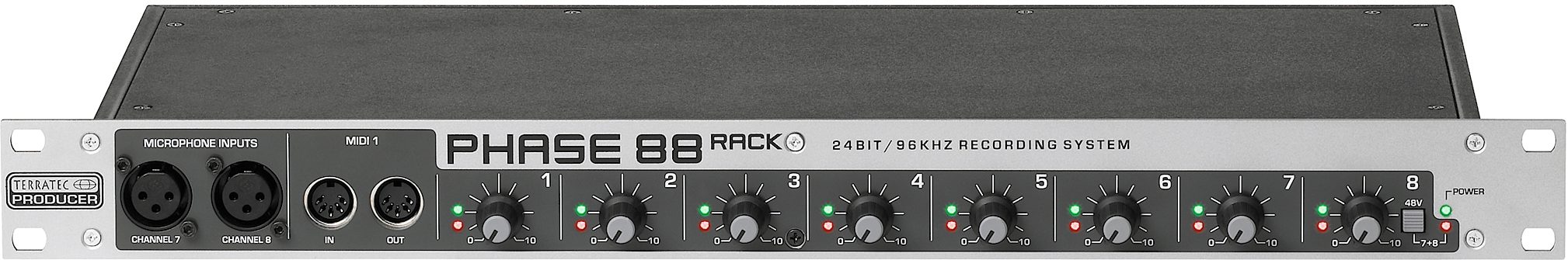

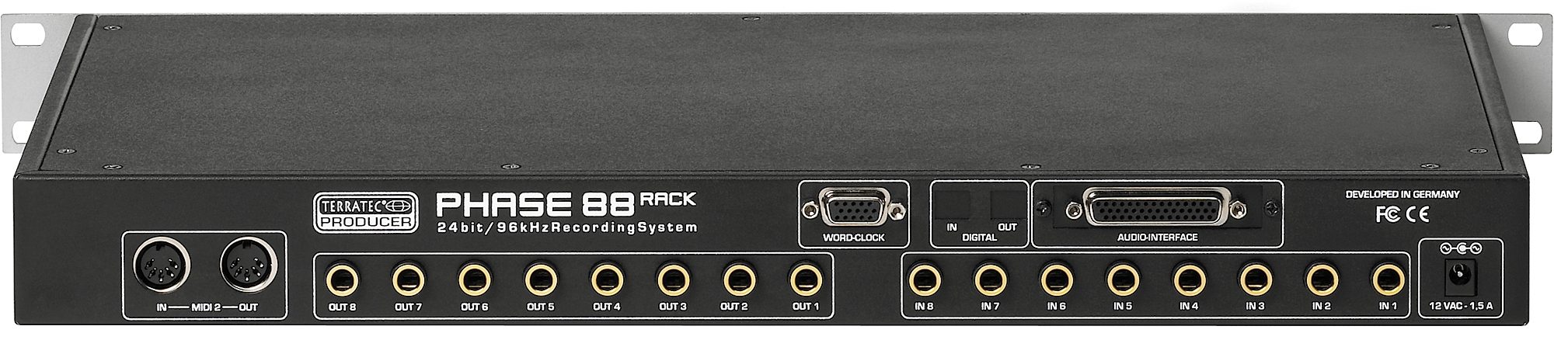

Terratec Phase 88 Rack 8-Channel PCI Interface
No longer available at zZounds
zZounds Gear Experts Say...
24-bit/96kHz fidelity. 8 analog in/out in a single 1U rackmount.
Overview
High class performance with alternative PCI or FireWire interface: The PHASE 88 Rack is the flexible audio center for your home or project studio. With the TerraTec Producer series 24 Bit/96 kHz PHASE 88 Rack PCI audio system, you're well-equipped to handle any tasks in your home or project studio, now and in the future. Eight analog inputs and outputs (balanced 1/4 in. jacks) give you the room and technology you need, even for larger recording sessions. All inputs can be controlled individually via gain controls on the front panel and feature clipping LEDs to warn of unintended distortion.
Two of the channels can be adapted to microphone use at the press of a button - with XLR sockets and switchable 48 V phantom power. A two-channel digital I/O (S/PDIF) with coaxial (optical on FireWire version) connectors is available for your DAT recorder and other equipment.
A WordClock I/O ensures optimal synchronized connections to external digital equipment, and two independent MIDI interfaces give you 32 MIDI channels to work with. If you ever need more connections than the standard selection of the PHASE 88 rack system, that's no problem: up to four PCI devices* can be cascaded with a single driver, giving you no less than 40 audio channels for simultaneous use. Next to the PCI version the PHASE 88 Rack also is available including a high-speed FireWire interface. Thanks to its sophisticated board design and proven converters, the system delivers outstanding audio quality: a signal-to-noise… read more ratio of 110 dB (A) speaks for itself.
The PHASE 88 Rack PCI system also is future-proof: if necessary, you can easily replace the rack module's PCI connection with an optional FireWire (IEEE 1394) interface. read less
Two of the channels can be adapted to microphone use at the press of a button - with XLR sockets and switchable 48 V phantom power. A two-channel digital I/O (S/PDIF) with coaxial (optical on FireWire version) connectors is available for your DAT recorder and other equipment.
A WordClock I/O ensures optimal synchronized connections to external digital equipment, and two independent MIDI interfaces give you 32 MIDI channels to work with. If you ever need more connections than the standard selection of the PHASE 88 rack system, that's no problem: up to four PCI devices* can be cascaded with a single driver, giving you no less than 40 audio channels for simultaneous use. Next to the PCI version the PHASE 88 Rack also is available including a high-speed FireWire interface. Thanks to its sophisticated board design and proven converters, the system delivers outstanding audio quality: a signal-to-noise… read more ratio of 110 dB (A) speaks for itself.
The PHASE 88 Rack PCI system also is future-proof: if necessary, you can easily replace the rack module's PCI connection with an optional FireWire (IEEE 1394) interface. read less
Specs
19 in. Module
External 19 in. device (1U) with PCI or IEEE 1394 (FireWire) interface card
8 balanced analog 1/4 in. (TRS) input jacks
8 balanced analog 1/4 in. (TRS) output jacks
8 gain controllers on the front side (20 dB adjustment range)
8 input signal and clipping LEDs on the front side
2 XLR / 1/4 in. jacks microphone inputs (front side) as alternatives to line inputs 7 and 8
Inputs 7 and 8 switchable between line/instrument and mic level
48 V phantom power (switchable) to the microphone inputs
External power supply, 230V/50Hz or 110V/60 Hz to 12V AC
2 separate MIDI interfaces with 5-pin DIN connector
24 Bit/96 kHz A/D converters with 100 dB (A) SNR*, typically 100 dB (A) @ 48 kHz
24 Bit/96 kHz D/A converters with 110 dB (A) SNR*, typically 109 dB (A) @ 48 kHz
WordClock I/O
Phase 88 PCI Card
4m cable to the PHASE 88 Rack module
10 inputs and 10 outputs in total
20 channel hardware mixer
Digital input with 2 channels (coaxial S/PDIF, 24 Bit/ 96 kHz)
Digital output with 2 channels (coaxial S/PDIF, 24 Bit/ 96 kHz)
None-Audio Mode for transferring AC3 or DTS via digital output
Hardware VU-Meter for each channel (displayed in the control panel)
Busmaster transfer supports '24 Bit, 4 Byte mode' (32 Bit)
EWS-Connect link**
Software PCI Version
WDM driver for Windows
Support for ASIO 2.0 and GigaStudio (GSIF)
ASIO/GSIF multi-client mode
"WDM Kernel Streaming" (e.g. for Sonar)
MME- and DirectSound support
Control Panel for Windows 98SE/ME/2000/XP (MAC OS X projected)
System Requirements
Windows: Pentium II 450 or higher, 128 MB RAM, Windows 98SE, ME, 2000 or XP
Macintosh: G4 800 MHz, 256 MB RAM, MAC OS X 10.3.3 or higher
System Recommendations
Windows: Intel Pentium-4 2 GHz, Celeron 2 GHz or AMD AthlonXP 2000 2 GHz, 512 MB RAM, Windows XP with service pack 1 (SP1) or higher
Macintosh: PowerPC G5 1.8 GHz or higher, 512 MB RAM, MAC OS X Panther 10.3.3 or higher
*) This information depends on the technical data of the converter used
**) You can cascade and synchronize PHASE 88, EWS 88 MT/D and EWS MIC 2/8 PCI audio systems (FireWire versions to be confirmed). You can control up to four systems in one PC with only one driver and one Control Panel.
External 19 in. device (1U) with PCI or IEEE 1394 (FireWire) interface card
8 balanced analog 1/4 in. (TRS) input jacks
8 balanced analog 1/4 in. (TRS) output jacks
8 gain controllers on the front side (20 dB adjustment range)
8 input signal and clipping LEDs on the front side
2 XLR / 1/4 in. jacks microphone inputs (front side) as alternatives to line inputs 7 and 8
Inputs 7 and 8 switchable between line/instrument and mic level
48 V phantom power (switchable) to the microphone inputs
External power supply, 230V/50Hz or 110V/60 Hz to 12V AC
2 separate MIDI interfaces with 5-pin DIN connector
24 Bit/96 kHz A/D converters with 100 dB (A) SNR*, typically 100 dB (A) @ 48 kHz
24 Bit/96 kHz D/A converters with 110 dB (A) SNR*, typically 109 dB (A) @ 48 kHz
WordClock I/O
Phase 88 PCI Card
4m cable to the PHASE 88 Rack module
10 inputs and 10 outputs in total
20 channel hardware mixer
Digital input with 2 channels (coaxial S/PDIF, 24 Bit/ 96 kHz)
Digital output with 2 channels (coaxial S/PDIF, 24 Bit/ 96 kHz)
None-Audio Mode for transferring AC3 or DTS via digital output
Hardware VU-Meter for each channel (displayed in the control panel)
Busmaster transfer supports '24 Bit, 4 Byte mode' (32 Bit)
EWS-Connect link**
Software PCI Version
WDM driver for Windows
Support for ASIO 2.0 and GigaStudio (GSIF)
ASIO/GSIF multi-client mode
"WDM Kernel Streaming" (e.g. for Sonar)
MME- and DirectSound support
Control Panel for Windows 98SE/ME/2000/XP (MAC OS X projected)
System Requirements
Windows: Pentium II 450 or higher, 128 MB RAM, Windows 98SE, ME, 2000 or XP
Macintosh: G4 800 MHz, 256 MB RAM, MAC OS X 10.3.3 or higher
System Recommendations
Windows: Intel Pentium-4 2 GHz, Celeron 2 GHz or AMD AthlonXP 2000 2 GHz, 512 MB RAM, Windows XP with service pack 1 (SP1) or higher
Macintosh: PowerPC G5 1.8 GHz or higher, 512 MB RAM, MAC OS X Panther 10.3.3 or higher
*) This information depends on the technical data of the converter used
**) You can cascade and synchronize PHASE 88, EWS 88 MT/D and EWS MIC 2/8 PCI audio systems (FireWire versions to be confirmed). You can control up to four systems in one PC with only one driver and one Control Panel.
