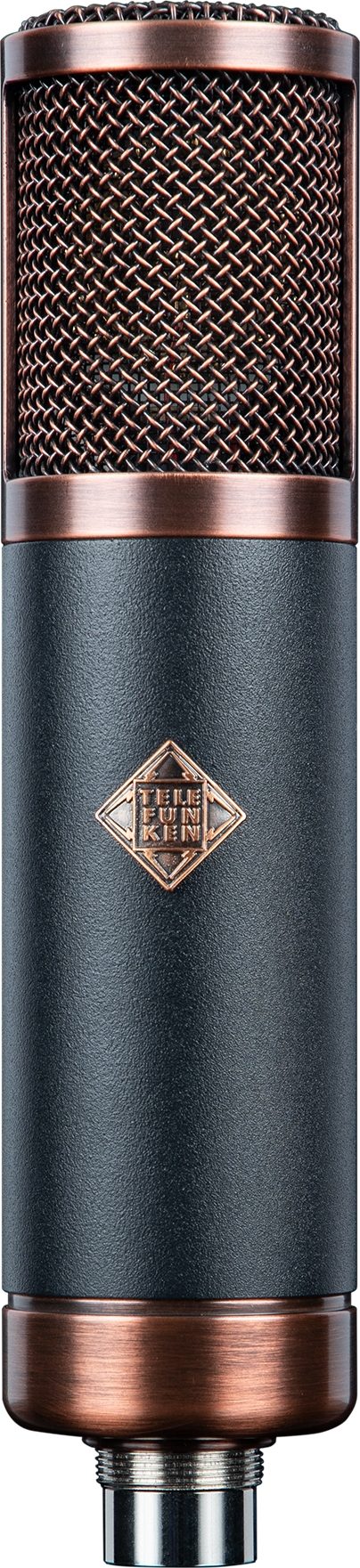

Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/Alchemy-Series-TF39-01_805872-cbabe7717a996b808d05fcdc867a407e.jpg)
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/TF39-Alchemy-System_805876-557c816236fac74634336ee116bd634d.jpg)
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/TF-39_in_case_1_805873-9d593542e3b1b52176fc7e63cde064e2.jpg)
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/TF-39_in_studio_1_805874-716064b8bfa3cd9978135eee8e1eaeaa.jpg)
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/TF-39_in_studio_2_805875-f877f6a74e189d78493c7a442a9c8e1c.jpg)
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/TF39-System-In-Case-01_805877-794a54915a6c36ed07e1219c34a0dc50.jpg)
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/TF39-System-In-Case-02_805878-2aa8d1a181acf4e463faeca0d880c96e.jpg)
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/M-703-Shock-Mount_805879-a9a06bef41324860dfd7e2b206786d1f.jpg)
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/M-903-Power-Supply_805881-c03c03dd0c4ef140047cc579f7c788d3.jpg)
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/M-782-Stand-Mount_805880-97cf967d9ddcb6a53633c18e2b71264a.jpg)
![Telefunken TF39 Copperhead Deluxe Multi-Pattern Large-Diaphragm Condenser Microphone, New, Action Position Back](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/M-803-Tube-Mic-Cable_805882-868b1c914075519996b7995965298d18.jpg)
American-made with an NOS vacuum tube and dual-membrane capsule for multi-pattern versatility, the TF39 is Telefunken's "Deluxe" take on the TF29 condenser.
Overview
The Telefunken TF39 Copperhead Deluxe is an expansion of the "Copperhead" sound with the addition of a dual membrane K67-style capsule, allowing for 3-pattern selection between cardioid, omnidirectional, and figure-8. This added feature set gives the TF39 greater flexibility and options in the studio. Sonically and component-wise, the two microphones are otherwise the same.
Specs
- Type: Pressure Gradient Condenser
- Capsule: TK67 - 25.4 mm Dual Membrane, Center-Terminated Diaphragm
- Tube Type: 5654W (NOS)
- Transformer: Lundahl LL1935
- Polar Pattern: Cardioid, Omnidirectional, and Figure-8
- Frequency Range: 20 Hz - 20 kHz, +/- 3 dB
- Sensitivity: 16.8 mV/Pa, +/- 1 dB
- THD @ 1 kHz at 1 Pa (Amplifier): < 0.35%
- Output Impedance: < 300 O
- Maximum SPL (for 1% THD): 130 dB
- S/N Ratio: 86.8 dBA
- Self Noise (Amplifier): 7.2 dBA
- Dimensions / Size: 200 mm L x 46 mm Dia.
- Weight: 630 g
- Current Draw from Mains: 50 mA
- Power Supply: M 903 PSU - 7-Pin Female XLR Input, 3-Pin Male XLR Output, Polar Pattern Selector
- Cable: M 803 - 7-Meter (23') Tube Mic Cable with 7-Pin XLR Connectors
- Mount: M 703 - Shock Mount, M 782 - Stand Mount
- Flight Case: ZC03 - Light-Weight Zipper Carrying Case
- Capsule: TK67 - 25.4 mm Dual Membrane, Center-Terminated Diaphragm
- Tube Type: 5654W (NOS)
- Transformer: Lundahl LL1935
- Polar Pattern: Cardioid, Omnidirectional, and Figure-8
- Frequency Range: 20 Hz - 20 kHz, +/- 3 dB
- Sensitivity: 16.8 mV/Pa, +/- 1 dB
- THD @ 1 kHz at 1 Pa (Amplifier): < 0.35%
- Output Impedance: < 300 O
- Maximum SPL (for 1% THD): 130 dB
- S/N Ratio: 86.8 dBA
- Self Noise (Amplifier): 7.2 dBA
- Dimensions / Size: 200 mm L x 46 mm Dia.
- Weight: 630 g
- Current Draw from Mains: 50 mA
- Power Supply: M 903 PSU - 7-Pin Female XLR Input, 3-Pin Male XLR Output, Polar Pattern Selector
- Cable: M 803 - 7-Meter (23') Tube Mic Cable with 7-Pin XLR Connectors
- Mount: M 703 - Shock Mount, M 782 - Stand Mount
- Flight Case: ZC03 - Light-Weight Zipper Carrying Case
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 9.5 lbs
- Shipping Dimensions: 14 x 12 x 7 in
- Manufacturer Part Number (MPN): STYM-089
