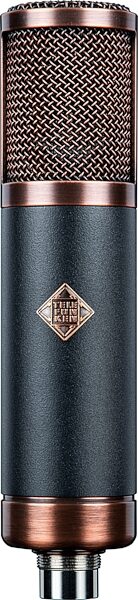

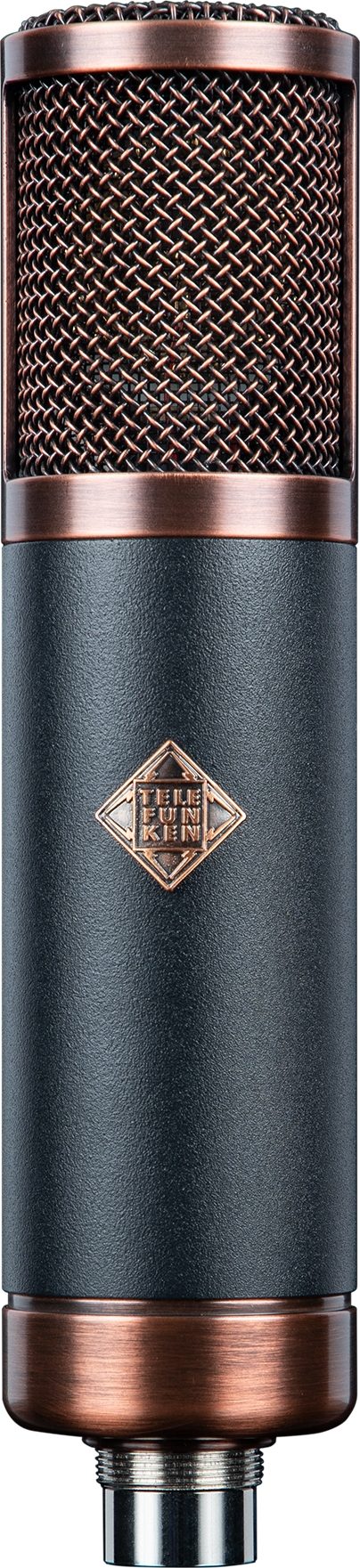

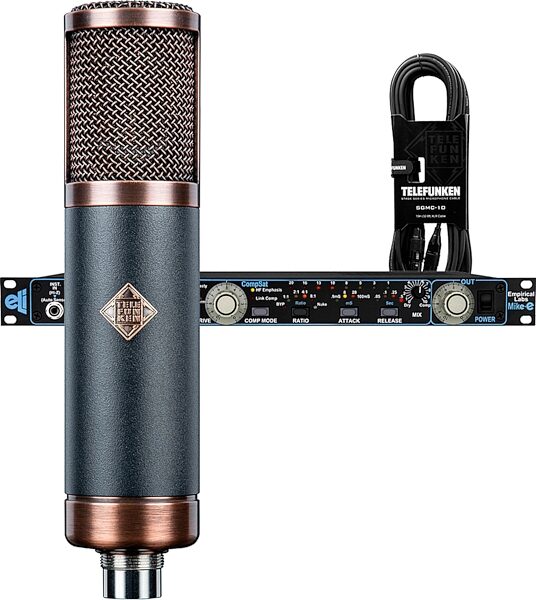

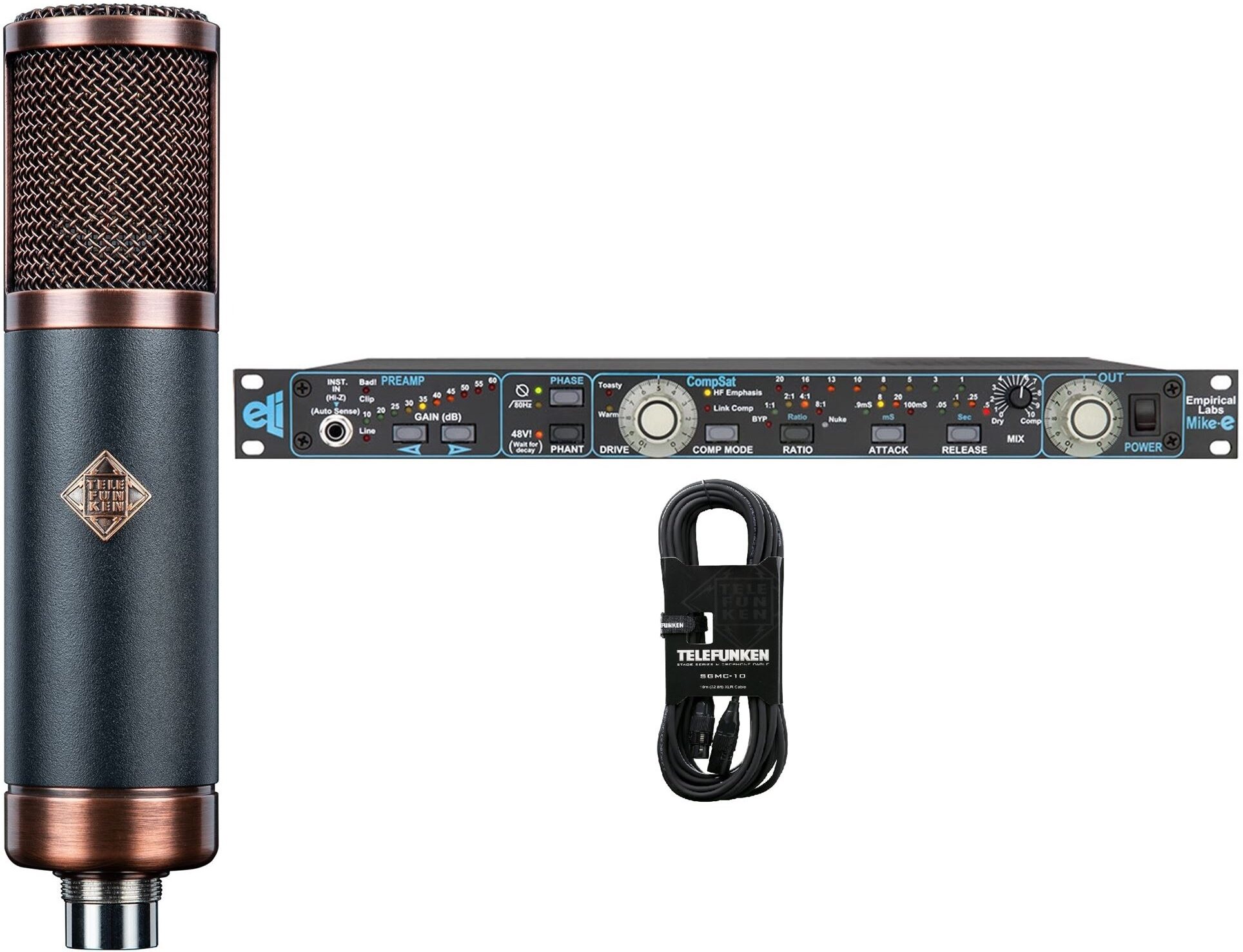

Telefunken TF29 Copperhead Large-Diaphragm Cardioid Tube Microphone
You can't go wrong with a Telefunken tube condenser! This USA-made workhorse mic delivers natural, transparent sound on vocals, guitars, drums, and beyond.
Overview
The TF29 Copperhead is an evolution of the CU-29 Copperhead, an original TELEFUNKEN Elektroakustik design that garnered fans for its natural and non-hyped tonality and unparalleled "quality for price." The TF29 continues this reputation of outstanding sonic performance and value. It's a workhorse microphone, accurately and honestly capturing vocals, acoustic and electric guitar, drums, and nearly any source put in front of it.
The TF29 features a new old stock American-made 5654W vacuum tube, all-brass K67-style capsule, and a premium Swedish-made Lundahl output transformer. These components create a balanced frequency response and natural tonality, making the TF29 a trusty go-to choice.

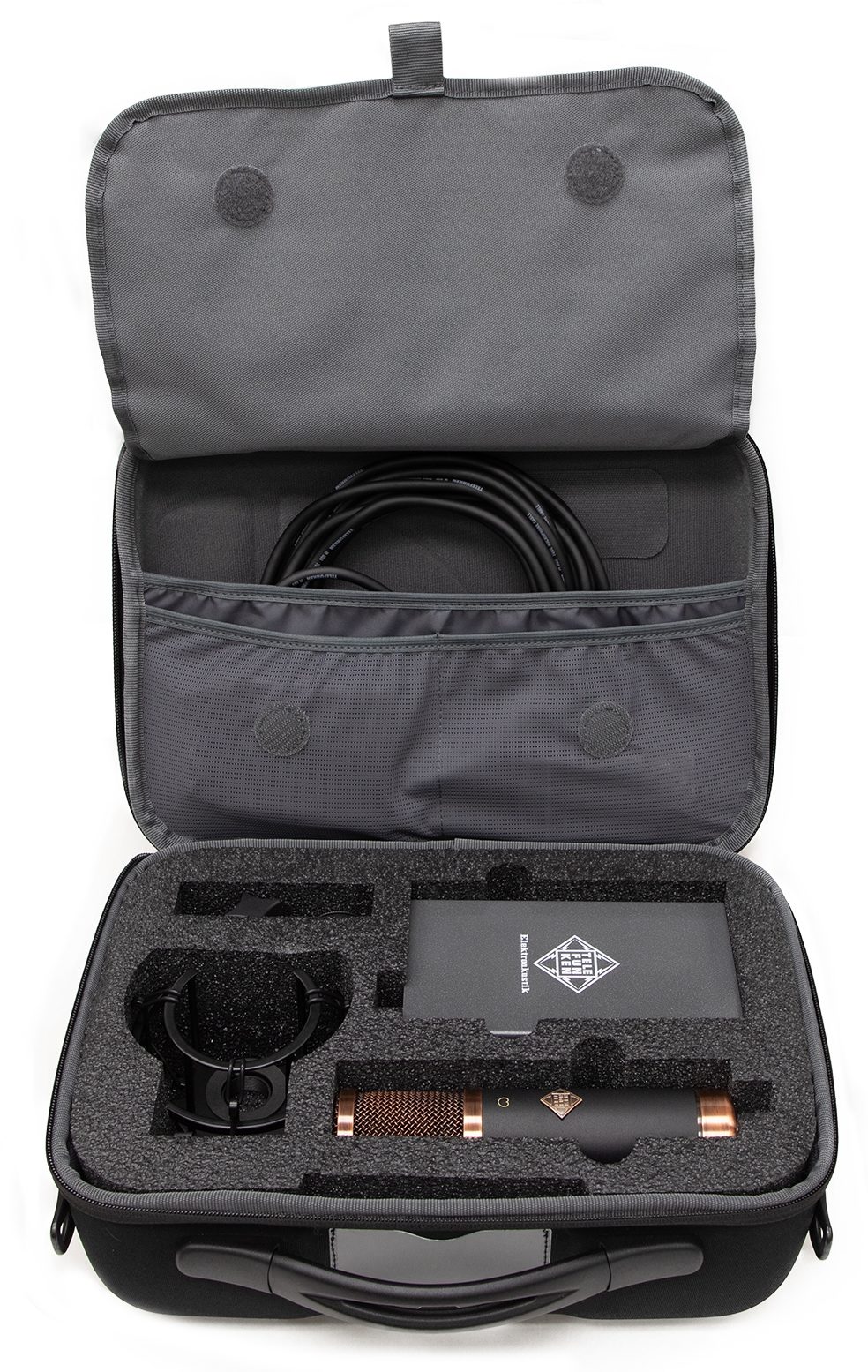

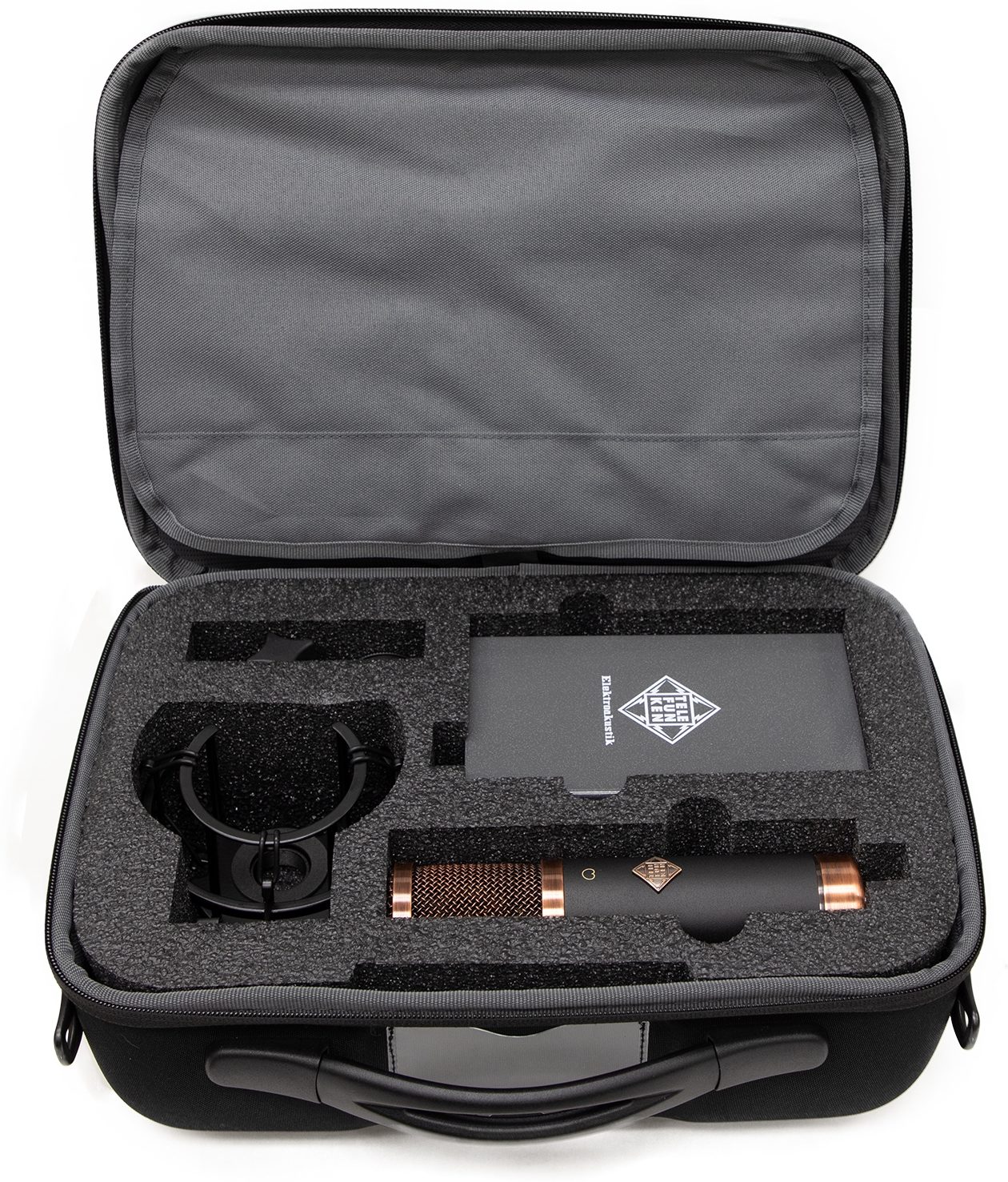

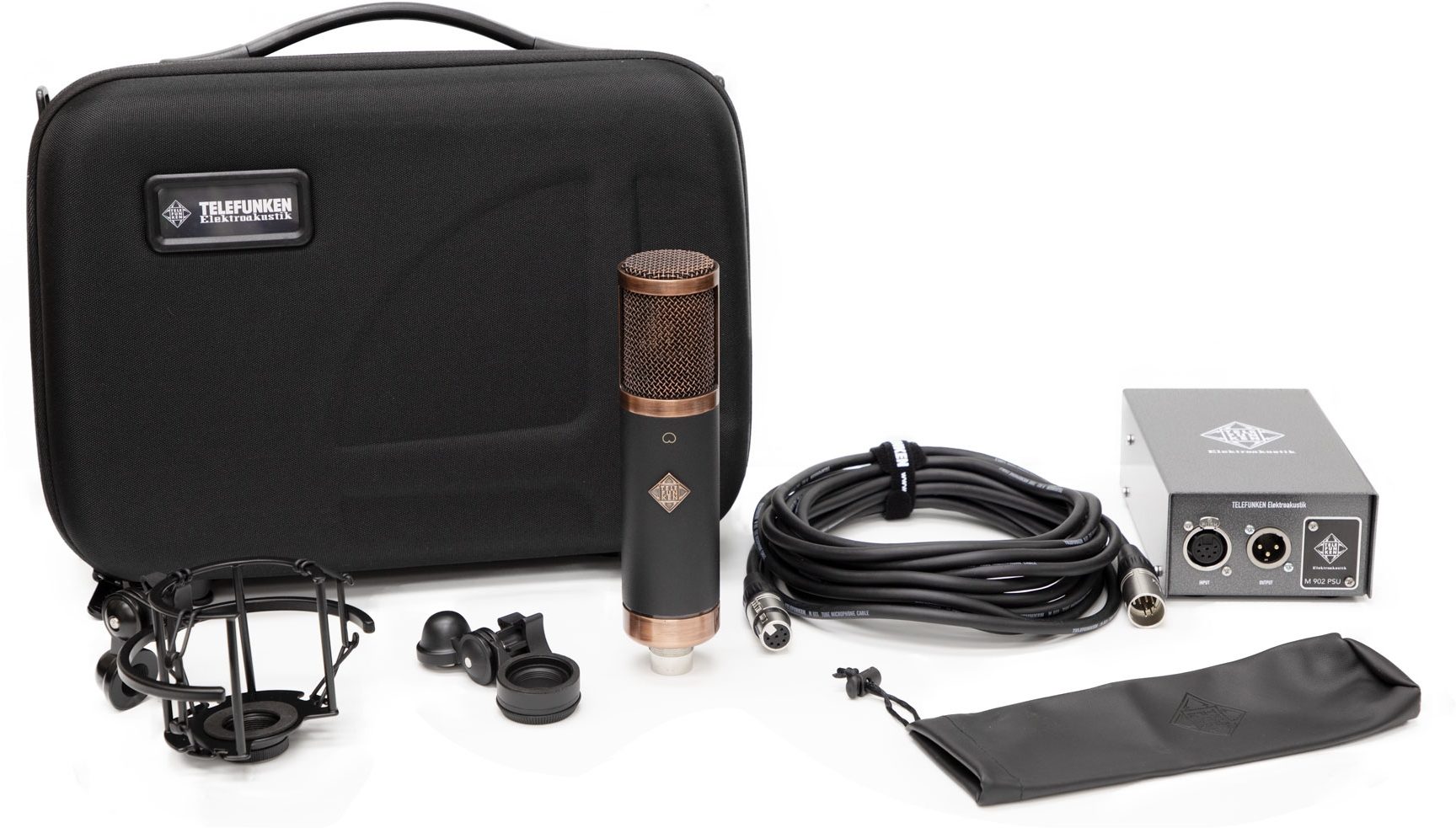

Every TF29 Copperhead microphone system comes with a fixed pattern M 902 Power Supply, M803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.
The TF29 features a new old stock American-made 5654W vacuum tube, all-brass K67-style capsule, and a premium Swedish-made Lundahl output transformer. These components create a balanced frequency response and natural tonality, making the TF29 a trusty go-to choice.
Every TF29 Copperhead microphone system comes with a fixed pattern M 902 Power Supply, M803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.
Specs
- Type: Pressure Gradient Condenser
- Capsule: TK67S - 25.4 mm Single Membrane, Center-Terminated Diaphragm
- Tube Type: 5654W (NOS)
- Transformer: Lundahl LL1935
- Polar Pattern: Cardioid
- Frequency Range: 20 Hz - 20 kHz, +/- 3 dB
- Sensitivity: 15.2 mV/Pa, +/- 1 dB
- THD @ 1 kHz at 1 Pa (Amplifier): < 0.35%
- Output Impedance: < 300 O
- Maximum SPL (for 1% THD): 130 dB
- S/N Ratio: 86.8 dbA
- Self Noise (Amplifier): 7.2 dBA
- Dimensions / Size: 200 mm L x 46 mm Dia.
- Weight: 630 g
- Current Draw from Mains: 50 mA

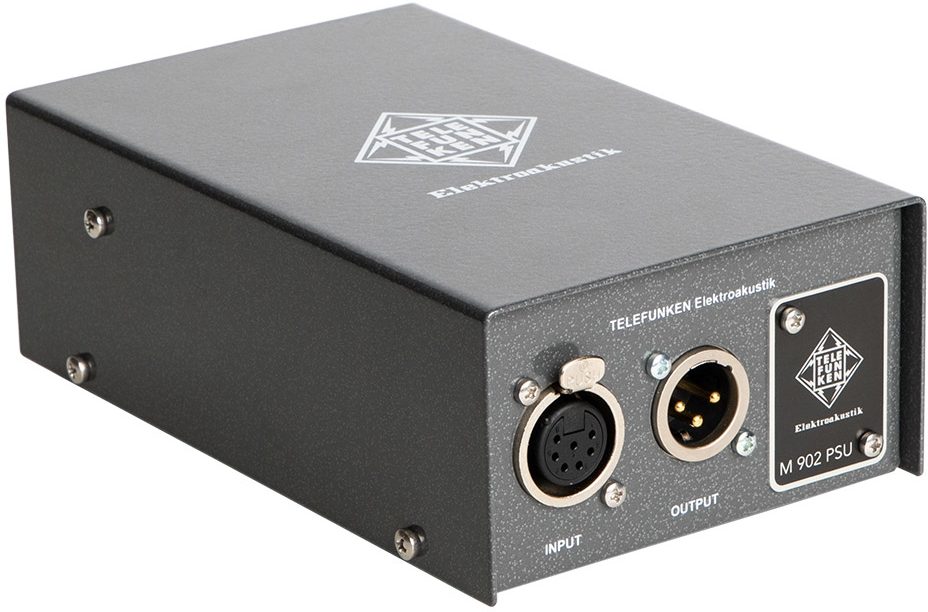

- Power Supply: M 902 PSU - 7-Pin Female XLR Input, 3-Pin Male XLR Output

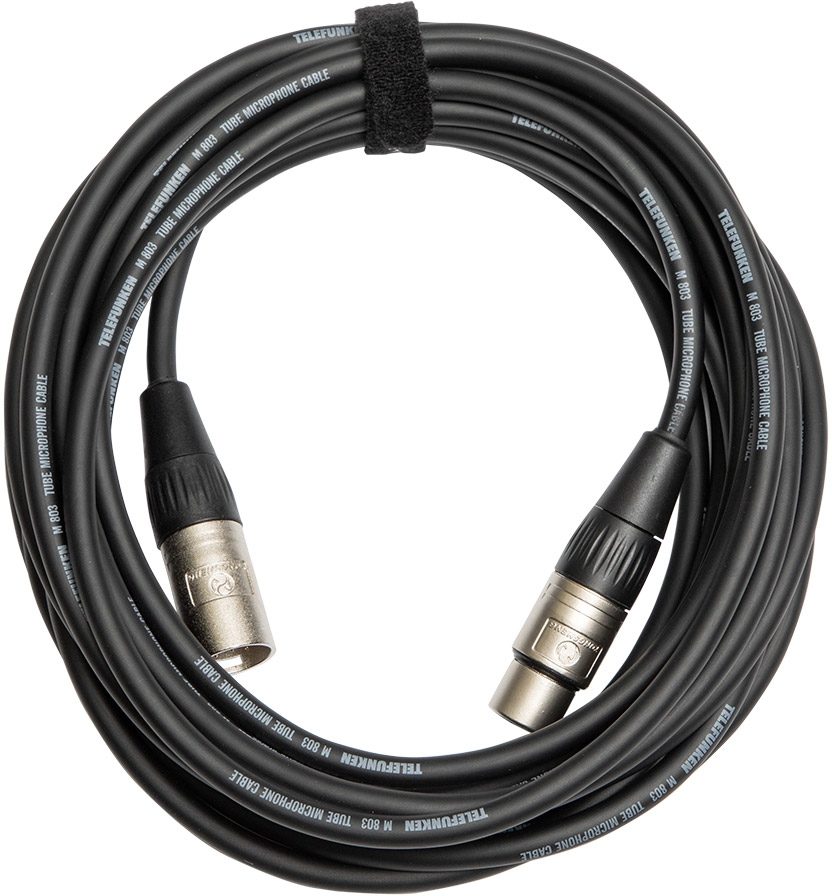

- Cable: M 803 - 7-Meter (23') Tube Mic Cable with 7-Pin XLR Connectors

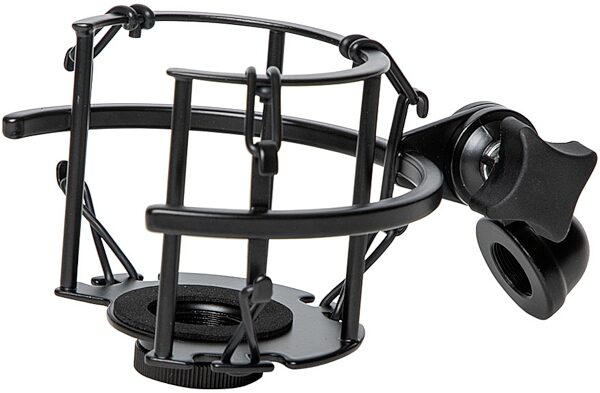

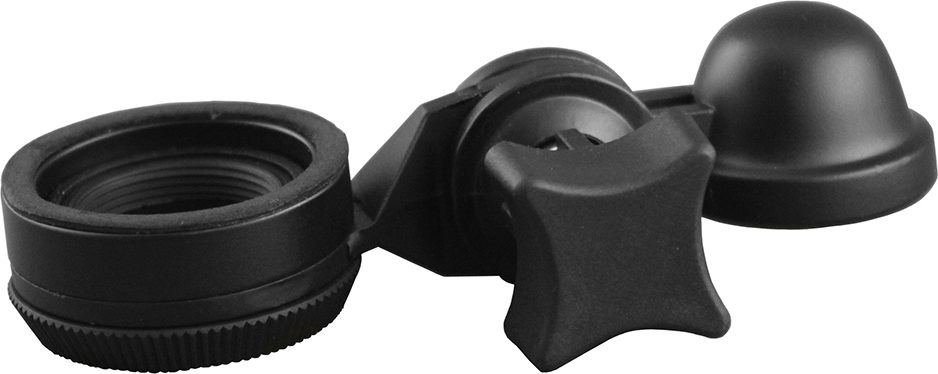

- Mount: M 703 - Shock Mount, M 782 - Stand Mount

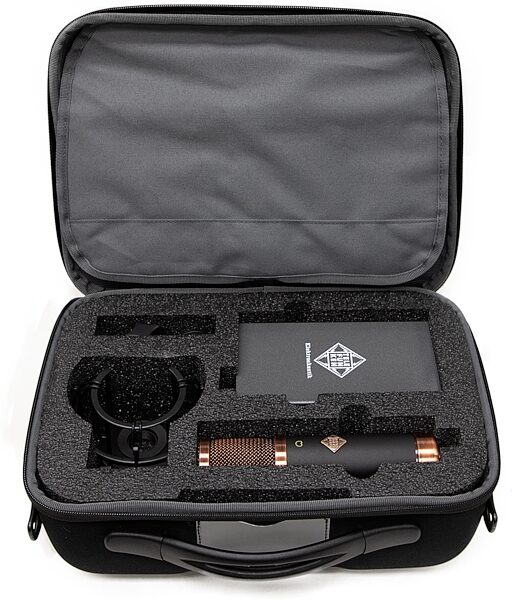

- Flight Case: ZC03 - Light-Weight Zipper Carrying Case
- Capsule: TK67S - 25.4 mm Single Membrane, Center-Terminated Diaphragm
- Tube Type: 5654W (NOS)
- Transformer: Lundahl LL1935
- Polar Pattern: Cardioid
- Frequency Range: 20 Hz - 20 kHz, +/- 3 dB
- Sensitivity: 15.2 mV/Pa, +/- 1 dB
- THD @ 1 kHz at 1 Pa (Amplifier): < 0.35%
- Output Impedance: < 300 O
- Maximum SPL (for 1% THD): 130 dB
- S/N Ratio: 86.8 dbA
- Self Noise (Amplifier): 7.2 dBA
- Dimensions / Size: 200 mm L x 46 mm Dia.
- Weight: 630 g
- Current Draw from Mains: 50 mA
- Power Supply: M 902 PSU - 7-Pin Female XLR Input, 3-Pin Male XLR Output
- Cable: M 803 - 7-Meter (23') Tube Mic Cable with 7-Pin XLR Connectors
- Mount: M 703 - Shock Mount, M 782 - Stand Mount
- Flight Case: ZC03 - Light-Weight Zipper Carrying Case
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 9.25 lbs
- Shipping Dimensions: 14 x 11 x 7 in
- Manufacturer Part Number (MPN): SYTM-087
- Warehouse Resealed
- Shipping Weight: 9.25 lbs
- Shipping Dimensions: 14 x 11 x 7 in
- Manufacturer Part Number (MPN): SYTM-087
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Web: https://www.telefunken-elektroakustik.com/contact
Web: https://www.telefunken-elektroakustik.com/contact
