TC-Helicon VoiceTone E1 Echo And Tap Delay Vocal Effects Pedal

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

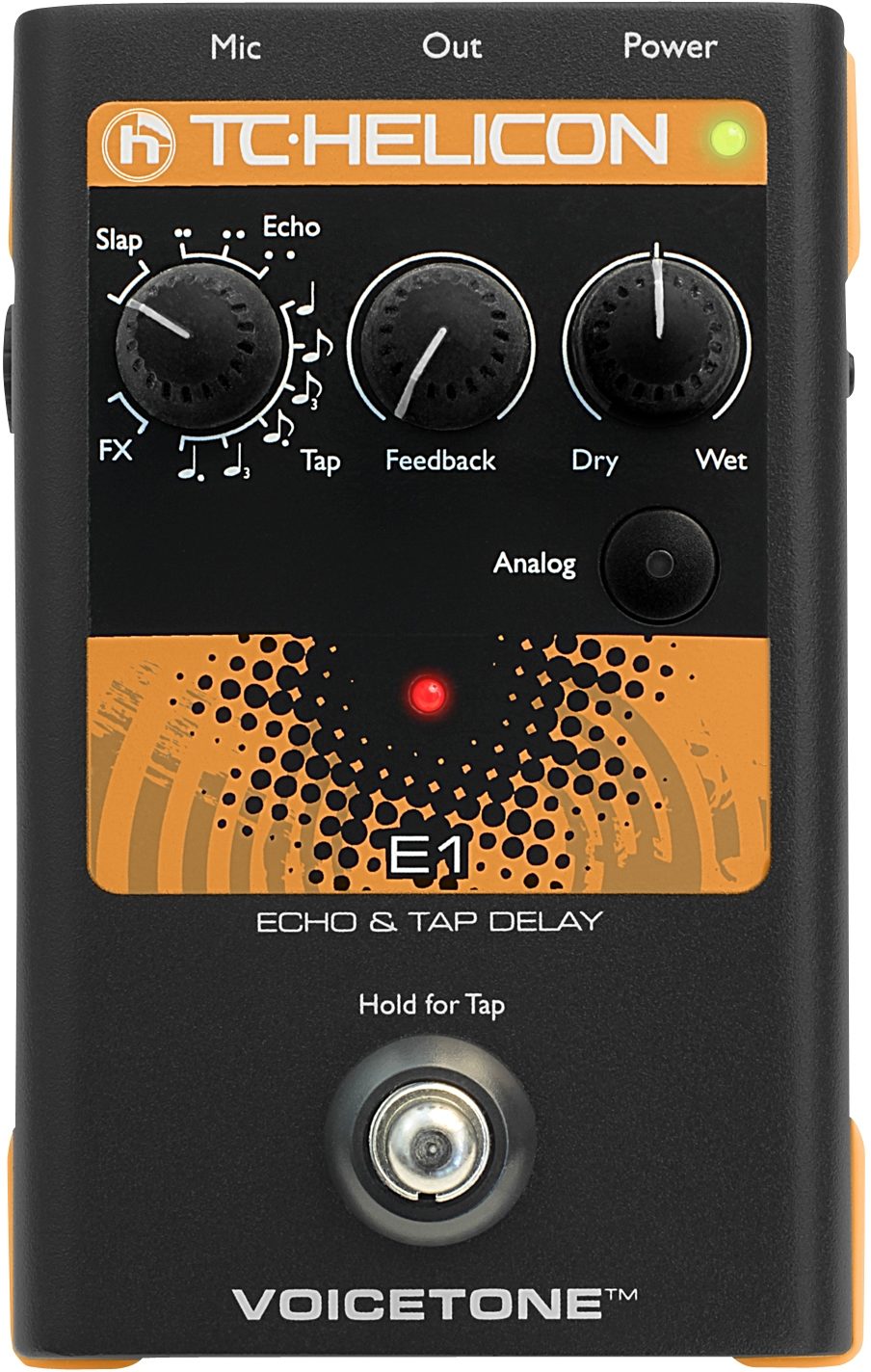

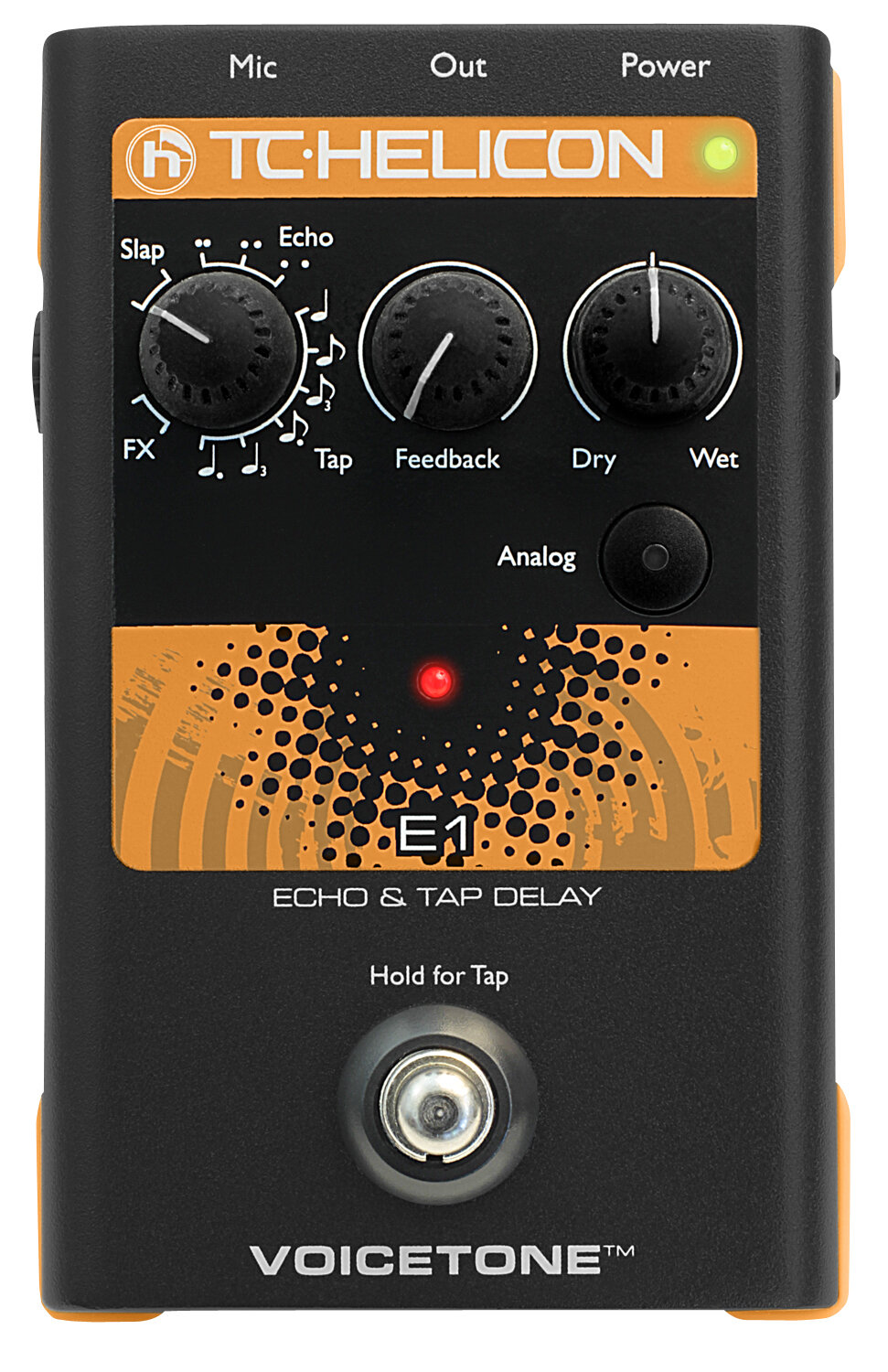

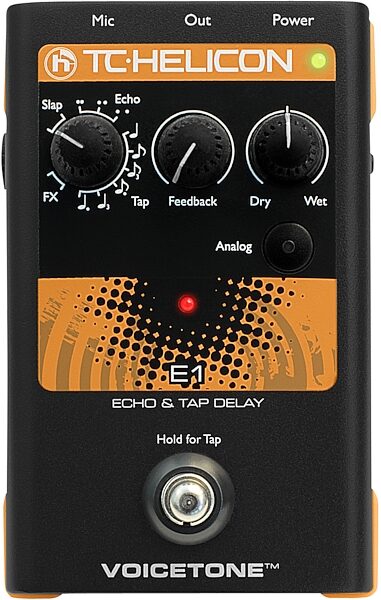

TC-Helicon VoiceTone E1 Echo And Tap Delay Vocal Effects Pedal, Main

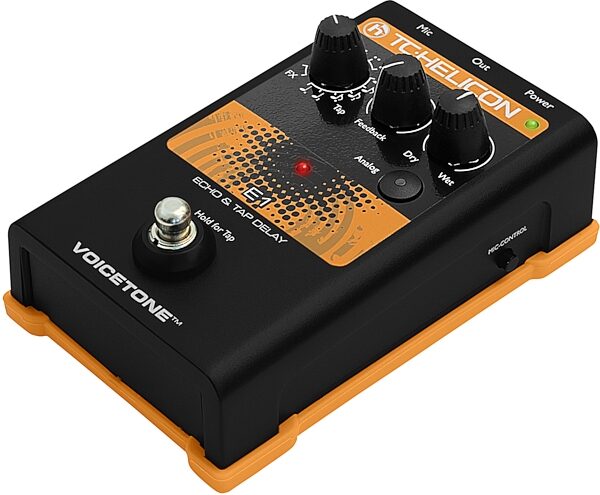

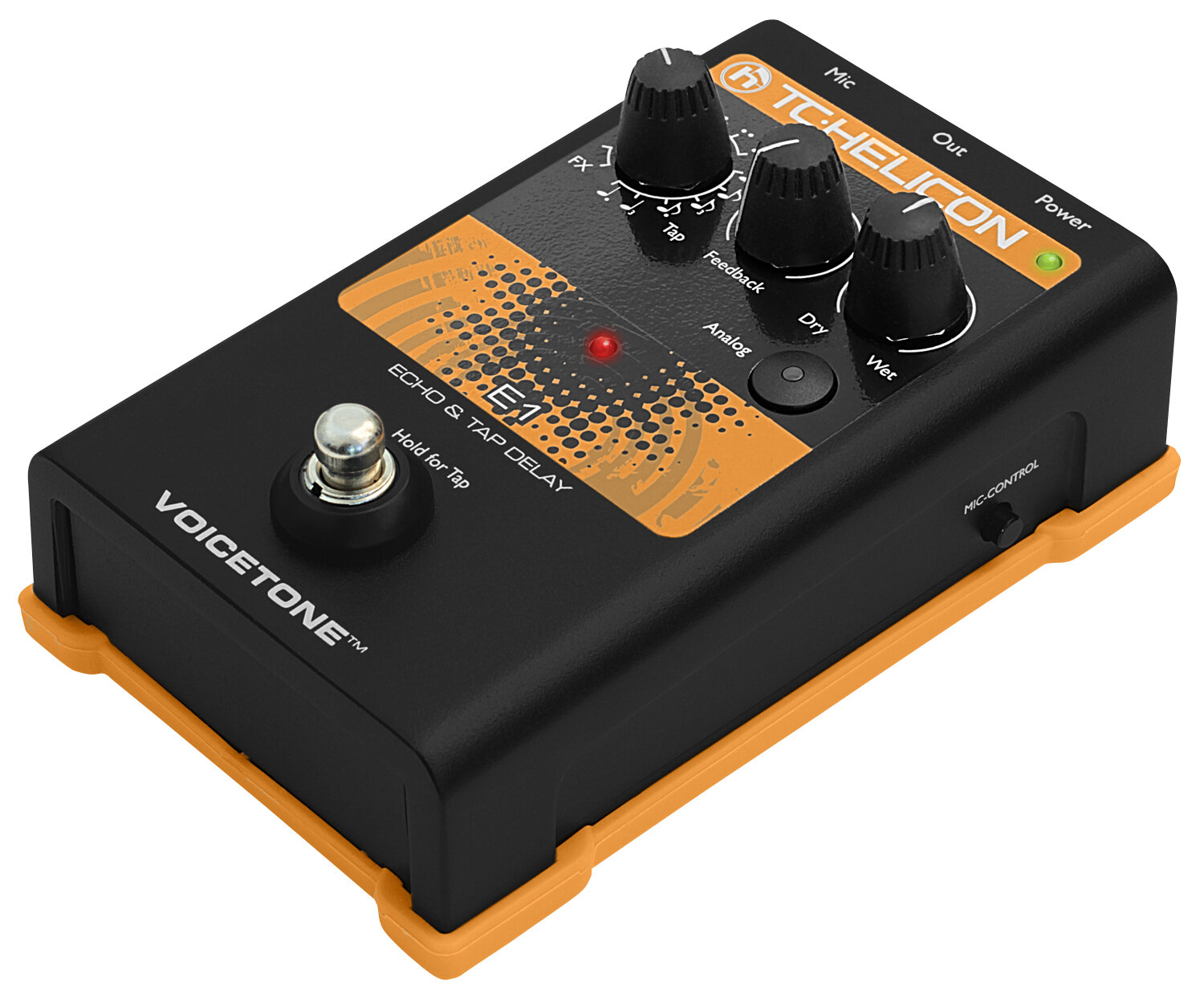

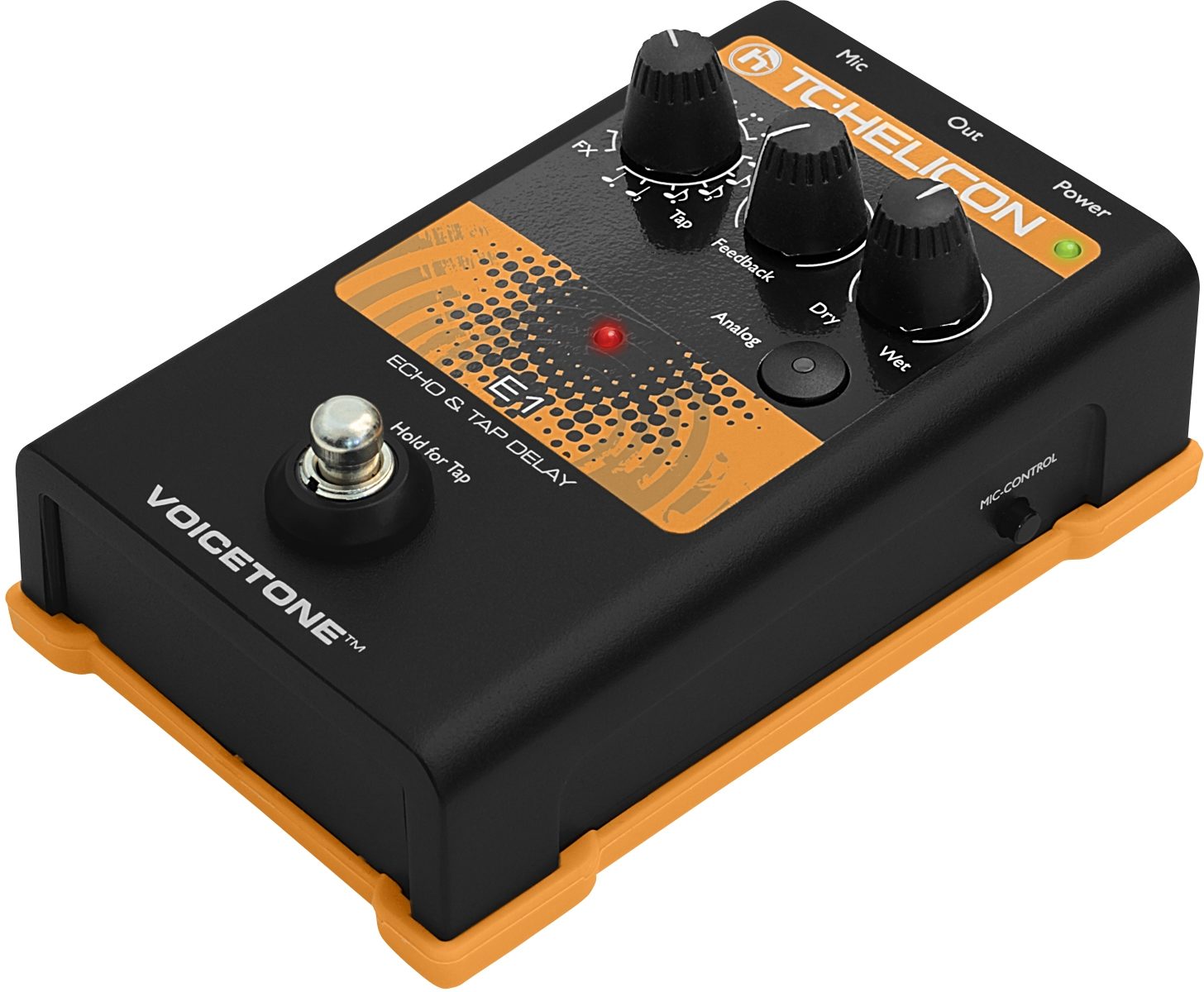

TC-Helicon VoiceTone E1 Echo And Tap Delay Vocal Effects Pedal, Angle

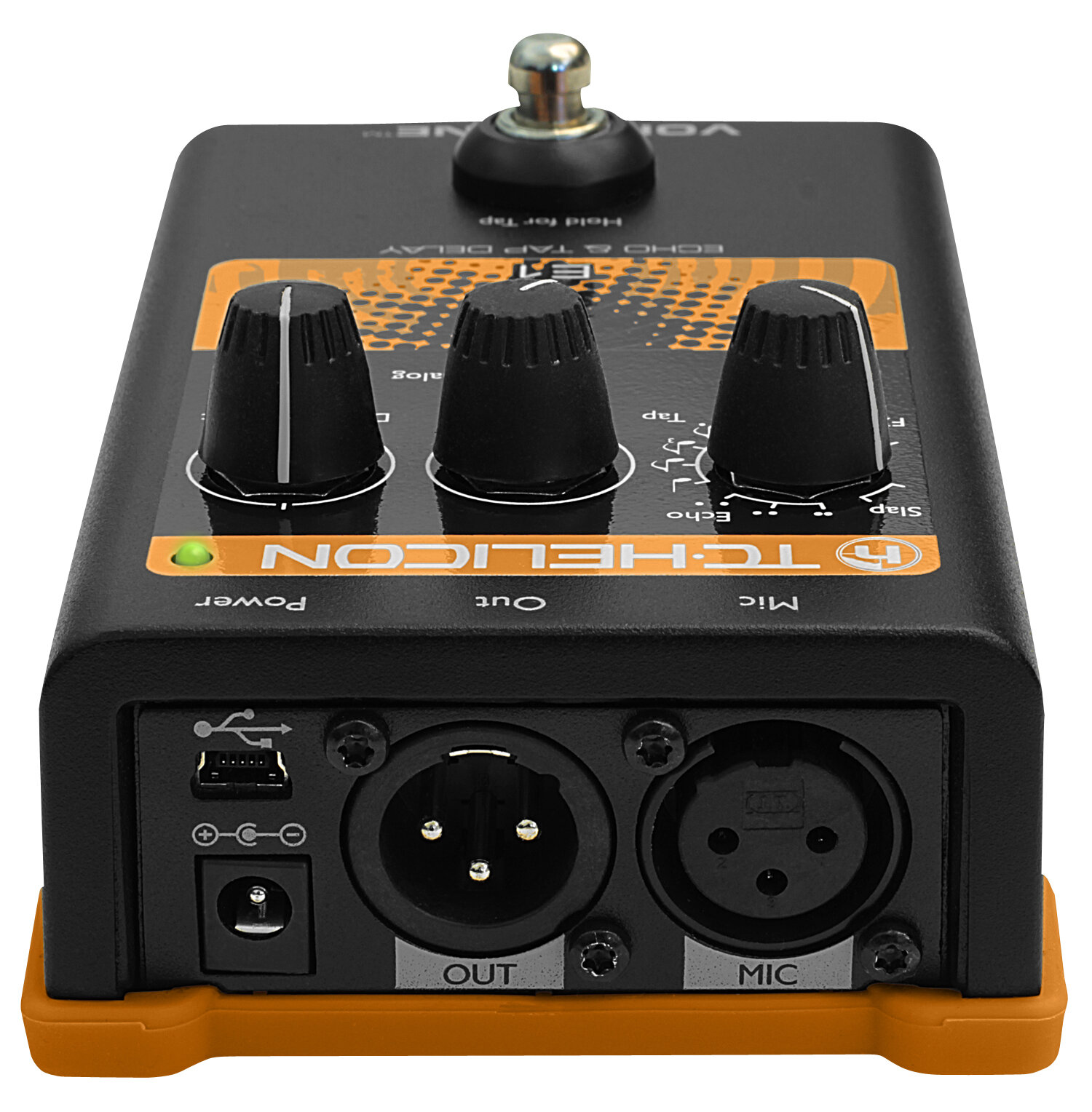

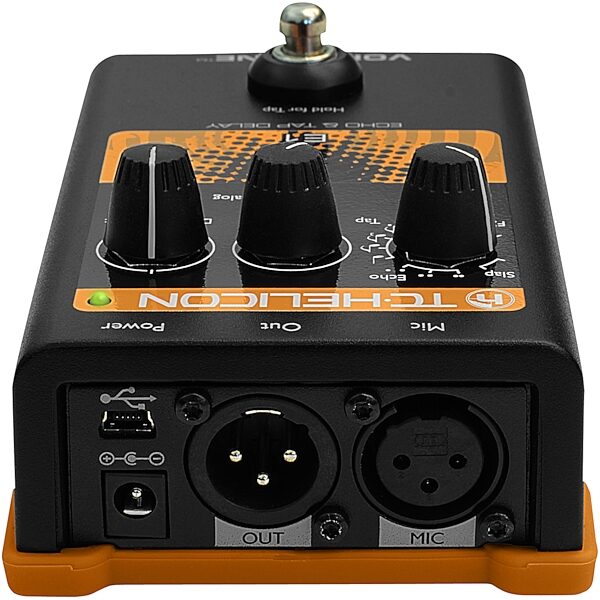

TC-Helicon VoiceTone E1 Echo And Tap Delay Vocal Effects Pedal, Back
TC-Helicon VoiceTone E1 Echo And Tap Delay Vocal Effects Pedal, Main TC-Helicon VoiceTone E1 Echo And Tap Delay Vocal Effects Pedal, Angle TC-Helicon VoiceTone E1 Echo And Tap Delay Vocal Effects Pedal, Back
zZounds Gear Experts Say...
Who says pedals are just for guitarists? Add some depth to your vocal sound with this versatile echo and delay pedal, which features 12 effect modes.

Recreate the past and forge the future the TC Helicon VoiceTone E1 offers singers the signature echo and slapback effects that evoke classic songs while putting effects control at their feet. Now, high quality, immersive echo effects for the stage are no longer just for guitarists.
- Adds a wide range of echo effects for more depth in your vocals
- Footswitch tapping can set echo times to song tempo
- High quality signal path and tough enclosure
- Can be chained to additional VoiceTone Singles
- Mic-Control offers remote on/off via TC-Helicon MP-75 microphone

12 Flavors of Echo & Delay types:

- Slap echo 1 & 2
- Tap - 1/4, 1/8, Triplet 1/8th, Dotted 1/8th, Triplet 1/4, Dotted 1/4 notes
- Echo FX 1 & 2
- Filter control (smart EQ band limiting)

Powerfully easy

From Rockabilly-style "tape slap" echo to trance-inducing long echo trails timed to your song's tempo, VoiceTone E1 can excite your vocals and your audience more than ever before. And it's so easy to use; leave it on one setting throughout your performance or change it up for different songs. When it's time to talk to your audience, clear, dry banter is just a footswitch tap away.

As simple as plugging in your mic

Gaining access to the studio quality sounds and intelligent processing of VoiceTone singles is as simple as plugging in your mic and turning the effect on. Of course, you can always change the style or the amount of effect, but you shouldn't need to unfold… read more the manual unless you're making a fire.

Strong family genes

Each VoiceTone single shares the same genes: a clean, quiet mic preamp that rivals high-end touring mixers, a die-cast metal case, rubberized no-slip base, studio quality analog to digital conversion, and the same quality processing you'd expect from the flagship vocal processors like VoiceLive 2.

Mic Control feature

The revolutionary and patent pending Mic Control circuit is built into each VoiceTone single pedal. This allows TC-Helicon's MP-75 Modern Performance Vocal microphone's thumb switch to turn your VoiceTone single's effect on and off. Picture having the freedom to kick-in your vocal effect while working the stage, not gazing at your feet. It gets really cool when you chain multiple VoiceTone singles pedals together and control each one independently or turn them all on or off in combination.

TC-Helicon gives you a great rundown of the VoiceTone E1:


Features:

- Delay Style
- Feedback
- Mix
- Analog on/off
- Footswitch on/off
- Mic Control on/off
 read less

- Construction: Two part dies cast metal, Rubberized base
- Analog Inputs:
- Connectors, balanced: Mic.: XLR, Mic Input Level @ 0 dBFS: -42dBu to +1dBu
- EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu
- Mic input SNR: >104 dB
- Analog Outputs:
- Output Impedance, Bal./Unbal.: 200/100 Ohm
- Output Full Scale: +1 dBu
- Dynamic Range: >104 dB, 20 Hz to 20 kHz
- Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz
- Control: USB for firmware and control, Mic Control using TC-Helicon MP-75
- Power Supply (Supplied): 12V .4A
- Power Consumption: 5.6W
- Safety: EMC - Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B, Safety - certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
- Operating Temperature: 32 to 122 degrees F (0 to 50 degrees C)
- Storage Temperature: -22 to 167 degrees F (-30 to 70 degrees C)
- Humidity: Max. 90 % non-condensing
- Included with VoiceTone E1:
- Region specific power supply
- USB cable
- User guide
- 1 year warranty parts and labor
- Dimensions (H x W x D): 5.4 x 3.5 x 2.3" (140 x 90 x 60 mm)
- Weight: 0.92 lb. (0.42 kg)
