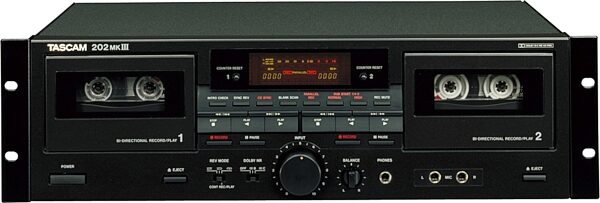

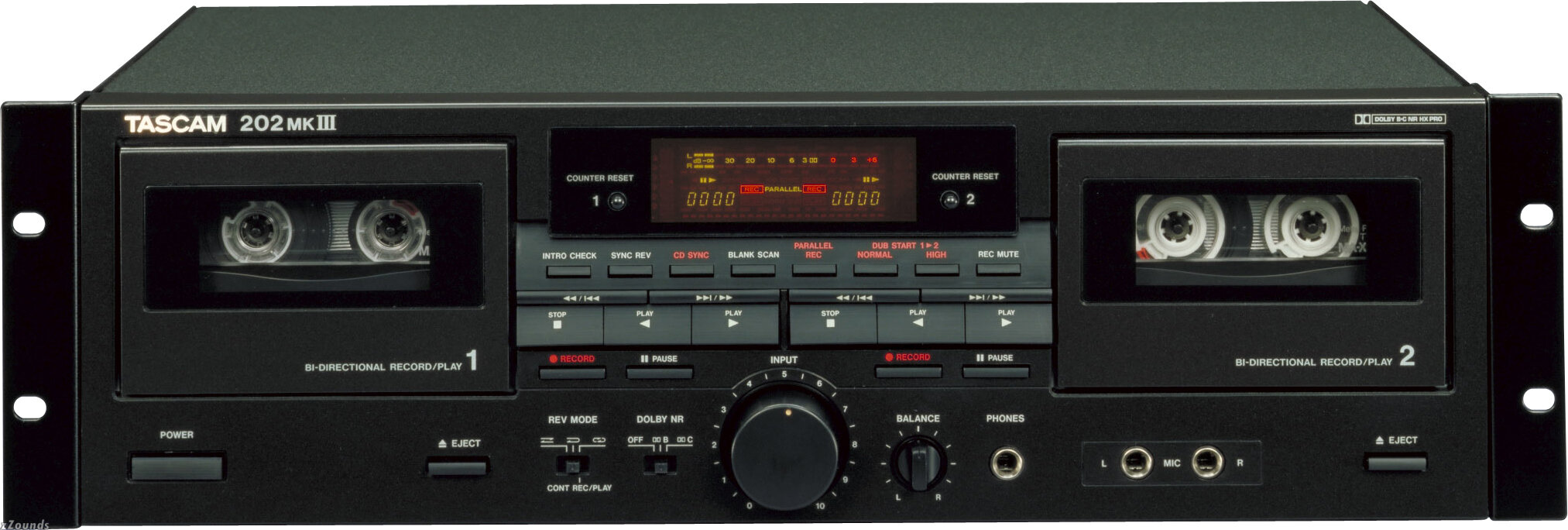

TASCAM 202MkIII Double Auto Reverse Cassette Deck
No longer available at zZounds
zZounds Gear Experts Say...
Dolby B and C noise reduction with HX Pro headroom extension. 2 motor IC logic transport control system. Can record on both sides simultaneously but you cannot operate each side as if they are 2 separate and totally independent decks.
Overview
This dual cassette deck is ideally suited for both dubbing and continuous looping playback applications. Two twin-head cassette decks in a durable rack-mount housing can be used separately or in tandem during recording and playback. Dual recording speeds, computerized program searching, and other functions make editing tapes quick and easy.
Features
Features
Specs
Track System: 4-track, 2-channel stereo
Heads:
Deck 1: 1 Erase and 1, Record/Playback
Deck 2: 1 Erase and 1, Record/Playback
Tape Speed: 4.76 cm/sec; 9.5 cm/sec (Hi-speed dubbing)
Wow Flutter: 0.08%
Frequency Response:
25 - 19,000 Hz, Metal tape
25 - 18,000 Hz, Cr02 tape
25 - 17,000 Hz, Normal tape
S/N Ratio:
59 dB (NR off, 3% THD Level, Weighted)
69 dB (Dolby B NR on, over 5 KHz)
79 dB (Dolby C NR on, over 1 KHz)
Fast Winding Time: Approximately 110 sec for C-60
Inputs:
Line: 97 mV, 50kW
MIC: 0.38 mV, 200W
Outputs: 0.52V for load impedance of 50kW or more
Headphones: 1mW, 8W
Power Consumption: 15W
Dimensions (W x H x D): 435 x 144 x 284mm
Weight: 4.8 kg
Standard Accessories: Input-Output connection cords
Note: Specifications determined using metal tape except as noted.
Heads:
Deck 1: 1 Erase and 1, Record/Playback
Deck 2: 1 Erase and 1, Record/Playback
Tape Speed: 4.76 cm/sec; 9.5 cm/sec (Hi-speed dubbing)
Wow Flutter: 0.08%
Frequency Response:
25 - 19,000 Hz, Metal tape
25 - 18,000 Hz, Cr02 tape
25 - 17,000 Hz, Normal tape
S/N Ratio:
59 dB (NR off, 3% THD Level, Weighted)
69 dB (Dolby B NR on, over 5 KHz)
79 dB (Dolby C NR on, over 1 KHz)
Fast Winding Time: Approximately 110 sec for C-60
Inputs:
Line: 97 mV, 50kW
MIC: 0.38 mV, 200W
Outputs: 0.52V for load impedance of 50kW or more
Headphones: 1mW, 8W
Power Consumption: 15W
Dimensions (W x H x D): 435 x 144 x 284mm
Weight: 4.8 kg
Standard Accessories: Input-Output connection cords
Note: Specifications determined using metal tape except as noted.
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 323-726-0303
Web: https://tascam.com/us/support/contact
Phone: 323-726-0303
Web: https://tascam.com/us/support/contact
No longer available at zZounds
In most cases, a product is unavailable because it has been discontinued by the manufacturer
