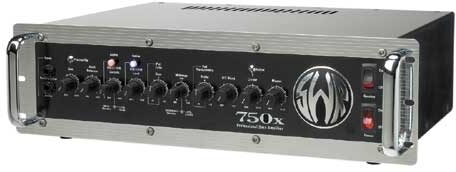

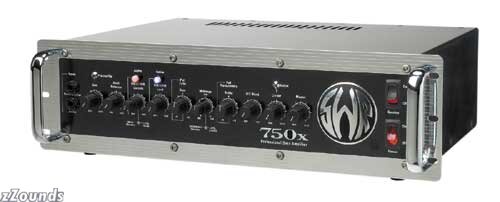

SWR 750X Pro Series Bass Amplifier Head (750 Watts)

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
SWR 750X Pro Series Bass Amplifier Head (750 Watts), Main
SWR 750X Pro Series Bass Amplifier Head (750 Watts), Main
SWR 750X Pro Series Bass Amplifier Head (750 Watts), Main
SWR 750X Pro Series Bass Amplifier Head (750 Watts), Main SWR 750X Pro Series Bass Amplifier Head (750 Watts), Main SWR 750X Pro Series Bass Amplifier Head (750 Watts), Main
Two built-in effects circuits, XLR outputs, and an extremely responsive and crystal-clear sound make this the perfect amp for playing live or direct.

Crushing volume, 2 killer effects, and pure SWR tone. The SWR 750x is the first upgrade to the highest-powered mono professional bass amplifier, the Bass 750. In addition to new chassis graphics--featuring the SWR logo badge in classic chrome--the 750x has inherited 2 popular effects circuits from the SWR Mo' Bass: SubWave (which produces a clean, pure and accurate octave effect) and Overdrive (which affects the pre-amp's 12AX7 tube to create overdrive that can be as subtle as a classic "flip top" or as nasty as a half stack).

Front Panel Features
Dual independent input jacks compatible for both active and passive instruments

Ultra-high-polished aluminum front panel

Gain control with LED peak clipping indicator

Variable limiter

Overdrive (with Drive and Level controls)

Overdrive illuminated On/Off switch

Subwave (with Level control)

Subwave illuminated On/Off switch

Active Bass Control with pull Turbo Function

Active Treble Control with pull Transparency Function

Variable mid-range EQ

Exclusive Aural Enhancer circuitry

Effects Blend control

Master Volume control

Rack mountable

Rack handles

Speaker On/Off switch

Power On/Off switch

Aluminum chassis

Rear Panel Features
Sidechain effects loop

Stereo headphone jack

Balanced XLR output with pad

XLR Mode switch (Direct, Line, or Direct + EFX)

Tuner send

Preamp output

Overdrive footswitch jack

Subwave footswitch jack

Two 1/4-inch speaker output jacks

Two Speakon output jacks

Speaker fuse: 3AG, 10 Amp, Fast… read more Blo

Line Fuse:
3AG, 10 Amp, Slow Blo (100 & 120 volt units)
3AG, 5 Amp, Slow Blo (240 volt units)

A/C line receptacle

Internal Features
All tube preamp gain stages

Cooling fan

(1) 12AX7 preamp tube read less

Power Bandwidth (Frequency Response): (@ 850 watts RMS) -3dB @ 20 Hz and 40 kHz

Dimensions (W x H x D): 19 x 5.38 x 15 in. (3 rack spaces)

Weight: 31 lbs.

Power Output
850 Watts @ 2.6 ohms
750 Watts @ 4 ohms
450 Watts @ 8 ohms
(minimum load = 2.6 ohms)

For support or warranty questions, please contact the manufacturer:
Phone: 480-596-7195
Owner's Manual

Reviewers gave this product an overall rating of 5 out of 5 stars. (41 ratings)
Submitted April 20, 2004 by a customer from optonline.net

"Take it from an ex professional / current weelkend warrior"

Overall: 5 out of 5 stars
(see rating details)
I've had alot of pro setups. I'm coming off a Yamaha pre-amp / BGW power amp rig. The SWR sounds better, is easier on my speakers and is about 15 lbs. lighter than my previous rig. I've been using SWR products for many years and have been very happy wih them. My old SWR 4 x 10 and current SWR 1 x 18 (boh goliath series) were used with 2 - 2000 watt RMS Hill amps and they handled it beautifully. I don't play gigs that big any more. I expect to keep this head for many years. If this unit was stolen I'd be crushed as it will sone be irreplaceble. I find it hard to believe that Fender won't mess it up somehow.

Sound
Extremely clear, very responsive, lots of depth. Very nice for recording direct. I use it with a Hartke pro 2100 (I think that's the model #, it's the extra large cabinet) 4 x 10 and an SWR (goliath series) 1 x 18. Alot of times I just use one of these cabinets. I also use it as a direct box / pre-amp for recording. Very nice compressor. I cover alot of styles from 1940's to Zappa, fusion, R&B, Soft/hard rock, Grunge, Reggae, Rap, etc.

Features
Just about all the control you'd ever need. It comes with a footswitch for those rare times when you need the effects.

Quality
The SWR made units are excellent. They are now owned by Fender so there may be some design changes afoot. this is a major point to consider.

Value
Money means nothing when you buy… read more equipment of this caliber. It is the sound and reliability that counts.

Manufacturer Support
Happy to say I haven't needed service. This amp gets heavy use a few times per month.

The Wow Factor
Who cares!! I'm using it not looking at it.

Musical Style:
I prefer high energy rock , funk, fusion. read less
