SM Pro Audio TC01 Single Channel Tube Preamp

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

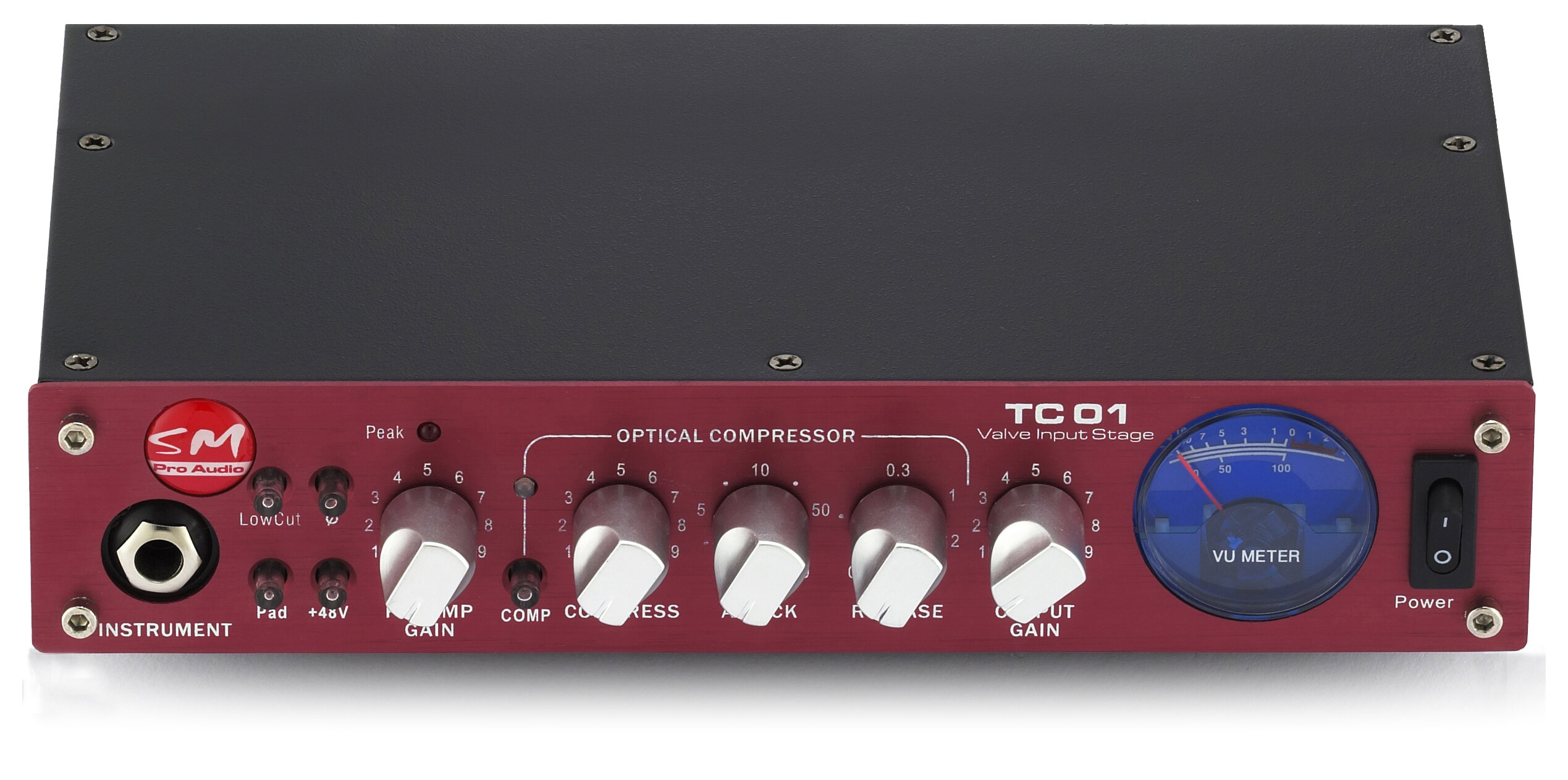

SM Pro Audio TC01 Single Channel Tube Preamp, Main
SM Pro Audio TC01 Single Channel Tube Preamp, Angle

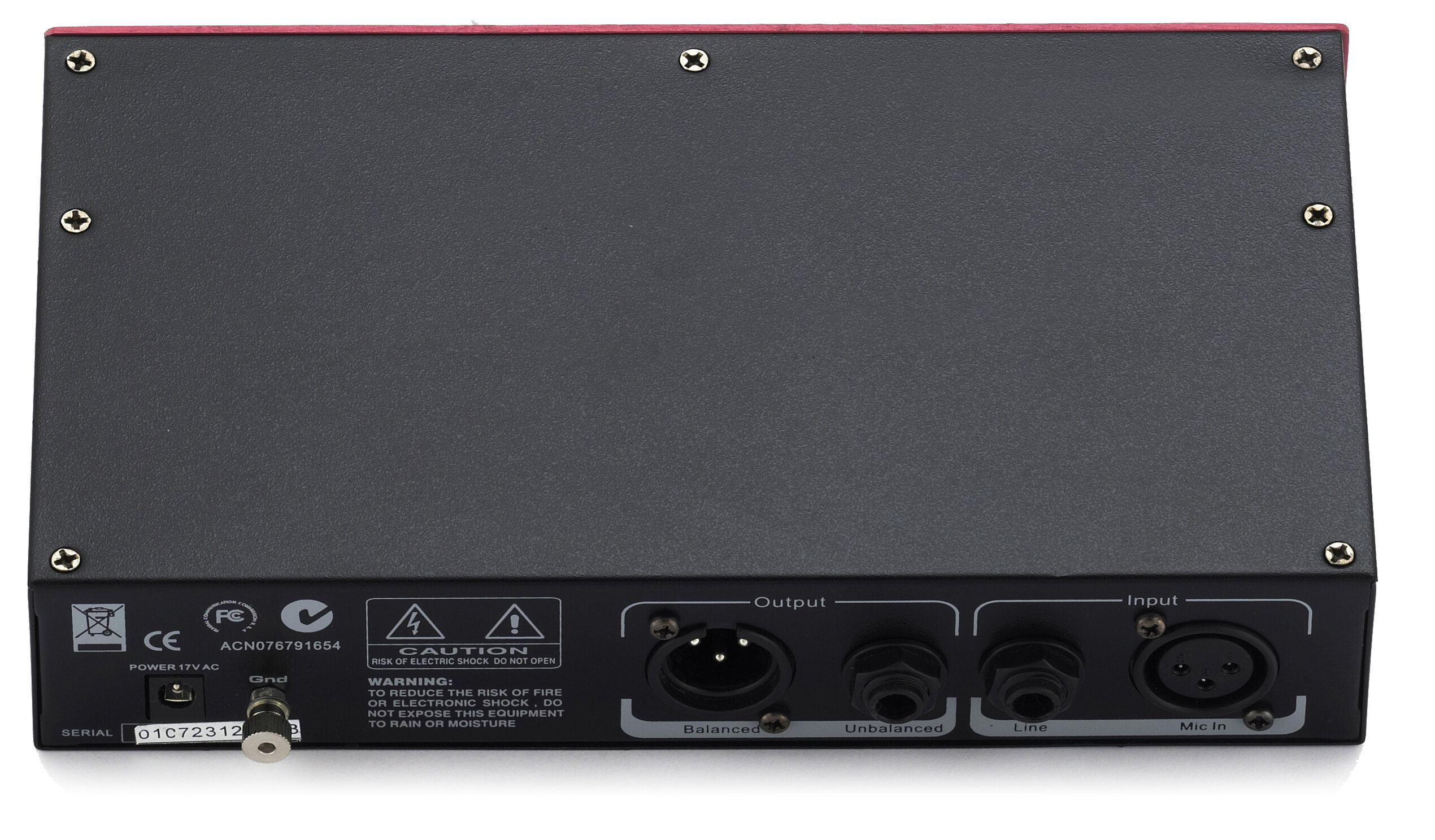

SM Pro Audio TC01 Single Channel Tube Preamp, Rear
SM Pro Audio TC01 Single Channel Tube Preamp, Main SM Pro Audio TC01 Single Channel Tube Preamp, Angle SM Pro Audio TC01 Single Channel Tube Preamp, Rear
Single-channel CLASS A tube preamplifier featuring selectable phantom power, phase reversal, adjustable -20dB PAD, and an in-line optical compressor.

The TC01 is a single-channel CLASS A tube preamplifier featuring selectable phantom power, phase reversal, adjustable -20dB PAD, and an in-line optical compressor. SM Pro Audio's TC-series is the direct result of our continued development of the TB-series!

Features
- Hand tested 12AX7 Tube

- Saturation: 10% @ 30 dB

- CLASS A Transformless high voltage signal path

- Input impedance: XLR: 5 kOhm, 6.3 mm of handle: 1 mega ohm

- Switchable Phantom Power

- Output impedance: XLR: 51 ohms, 6.3 mm of handle: 51 ohms

- Switchable Phase Reversal

- Level display: Volume meter -20 dBu to +3 dBu

- Adjustable optical compressor

- 110 V - 220 V external power pack

- Input gain control

- Size: 9.5 in.

- Switchable -20 dB Pad

- Housing: Metal

- THD + noise (unweighted): 0.05%

For support or warranty questions, please contact the manufacturer:
Phone: 800-343-0353

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
