Sennheiser XSW-2 Ci1 Wireless Instrument System
Get a guitar/bass wireless system you can rely on! Sennheiser's XSW 2 Ci1 set includes a cable, bodypack transmitter, and rugged metal-housed XS 2 receiver.
$399.00
- 8 x$49.88
- No Credit Check6 x$66.50
- No Credit Check4 x$99.75
Sennheiser XSW 72 Wireless Guitar/Bass Instrument Set
No longer available at zZounds

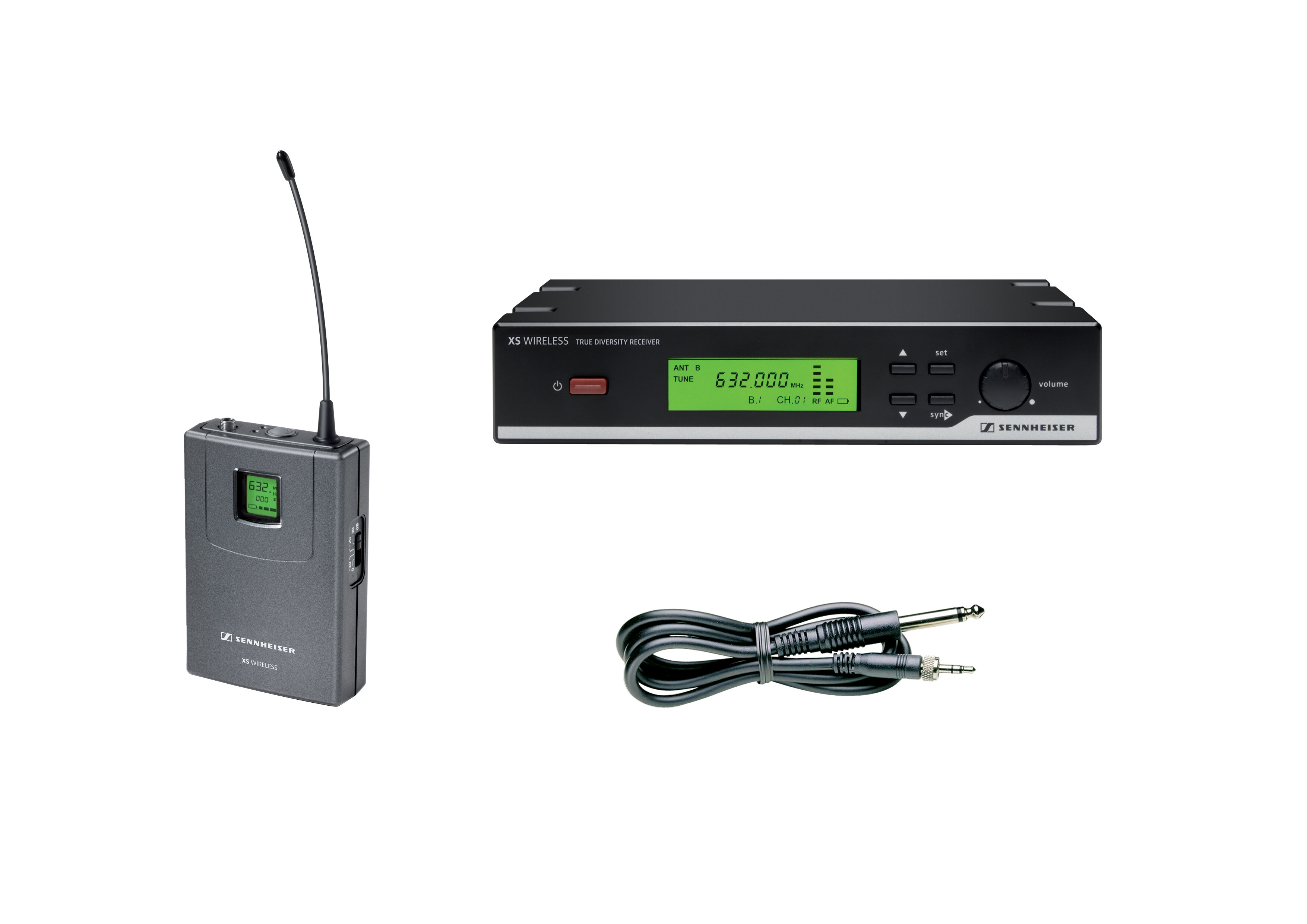

This Sennheiser wireless set includes a reliable true-diversity receiver, low-profile bodypack transmitter, and a 1/4" instrument cable for guitar or bass.
Overview
Rugged, reliable and easy-to-use, the Sennheiser XSW72 Wireless Instrument Set delivers renowned Sennheiser sound to small venues or houses of worship. A compact bodypack transmitter with instrument cable preserves your tone with up to 10 hours of trouble-free operation. An all-metal True Diversity receiver offers 960 tunable frequencies, with powerful scan and sync functions that allows you to plug and play!
- 24 MHz switching bandwidth
- 960 available frequencies, tunable in 25 kHz steps
- 8 frequency banks containing 12 coordinated channels each
- Powerful scan function identifies available channels within a bank
- Component synchronization at a distance with "Remote Channel" sync
- Up to 10 hours of operation with (2) AA batteries
- Up to 250 feet of transmission range
- Illuminated audio mute button on transmitters
- Balanced (XLR) and unbalanced (1/4") outputs
- 2 frequency ranges: A (548-572 MHz) and B (614-638 MHz)
- (10 EM 10 true diversity receiver
- (1) Cl 1 instrument cable (1/4")
- (1) NT 2-3 power supply
- (2) rod antennas
- (2) AA batteries
- (1) Pouch
- (1) Instruction manual
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low… read more power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. read less
Features:
- True Diversity reception for worry-free operation- 24 MHz switching bandwidth
- 960 available frequencies, tunable in 25 kHz steps
- 8 frequency banks containing 12 coordinated channels each
- Powerful scan function identifies available channels within a bank
- Component synchronization at a distance with "Remote Channel" sync
- Up to 10 hours of operation with (2) AA batteries
- Up to 250 feet of transmission range
- Illuminated audio mute button on transmitters
- Balanced (XLR) and unbalanced (1/4") outputs
- 2 frequency ranges: A (548-572 MHz) and B (614-638 MHz)
Package Includes:
- (1) SK 20 bodypack transmitter- (10 EM 10 true diversity receiver
- (1) Cl 1 instrument cable (1/4")
- (1) NT 2-3 power supply
- (2) rod antennas
- (2) AA batteries
- (1) Pouch
- (1) Instruction manual
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low… read more power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. read less
Specs
Modulation: Wideband FM
Frequency range: A: 548-572 MHz
Switching bandwidth: 24 MHz
Frequencies: 960, tunable in 25 kHz steps
Frequency presets: 8 frequency banks, each with 12 coordinated factory-preset channels
Signal-to-noise ratio: = 103 dBa
Total harmonic distortion (THD) : = 1%
Temperature range: 32 degrees F to 104 degrees F (0 degrees C to +40 degrees C)
Sensitivity (at peak deviation) : < 3 microvolt at 52 dBarms S/N
Adjacent channel rejection: = 60 dB
Intermodulation rejection: = 50 dB
Blocking: = 65 dB
AF frequency response: 60 Hz - 16 kHz
Pilot tone: 32.768 kHz
Antenna input: 2 BNC connectors, 50 Ohms
AF output voltage (at peak dev., 1 kHz AF) : XLR (balanced): +14 dBu; 1/4" (unbalanced): +8 dBu
Power supply: 12 VDC nom. / 300 mA
Dimensions: 7.9 x 1.7 x 5.0 in. (200 x 42 x 127 mm)
Weight: 1.6 lbs. (730 g)
FCC ID: DMOXSWEM (for 2.4 GHz synchronization link)
AF Frequency response: Line: 60 Hz-16 kHz, Mic: 100 Hz-16 kHz
AF Input: 3.5 mm jack
Power Supply: (2) AA batteries, 1.5V
Operating time: Approx. 10 hours
Dimensions: 2.6 x 3.8 x 0.9 in.
Weight: 3.4 oz.
Frequency range: A: 548-572 MHz
Switching bandwidth: 24 MHz
Frequencies: 960, tunable in 25 kHz steps
Frequency presets: 8 frequency banks, each with 12 coordinated factory-preset channels
Signal-to-noise ratio: = 103 dBa
Total harmonic distortion (THD) : = 1%
Temperature range: 32 degrees F to 104 degrees F (0 degrees C to +40 degrees C)
EM 10 Receiver:
Receiver principle: True DiversitySensitivity (at peak deviation) : < 3 microvolt at 52 dBarms S/N
Adjacent channel rejection: = 60 dB
Intermodulation rejection: = 50 dB
Blocking: = 65 dB
AF frequency response: 60 Hz - 16 kHz
Pilot tone: 32.768 kHz
Antenna input: 2 BNC connectors, 50 Ohms
AF output voltage (at peak dev., 1 kHz AF) : XLR (balanced): +14 dBu; 1/4" (unbalanced): +8 dBu
Power supply: 12 VDC nom. / 300 mA
Dimensions: 7.9 x 1.7 x 5.0 in. (200 x 42 x 127 mm)
Weight: 1.6 lbs. (730 g)
FCC ID: DMOXSWEM (for 2.4 GHz synchronization link)
SK20 Bodypack Transmitter:
RF Output Power: 10mWAF Frequency response: Line: 60 Hz-16 kHz, Mic: 100 Hz-16 kHz
AF Input: 3.5 mm jack
Power Supply: (2) AA batteries, 1.5V
Operating time: Approx. 10 hours
Dimensions: 2.6 x 3.8 x 0.9 in.
Weight: 3.4 oz.
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 877-736-6434
Email: support@sennheiser.com
Web: https://en-us.sennheiser.com/service-support
Phone: 877-736-6434
Email: support@sennheiser.com
Web: https://en-us.sennheiser.com/service-support
Reviews
Reviewers gave this product an overall rating of 4.5 out of 5 stars.
(2 ratings)
Submitted September 25, 2014 by Tim McCracken in Ocala, FL
"XSW72"
Verified Customer
zZounds has verified that this reviewer made a purchase from us.
This review has been selected by our experts as particularly helpful.
Sold my line 6 which was an absolute nightmare with dropouts and bad cord replacements. Put the Sennheiser in my rack and it's been heaven. No dropouts even when they drove me around the crowd in an ATV! Highly recommend this unit, can't beat it for the price.
Sound
No tone loss or dropouts and I'm picky about tone and jump all over the place during shows
Features
Love the sync feature, takes 5 seconds to set and never worry about interference
Ease of Use
Took a few tries to get it right but not rocket science
Quality
Solid construction, transmitter pack battery opening seems wimpy but okay so far
Value
For the money nothing touches it
Musical Background:
been playing for decades, pro musician 200 plus shows a year
Musical Style:
Rock blues country just about everything
4 of 4 people (100%) people found this review helpful. Did you?
