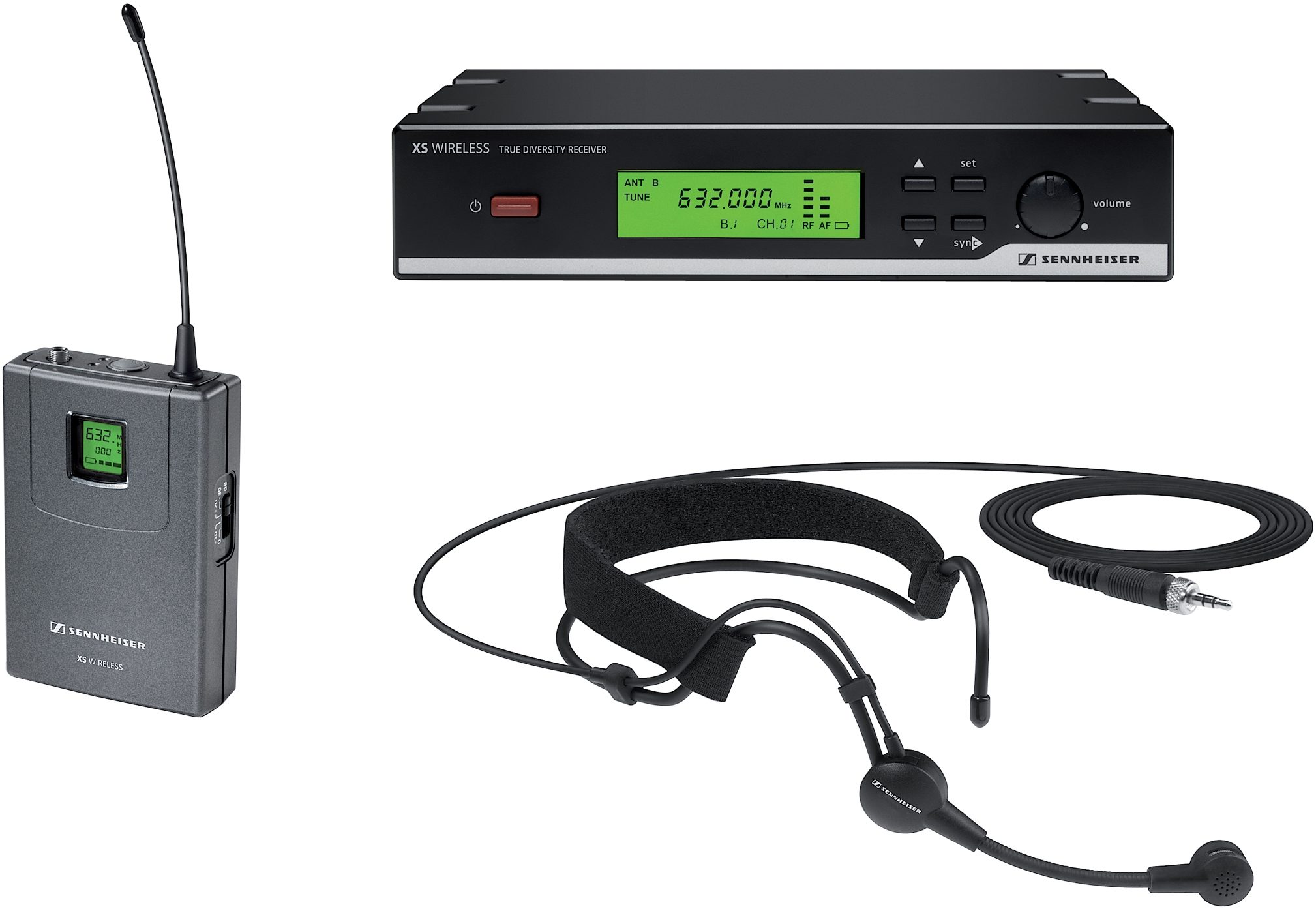

Sennheiser XSW 52 Wireless Headset Microphone Set
No longer available at zZounds
Bring your presentation to life with a hands-free, wireless headset microphone. The Sennheiser XSW 52 set gives you freedom of movement and a 250-foot range.
Overview
The Sennheiser XS Wireless Headset Microphone Set gives you absolute freedom of movement for a vivid and impressive performance. The professional ME 3 headworn microphone provides crystal-clear sound even in noisy surroundings.
- 24 MHz switching bandwidth
- 960 available frequencies, tunable in 25 kHz steps
- 8 frequency banks containing 12 coordinated channels each
- Powerful scan function identifies available channels within a bank
- Component synchronization at a distance with "Remote Channel" sync
- Up to 10 hours of operation with (2) AA batteries
- Up to 250 feet of transmission range
- Illuminated audio mute button on transmitters
- Balanced (XLR) and unbalanced (1/4") outputs
- 2 frequency ranges: A (548-572 MHz) and B (614-638 MHz)
- (1) EM 10 true diversity receiver
- (1) ME 3 cardioid headset mic
- (1) NT 2-3 power supply
- (2) rod antennas
- (2) AA batteries
- (1) Pouch<
- (1) Instruction manual
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
Features:
- True Diversity reception for worry-free operation- 24 MHz switching bandwidth
- 960 available frequencies, tunable in 25 kHz steps
- 8 frequency banks containing 12 coordinated channels each
- Powerful scan function identifies available channels within a bank
- Component synchronization at a distance with "Remote Channel" sync
- Up to 10 hours of operation with (2) AA batteries
- Up to 250 feet of transmission range
- Illuminated audio mute button on transmitters
- Balanced (XLR) and unbalanced (1/4") outputs
- 2 frequency ranges: A (548-572 MHz) and B (614-638 MHz)
Package Includes:
- (1) SK 20 bodypack transmitter- (1) EM 10 true diversity receiver
- (1) ME 3 cardioid headset mic
- (1) NT 2-3 power supply
- (2) rod antennas
- (2) AA batteries
- (1) Pouch<
- (1) Instruction manual
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
Specs
System:
Modulation: Wideband FMFrequency range:
- A: 548-572 MHz
- B: 614-636 MHz
Switching bandwidth: 24 MHz (13 MHz in range E)
Frequencies: 960, tunable in 25 kHz steps (520 in range E)
Frequency presets: 8 frequency banks, each with 12 coordinated factory-preset channels
Signal-to-noise ratio: = 103 dBa
Total harmonic distortion (THD) : = <1%
Temperature range: 32 degrees F to 104 degrees F (0 degrees C to +40 degrees C)
EM 10 Receiver:
Receiver principle: True DiversityDimensions: 200 x 127 x 42 mm
Weight: 730 g
Antenna connector: 2 BNC, 50 ohm
Audio output level:
- Balanced XLR: +14 dBu max
- Unbalanced jack: +8 dBu max
SK 20 Bodypack Transmitter:
Dimensions: 96 x 66 x 24 mmWeight: 95 g
RF output power: typically 10 mW
Operating time: approximately 10 hours
Input voltage range: 0.5 V RMS
ME 3 Microphone:
Sound pressure level (SPL): 150 dbTransducer principle: permanently polarized
Pickup pattern: cardioid
AF sensitivity: 1,6mV/Pa
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 877-736-6434
Email: support@sennheiser.com
Web: https://en-us.sennheiser.com/service-support
Phone: 877-736-6434
Email: support@sennheiser.com
Web: https://en-us.sennheiser.com/service-support
