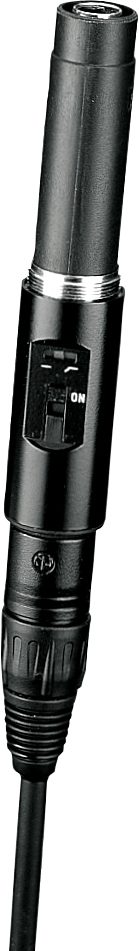

Sennheiser K6 Condenser Powering Module

No longer available at zZounds

zZounds Gear Experts Say...

Power your condenser mics with the Sennheiser K6 that features an on/off switch with LED indicator, and bass roll-off (4.0 oz) and can be combined with different microphone modules for a wide variety of polar patterns.

Overview

Powering module for battery/phantom powering with switchable roll-off filter and battery on/off switch with battery test. Suitable for ME 62 - ME 67 microphone modules and -60 versions of MKE microphones.

The K6 powering module is at the heart of Sennheiser's professional condenser microphone modular system and can be powered either by its internal 'AA' size 1.5 V battery or by 12 - 48 V phantom power. The K6 can be combined with different microphone modules to provide a wide variety of polar patterns. Matte black, anodised scratch-resistant finish.

Features

- Switchable bass roll-off filter protects against rumble, handling, pop, and wind noise
- On/off switch with battery test position
- High output, low noise
- Transformerless balanced output on 3-pin XLR connector
- Includes 1 K6 powering module

Specs

Frequency response: 30 - 20,000 Hz +/- 1 dB

Transmission factor (1 kHz): 0 dB

Nominal impedance: 200 ohms

Min. terminating impedance: 1000 ohms

Max. output voltage: 2 V (at 1 kHz)

Power supply phantom: 12 - 48 V or 1.5 V battery

Battery life: 150 hours, approximately

Dimensions in mm: net: 22 x 94; gross: 22 x 155

Weight: 45 g, approximately

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 877-736-6434
Email: support@sennheiser.com
Web: https://en-us.sennheiser.com/service-support

Owner's Manual
