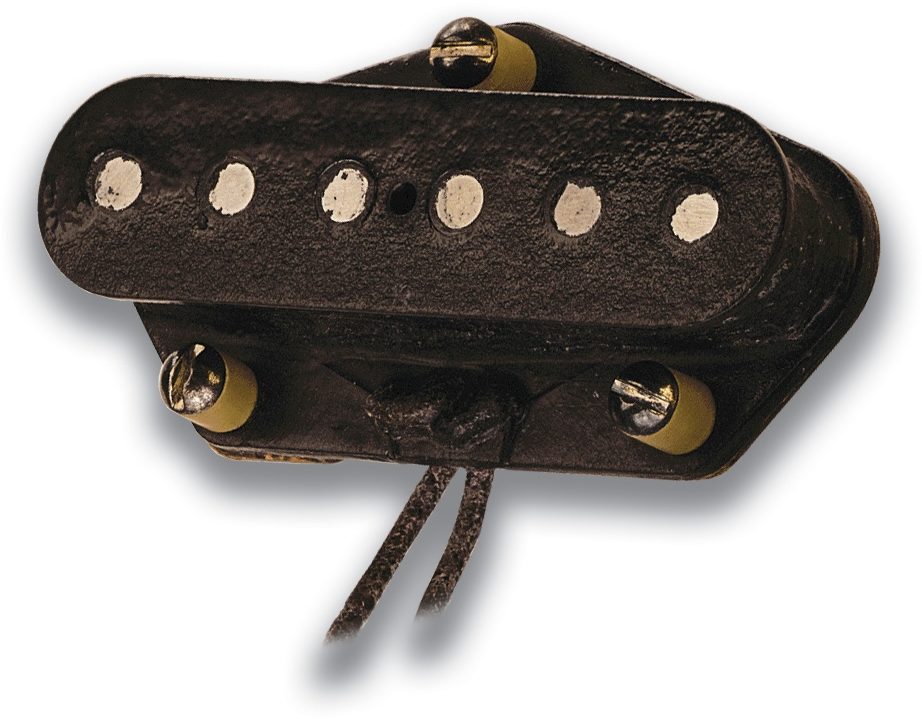

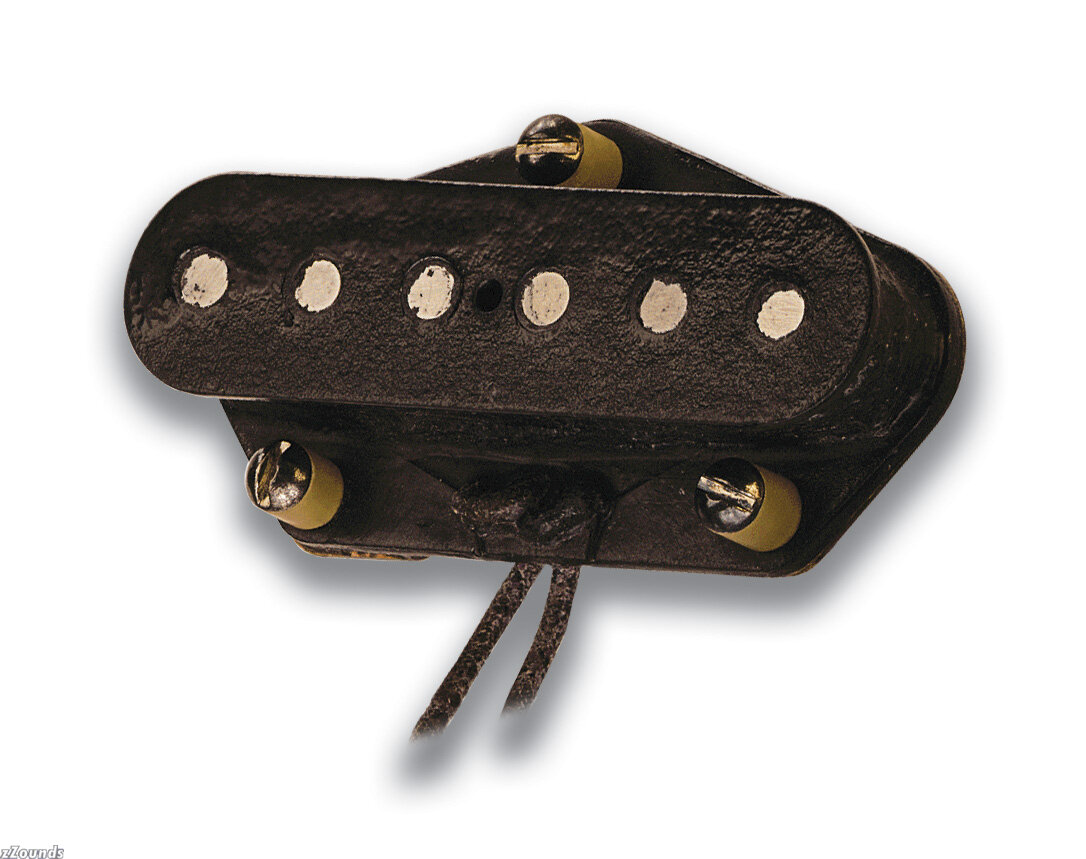

Seymour Duncan Antiquity Telecaster Bridge Single-Coil Pickup
No longer available at zZounds
![Seymour Duncan Antiquity Telecaster Bridge Single-Coil Pickup, Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/ant_tele_bridge-b5c59ded29e1547c61962b03d8742b5d.jpg)
![Seymour Duncan Antiquity Telecaster Bridge Single-Coil Pickup, Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/ant_tele_bridge-b5c59ded29e1547c61962b03d8742b5d.jpg)
Recreate the lead tones of the '50s Telecaster with this single coil bridge pickup. It includes mounting hardware and schematics.
Overview
Seymour Duncan has a great time re-creating the beauty of an early '50s lead pickup Tele. Using vintage techniques, each pickup is hand-fabricated and scatter-wound. All parts of the pickup are aged and given the look of a pickup played for 40 years! Like the originals, the ferrous bottom plates are not wax-potted for that "breakin'-up Tele twang tone" that's just on the verge of feedback. The pickups are Dun-Aged and come with mounting hardware, schematics, and tons of tone. The hookup wire is the classic "p back" cloth-braid wire.
Specs
Top Pickup Length: 2.870
Top Pickup Width: .770
Bottom Pickup Length: 2.885
Bottom Pickup Width: 1.510
Total Pickup Height: .678
Total Magnet Height: .625
Winding Direction: Top coming
Magnet Polarity: South
Calibrated: Yes
Pickup Cover Length: None
Pickup Cover Width: None
Pickup Cover Height: None
Height Adjustment: 6/32 round head, slotted
Magnet Pattern: All flush with top & bottom of pickup
DC Ohms: 6.4K
Inductance: 2.1 Henries
Q: 2.05
Top Pickup Width: .770
Bottom Pickup Length: 2.885
Bottom Pickup Width: 1.510
Total Pickup Height: .678
Total Magnet Height: .625
Winding Direction: Top coming
Magnet Polarity: South
Calibrated: Yes
Pickup Cover Length: None
Pickup Cover Width: None
Pickup Cover Height: None
Height Adjustment: 6/32 round head, slotted
Magnet Pattern: All flush with top & bottom of pickup
DC Ohms: 6.4K
Inductance: 2.1 Henries
Q: 2.05
