Roland XV5080 128-Voice Advanced Synthesizer Module
No longer available at zZounds
zZounds Gear Experts Say...
128-voice polyphony. 64MB (16-bit linear equivalent).
Overview

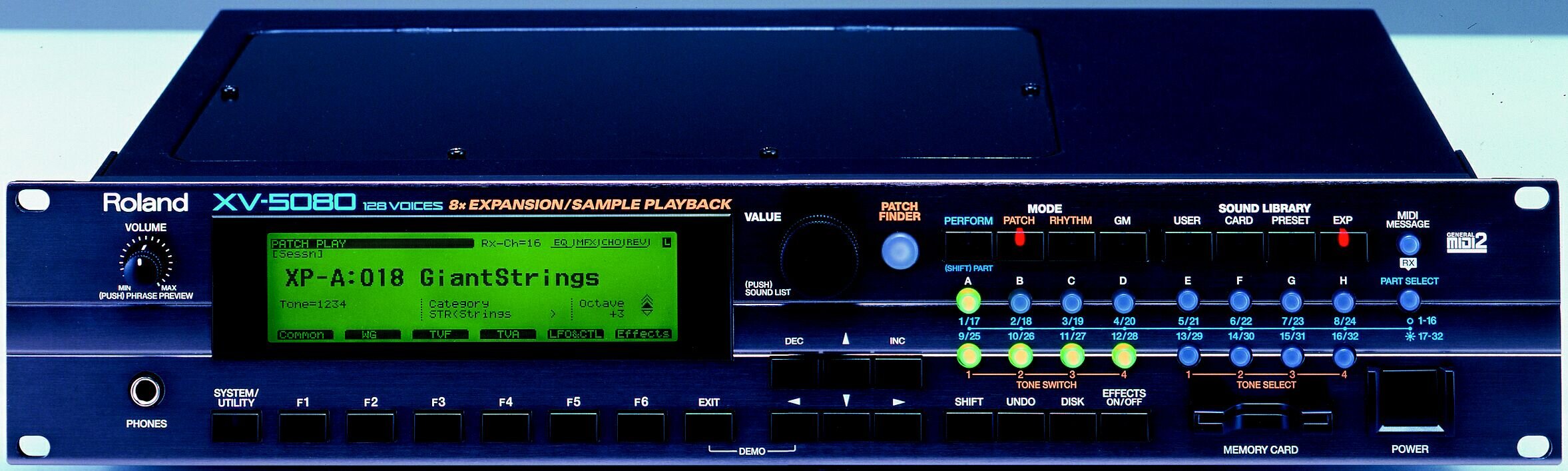

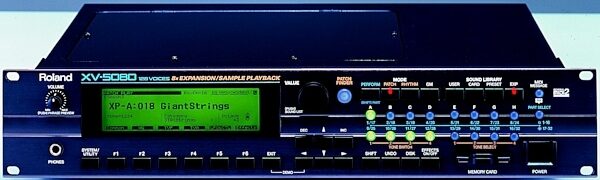

The Roland XV5080 128-Voice Synthesizer Module is the ultimate sound module based on the best-sounding, most expressive and expandable new synthesizer/sample player architecture in Roland history. This flagship module offers 128 voices, true stereo waveforms per tone, expressive Matrix Control, expandability via new 64MB SRX- and popular SRJV80-Series wave expansion boards, Roland/Akai sample library compatibility, and a host of new studio-quality effects. Put simply, cutting-edge synthesis doesn't get any better than this.
Features
New! 128-voice synth module with extensive layering and multi-timbral applications
Massive internal wave memory includes incredible new sounds, plus all sounds from JV2080 and a collection of waveforms from the JD990 Super JD Reads Roland S-700/Akai S1000 CD-ROMs via SCSI port using optional SIMM memory (128MB max)
Stereo playback capability per tone for amazing velocity switches and keyboard splits
Powerful Matrix Control gives sounds an unprecedented level of nuance
Studio-quality reverb and effects derived from Roland SRV3030, V-Studios, RSS, and COSM instruments
"SRXpandable" via new SRX-Series 64MB wave expansion boards
Compatible with SR-JV80-Series wave expansion boards and XP/JV-Series Patches
R-BUS port for 8-channel digital output to R-BUS-Ready devices and interfaces
Patch Finder for quickly finding sounds sorted by type.
About Roland
Roland Corporation U.S. is a leading manufacturer and distributor of electronic musical… read more instruments including keyboards and synthesizers, guitar products, electronic percussion kits, digital recording equipment, amplifiers, and audio processing devices. With over 25 years of musical instrument development, Roland sets the standards in music technology for the world to follow. Check out your favorite musicians' gear - chances are they're using Roland. read less
Features
New! 128-voice synth module with extensive layering and multi-timbral applications
Massive internal wave memory includes incredible new sounds, plus all sounds from JV2080 and a collection of waveforms from the JD990 Super JD Reads Roland S-700/Akai S1000 CD-ROMs via SCSI port using optional SIMM memory (128MB max)
Stereo playback capability per tone for amazing velocity switches and keyboard splits
Powerful Matrix Control gives sounds an unprecedented level of nuance
Studio-quality reverb and effects derived from Roland SRV3030, V-Studios, RSS, and COSM instruments
"SRXpandable" via new SRX-Series 64MB wave expansion boards
Compatible with SR-JV80-Series wave expansion boards and XP/JV-Series Patches
R-BUS port for 8-channel digital output to R-BUS-Ready devices and interfaces
Patch Finder for quickly finding sounds sorted by type.
About Roland
Roland Corporation U.S. is a leading manufacturer and distributor of electronic musical… read more instruments including keyboards and synthesizers, guitar products, electronic percussion kits, digital recording equipment, amplifiers, and audio processing devices. With over 25 years of musical instrument development, Roland sets the standards in music technology for the world to follow. Check out your favorite musicians' gear - chances are they're using Roland. read less
Specs
Parts: 32-part
Max. Polyphony: 128-voice
Wave Memory: 64 MB (16-bit linear equivalent)
Expansion Slot: Wave Expansion Board SR-JV80 Series: 4-slot, New Wave Expansion Board SRX Series: 4-slot, SIMM (72pin FP/EDO 64/32/16 MB SIMM, Max. 128 MB): 2-slot
Preset Memory Patches: 1.152 (896 + 256 GM2 Patches), Performances: 64 (32 x 2 bank), Rhythm Sets: 23 (14 + 9 GM2 Rhythm Sets)
User Memory Patches: 128, Performances: 64, Rhythm sets: 4
External Storage Device: smartMEdia Card (2 - 128MB, 5/3.3 V): 1-slot
Effects: Multi-Effects: 85-set over (3 different M-FX can be used simultaneously in Performance Mode), Reverb: 4-set, Chorus: 2-set
Display: 320 x 80 dot Graphic Backlit LCD

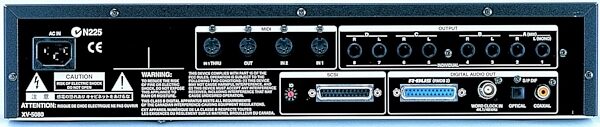

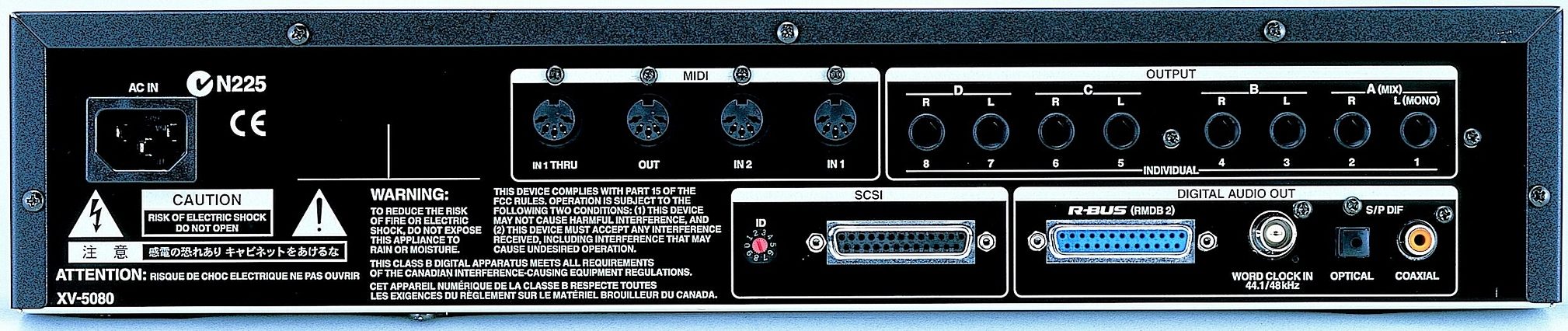

Connectors: A: (MIX) Output Jacks (L/MONO, R), B, C, D (Output Jacks (L, R)), or Individual Output Jacks 1 to 8, R-BUS (Only for output), Digital Audio Output (S/PDIF 44.1/48kHz (COAXIAL 1, OPTICAL 1)), word Clock In (BNC), SCSI (D-SUB 25-pin), Headphone Jack, MIDI Connectors (IN ü, OUT, THRU (IN1)), AC Inlet
Power Supply: AC 117/230/240V, 50/60 Hz
Power Consumption: 20W
Dimensions (H x W x D): 88 x 482 x 281mm (3-ü x 19 x 11-1/16 in.)
Weight: approximately 4.9 kg (10 lbs. 13 oz.)
Max. Polyphony: 128-voice
Wave Memory: 64 MB (16-bit linear equivalent)
Expansion Slot: Wave Expansion Board SR-JV80 Series: 4-slot, New Wave Expansion Board SRX Series: 4-slot, SIMM (72pin FP/EDO 64/32/16 MB SIMM, Max. 128 MB): 2-slot
Preset Memory Patches: 1.152 (896 + 256 GM2 Patches), Performances: 64 (32 x 2 bank), Rhythm Sets: 23 (14 + 9 GM2 Rhythm Sets)
User Memory Patches: 128, Performances: 64, Rhythm sets: 4
External Storage Device: smartMEdia Card (2 - 128MB, 5/3.3 V): 1-slot
Effects: Multi-Effects: 85-set over (3 different M-FX can be used simultaneously in Performance Mode), Reverb: 4-set, Chorus: 2-set
Display: 320 x 80 dot Graphic Backlit LCD
Connectors: A: (MIX) Output Jacks (L/MONO, R), B, C, D (Output Jacks (L, R)), or Individual Output Jacks 1 to 8, R-BUS (Only for output), Digital Audio Output (S/PDIF 44.1/48kHz (COAXIAL 1, OPTICAL 1)), word Clock In (BNC), SCSI (D-SUB 25-pin), Headphone Jack, MIDI Connectors (IN ü, OUT, THRU (IN1)), AC Inlet
Power Supply: AC 117/230/240V, 50/60 Hz
Power Consumption: 20W
Dimensions (H x W x D): 88 x 482 x 281mm (3-ü x 19 x 11-1/16 in.)
Weight: approximately 4.9 kg (10 lbs. 13 oz.)
Reviews
Reviewers gave this product an overall rating of 4.5 out of 5 stars.
(66 ratings)
Submitted May 13, 2003 by a customer from hotmail.com
"Roland XV-5080 is a pro studio workhorse!"
Right now - in the market the XV-5080 really stand on its own - it really does not have direct "competitor" IMHO. The editability of sounds and creative resources available for the XV is quite remarkable.
Sound
It's one of the best sounding Roland modules I have ever heard. Also, the internal effects are superb.
Features
The amount of sounds available is stunning. This is one piece a pro studio will get a lot of mileage from. You can use iot for ANY project! The Expansion capabilities a big plus (SRX & SR Expansion slots) - and especially the ability to import great Roland sample libraries from SCSI devices. I only wished for more sample memory (128 MB max).
Quality
Excellent quality.
Value
Being a such a high-end product - the price is fairly good.
Musical Style:
all
8 of 8 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
