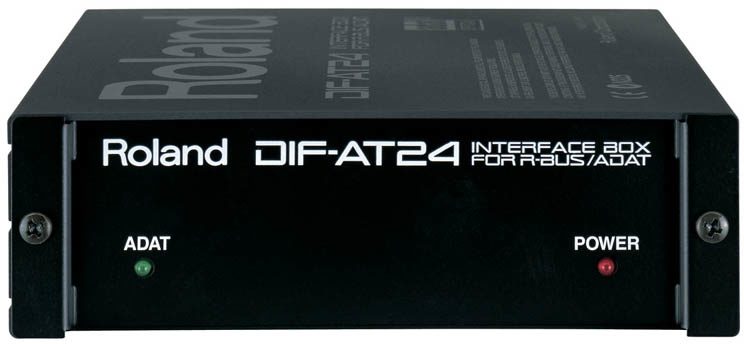

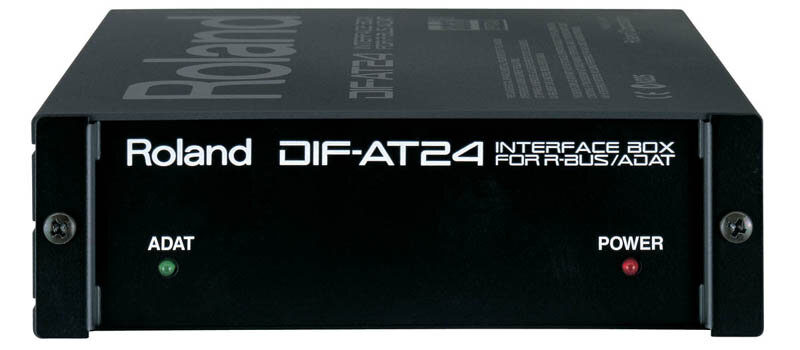

Roland DIFAT24 Interface Box for RBUS/ADAT

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

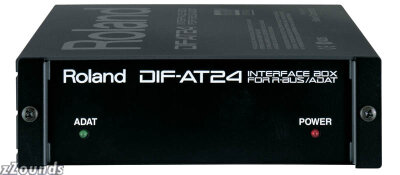

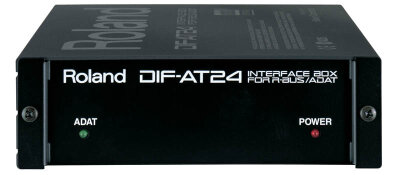

Roland DIFAT24 Interface Box for RBUS/ADAT, Main
Roland DIFAT24 Interface Box for RBUS/ADAT, Main
Roland DIFAT24 Interface Box for RBUS/ADAT, Main Roland DIFAT24 Interface Box for RBUS/ADAT, Main
zZounds Gear Experts Say...
44.1/48kHz, 16/20/24-bit, 1/3 rackmount box

The DIF-AT24 Interface Box easily converts the 8-channel R-BUS audio format found on V-Studios and the MV-8000 to the popular ADAT format. As such, this 1/3 rackmount box is ideal for transferring audio between your Roland gear and a lightpipe-compatible audio card or digital mixer. And with MIDI built-in, the DIF-AT24 can also be used to expand the MV-8000's available MIDI outputs.

Features
1/3 rackmount audio interface converts Roland's 8-channel R-BUS format to ADAT

Supports up to eight channels of 24-bit I/O via optical connections

MIDI In/Out for synchronized recording between V-Studio and ADAT/PC

MIDI Out port can be used to expand MV-8000's MIDI output channels

Selectable master clock: R-BUS or ADAT

No power supply needed

Sampling Frequency: 44.1/48kHz

Audio Data Format: 16/20/24-bit

Indicators: Power indicator, ADAT indicator

Connectors: R-BUS connector, ADAT optical connectors in,out, MIDI connectors in,out

Power Supply: Supplied from connected R-BUS device

Accessories: R-BUS cable (1 m), Owner's manual

Size and Weight
Dimensions (W x D x H): 138 x 197 x 43 mm (5-7/16 x 7-13/16 x 1-3/4 in.)

Weight: 0.5 kg (1 lbs. 2 oz.)

For support or warranty questions, please contact the manufacturer:
Phone: 323-890-3700
Owner's Manual

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
