RCF ART 705-AS Powered Subwoofer (800 Watts, 1x15 in.)

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
RCF ART 705-AS Powered Subwoofer (800 Watts, 1x15 in.), Main

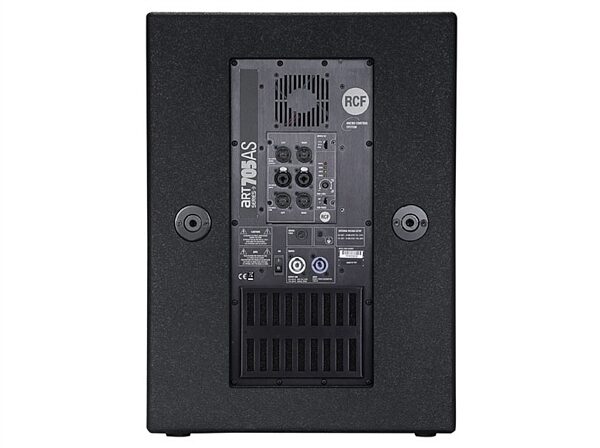

RCF ART 705-AS Powered Subwoofer (800 Watts, 1x15 in.), Back
RCF ART 705-AS Powered Subwoofer (800 Watts, 1x15 in.), Left

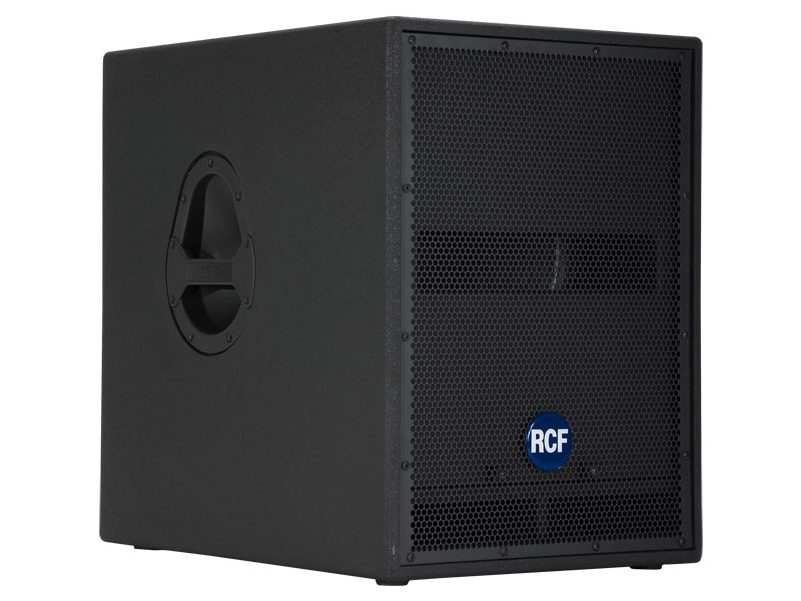

RCF ART 705-AS Powered Subwoofer (800 Watts, 1x15 in.), Right
RCF ART 705-AS Powered Subwoofer (800 Watts, 1x15 in.), Main RCF ART 705-AS Powered Subwoofer (800 Watts, 1x15 in.), Back RCF ART 705-AS Powered Subwoofer (800 Watts, 1x15 in.), Left RCF ART 705-AS Powered Subwoofer (800 Watts, 1x15 in.), Right
zZounds Gear Experts Say...
800 Watt amplification. 130 dB Max SPL. 15-inch woofer, high power 3-inch voice coil. 40 Hz response down. X-over selector.

The ART 705-AS is an extremely compact high output active subwoofer system that delivers tight, fast controlled bass response at very high efficiency levels. The High Current 800 W Class H amplifier provides the best performance alongside an increased dynamic range. The Baltic Birch plywood enclosure is painted with black, heavy duty, textured epoxy. The front is protected from a strong powder coated, metal grille. The RCF Precision "Inside/Outside" voice coils assure long term reliability and vastly reduced power compression.

ART 705-AS applications include small to medium size live music and playback, portable PA systems for speech and multimedia, mobile DJs and fixed installations.

Features
- 800 Watt amplification

- 130 dB Max SPL

- 15-inch woofer, high power 3-inch voice coil

- X-over selector, phase switch and high pass outputs

- 40 Hz response down

Acoustical Specification
Frequency Response -3 dB: 40 Hz / Xover point kHz

Max SPL: 130 dB

Woofer: 15", 3" v.c.

Input/Output Section
Input signal: bal / unbal

Input connectors: xlr / jack

Output connectors: xlr

Input sensitivity: 0 dBu

Processor Section
Crossover frequencies: 40 xover point Hz

Protections: uC / protection

Limiter: Fast limiter

Controls: Volume xover freq.

Amplifier Specification
Total power: 800 Watts

Low frequencies: 800 Watts

Cooling: Forced

Connections: VDE conncector in

Cabinet
Cabinet Material: Balitc birch

Hardware: 2xM10 for kart

Handles: 2 side

Pole Mount/Cap: Yes

Colour: Black

Physical Specification
Height: 590 / 23.22 mm/inch

Width: 435 / 17.12 mm/inch

Depth: 600 / 23.62 mm/inch

Net Weight: 37 / 81.56 Kg/Lbs

For support or warranty questions, please contact the manufacturer:
Phone: 732-902-6100
Email: service@rcf.it or TechSupport@rcf.it
Manual
Specifications Sheet
