Radial Reamp Station Combination Active DI x JCR Reamper






zZounds Gear Experts Say...
Get clean DI recordings of any electric instrument, then reamp using the same box! The Radial Reamp Station is an invaluable tool for sculpting guitar tones.
Overview

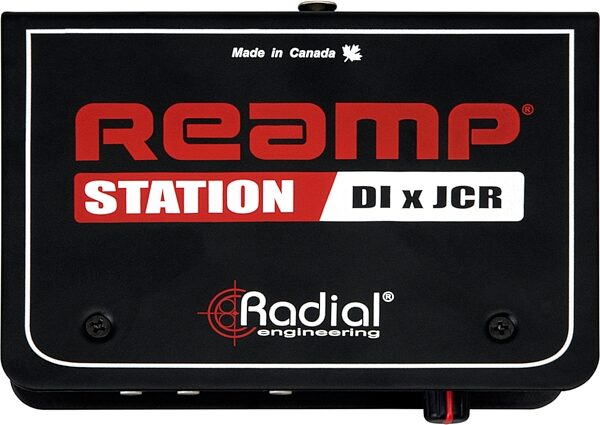

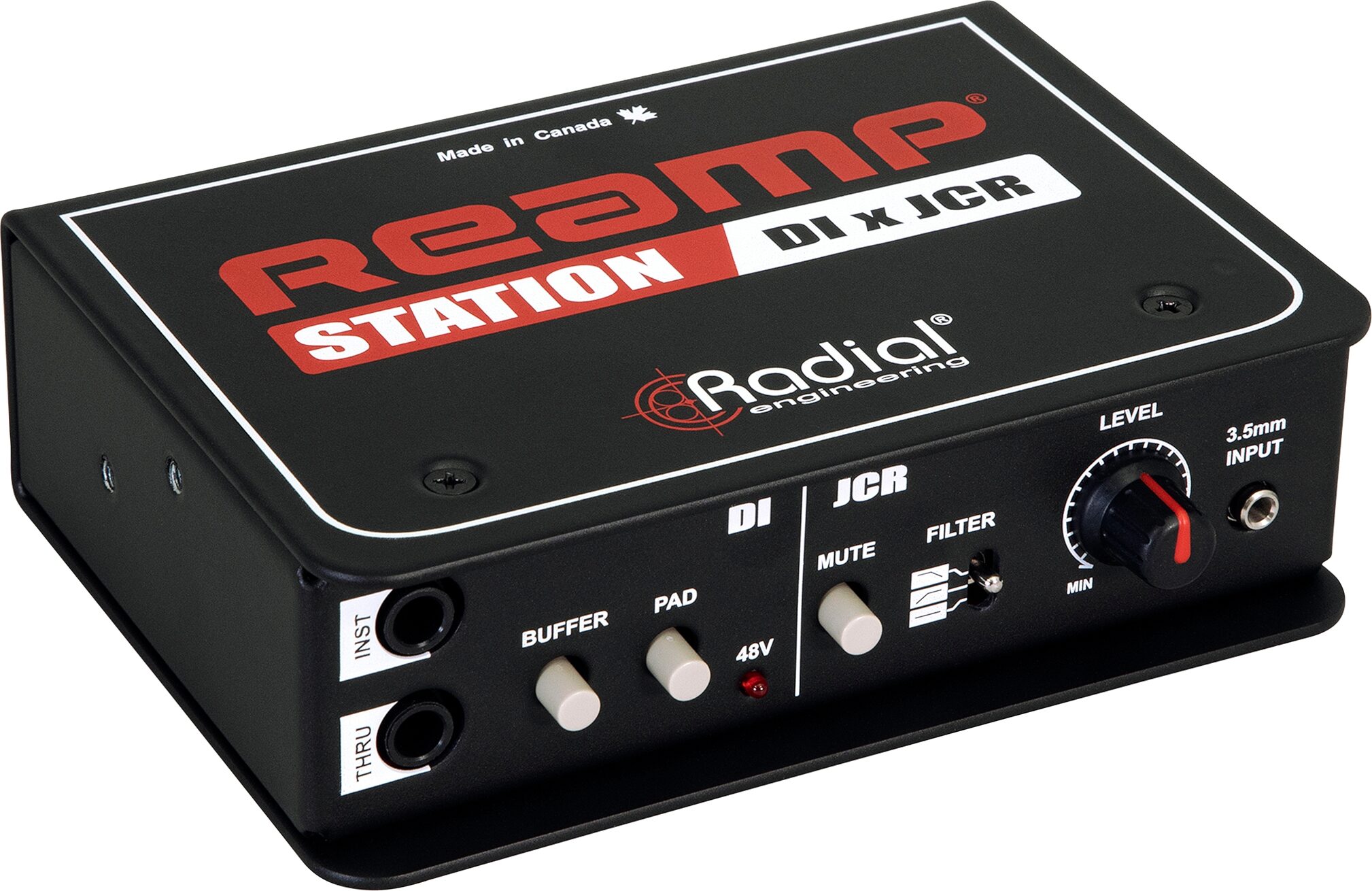

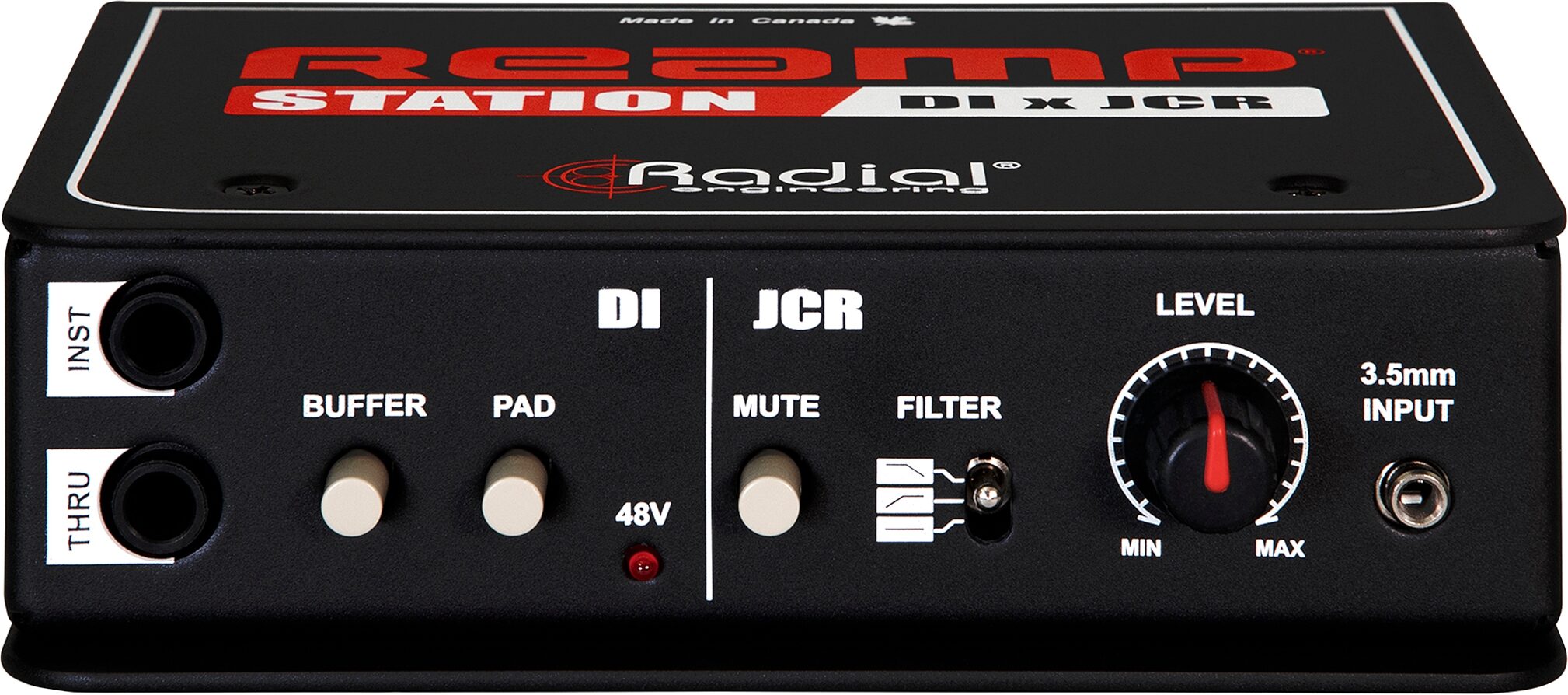

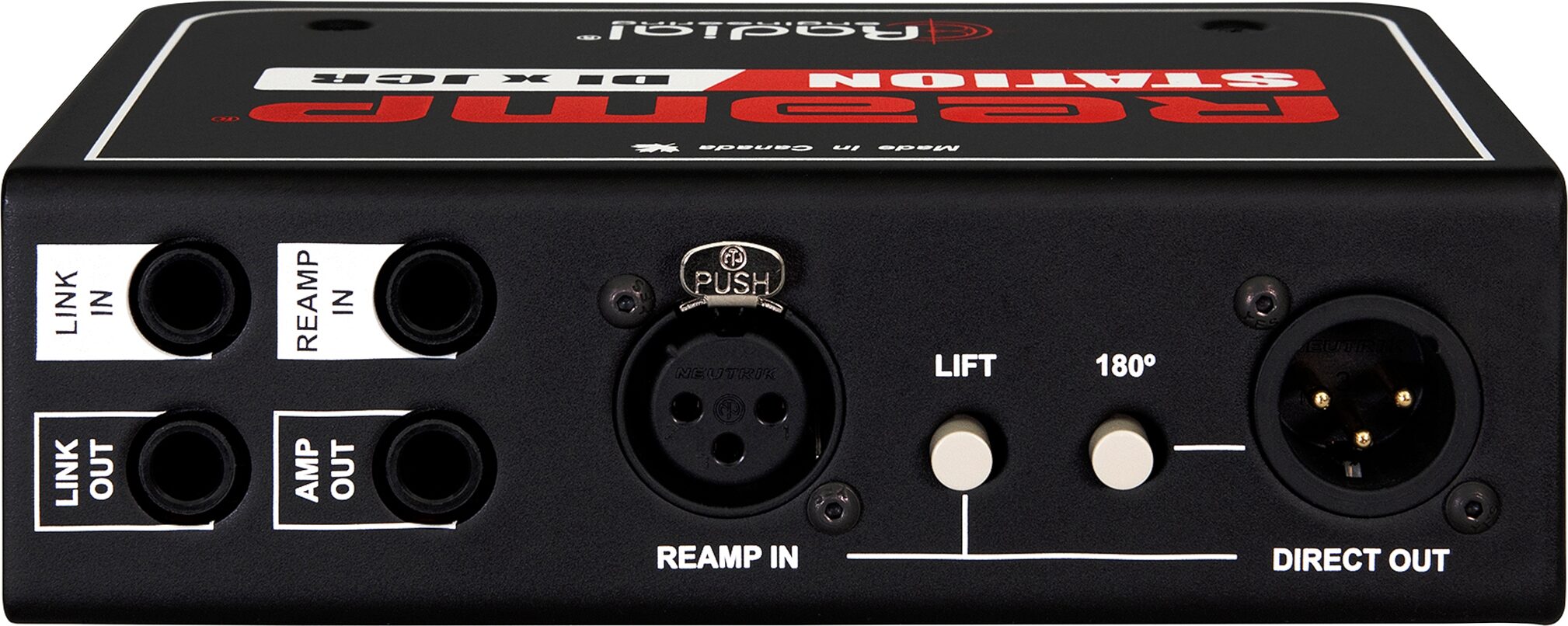

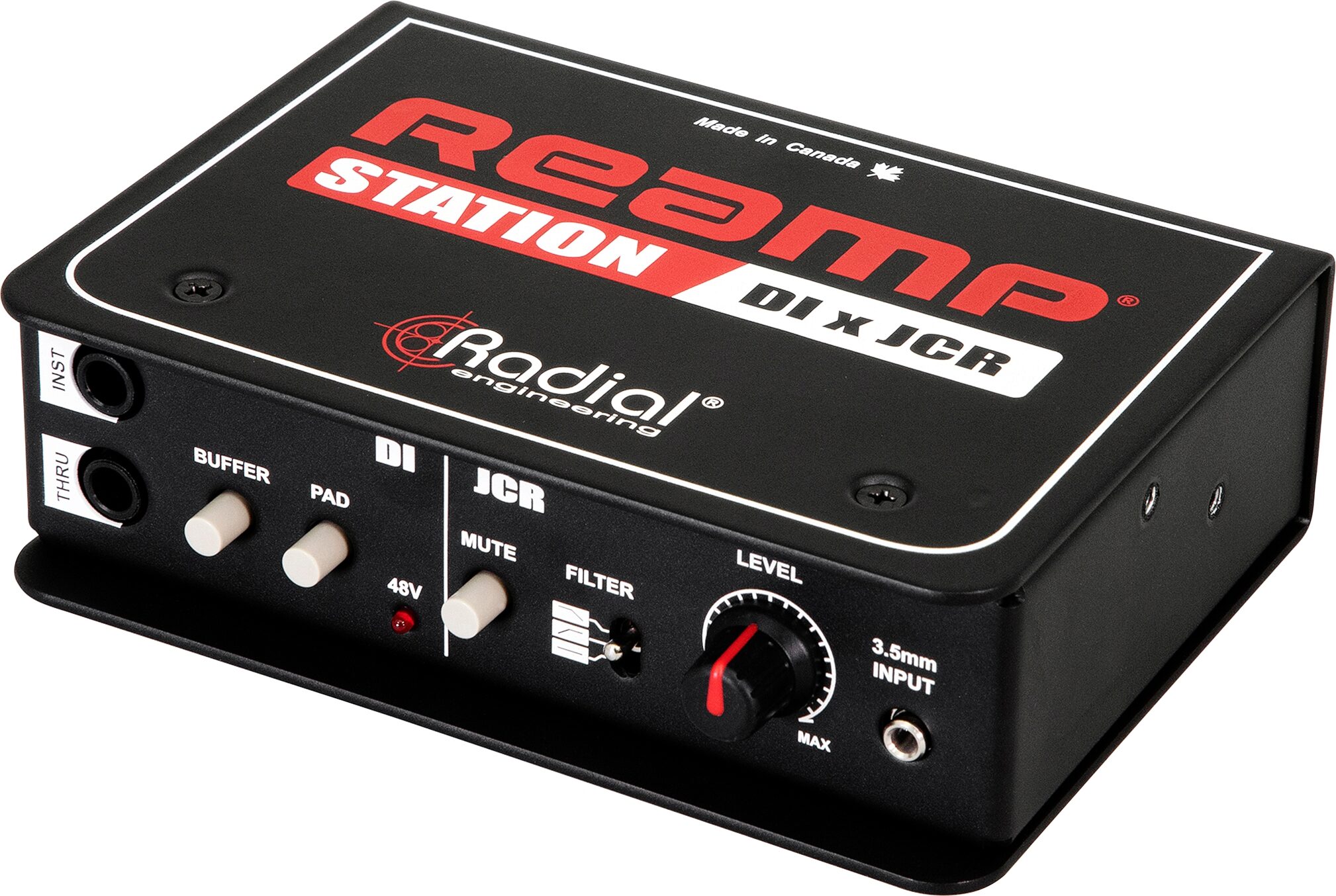

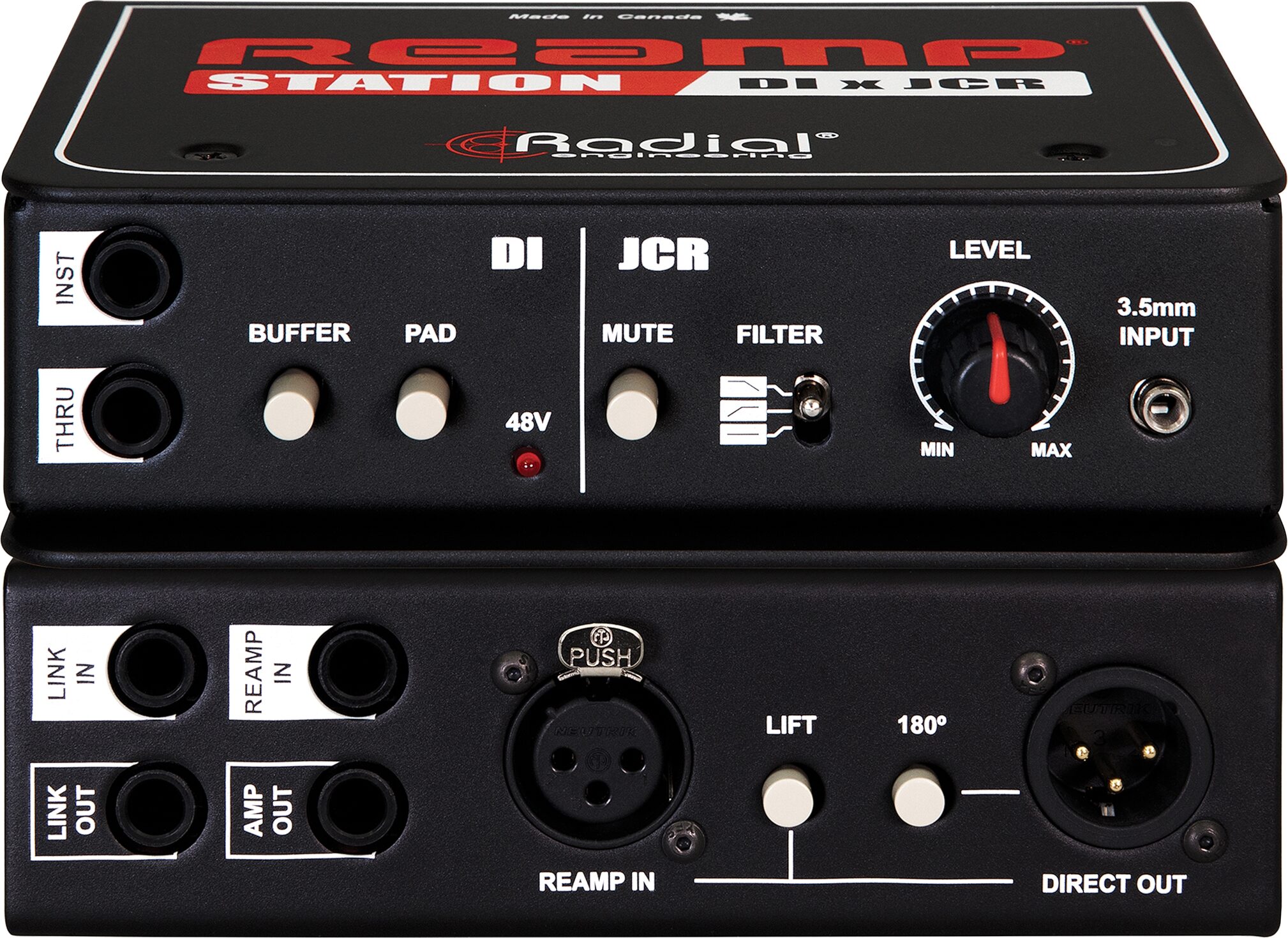

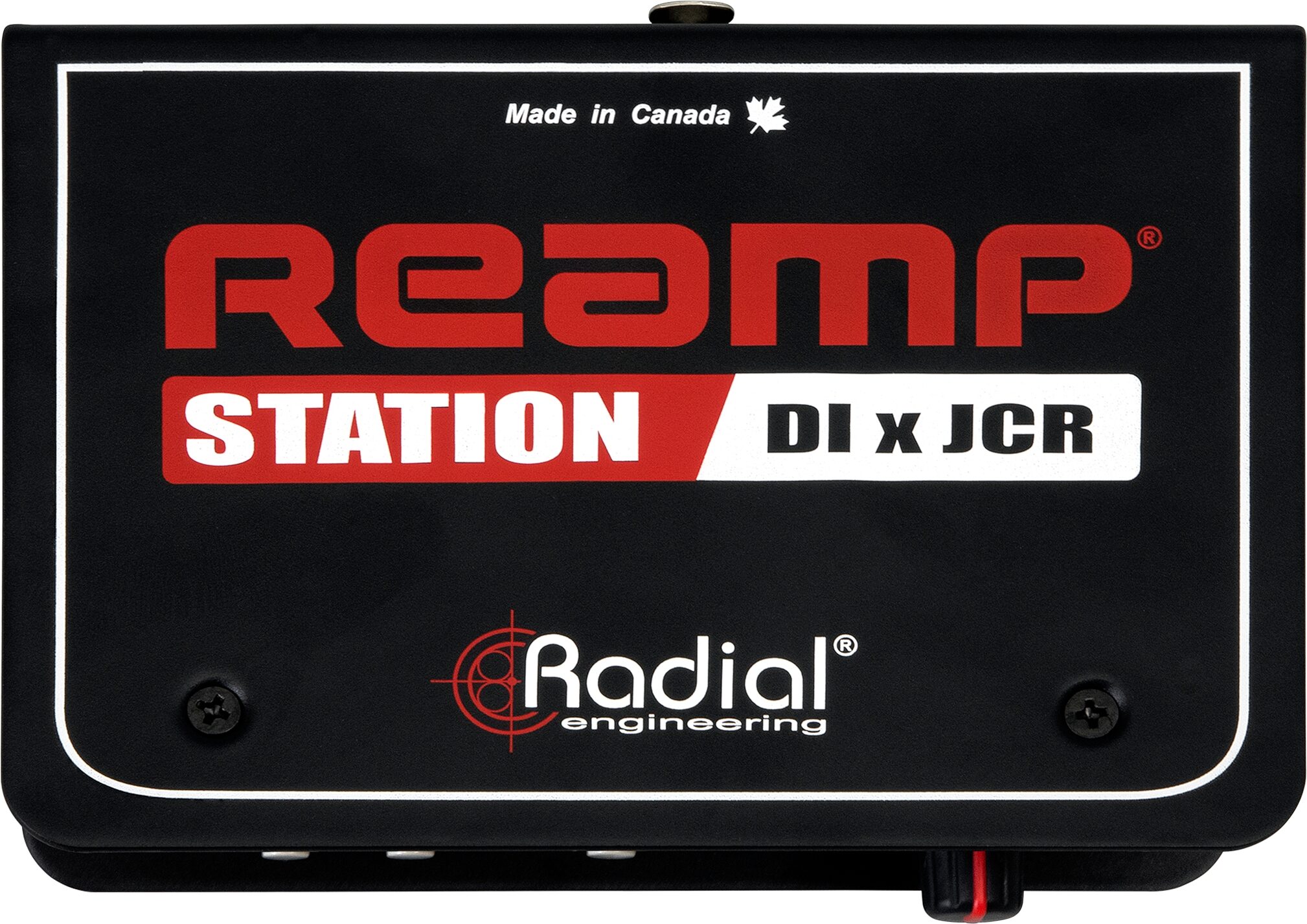

The Reamp Station combines two studio essentials in one chassis: an active DI box for pristine recordings of any instrument, and the JCR high-performance Reamper to feed those recordings to your guitar amps and pedals during mixdown.
The Reamp Station combines two studio essentials in one complete package: an active direct box for capturing pristine recordings of any instrument, and the JCR high-performance Reamper to feed your tracks to guitar pedals and amplifiers for re-recording, to take your mixes to another level.
The active DI portion of the Reamp Station is based off of Radial's world-class J48, tweaked slightly to provide maximum benefit for recording tracks that can be Reamped later on. Among these changes is a buffer switch, which engages a unity-gain Class-A buffer circuit on the Thru output, preventing any loading down of passive pickups when connected to an amplifier and preserving the natural tone of your instrument.
The Reamper side of the device takes the circuit from the Reamp JCR, originally designed by acclaimed engineer John Cuniberti, and ports it into a multi-use studio tool. The JCR features a custom-wound 'Made in the USA' transformer to convert the line-level signals from an audio interface so they are optimized to feed guitar pedals and amplifiers, while also including a level control, 3-position filter, and a mute switch to protect your ears when adjusting mic placement on a live amp. In addition to the XLR and balanced 1/4" TRS inputs for the Reamper,… read more a 3.5mm mini input is also included for easy connection to mobile devices such as smartphones and tablets to streamline playback and encourage additional creativity.
read less
The Reamp Station combines two studio essentials in one complete package: an active direct box for capturing pristine recordings of any instrument, and the JCR high-performance Reamper to feed your tracks to guitar pedals and amplifiers for re-recording, to take your mixes to another level.
The active DI portion of the Reamp Station is based off of Radial's world-class J48, tweaked slightly to provide maximum benefit for recording tracks that can be Reamped later on. Among these changes is a buffer switch, which engages a unity-gain Class-A buffer circuit on the Thru output, preventing any loading down of passive pickups when connected to an amplifier and preserving the natural tone of your instrument.
The Reamper side of the device takes the circuit from the Reamp JCR, originally designed by acclaimed engineer John Cuniberti, and ports it into a multi-use studio tool. The JCR features a custom-wound 'Made in the USA' transformer to convert the line-level signals from an audio interface so they are optimized to feed guitar pedals and amplifiers, while also including a level control, 3-position filter, and a mute switch to protect your ears when adjusting mic placement on a live amp. In addition to the XLR and balanced 1/4" TRS inputs for the Reamper,… read more a 3.5mm mini input is also included for easy connection to mobile devices such as smartphones and tablets to streamline playback and encourage additional creativity.
Specs
- Direct Box:
- Audio Circuit Type: Proprietary Active Circuit
- Frequency Response: 5Hz to 20kHz (+/-0.5dB)
- Total Harmonic Distortion: 0.004% @ 1kHz, 0dBu
- THD + Noise: 0.004% @ 1kHz, 0dBu
- Intermodulation Distortion: 0.005% @ -10dBV
- Signal to Noise Ratio: 94dB
- Dynamic Range: 100dB
- Input Impedance: 220k O
- Output Impedance: 185 O
- JCR Reamper:
- Audio Circuit Type: Passive, transformer based
- Frequency Response: 0Hz to 20kHz (+/-0.5dB)
- Total Harmonic Distortion: 0.002% @ 1kHz, +4dBu
- THD + Noise: 0.005% @ 1kHz, +4dBu
- Intermodulation Distortion: 0.001% @ 0dBV
- Signal to Noise Ratio: 88dB
- Dynamic Range: 100dB
- Input Impedance: 1.4k O
- Output Impedance: 5.1k O
- Input connections: 1/4", XLR, 3.5mm
- LED Indicators: 48V phantom (Direct box only)
- Output Connectors: 1/4", XLR
- Mounting Options: SA series rack mount kit available
- General:
- Power: 48V phantom power (Direct box features only)
- Construction: 14-gauge Steel Chassis & Outer Shell
- Finish: Durable Powder Coat
- Conditions: For use in dry locations only
- Warranty: Radial 3-year, transferable
- Audio Circuit Type: Proprietary Active Circuit
- Frequency Response: 5Hz to 20kHz (+/-0.5dB)
- Total Harmonic Distortion: 0.004% @ 1kHz, 0dBu
- THD + Noise: 0.004% @ 1kHz, 0dBu
- Intermodulation Distortion: 0.005% @ -10dBV
- Signal to Noise Ratio: 94dB
- Dynamic Range: 100dB
- Input Impedance: 220k O
- Output Impedance: 185 O
- JCR Reamper:
- Audio Circuit Type: Passive, transformer based
- Frequency Response: 0Hz to 20kHz (+/-0.5dB)
- Total Harmonic Distortion: 0.002% @ 1kHz, +4dBu
- THD + Noise: 0.005% @ 1kHz, +4dBu
- Intermodulation Distortion: 0.001% @ 0dBV
- Signal to Noise Ratio: 88dB
- Dynamic Range: 100dB
- Input Impedance: 1.4k O
- Output Impedance: 5.1k O
- Input connections: 1/4", XLR, 3.5mm
- LED Indicators: 48V phantom (Direct box only)
- Output Connectors: 1/4", XLR
- Mounting Options: SA series rack mount kit available
- General:
- Power: 48V phantom power (Direct box features only)
- Construction: 14-gauge Steel Chassis & Outer Shell
- Finish: Durable Powder Coat
- Conditions: For use in dry locations only
- Warranty: Radial 3-year, transferable
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 2.25 lbs
- Shipping Dimensions: 11 x 5 x 3 in
- Manufacturer Part Number (MPN): R800 1037
