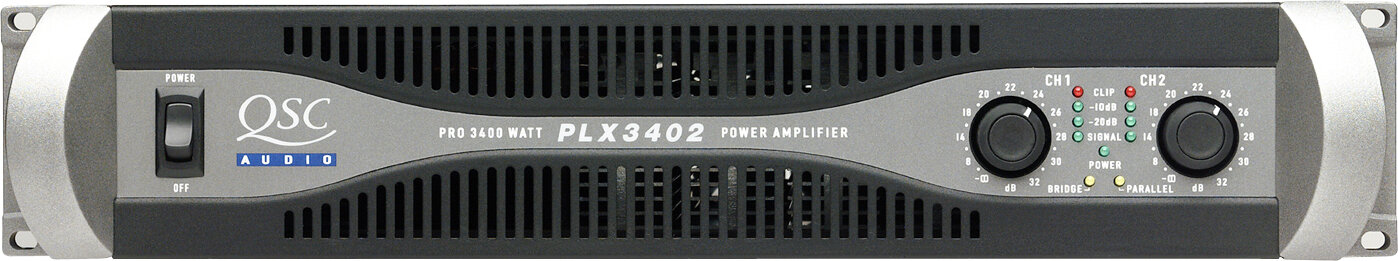

QSC PLX3402 Power Amplifier
No longer available at zZounds



zZounds Gear Experts Say...

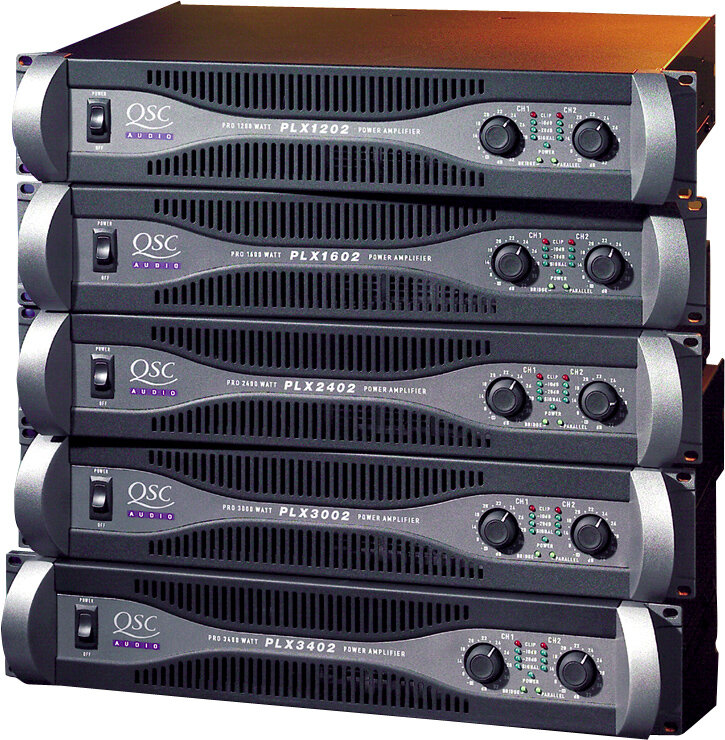

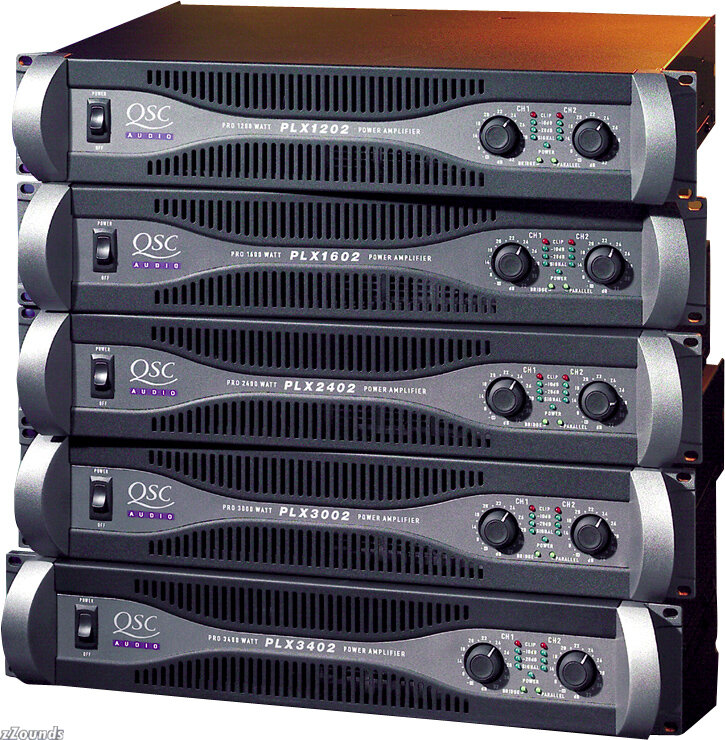

Pictured is the 3000 Watt model.
Overview
A line of amplifiers that defines high impact. Up to 3,400 watts in a 2 rack-unit chassis that's only 13 in. deep and 21 lbs. It includes the exclusive PowerWave Technology used in the award-winning PowerLightÈ Series for chest-pounding bass and crystal-clear highs. It also features hum-free noise floor and ultra-low distortion of .03% THD. To keep the PLX series running under the most demanding conditions, the Advanced Thermal Management System has been added. PLXs offer the reliability of a company that's been building professional amplifiers for over 30 years.
With PowerWave technology, the PLX Series takes your music to a whole new level. Not only does it deliver bigger bass and cleaner highs, PowerWave also cuts wasted heat and boosts reliability. PowerWave is a switching power supply that provides ample current to the audio power circuitry by charging the supply rails 230,000 times a second through and ultra-low impedance circuit.
Unlike other amps with conventional supplies, the audio signal is never starved prematurely and remains crisp and clean. It virtually eliminates hum and greatly reduces noise, providing a vast dynamic range that can handle any music without running out of headroom. The Advanced Thermal Management system ensures PLXs run cool and reliable even under harsh conditions. Using a high-output variable speed fan, ATM pulls cool air from the rear of the amp and propels it through a heat shroud precision-fitted to flow air over the heat sinks and out… read more of the amplifier. read less
With PowerWave technology, the PLX Series takes your music to a whole new level. Not only does it deliver bigger bass and cleaner highs, PowerWave also cuts wasted heat and boosts reliability. PowerWave is a switching power supply that provides ample current to the audio power circuitry by charging the supply rails 230,000 times a second through and ultra-low impedance circuit.
Unlike other amps with conventional supplies, the audio signal is never starved prematurely and remains crisp and clean. It virtually eliminates hum and greatly reduces noise, providing a vast dynamic range that can handle any music without running out of headroom. The Advanced Thermal Management system ensures PLXs run cool and reliable even under harsh conditions. Using a high-output variable speed fan, ATM pulls cool air from the rear of the amp and propels it through a heat shroud precision-fitted to flow air over the heat sinks and out… read more of the amplifier. read less
Specs
Watts Stereo Mode
(both channels driven)
8 ohms 20 Hz-20 kHz 0.03% THD 700W
4 ohms 20 Hz-20 kHz 0.05% THD 1100W
2 ohms 1 kHz 1% THD 1700W
Watts Bridge Mono Mode
16 ohms 20 Hz-20 kHz 0.01% THD: 1400W
8 ohms 20 Hz-20 kHz 0.01% THD: 2200W
4 ohms 1 kHz 1% THD: 3400W
Noise (20 Hz-20 kHz): <-1.7 dB
Input Sensitivity @ 8 ohms: 1.9 Vrms
Input Sensitivity @ 4 ohms: 1.7 Vrms
Output Circuitry: 2-Step
Power Requirements (1/8 power pink noise @ 4ohms): 12A
Distortion (SMPTE-IM) Less than 0.01%
Distortion (typical) 20 Hz-20 KHz (10 dB below rated power 1.0 kHz and below full rated power: Less than 0.01% THD
Frequency Response: 20 Hz-20 kHz, ± 0.2 dB/8 Hz-50 kHz, +0, -3 dB
Damping Factor: greater than 500
Input Impedance: 6 K ohms unbalanced, 12 K ohms balanced
Input Clipping: 10 Vrms (+22dB)
Cooling: Variable-speed fan, rear-to-front air flow

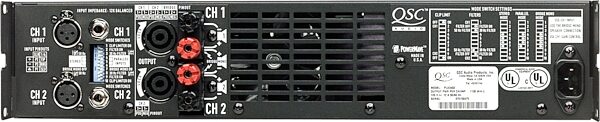

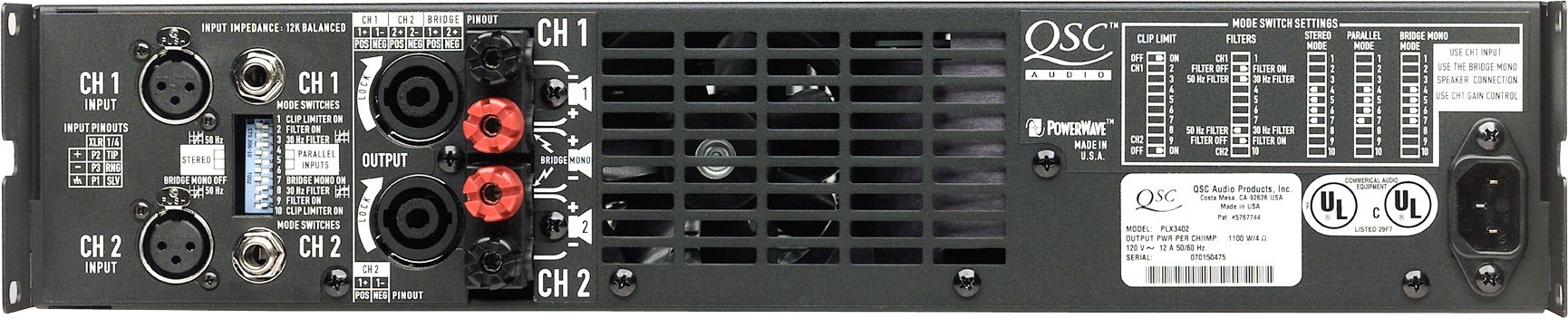

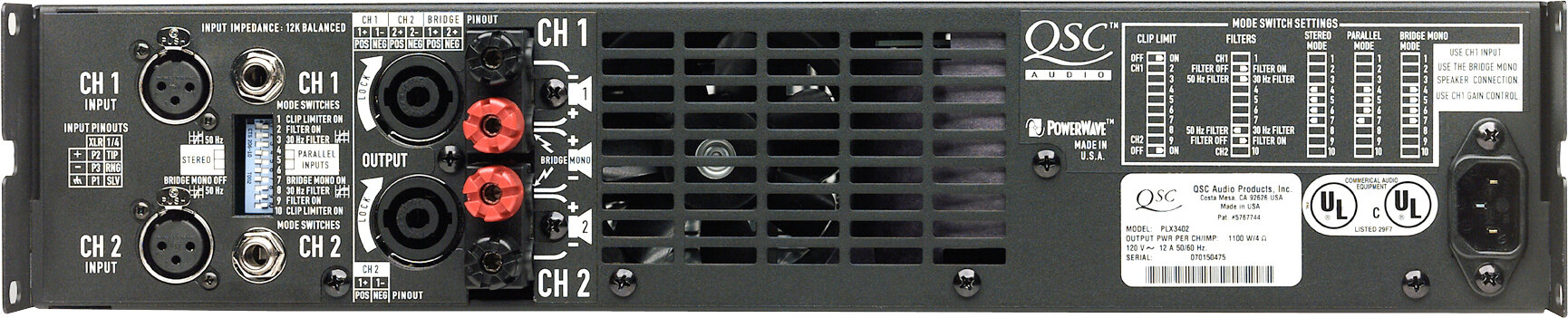

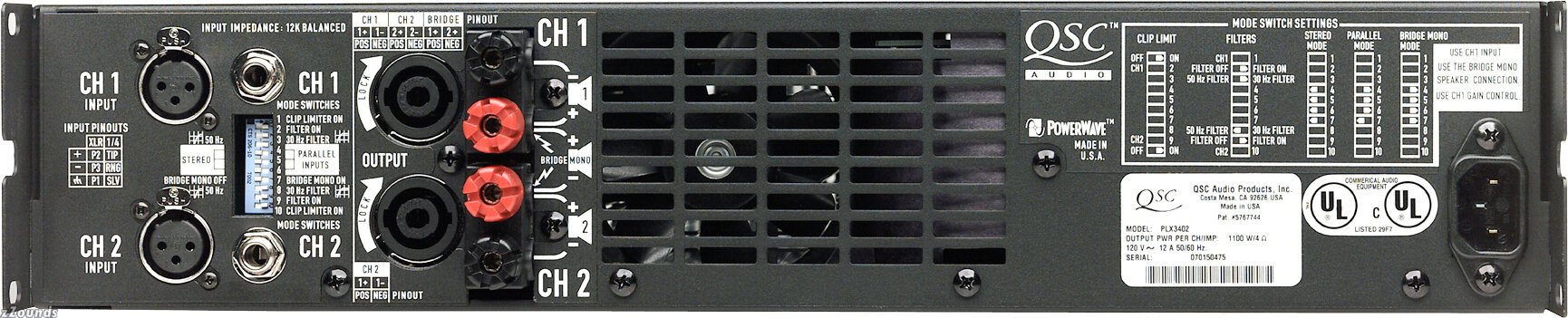

Connectors: (each channel) Input: 3-pin XLR and 1/4 in. TRS balanced
Output: Neutrik Speakon and touch-proof binding posts
Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and protection
Stable into reactive or mismatched loads.
Load Protection On/off muting, DC-fault power supply shutdown
Dimensions: 19 in. (48.3cm) rack mounting, 3.5 in. (8.9 cm) tall (2 rack spaces), 13.25 in. (33.7 cm) deep (from front mounting rails)
Gain: 40x (32 dB)
Weight: 21 lbs. (9.5 kg) net
(both channels driven)
8 ohms 20 Hz-20 kHz 0.03% THD 700W
4 ohms 20 Hz-20 kHz 0.05% THD 1100W
2 ohms 1 kHz 1% THD 1700W
Watts Bridge Mono Mode
16 ohms 20 Hz-20 kHz 0.01% THD: 1400W
8 ohms 20 Hz-20 kHz 0.01% THD: 2200W
4 ohms 1 kHz 1% THD: 3400W
Noise (20 Hz-20 kHz): <-1.7 dB
Input Sensitivity @ 8 ohms: 1.9 Vrms
Input Sensitivity @ 4 ohms: 1.7 Vrms
Output Circuitry: 2-Step
Power Requirements (1/8 power pink noise @ 4ohms): 12A
Distortion (SMPTE-IM) Less than 0.01%
Distortion (typical) 20 Hz-20 KHz (10 dB below rated power 1.0 kHz and below full rated power: Less than 0.01% THD
Frequency Response: 20 Hz-20 kHz, ± 0.2 dB/8 Hz-50 kHz, +0, -3 dB
Damping Factor: greater than 500
Input Impedance: 6 K ohms unbalanced, 12 K ohms balanced
Input Clipping: 10 Vrms (+22dB)
Cooling: Variable-speed fan, rear-to-front air flow
Connectors: (each channel) Input: 3-pin XLR and 1/4 in. TRS balanced
Output: Neutrik Speakon and touch-proof binding posts
Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and protection
Stable into reactive or mismatched loads.
Load Protection On/off muting, DC-fault power supply shutdown
Dimensions: 19 in. (48.3cm) rack mounting, 3.5 in. (8.9 cm) tall (2 rack spaces), 13.25 in. (33.7 cm) deep (from front mounting rails)
Gain: 40x (32 dB)
Weight: 21 lbs. (9.5 kg) net
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-772-2834
Web: http://qsc.com/support
Phone: 800-772-2834
Web: http://qsc.com/support
Reviews
Reviewers gave this product an overall rating of 5 out of 5 stars.
(48 ratings)
Submitted February 10, 2008 by a customer from comcast.net
"QSC ... The Q is for quality!"
Verified Customer
zZounds has verified that this reviewer made a purchase from us.
I use only QSC amps.
Sound
I use two of these. Each one is bridged and each drives one JBL 2226H 15" Driver. I drive the horns with a QSC RMX2450.
The sound is great with a lot of punch.
I prefer QSC to Crown.
Features
PowerLight power supply
2 RU, 21 lbs., 13" deep
0.03% THD at 8 ohms
Bridge mono and parallel input modes
Class H output
Clip limiters and subsonic filters
2 ohm performance
1/4" TRS & XLR inputs
Speakon and shock-proof binding post outputs
Ease of Use
It's an amp:
Mount it, connect power and I & O's.
Quality
Solid. Reliable.
3-year warranty
Value
Worth every cent. Same great QSC sound at half the weight!
Manufacturer Support
Haven't needed support.
The Wow Factor
Sleek and stylish.
Musical Background:
Musician, Recording Engineer
Musical Style:
Progressive Rock / Ambient / Alternative
10 of 11 people (91%) people found this review helpful. Did you?
