Phonic MAX1500 Stereo Power Amplifier

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

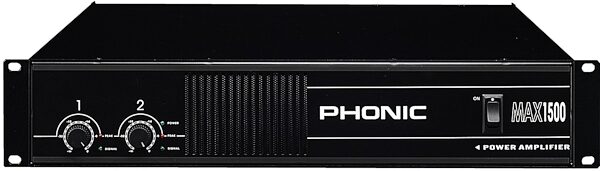

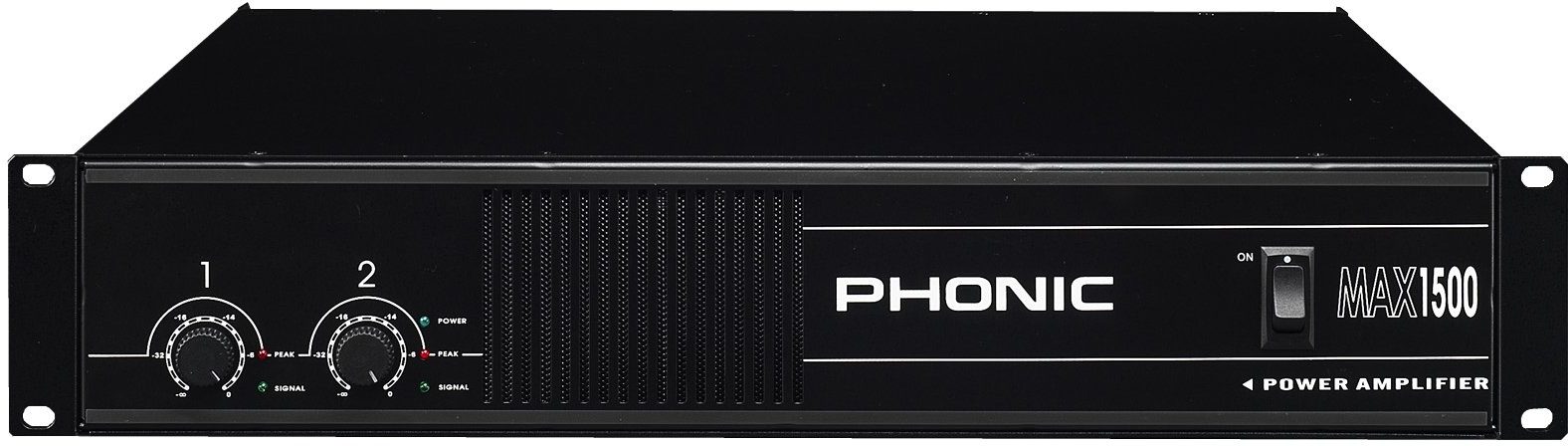

Phonic MAX1500 Stereo Power Amplifier, Main
Phonic MAX1500 Stereo Power Amplifier, Main
Phonic MAX1500 Stereo Power Amplifier, Main Phonic MAX1500 Stereo Power Amplifier, Main
zZounds Gear Experts Say...
280W at 8 ohms stereo.

Phonic entry-level power amplifiers maintain a solid performance at an affordable price. The MAX series amplifiers provide a range of different power options, and are rich in added features. Input to the MAX 1500 amp is achieved via an XLR and a phone jack, and output can be achieved through either Speakon connectors or traditional binding posts. The MAX 1500 features ground switches, user-defeatable clip limiters, selectable high-pass filters, and the option to choose between stereo, parallel and bridged operating modes, making the MAX series amplifiers ideal for real world, large scale application.

Features
Output power: 450W @ 4 ohm

Professional quality performance

High-current toroidal transformers for greater power and low noise

Independent user-defeatable peak limiters reduce distortion

Selectable high-pass filter at 30Hz or 50Hz

XLR and 1/4 in. TRS input jacks

Binding post and Speakon outputs

Front-mounted gain controls for easy access

Signal and peak LED indicators to monitor performance

Short circuit, thermal, subsonic, RF protection, output DC offset, power on/off muting

Stereo mode: 280W at 8 ohms, EIA 1kHz 0.1% THD

Stereo mode: 450W at 4 ohms, EIA 1kHz 0.1% THD

Stereo mode: 720W at 2 ohms, EIA 1kHz 1% THD

Bridged mono mode: 900W at 8 ohms, EIA 1kHz 0.1% THD

Bridged mono mode: 1320W at 4 ohms, EIA 1kHz 1% THD

Output circuitry: class H

Input sensitivity @ 8 ohms: 1.23V (+4 dBu)

Distortion (SMPTE-IM): <0.01%

Noise (unweighted 20Hz-20kHz below rated output): 100dB

Damping factor: >300 @ 8 ohms

Frequency response: 20Hz-20kHz, +0/-1dB; -3dB points: 5Hz-50kHz

Input impedance: 20 kilohm balanced, 10 kilohm unbalanced

Cooling: continuous variable-speed fan, front-to-rear air flow

Connectors (each channel): XLR & 1/4 in. TRS input, Speakon and binding post output

Indicators: blue LED power, green LED signal, red LED peak

Front panel controls: channel 1&2 gain knobs with 41 detents

Rear panel: slide switches for limiter on/off, operation mode

Protection circuitry: short circuit, thermal, subsonic, RF protection, output DC offset, power on/off muting

Gain: 40x (32 dB)

Power consumption: 900W

Power requirement: 100~120VAC
