Peavey HE BWX Subwoofer Raw Frame Speaker

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

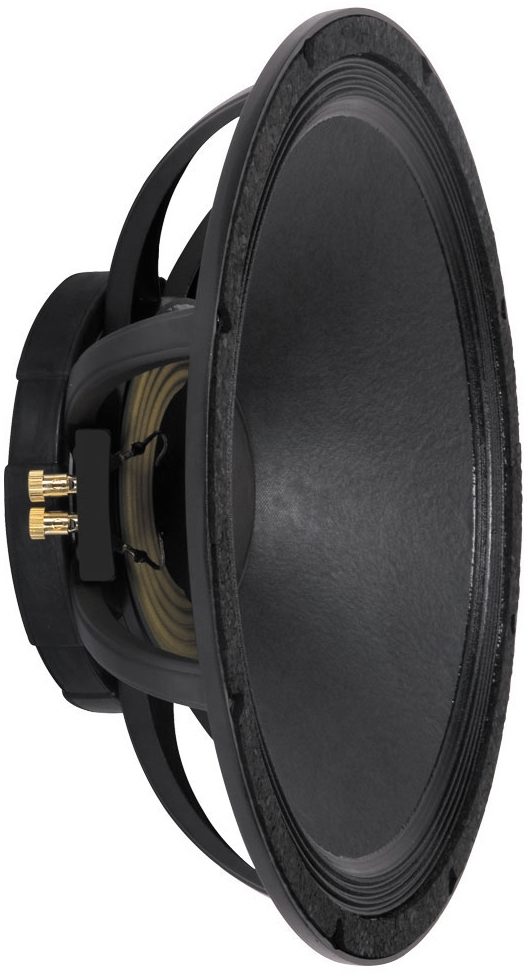

Peavey HE BWX Subwoofer Raw Frame Speaker, Main

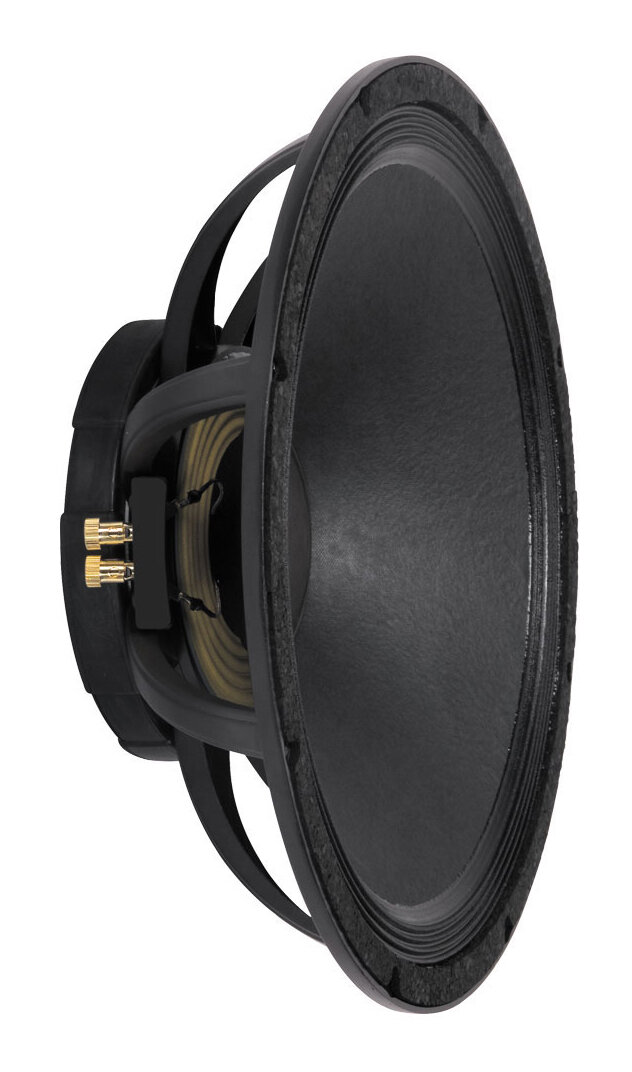

Peavey HE BWX Subwoofer Raw Frame Speaker, Main
zZounds Gear Experts Say...
Replace your midbass with this simple yet high-performance speaker from Peavey. It features 40Hz-2kHz frequency and 1000-watt program power.

The Peavey HE BWX high power 15 inch subwoofer trades deep bass for extreme high efficiency. Ideal for 2-way applications that do not require extended bass response and excels as a midbass driver in 3 or 4 way designs that include a dedicated subwoofer like the Peavey 18 inch Low Rider.

Size: 15-inch

Impedance: 8 Ohms

Power capacity: 2000 W Peak 1000 W Program 500 W Continuous

Sensitivity: 100.3 dB / 1 W 1 m

Usable freq. range: 40 Hz ~ 2 kHz

Cone: Kevlar(R) impregnated cellulose

Voice coil diameter: 4.0-inch / 100 mm

Voice coil material: Aluminum ribbon wire Polyimide-impregnated fiberglass former Nomex stiffener Solderless diffusion welded OFHC copper leads

Net weight lb. / kg: 17 lbs. / 7.7 kg

Znom (ohms): 8

Revc (ohms): 5.32

Sd (Square Meters): 0.084

BL (T/M): 16.04

Fo (Hz): 51.2

Vas (liters): 182.4

Cms (uM/N): 182.0

Mms (gm): 52.9

Qms: 10.604

Qes: 0.352

Qts: 0.341 Xmax: (mm) 1.9

Le (mH): 0.34

SPL (1W 1m): 100.3

No (%): 6.70%

Vd (cu. in. / ml): 19.5 / 319

Pmax (Watts pgm.): 1000

Disp (cu. in. / ml): 197/ 3229
