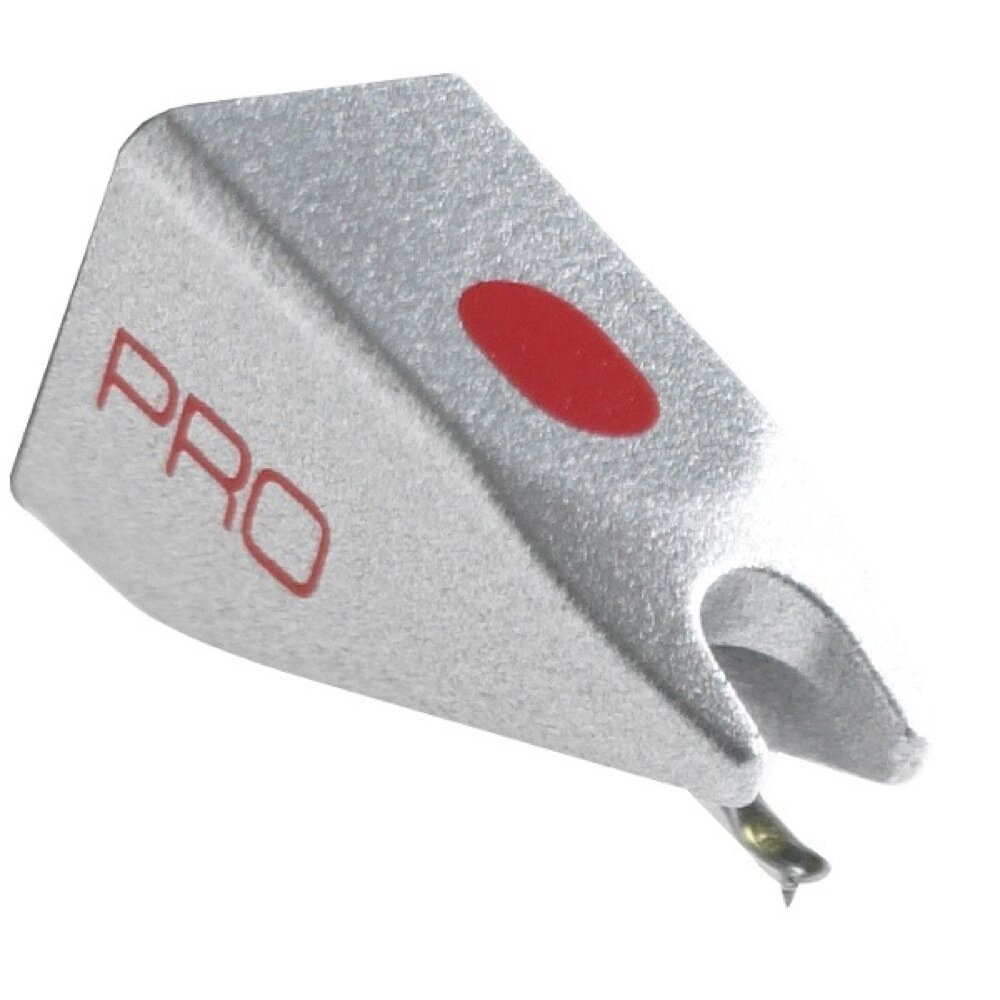

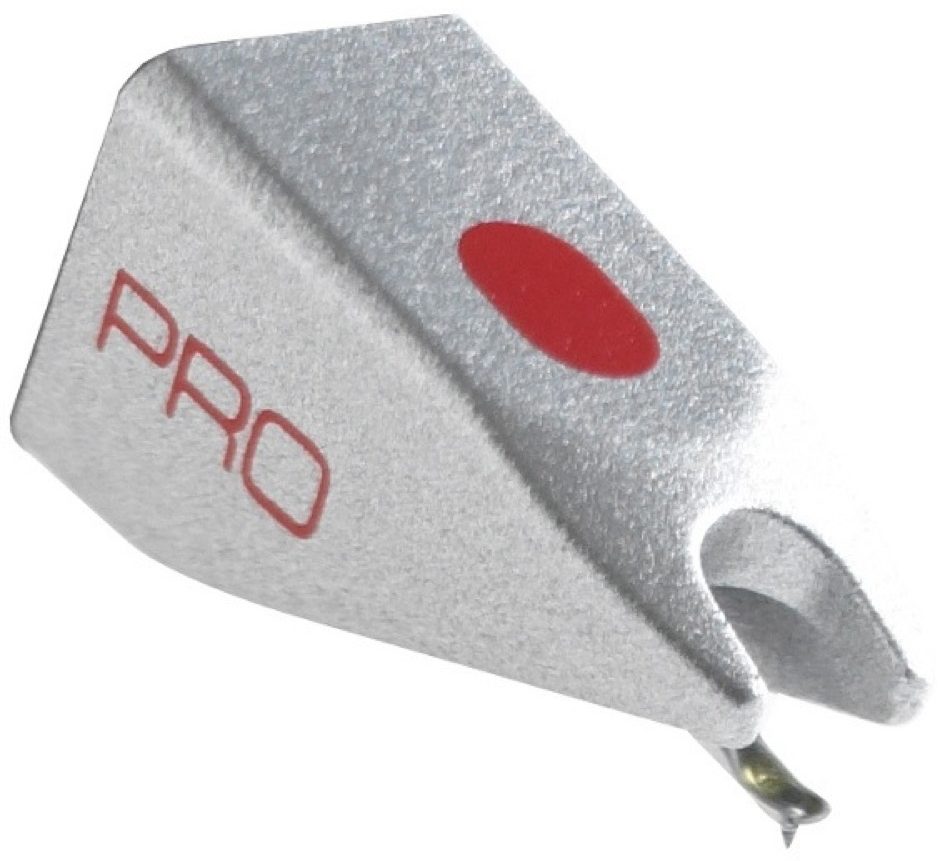

Ortofon Pro Spherical DJ Stylus

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Ortofon Pro Spherical DJ Stylus, Main
Ortofon Pro Spherical DJ Stylus, Main
Captivate your crowd with the pristine sound quality of the Ortofon Pro Spherical DJ Stylus.

The Ortofon Pro Spherical DJ Stylus offers great performance and durability for basic scratching and back-cueing. It has a good quality spherical stylus, a rock-solid cantilever, and serves general purposes well. The Pro is the logical alternative to the more expensive expert carts. It offers both reasonable output and high sound quality which is, in fact, all there is needed to entertain an audience.

The Pro Series of cartridges provides a great balance of sound quality with tracking ability, for virtually any style of music. With flat, transparent sound across the spectrum and excellent handling ability, the Pro Series represents one of the longest running values in DJ cartridges.

Ideal choice for talented, but less experienced DJs!

- Output voltage at 1000Hz, 5cm/sec.: 5 mV
- Channel balance at 1kHz: 1,5 dB
- Channel separation at 1kHz: 20 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at -3dB: 20-20.000 Hz
- Frequency response: 20-20.000 Hz 3dB/-2dB
- Tracking ability at 315 Hz at recommended tracking force: 70 m
- Compliance, dynamic lateral: 7 um/m N
- Stylus type: Spherical
- Stylus tip radius: R 18 um
- Tracking force range: 3,0-5,0 g (30-50 mN)
- Tracking force recommended: 4,0 g (40 mN)
- Tracking angle: 20 degrees
- Internal impedance, DC resistance: 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200-600 pF

For support or warranty questions, please contact the manufacturer:
Phone: 914-762-8646

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
