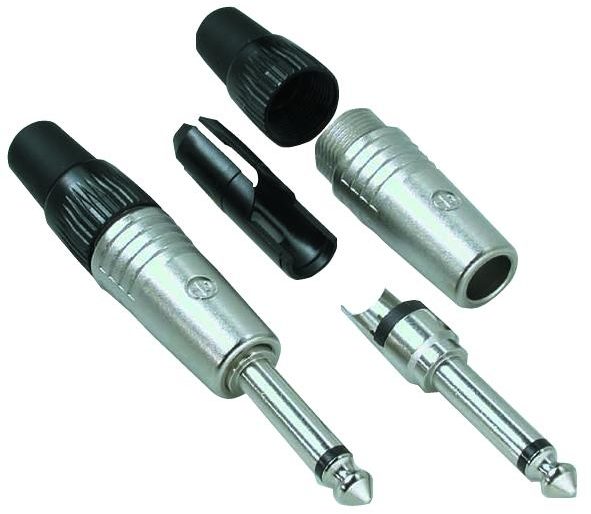

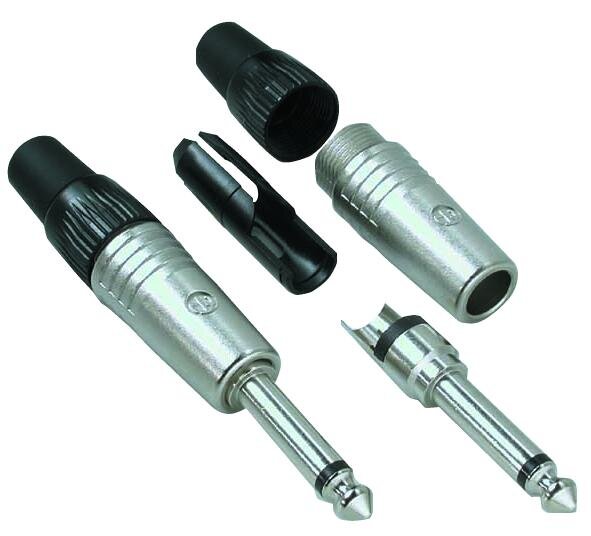

Neutrik NP2CBAG 1/4" Male Mono TS Connector
No longer available at zZounds
Build your own instrument cables with the industry-standard 1/4" TS plug. Neutrik's unique strain relief is designed to take the stress off your cable ends.
Overview
"The lifetime plug" comes with a die-cast shell and Neutrik unique chuck-type strain relief, featuring a PU-sleeve for optimal cable protection.
Specs
Electrical
Rated current: depends on mating connector
Contact resistance: depends on mating connector
Insulation resistance
- initial: > 2 G
- after damp heat test: = 1 G
Dielectric strength: 1.5 kV dc
Mechanical
Wiring: solder terminals
Wire size: 1 mm2 / AWG 18
Cable O.D.: 4 - 7 mm
Solderability: complies with IEC 68-2-20
Materials
Shell ZnAI4Cu1, Ni or black Cr plated
- RCS: only Ni plated / PA6 50% GR
Insulation: PA 6.6 30% GR
Contacts: CuZn39Pb3, 2 micrometers Ni (Su) plated
Chuck: PO
Bushing: POM + PU
Temperature range: -20 degrees C to +65 degrees C
Rated current: depends on mating connector
Contact resistance: depends on mating connector
Insulation resistance
- initial: > 2 G
- after damp heat test: = 1 G
Dielectric strength: 1.5 kV dc
Mechanical
Wiring: solder terminals
Wire size: 1 mm2 / AWG 18
Cable O.D.: 4 - 7 mm
Solderability: complies with IEC 68-2-20
Materials
Shell ZnAI4Cu1, Ni or black Cr plated
- RCS: only Ni plated / PA6 50% GR
Insulation: PA 6.6 30% GR
Contacts: CuZn39Pb3, 2 micrometers Ni (Su) plated
Chuck: PO
Bushing: POM + PU
Temperature range: -20 degrees C to +65 degrees C
