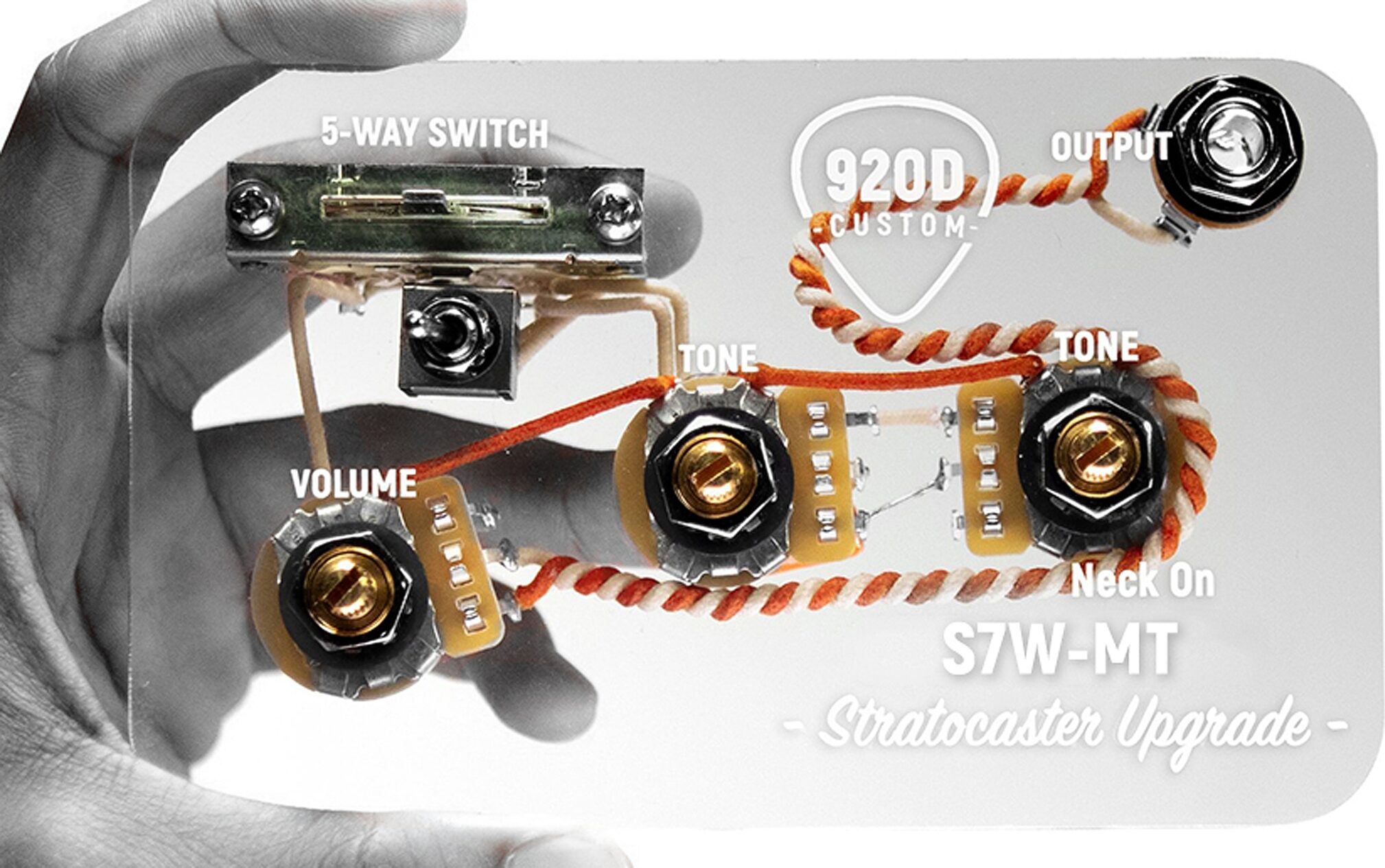

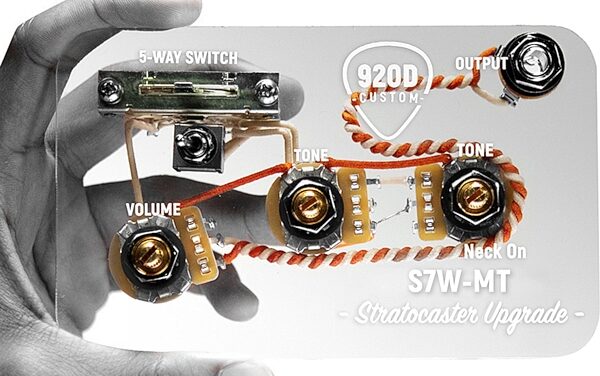

The S7W-MT 7-Way Wiring Upgrade allows you to harness the tone heard in psychedelic blues rock for decades. The mini toggle adds two extra switch positions on top of the classic 5 positions - Bridge/Neck and Bridge/Middle/Neck. Unlock the tone that greatly influenced the sound of rock with one a 7-Way Wiring Harness.

- 920D Custom Signature Wiring:
All 920D Custom products are highlighted with their signature orange wire. Gavitt Wire, a leading producer of premium guitar wire, has agreed to custom manufacture this signature cloth covered pushback wire, and it is the perfect choice for hotrodding your guitar. The wire is built with an outer waxed cotton layer and an inner Celanese braid that provides impressive ruggedness while still maintaining a 22 gauge thickness. Limiting the amount of wire on each build compliments your choice of pickups by creating the perfect balance between capacitance and resistance.

- 920D Custom 450G Series Potentiometers:
Pots are manufactured by CTS to 920D's exact specifications and are metered for accuracy before being used in any 920D Custom gear.

920D specify a 10% audio taper, accompanied with a low rotational torque rating of 0.50-2.00 in.oz (compared to the industry standard 0.75-6.00 in.oz rating) to provide a buttery knob sweep.

They hold potentiometer tolerances to +/-10%. The industry standard is +/-20%. Tightening potentiometer tolerances will help you accurately shape your tone.

- Pure Tone 1/4" Output Jack:
920D exclusively use… read more Pure Tone output jacks in all builds. Why? Because they're unquestionably better than the old, industry standard. Period.

You've heard the crackle of a weak connection caused by pressure grounds. This is due to the old style jack only having 1 squared-off point of contact trying to meet a rounded quarter inch plug. Pure Tone has completely changed that.

Pure Tone's multi-contact quarter inch output jack has 4 rounded contact points that hold the quarter inch plug firmly in place. With 4 times the contact points, all of the dreaded cracks, snaps, and pops are gone for good. The second you plug into this jack, you'll never want to go back.

- Orange Drop Capacitors:
920D has used Orange Drop Capacitors in their builds since day one. Orange Drop Polyester Film / Foil Capacitors are wound from the most reliable polyester film and aluminum foil available and are protected by a rugged conformal coating of orange epoxy.

All of that to say, these capacitors do a tremendous job of warming up your tone and taking away some of the bite of an overly bright sound. Like their potentiometers, these capacitors are held to a +/-10% tolerance.

- 7-Way Super Switch:
920D built their S7W-GIL Wiring Harness with a 7-Way Super Switch. It shouldn't come as a surprise that these switches are well known for being super durable, noise-free, and allowing a variety of mods.

- Hand-Built In The U.S.A.:
All 920D Custom creations are hand-built by experienced technicians at their shop in Greenbrier, Arkansas. They treat your new gear like it's going into one of their own guitars. Every millimeter of wire is cut precisely, every solder joint is perfectly smooth and symmetrical, and every bend is purposeful and direct. 920D hold everything to a tremendous level of quality because they know the smallest details matter and take great pride in their work.
