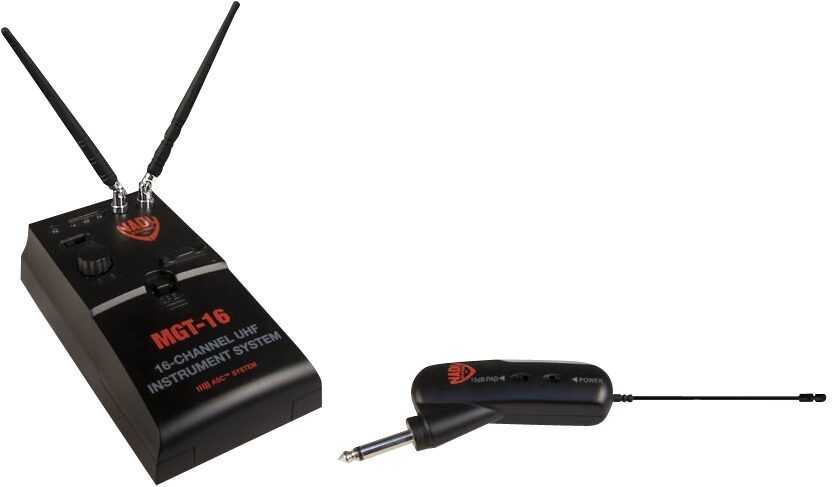

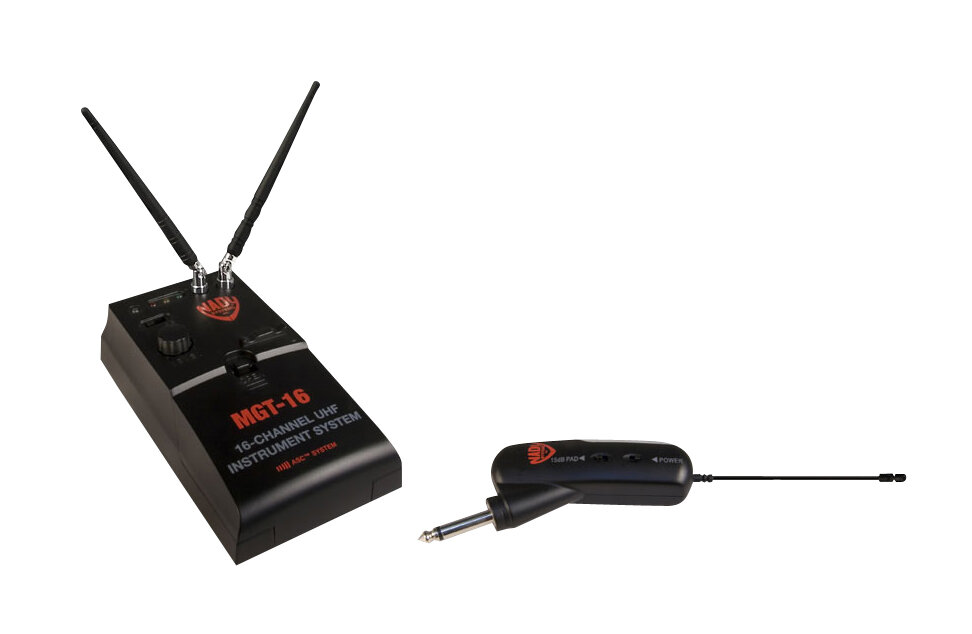

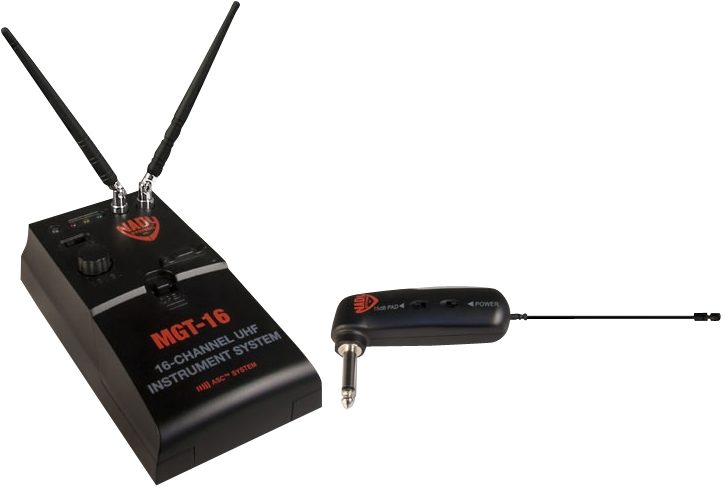

Nady MGT16 UHF Instrument Wireless System
No longer available at zZounds
Enjoy freedom of movement for your guitar or bass with this Nady wireless system. It has a 250-foot operating range for worry-free performance.
Overview
The Nady MGT 16 is the perfect solution for guitarists or bassists who want the freedom to rock on stage without that voice in the back of your mind saying "don't trip over the cord, please don't trip over the cord". With an operating range of up to 250 feet and 16 user selectable UHF frequencies, you will have interference free operation without losing tone.
- 16 user-selectable PLL frequencies for interference-free operation
- Up to 250 feet operating range, line-of-sight
- Infrared ASC Auto-Sync Channels transfer from receiver to transmitter for instant setup
- Battery operated receiver and transmitter

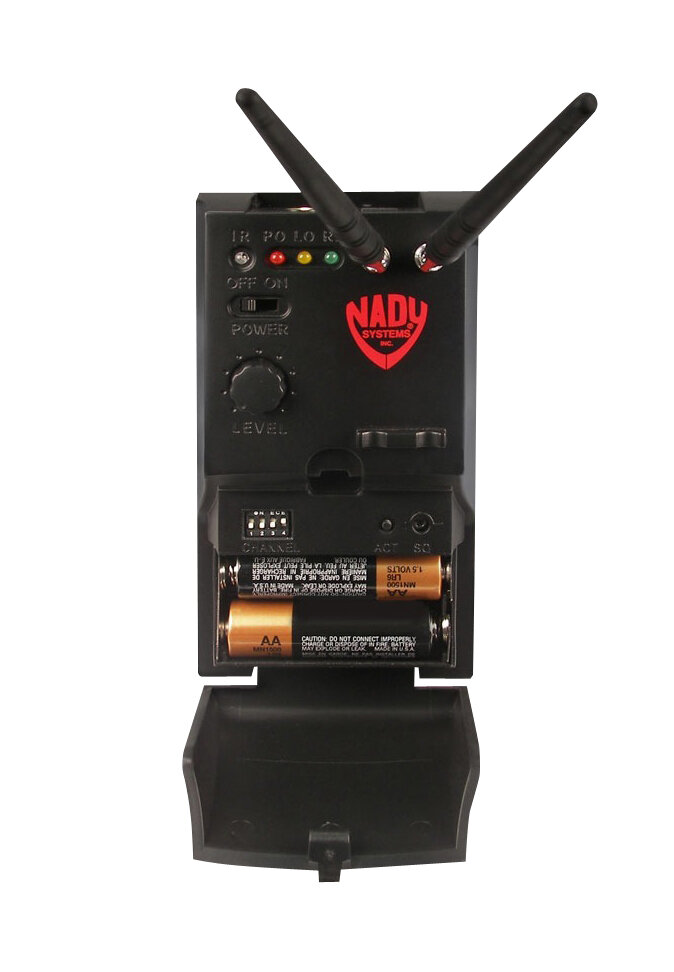

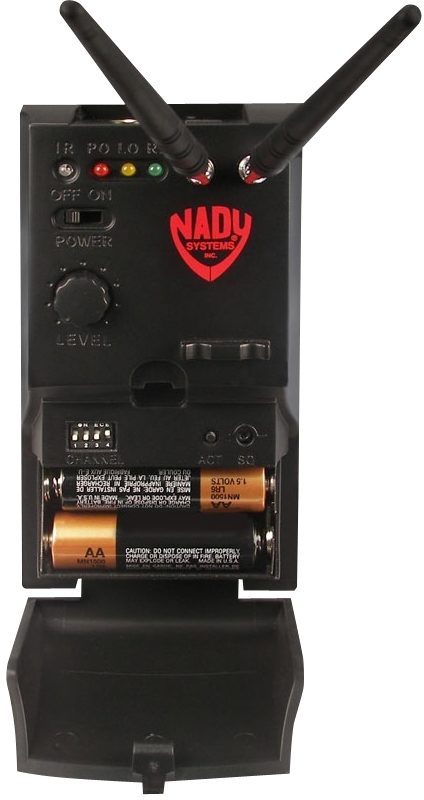

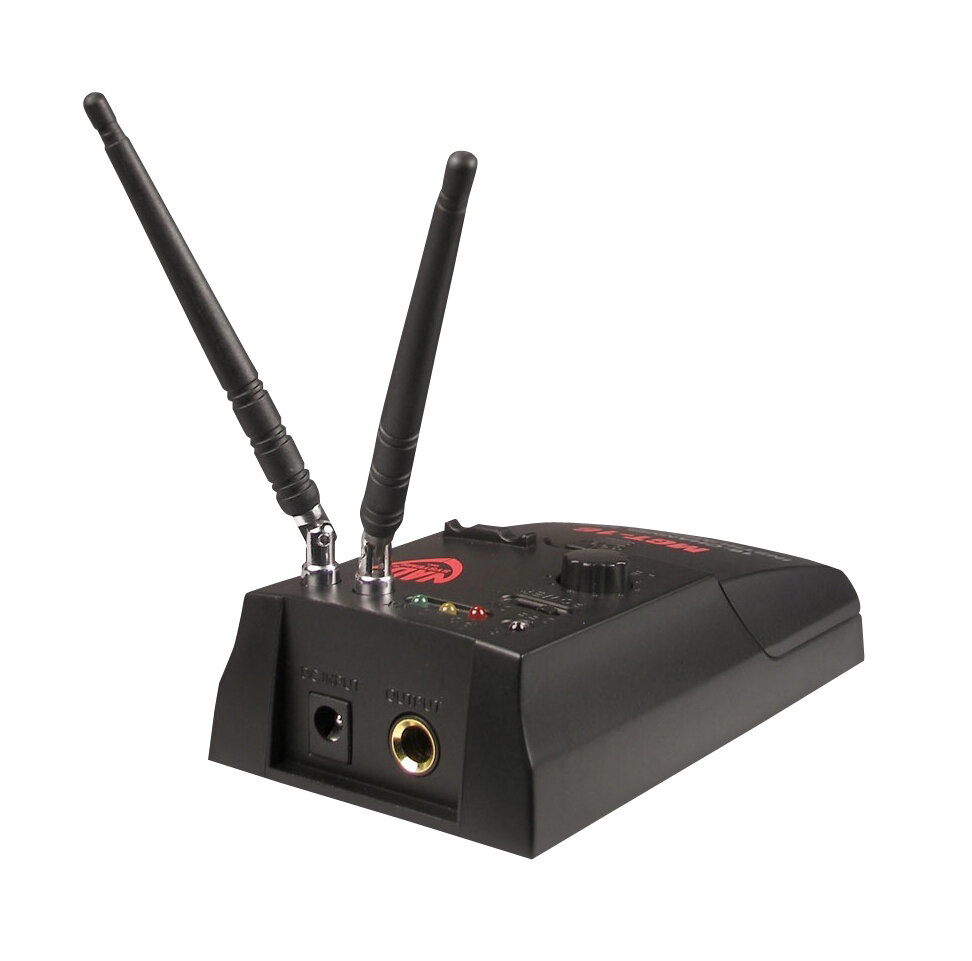

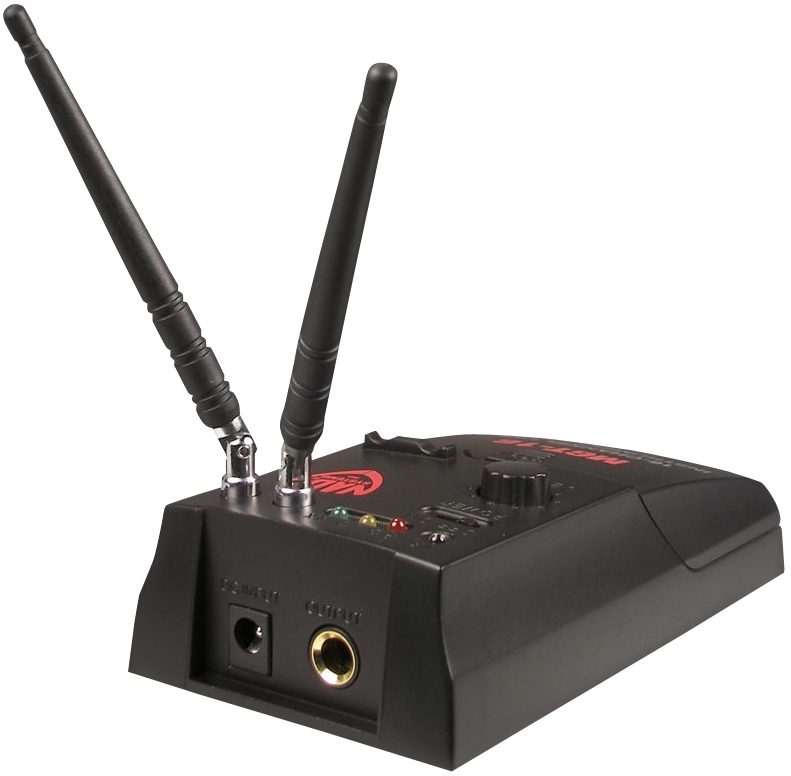

MGT 16 Receiver
- Compact, portable, "pedal style" receiver
- Dual 1/4 wave antennas
- Infrared sync with transmitter for instant setup
- Unbalanced 1/4 inch line out jack
- Power On/Off/Mute switch; Volume Control; LED indicators for Power On, Low Battery Alert, and RF Reception; DIP-switch channel selection with IR sync to transmitter
- Powered by DC adapter (included) or two AA alkaline batteries for portability (up to 8 hours battery life)

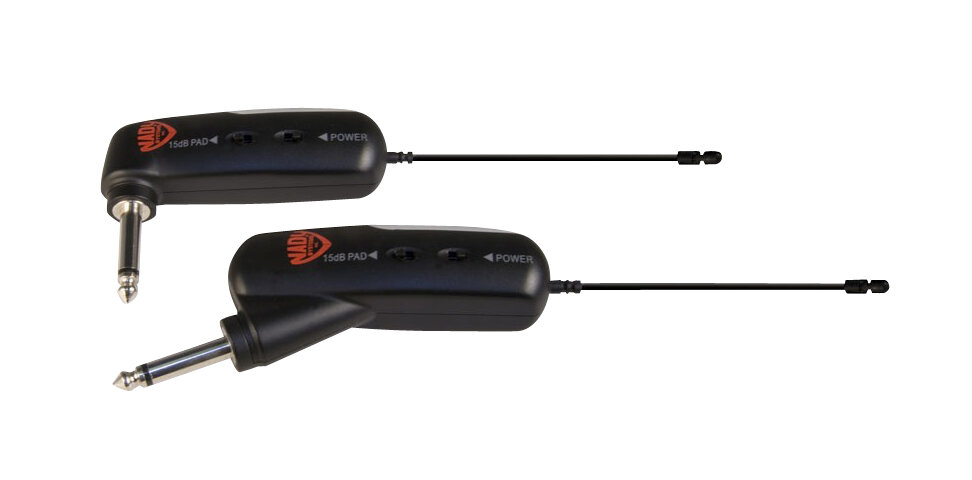

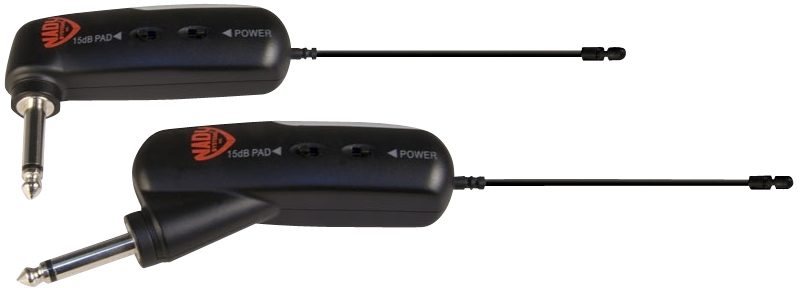

MT 16A / MT 16R Transmitters
- Choice of two transmitter housings: MT-16A with 30 degree angled 1/4 inch plug for use with either recessed or surface mounted jacks, or MT-16R with 90 degree angled 1/4 inch plug for surface mounted jacks only
- Up to eight hours of battery life from a single AAA alkaline or NiMH rechargeable, battery
- Infrared channel sync with receiver for instant… read more setup
- Power On/Off switch; Power/Low Battery LED indicators; IR Sync LED; Input Level attenuation switch; internal Audio Level control trim-pot
- External flexible antenna read less
Features
- UHF wireless system for guitar/bass- 16 user-selectable PLL frequencies for interference-free operation
- Up to 250 feet operating range, line-of-sight
- Infrared ASC Auto-Sync Channels transfer from receiver to transmitter for instant setup
- Battery operated receiver and transmitter
MGT 16 Receiver
- Compact, portable, "pedal style" receiver
- Dual 1/4 wave antennas
- Infrared sync with transmitter for instant setup
- Unbalanced 1/4 inch line out jack
- Power On/Off/Mute switch; Volume Control; LED indicators for Power On, Low Battery Alert, and RF Reception; DIP-switch channel selection with IR sync to transmitter
- Powered by DC adapter (included) or two AA alkaline batteries for portability (up to 8 hours battery life)
MT 16A / MT 16R Transmitters
- Choice of two transmitter housings: MT-16A with 30 degree angled 1/4 inch plug for use with either recessed or surface mounted jacks, or MT-16R with 90 degree angled 1/4 inch plug for surface mounted jacks only
- Up to eight hours of battery life from a single AAA alkaline or NiMH rechargeable, battery
- Infrared channel sync with receiver for instant… read more setup
- Power On/Off switch; Power/Low Battery LED indicators; IR Sync LED; Input Level attenuation switch; internal Audio Level control trim-pot
- External flexible antenna read less
Specs
Frequency Response: 50Hz-16kHz (-3dB)
Dynamic Range: 120dB
Oscillating System: Phase Lock Loop (PLL)
Total Harmonic Distortion (THD): <0.8%
RF Carrier Frequency Range: 902.40MHz-923.70MHz
Modulation: FM (F3E), +/-30KHz normal
Operating Range: Up to 250 feet (typical, depending on site conditions)
- Audio Level
- Power ON/MUTE/OFF
- Frequency Select DIP-switches
- IR sync button
Connectors:
- Unbalanced 1/4 inch
- DC Adapter input jack
LED Indicators:
- Power ON (Red-continuous)
- Low Power (Orange-continuous)
- RX reception (Green)
Antennas: Dual 1/4 wave, adjustable orientation
Signal-to-Noise Ratio: >105dB (w/AC/DC power supply)
Receiver Sensitivity: -110dBm nominal, 12dB SINAD
Squelch Sensitivity: -95dBm (minimum/normal setting), adjustable
Output Impedance: 1.0K Ohms
Power Consumption: DC: 3V/ 115mA or AC/DC adapter: 10VDC/200mA
Battery: Two AA alkaline or NiMH
Battery Life: Up to 8 hours
Dimensions (WxDxH): 2.75 x 5.00 x 1.88 inches (7.0 x 12.7 x 4.78 cm)
Weight (without batteries): 5.7 oz (161.6 g)
Housing Construction: ABS Plastic
Harmonic & Spurious Emissions: -50dB
Controls: Power ON/OFF, 15dB Attenuation Pad select switch
LED Indicators: Power ON (Red-single flash), Low Battery (Red flash)
Input Impedance: 500 kOhms
Power Consumption: DC 1.5V/90mA
Battery: One AAA alkaline
Battery Life: Up to 8 hours
Antenna: 1/4 wave, permanently attached
Dimensions (WxDxH): MT 16A: 4.5 x 2.0 x 1.0 inch (11.43 x 5.08 x 2.54 cm), MT 16R: 3.5 x 2.5 x 1.0 inch (8.9 cm x 6.35 cm x 2.54 cm)
Weight (without batteries): MT 16A: 1.2 oz (34 g), MT 16R: 1.1 oz (31.2 g)
Housing Construction: ABS Plastic
Dynamic Range: 120dB
Oscillating System: Phase Lock Loop (PLL)
Total Harmonic Distortion (THD): <0.8%
RF Carrier Frequency Range: 902.40MHz-923.70MHz
Modulation: FM (F3E), +/-30KHz normal
Operating Range: Up to 250 feet (typical, depending on site conditions)
MGT 16 Receiver
Controls:- Audio Level
- Power ON/MUTE/OFF
- Frequency Select DIP-switches
- IR sync button
Connectors:
- Unbalanced 1/4 inch
- DC Adapter input jack
LED Indicators:
- Power ON (Red-continuous)
- Low Power (Orange-continuous)
- RX reception (Green)
Antennas: Dual 1/4 wave, adjustable orientation
Signal-to-Noise Ratio: >105dB (w/AC/DC power supply)
Receiver Sensitivity: -110dBm nominal, 12dB SINAD
Squelch Sensitivity: -95dBm (minimum/normal setting), adjustable
Output Impedance: 1.0K Ohms
Power Consumption: DC: 3V/ 115mA or AC/DC adapter: 10VDC/200mA
Battery: Two AA alkaline or NiMH
Battery Life: Up to 8 hours
Dimensions (WxDxH): 2.75 x 5.00 x 1.88 inches (7.0 x 12.7 x 4.78 cm)
Weight (without batteries): 5.7 oz (161.6 g)
Housing Construction: ABS Plastic
MT-16A/R Transmitter
RF Power Out: 25mW nominal, 50mW maximumHarmonic & Spurious Emissions: -50dB
Controls: Power ON/OFF, 15dB Attenuation Pad select switch
LED Indicators: Power ON (Red-single flash), Low Battery (Red flash)
Input Impedance: 500 kOhms
Power Consumption: DC 1.5V/90mA
Battery: One AAA alkaline
Battery Life: Up to 8 hours
Antenna: 1/4 wave, permanently attached
Dimensions (WxDxH): MT 16A: 4.5 x 2.0 x 1.0 inch (11.43 x 5.08 x 2.54 cm), MT 16R: 3.5 x 2.5 x 1.0 inch (8.9 cm x 6.35 cm x 2.54 cm)
Weight (without batteries): MT 16A: 1.2 oz (34 g), MT 16R: 1.1 oz (31.2 g)
Housing Construction: ABS Plastic
Reviews
Reviewers gave this product an overall rating of 4.5 out of 5 stars.
(2 ratings)
Submitted February 23, 2014 by Joe H
"Nady MGT16 UHF Instrument Wireless System"
Verified Customer
zZounds has verified that this reviewer made a purchase from us.
I bought this as a "blemished" special. When it arrived, it had obviously been unpacked and casually repacked, but was complete and basically un-marked. The unit works great, and because it is in the 900 mhz freq range operates without a problem with other units around. I'm quite pleased that it works well on battery power, so simplifies set-ups. No problems so far!
Musical Background:
40 years a casual player; some public performances (pro-bono), jamming, playing at home
Musical Style:
country, jazzy standards, bluebrass, old time
2 of 2 people (100%) people found this review helpful. Did you?
