Moog Sequencer Complement B for Modular Synthesizers
No longer available at zZounds

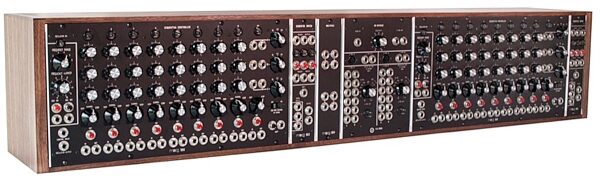

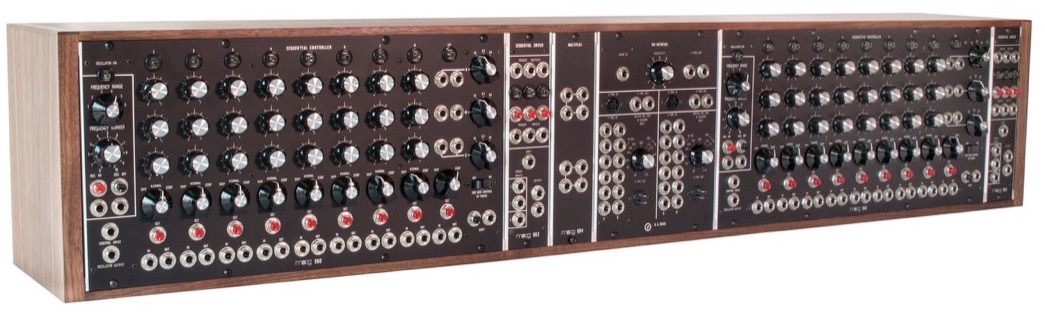

![Moog Sequencer Complement B for Modular Synthesizers, Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/Expansioncabinet_white-583603641bfce5e029f8bc73d94222ff.jpg)
Add step sequencing capabilities to your Moog modular System 35 or System 55 synthesizer. This expansion cabinet has two 960 Sequential Controllers and more.
Overview
The Moog Sequencer Complement B is an optional expansion cabinet for both the System 35 and System 55 modular instruments. It is housed in a hand-finished solid walnut cabinet and incorporates the expansive musical capabilities of two 960 Sequential Controllers. The Sequencer Complement B is an extremely powerful tool for significantly increased musical accompaniment rhythmic complexity.
1. Call us at 1-800-ZZOUNDS to make your initial payment.
You'll make a deposit for 15% up front, and we'll send your name, contact info, and order to the good folks at Moog Music.
2. Moog will contact you directly about your order.
They'll let you know your pre-order has been registered, and reserve your place in line for shipment. Because each Moog modular system is a special order, yours may require a turnaround time of several months, depending on your place in line. First come, first served! Moog expects to begin shipping these systems in spring 2015.
3. We'll contact you to arrange the remaining payment.
30 days before the estimated ship date, Moog will let us know your order is on its way! Then we'll contact you to make payment arrangements for the rest of your purchase. Sorry, no discounts or payment plans are available on these… read more products.
4. We'll ship your Moog modular to you!
Each Sequencer Complement B expansion cabinet is hand-built to its original 1974 Moog factory specifications and is a true recreation of the original. Individual modules are brought to life just as the originals were, by hand-stuffing and hand-soldering components to circuit boards, and using traditional wiring methods. Each module is then finished with a photo-etched aluminum panel, and placed in its new modular instrument.
This limited reissue of the Moog Sequencer Complement B expansion cabinet is built to order, and is available in limited quantities while parts remain.
The sequencer module consists of a voltage controlled clock oscillator, which drives three rows of eight steps each. Indicator lights show sequence and step position status. A separate potentiometer for each step permits up to eight different voltage settings to be selected for each row. The DC voltage output corresponds to the column of pots below the lighted stage. Voltage range switches for each row determine the DC voltage range of each pot with two volts {X1}, four volts {X2}, or eight volts {X4} maximum extent. Two parallel outputs are provided for each row. Jacks for trigger inputs and outputs appear below each column. Trigger inputs activate that stage independently of the clock oscillator trigger. Trigger outputs are available for any other V-trigger activated input. Manual trigger buttons as well, are included for each of the eight stages {found below the V-trigger jacks}. Switches found immediately below each step position permit normal, skip or stop functions. A ninth position providing skip {continuous progression through the eight steps} or stop {one progression to closure} functions is included at the end of the row. Timing control for the eight steps is accomplished via the Third Row Control of Timing switch. This switch connects the third row of the sequencer into the control input of the clock speed for each stage according to the settings on the third row potentiometers. The Shift input admits an external clock input to the sequencing circuit. This input may be used in addition to or exclusive of the internal clock oscillator trigger. Manual shift from step to step is accomplished with the button next to the shift input jack, as well as individual manual trigger buttons for each step found under each step column.
Manual buttons or external v-trigger sources initiate the clock oscillator start and stop functions. The clock oscillator is capable of producing frequencies from .1Hz to 1kHz. It has both octave {range} and vernier {fine adjust} controls. One control input jack is available, as well as one rectangular wave output {approximately 90/10% duty cycle}. The clock oscillator, like other Moog oscillators, is standardized to one volt per octave.
The Audio to V-trigger circuit generates V-triggers when the audio input level rises above the threshold set on the Sensitivity potentiometer. This V-trigger sensitivity varies with the frequency band of the audio signal and with the frequency of its amplitude peaks. V-trigger duration is commensurate with the length of time the audio signal remains above the sensitivity threshold. Two parallel V-trigger outputs are included.
The S-trigger to V-trigger circuits converts any Short-to-ground trigger input to a v-trigger output.
Each V-trigger In to S-trigger Out circuit has two columns of six jacks each for input triggers and one S-trigger output. Column A of the V-trigger inputs will convert V-trigger signals to S-triggers with duration equal to the input. Column B determines S-trigger duration by the Switch-on-time knob ONLY. B Column S-triggers will block, extend or fore-shorten Column B V-trigger inputs to conform to whatever duration is indicated on the B-column potentiometer. A minimum switch- on-time of 40 milliseconds and maximum time of 4 seconds duration is available. Simultaneous inputs to both A and B columns may be made. Simultaneous inputs to two parallel jacks will result in the longer of the two trigger signals being accepted.
A connection to Input Three will cause the Sequential Switch to alternate between the three stages {in order) when triggered. Separate V-trigger input and output jacks are provided far each of the three stages, as well as buttons for manual switching. A small light for each stage indicates its status, on {coupled to the output} or off.
- 2x 962 Sequential Switch
- 1x 994 Dual Multiples Panel read less
How to Order Your Moog Modular System
If you're considering purchasing a Moog modular synthesizer, you know how special these instruments are! These Moog reissues are extremely limited in quantity, so your order requires a few more steps than usual:1. Call us at 1-800-ZZOUNDS to make your initial payment.
You'll make a deposit for 15% up front, and we'll send your name, contact info, and order to the good folks at Moog Music.
2. Moog will contact you directly about your order.
They'll let you know your pre-order has been registered, and reserve your place in line for shipment. Because each Moog modular system is a special order, yours may require a turnaround time of several months, depending on your place in line. First come, first served! Moog expects to begin shipping these systems in spring 2015.
3. We'll contact you to arrange the remaining payment.
30 days before the estimated ship date, Moog will let us know your order is on its way! Then we'll contact you to make payment arrangements for the rest of your purchase. Sorry, no discounts or payment plans are available on these… read more products.
4. We'll ship your Moog modular to you!
Faithfully Recreating The Sequencer Complement B Expansion Cabinet
Over the course of 3 years Moog Music set out to research and build faithful recreations of the System 35, System 55 and the Moog Sequencer Complement B expansion cabinet. Using all original documentation as well as circuit board and art files for every module, Moog Engineers have painstakingly recreated this rare creative gem.Each Sequencer Complement B expansion cabinet is hand-built to its original 1974 Moog factory specifications and is a true recreation of the original. Individual modules are brought to life just as the originals were, by hand-stuffing and hand-soldering components to circuit boards, and using traditional wiring methods. Each module is then finished with a photo-etched aluminum panel, and placed in its new modular instrument.
This limited reissue of the Moog Sequencer Complement B expansion cabinet is built to order, and is available in limited quantities while parts remain.
960 Sequential Controllers
The 960 Sequential Controller has a wide variation of functions, both as an independent module and in combination with the 961 Interface and 962 Sequential Switch.The sequencer module consists of a voltage controlled clock oscillator, which drives three rows of eight steps each. Indicator lights show sequence and step position status. A separate potentiometer for each step permits up to eight different voltage settings to be selected for each row. The DC voltage output corresponds to the column of pots below the lighted stage. Voltage range switches for each row determine the DC voltage range of each pot with two volts {X1}, four volts {X2}, or eight volts {X4} maximum extent. Two parallel outputs are provided for each row. Jacks for trigger inputs and outputs appear below each column. Trigger inputs activate that stage independently of the clock oscillator trigger. Trigger outputs are available for any other V-trigger activated input. Manual trigger buttons as well, are included for each of the eight stages {found below the V-trigger jacks}. Switches found immediately below each step position permit normal, skip or stop functions. A ninth position providing skip {continuous progression through the eight steps} or stop {one progression to closure} functions is included at the end of the row. Timing control for the eight steps is accomplished via the Third Row Control of Timing switch. This switch connects the third row of the sequencer into the control input of the clock speed for each stage according to the settings on the third row potentiometers. The Shift input admits an external clock input to the sequencing circuit. This input may be used in addition to or exclusive of the internal clock oscillator trigger. Manual shift from step to step is accomplished with the button next to the shift input jack, as well as individual manual trigger buttons for each step found under each step column.
Manual buttons or external v-trigger sources initiate the clock oscillator start and stop functions. The clock oscillator is capable of producing frequencies from .1Hz to 1kHz. It has both octave {range} and vernier {fine adjust} controls. One control input jack is available, as well as one rectangular wave output {approximately 90/10% duty cycle}. The clock oscillator, like other Moog oscillators, is standardized to one volt per octave.
961 Interface
Four independent circuits are found on the 961 Interface: one Audio-In to V- trigger Out circuit, one S-trigger In to V-Trigger Out circuit, and two V-trigger In to S-trigger Out circuits. All interface circuits may be used simultaneously, in combination, or separately.The Audio to V-trigger circuit generates V-triggers when the audio input level rises above the threshold set on the Sensitivity potentiometer. This V-trigger sensitivity varies with the frequency band of the audio signal and with the frequency of its amplitude peaks. V-trigger duration is commensurate with the length of time the audio signal remains above the sensitivity threshold. Two parallel V-trigger outputs are included.
The S-trigger to V-trigger circuits converts any Short-to-ground trigger input to a v-trigger output.
Each V-trigger In to S-trigger Out circuit has two columns of six jacks each for input triggers and one S-trigger output. Column A of the V-trigger inputs will convert V-trigger signals to S-triggers with duration equal to the input. Column B determines S-trigger duration by the Switch-on-time knob ONLY. B Column S-triggers will block, extend or fore-shorten Column B V-trigger inputs to conform to whatever duration is indicated on the B-column potentiometer. A minimum switch- on-time of 40 milliseconds and maximum time of 4 seconds duration is available. Simultaneous inputs to both A and B columns may be made. Simultaneous inputs to two parallel jacks will result in the longer of the two trigger signals being accepted.
962 Sequential Switch
The 962 Sequential Switch selects between two or three signal inputs, coupling one signal to the output jack at a time. A V-trigger pulse introduced to the Shift Input initiates the sequence. The Sequential Switch will alternate between stages One and Two, disregarding stage three until a standard {tip-sleeve} phone plug is patched into Signal Input Three.A connection to Input Three will cause the Sequential Switch to alternate between the three stages {in order) when triggered. Separate V-trigger input and output jacks are provided far each of the three stages, as well as buttons for manual switching. A small light for each stage indicates its status, on {coupled to the output} or off.
994 Dual Multiples Panel
The multiple is a device, which permits multiple distribution of one signal to several different places. This process is often called signal splitting. Multiples are used for many purposes; from linking two patch cords together, sending a single signal to several different modules at the same time, to doubling or trebling the amplitude of a signal by sending it X3 to a particular source.Sequencer Complement B Modules:
- 2x 960 Sequential Controllers 1x 961 Interface- 2x 962 Sequential Switch
- 1x 994 Dual Multiples Panel read less
Specs
- Power: Powered by Main Console
- Weight: 60 lbs
- 1x 961 Interface
- 2x 962 Sequential Switch
- 1x 994 Dual Multiples Panel
- Weight: 60 lbs
Modules Included in Sequencer Complement B:
- 2x 960 Sequential Controllers- 1x 961 Interface
- 2x 962 Sequential Switch
- 1x 994 Dual Multiples Panel
