Mackie SR1530 Active 3-Way Sound Reinforcement Speaker
No longer available at zZounds
zZounds Gear Experts Say...
Linear response from 40Hz to 20kHz at high SPLs. High definition, high output, and wide dispersion.
Overview
If you shop music stores or browse the web, you'll discover that there aren't a lot of portable 3-way sound reinforcement systems. Moreover, there aren't any active3-way systems designed for smaller venues.
Mackie thought that that was a shame... since a 3-way system can deliver enhanced fidelity and detail to vocals and instruments that fall in the critical midrange frequency spectrum. A 3-way system is perfect for everything from hard rock and rap, metal to country, churches, or acoustic groups with vocal ensembles or string and woodwind instruments — anywhere that accuracy and fidelity are important.
So Mackie set out to realize the potential of a 3-way PA system by applying their active electronic and amplifier technology, a completely new type of integrated horn system, and some of the world's finest precision transducers.
When they finished, they had a system with audiophile accuracy and output levels that can bleach the tattoos off the loudest thrash band.
Features
Linear response from 40Hz to 20kHz at high SPLs
High definition, high output, and wide dispersion
FR Series tri-amplification: 500 total watts RMS delivered to internal transducers (300W RMS LF, 100W RMS Mids, 100W RMS HF)
Electronic equalization, time correction, and phase alignment

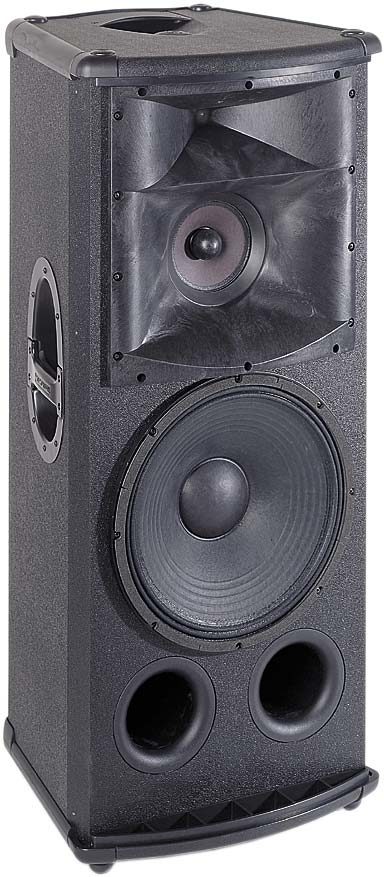

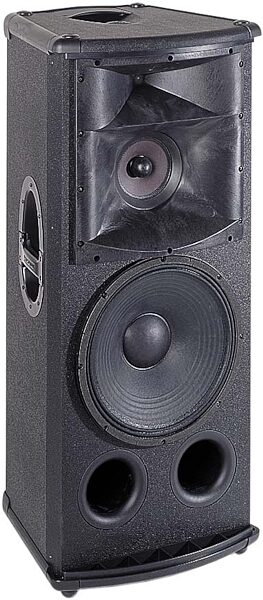

Optimized Wavefront high/mid horn system
RCF Precision Transducers
15 in. LF transducer with Inside/Outside heat-resistant voice coil and high-flux magnetic circuit
6 in. horn-loaded midrange
1 in. exit compression… read more driver
Trapezoidal Baltic Birch plywood enclosure with rugged molded resin end caps
Weight-balanced with side handles for easy carry and set up
Top and bottom handle for easy repositioning
Full electronic and component protection circuitry read less
Mackie thought that that was a shame... since a 3-way system can deliver enhanced fidelity and detail to vocals and instruments that fall in the critical midrange frequency spectrum. A 3-way system is perfect for everything from hard rock and rap, metal to country, churches, or acoustic groups with vocal ensembles or string and woodwind instruments — anywhere that accuracy and fidelity are important.
So Mackie set out to realize the potential of a 3-way PA system by applying their active electronic and amplifier technology, a completely new type of integrated horn system, and some of the world's finest precision transducers.
When they finished, they had a system with audiophile accuracy and output levels that can bleach the tattoos off the loudest thrash band.
Features
Linear response from 40Hz to 20kHz at high SPLs
High definition, high output, and wide dispersion
FR Series tri-amplification: 500 total watts RMS delivered to internal transducers (300W RMS LF, 100W RMS Mids, 100W RMS HF)
Electronic equalization, time correction, and phase alignment
Optimized Wavefront high/mid horn system
RCF Precision Transducers
15 in. LF transducer with Inside/Outside heat-resistant voice coil and high-flux magnetic circuit
6 in. horn-loaded midrange
1 in. exit compression… read more driver
Trapezoidal Baltic Birch plywood enclosure with rugged molded resin end caps
Weight-balanced with side handles for easy carry and set up
Top and bottom handle for easy repositioning
Full electronic and component protection circuitry read less
Specs
System
Freq. Range (-10 dB): 40Hz - 20kHz
Freq. Response (-3dB): 45Hz - 18kHz
Horz. Coverage Angle (-6dB): 90Á
Vert. Coverage Angle (-6dB): 40Á
Directivity Factor; DI(Q): 10.77 (11.95) averaged 2kHz to 10kHz
Rated Maximum SPL (peak): 126dB @ 1m
Crossover Points: 700Hz, 3,000Hz
Transducer
Low-Frequency:
Diameter: 15" (381mm)
Power Handling: 400 watts Dynamic Program Power
Mid-Frequency:
Diameter: 6" (152mm) diameter
Power Handling: 100 watts Dynamic Program Power
High Frequency:
Exit Throat: 1" (25.4mm)
Power handling: 100 watts Dynamic Program Power
Amplifiers
Low-Frequency Power Amplifier:
Rated Power: 300 watts @ Low-Frequency Driver Impedance
Rated THD: < 0.05%
Cooling: Class AB Convection Extrusion
Mid-frequency amplifier:
Rated Power: 100 watts @ Mid-Frequency Driver Impedance
Rated THD: <0.01%
Cooling: Class AB Convection Extrusion
High-frequency amplifier:
Rated Power: 100 watts @ High-Frequency Driver Impedance
Rated THD: <0.01%
Cooling: Class AB Convection Extrusion

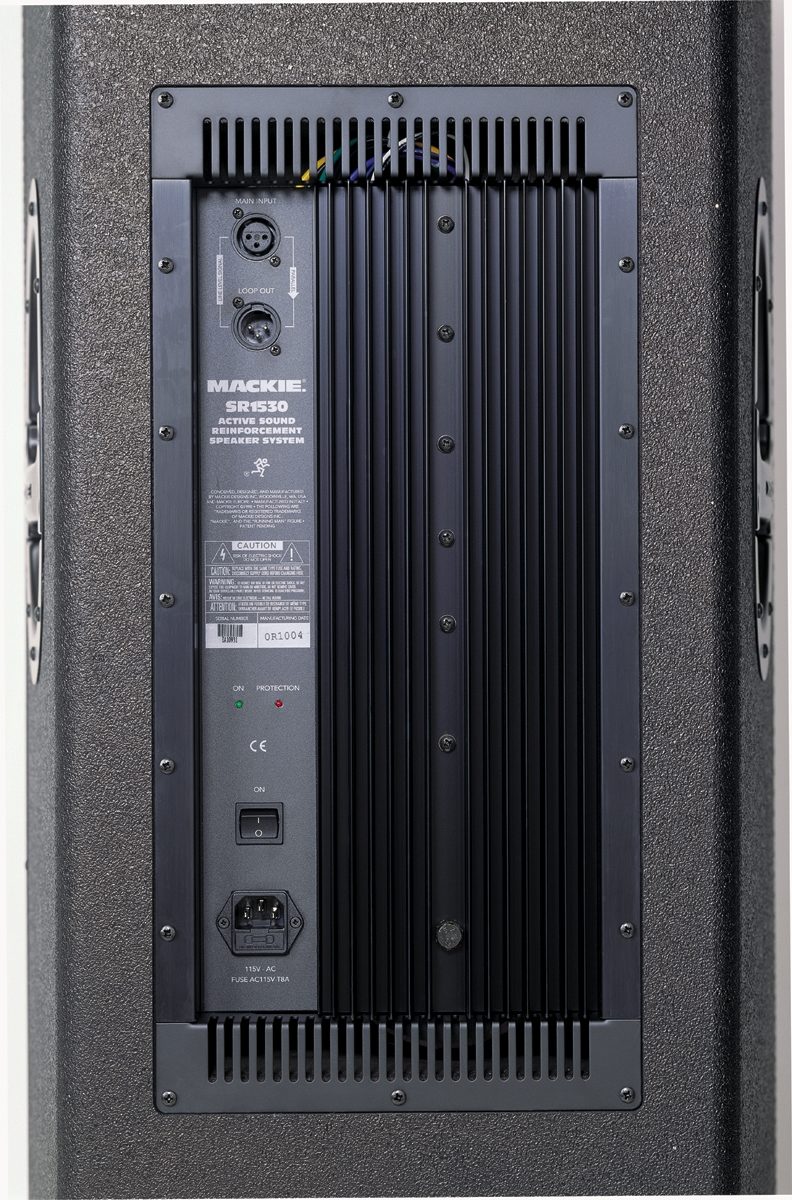

Audio Input/Output:
Main Input, Loop Out: 50k Ohm impedance, balanced
Connector Type: XLR
Line Input Power:
US: 120V, 60Hz
Recommended amperage service: 8 amps
AC Connector: 3 pin IEC- Male
Europe: 230V, 50Hz
Recommended amperage service: 5 amps
Japan: 100V, 50/60Hz
Control System Functions:
Electronic Crossover
Phase Alignment
Time Correction
Equalization
Safety Features:
RMS limiting: Monitoring and limiting of continuous rms output of amplifiers
Thermal: Monitoring of thermal condition of power supply and amplifiers. High temperature condition engages input stage shut down and auto reset function.
Physical Properties:
Enclosure: Trapezoidal, 10Á side angles, 18mm multi- layered plywood, top and bottom high pressure resin injected "caps"
Handles: One on top, one on bottom cap
Two 3-piece handles on each side
Color: Black, PVC coated finish

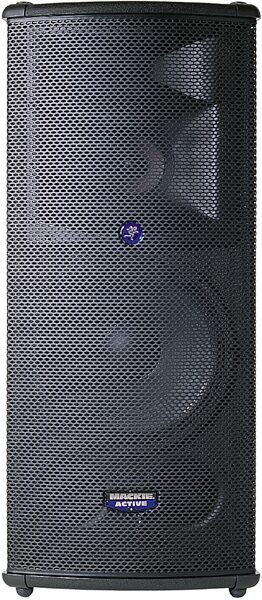

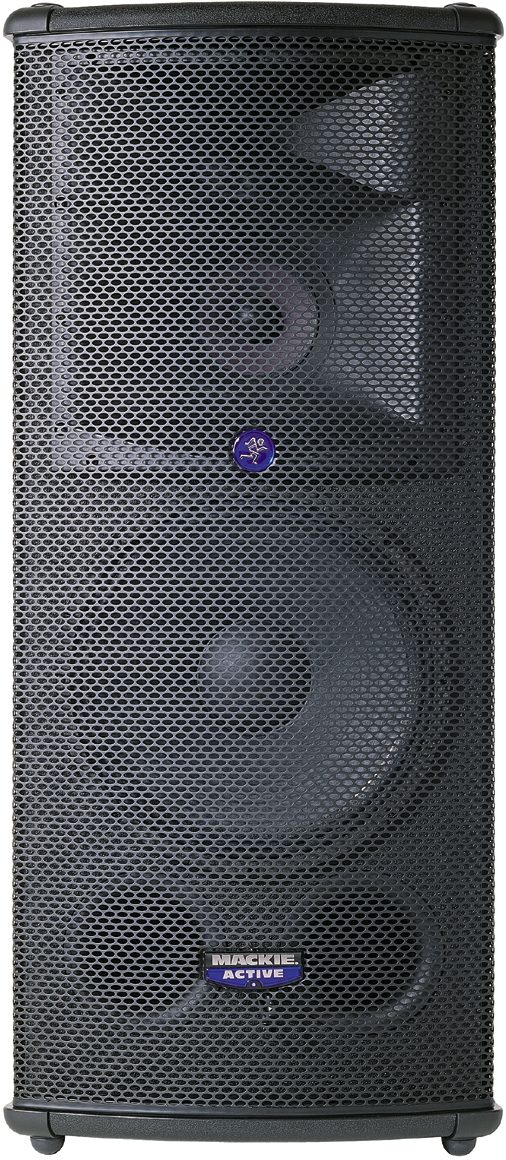

Grille: Custom perforated oval steel grille with anti corrosive treatment
Dimensions:
Height: 43.9" (111.6 cm)
Front Width: 19.1" (48.4 cm)
Rear Width: 13.9" (35.2 cm)
Depth: 18.1" (46.0 cm)
Net Weight: 100.1 lbs. (45.5 kg)
Options: Active Subwoofer System: SRS1500
Freq. Range (-10 dB): 40Hz - 20kHz
Freq. Response (-3dB): 45Hz - 18kHz
Horz. Coverage Angle (-6dB): 90Á
Vert. Coverage Angle (-6dB): 40Á
Directivity Factor; DI(Q): 10.77 (11.95) averaged 2kHz to 10kHz
Rated Maximum SPL (peak): 126dB @ 1m
Crossover Points: 700Hz, 3,000Hz
Transducer
Low-Frequency:
Diameter: 15" (381mm)
Power Handling: 400 watts Dynamic Program Power
Mid-Frequency:
Diameter: 6" (152mm) diameter
Power Handling: 100 watts Dynamic Program Power
High Frequency:
Exit Throat: 1" (25.4mm)
Power handling: 100 watts Dynamic Program Power
Amplifiers
Low-Frequency Power Amplifier:
Rated Power: 300 watts @ Low-Frequency Driver Impedance
Rated THD: < 0.05%
Cooling: Class AB Convection Extrusion
Mid-frequency amplifier:
Rated Power: 100 watts @ Mid-Frequency Driver Impedance
Rated THD: <0.01%
Cooling: Class AB Convection Extrusion
High-frequency amplifier:
Rated Power: 100 watts @ High-Frequency Driver Impedance
Rated THD: <0.01%
Cooling: Class AB Convection Extrusion
Audio Input/Output:
Main Input, Loop Out: 50k Ohm impedance, balanced
Connector Type: XLR
Line Input Power:
US: 120V, 60Hz
Recommended amperage service: 8 amps
AC Connector: 3 pin IEC- Male
Europe: 230V, 50Hz
Recommended amperage service: 5 amps
Japan: 100V, 50/60Hz
Control System Functions:
Electronic Crossover
Phase Alignment
Time Correction
Equalization
Safety Features:
RMS limiting: Monitoring and limiting of continuous rms output of amplifiers
Thermal: Monitoring of thermal condition of power supply and amplifiers. High temperature condition engages input stage shut down and auto reset function.
Physical Properties:
Enclosure: Trapezoidal, 10Á side angles, 18mm multi- layered plywood, top and bottom high pressure resin injected "caps"
Handles: One on top, one on bottom cap
Two 3-piece handles on each side
Color: Black, PVC coated finish
Grille: Custom perforated oval steel grille with anti corrosive treatment
Dimensions:
Height: 43.9" (111.6 cm)
Front Width: 19.1" (48.4 cm)
Rear Width: 13.9" (35.2 cm)
Depth: 18.1" (46.0 cm)
Net Weight: 100.1 lbs. (45.5 kg)
Options: Active Subwoofer System: SRS1500
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-898-3211
Email: support@mackie.com
Web: https://mackie.com/en/support/contact
Phone: 800-898-3211
Email: support@mackie.com
Web: https://mackie.com/en/support/contact
Reviews
Reviewers gave this product an overall rating of 5 out of 5 stars.
(69 ratings)
Submitted August 5, 2004 by a customer from aol.com
"Sound your best!"
Verified Customer
zZounds has verified that this reviewer made a purchase from us.
Sound
We use in a church setting ... A rock and Jazz style of worship music and the Spoken Word. Totally the coolest, self contained speaker array I have ever heard. We use one on each side of the stage but it is possible to daisychain as many as yoy can afford and have space for
Features
From lows to highs all in one
Quality
Good looking and well put together
Value
I paid about $1800.00 for 2
Manufacturer Support
I have had many conversations wit Mackey Techs. Very helpfull
The Wow Factor
Vert practical addition to our stage setup
Musical Style:
Blues, Jazz, R&B
29 of 31 people (94%) people found this review helpful. Did you?
Thanks for your opinion!
