Controllers:
8 knobs
8 sliders
24 buttons

Transport buttons:
- Rew/FF/Stop/Play/Rec
- Cycle button
- Marker button
- Track button

Corresponding Software: Avid Pro Tools/Apple Logic, GarageBand/MOTU Digital Performer/Steinberg Cubase/Ableton Live/Cakewalk

Software that can be controlled by control change message

- Connections: mini-USB
- Power: USB bus power

Power Consumption

USB bus power: less than 100 mA

Dimensions

- Size (W x D x H): 12.80 x 3.27 x 1.18 inches
- Weight: 0.65 lbs.

Accessories Included: USB cable

System Requirements:

Macintosh:
- Supported OS: Mac OS X 10.4 or later
- Supported Computer: Apple Macintosh with USB port, satisfying the operating requirements of Mac OS X or Apple Macintosh with PowerPC supported

Windows:
- Supported OS: Microsoft Windows XP SP3 (32bit), Microsoft Windows Vista SP2 (32bit, 64bit), Microsoft Windows7 (32bit, 64bit)
- Supported Computer: Computer with USB port, satisfying the operating requirements of Windows XP/ Vista/7 (Intel USB chipset recommended)

iPad:
- OS 4.2.1 or later and the Apple iPad Camera Connection Kit

* This product uses applied technology from ART Teknika's CONSOLE.
* Mac, the Mac logo and the Audio Units logo are trademarks of Apple Inc., registered in the U.S. and other countries.
* The "Built for Mac OS X" graphic is trademark of Apple Computer, Inc., used under license.
* Windows XP/Vista/7 are registered trademarks of Microsoft Corporation in the U.S. and other countries.
* All other product and company names are trademarks or registered trademarks of their respective holders.

* Specifications and features are subject to change without notice.

Dimensions and Weight in Packaging

Black

Shipping Weight: 0.98 lbs

Shipping Dimensions: 15 x 4 x 2 in

Manufacturer Part Number (MPN): NANOKON2BK

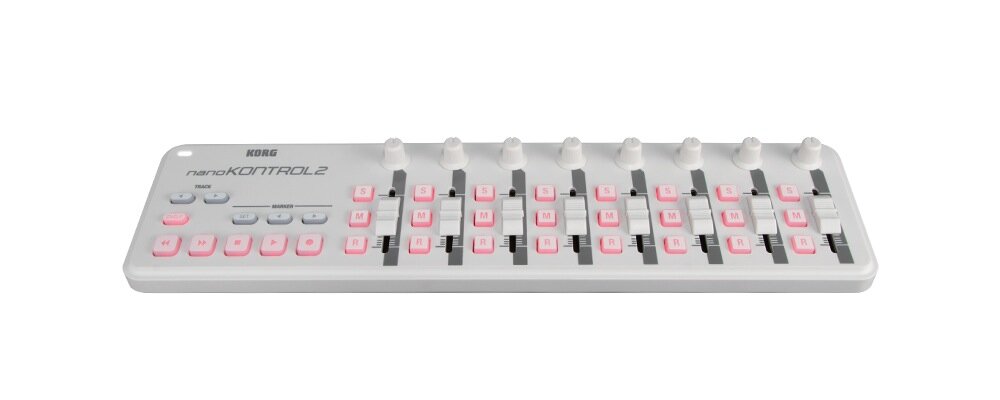

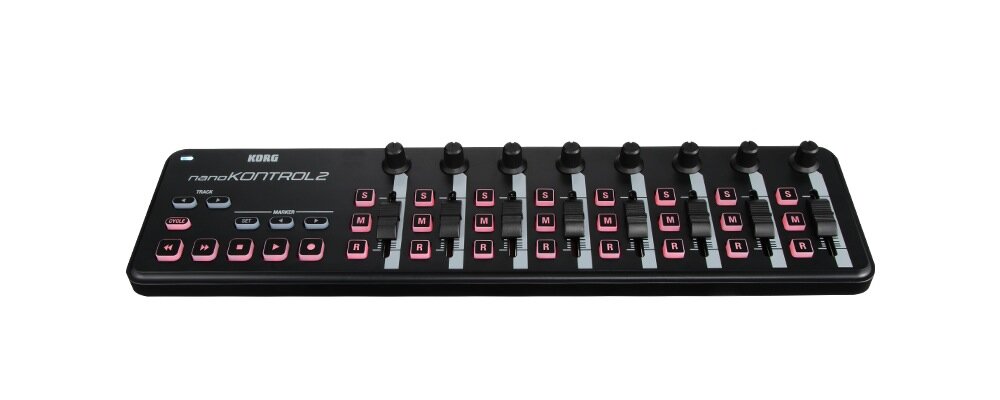

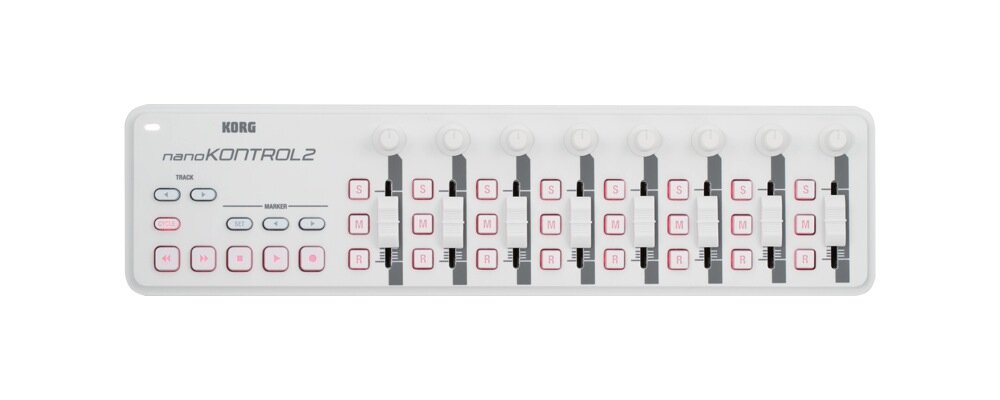

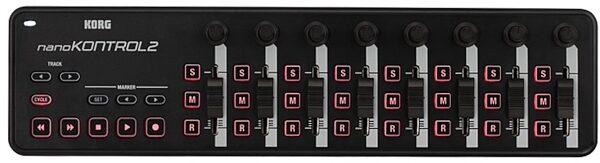

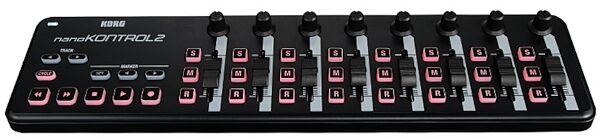

Korg nanoKONTROL2 Controller, USB

In a body proportioned to fit perfectly in front of your laptop computer, the Korg nanoKONTROL2 provides eight channels of the controllers you need to control your music software. The Korg nanoKONTROL2 also features a dedicated transport control section. The buttons have been carefully selected to be useful with your software, ensuring simple and intuitive control. Many software titles including major DAW programs are supported, dramatically reducing the need to make complicated connection settings.

Complete control for your DAW or software synthesizer

A knob, fader, and three switches are provided for each of the eight channels, respectively assigned to pan, volume, and solo/mute/record. This arrangement is a real convenience when recording automation for multiple channels. There's also a marker button, making it easy to assign marks at important points in your song for more efficient recording and song production. When using a software synthesizer, you can assign parameters to the desired controllers for easy control. For example you could use the faders to control the ADSR of an envelope generator, and use the knobs to control the filter's cutoff frequency and resonance, etc.

Korg Kontrol Editor software

The nanoKONTROL2 works with the "Korg Kontrol Editor" software -- available free on the Korg website. Load it into your computer, and use it to make detailed customized settings. For example, the minimum and maximum values for each control change message can be specified.

USB power for an uncluttered setup

Just connect a single USB cable from your computer to the Korg nanoKONTROL2, and you've got a quick and portable music production system. Power and USB-MIDI data travels down the same wire for a clean, efficient workspace.

An ideal companion for the microKEY

The nanoSERIES2 controllers are the ideal companions for the 37-note, natural-touch Korg microKEY. The latter's dual USB hub ports allow any two nanoSERIES2 controllers to be connected directly to the microKEY to create a customized, expanding control center for any music production system.

Apple iPad Compatibility

Enjoy MIDI control of your iPad Music apps! Korg nanoSERIES2 controllers can now be used with the iPad via the Apple iPad Camera Connection Kit, providing MIDI control using the Apple Core MIDI features. Apple iOS 4.2.1 is supported, and the app needs to support Core MIDI. If you are using multiple nanoSERIES2 controllers, or plan to use a single nanoSERIES2 for an extended period of time, please use a powered USB hub.

Play Today with the nanoSERIES2 Software License Bundle

Each nanoSERIES2 controller ships with the following software licenses and discount coupons so you can start making music right away.

M1 Le (license): Included is a license for the M1 Le, a limited edition of the M1 software synthesizer (included in the Korg Legacy Collection - Digital Edition) that brings to your computer the sounds of the ground-breaking M1 music workstation.

EZDrummer Lite: Included is a license for Toontrack's software drum sound module EZDrummer Lite, giving you numerous high-quality drum sounds. You'll be able to immediately start enjoying realistic drum sounds played from your nanoSERIES2.

Ableton Live family: Included is a discount coupon for Ableton's Live, Live Suite, and Live LE DAW software, widely popular for its sophisticated functionality.

Lounge Lizard Sessions: Included is a license for Lounge Lizard Sessions, the physical modeling sound module from Applied Acoustics Systems, famed for its richly expressive electric piano sounds.

Features:

- Low-profile, multi-function control surface
- Track select and marker advance parameters
- Supports numerous software titles including major DAW programs
