JMAZ MAD PAR RB RGBWAC LED MAD Uplight Stage Light

Overview

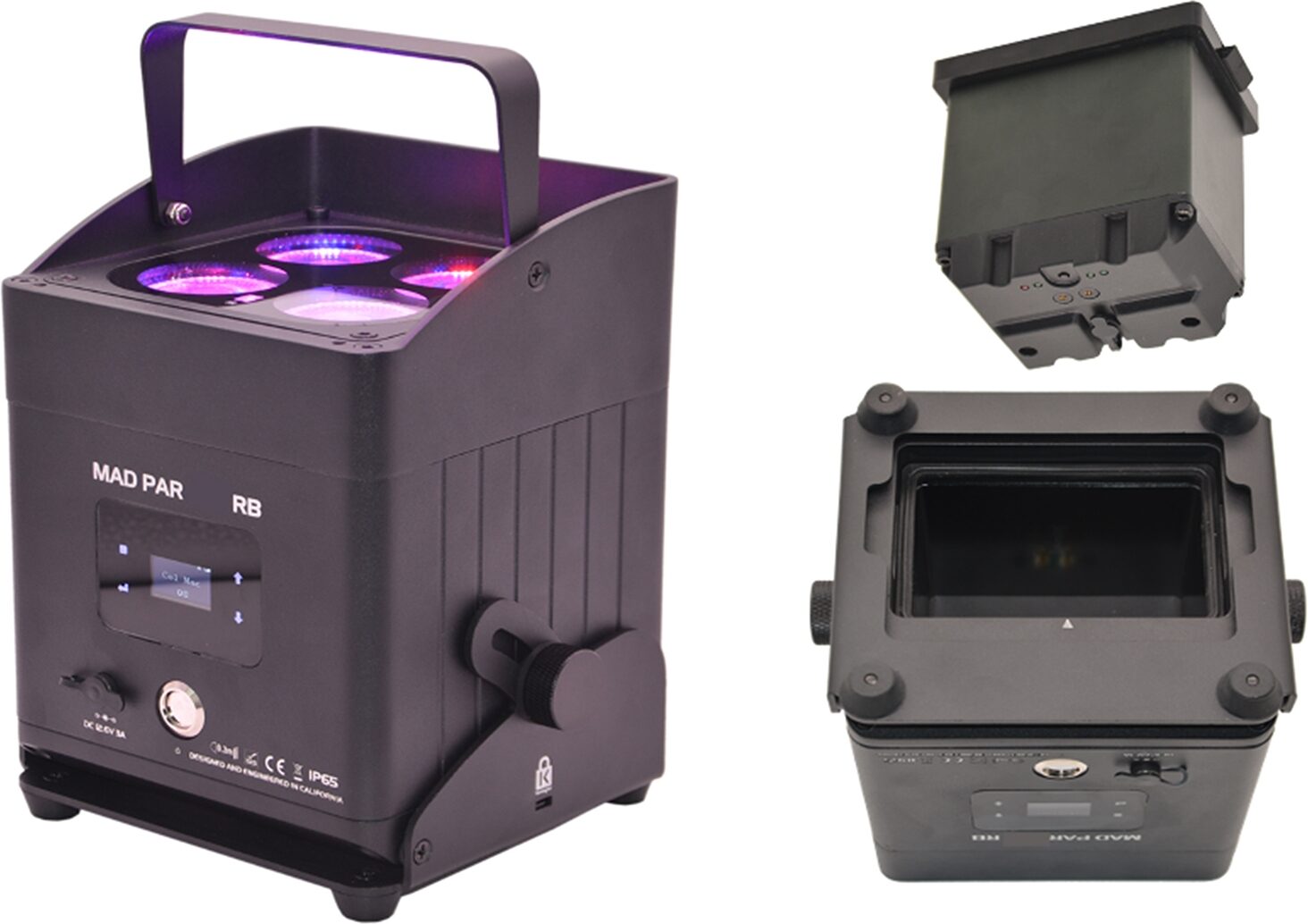

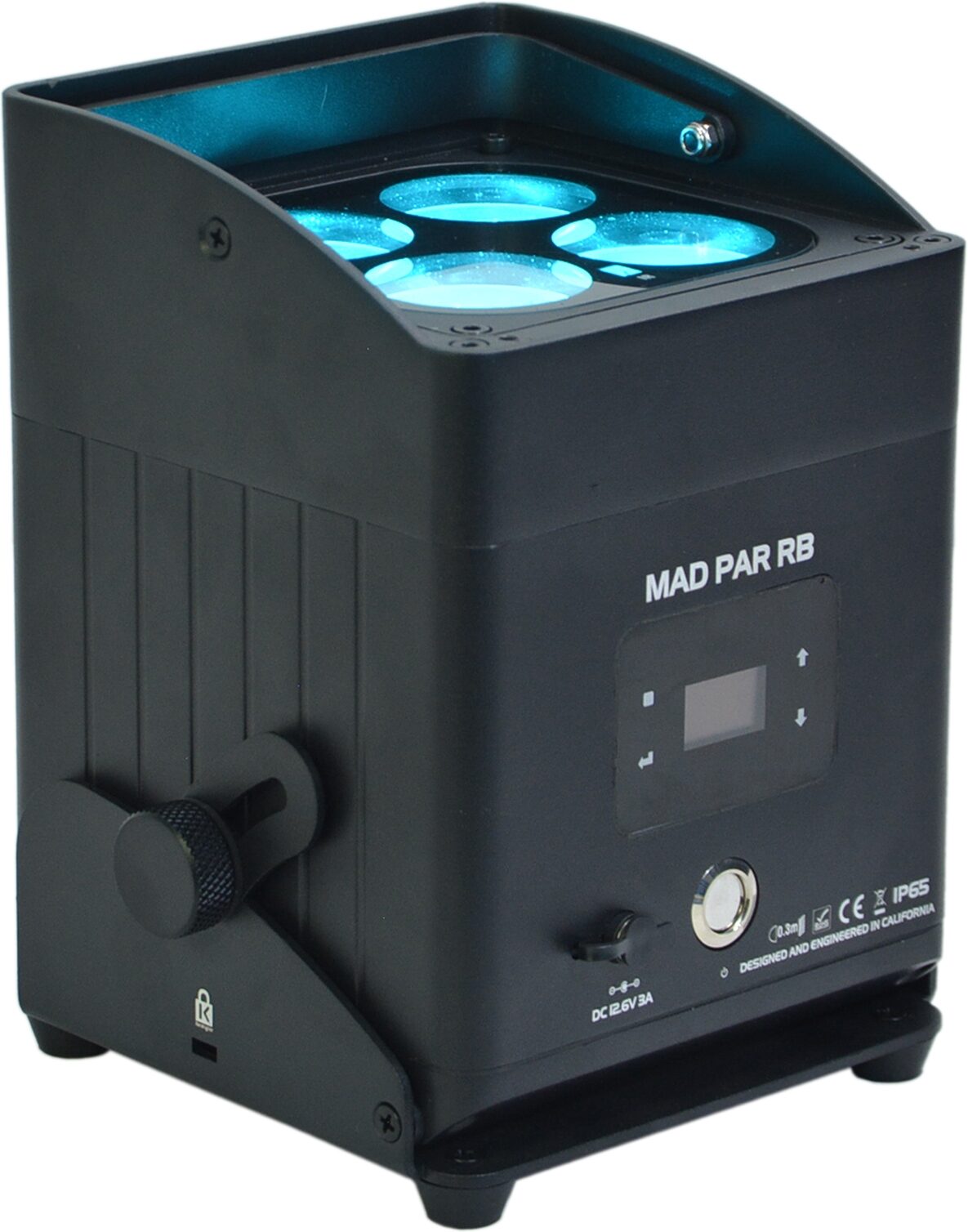

This JMAZ 80W RGBWAC LED MAD PAR RB Uplight unit tackles many of your lighting solution needs and comes with a removable, rechargeable battery. JMAZ products are designed and engineered in California, USA.

Features:

- 80W (4 x 20W) RGBAL+C LEDs Mad Par RB Uplights
- Removable Battery with Battery Saving Options
- 64 Preset Color Programs with Advanced Sound Active Mode
- Battery-Powered with build in Wireless DMX and up to 16-Hour Battery Life
- IP65 Rating
- Warranty Period: 2 Years for Lighting, 6 Months for Battery

Specs

- Light Source:
- 4 x 20W RGBAL+C LEDs
- LED Life Expectancy: 50,000 hrs
- Color System:
- RGBAL+C Color Mixing 8/16 bit
- Color Temperature Range: 2500k – 5600k
- Fading/Jumping Macros light change and jump
- Body:
- Die-Cast Aluminum and Steel Structure
- Exterior Finish: Black
- Exterior Battery: Die-Cast Aluminum
- Electronics:
- Linear LED Dimmer: 0-100% Smooth
- CCT: 2500k – 5600k
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
- Electrical:
- Input Voltage: 100 V – 240 V AC, 50/60 Hz
- Power Consumption: 80W
- Included IR Remote
- PWM: 1.5KHz

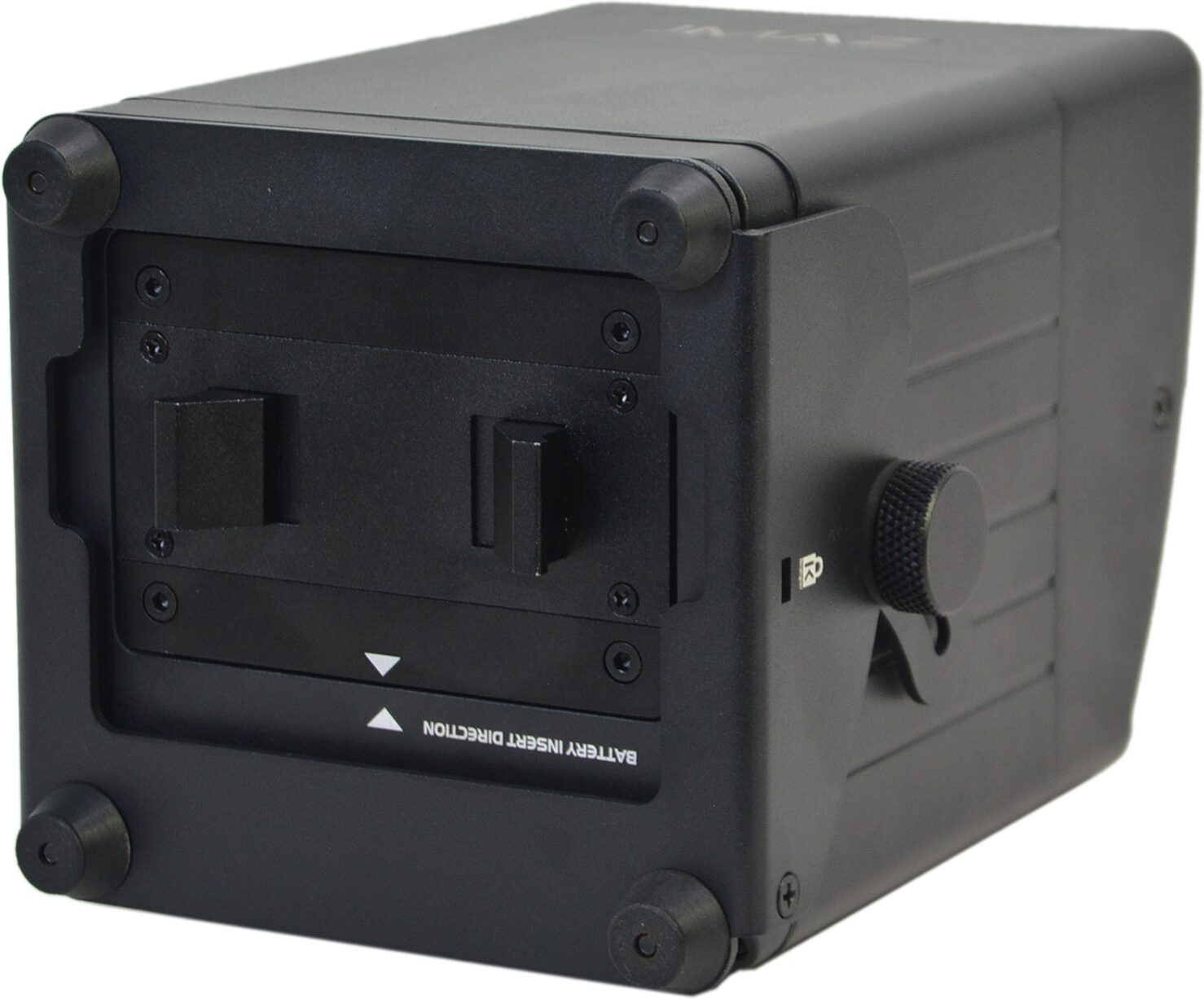

- Removable External Battery Pack
- Battery Voltage: 11.1V
- Battery Capacity: 13, 000 mAH, 144.3 Wh/hour
- Charger: 12.6V, 3A
- Battery Type: Lithium Ion
- Rechargeable: Yes
- Run Time: Full On: 3hrs 30mins, Single Color: 16 hrs
- Charging Time: 4 hrs 30 mins
- Battery Life Selectable: 50%, 75%, 100%
- Optics:
- Install Optic: 10 Degree
- Diffuser Angle (included): 20 Degree
- Dynamic Effect:
- 64 Preset Color Macros
- Stand Alone Color Mixing: Yes
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature: yes
- Dim Mode: 4
- Built-In Automated Programs: Yes
- Built-In Advanced Sound Active Mode
- Four Favorite Color Customization triggered via DMX/IR Remote
- Control:
- Control Protocol: DMX, IR Remote
- Wireless DMX: Wi-MAZ, Generic, WiDMX
- Personalities: 6/8/12 CH DMX Modes
- Setting and addressing: OLED Graphical Display, Standalone Mode
- Physical:
- Kensington Lock Theft Protection

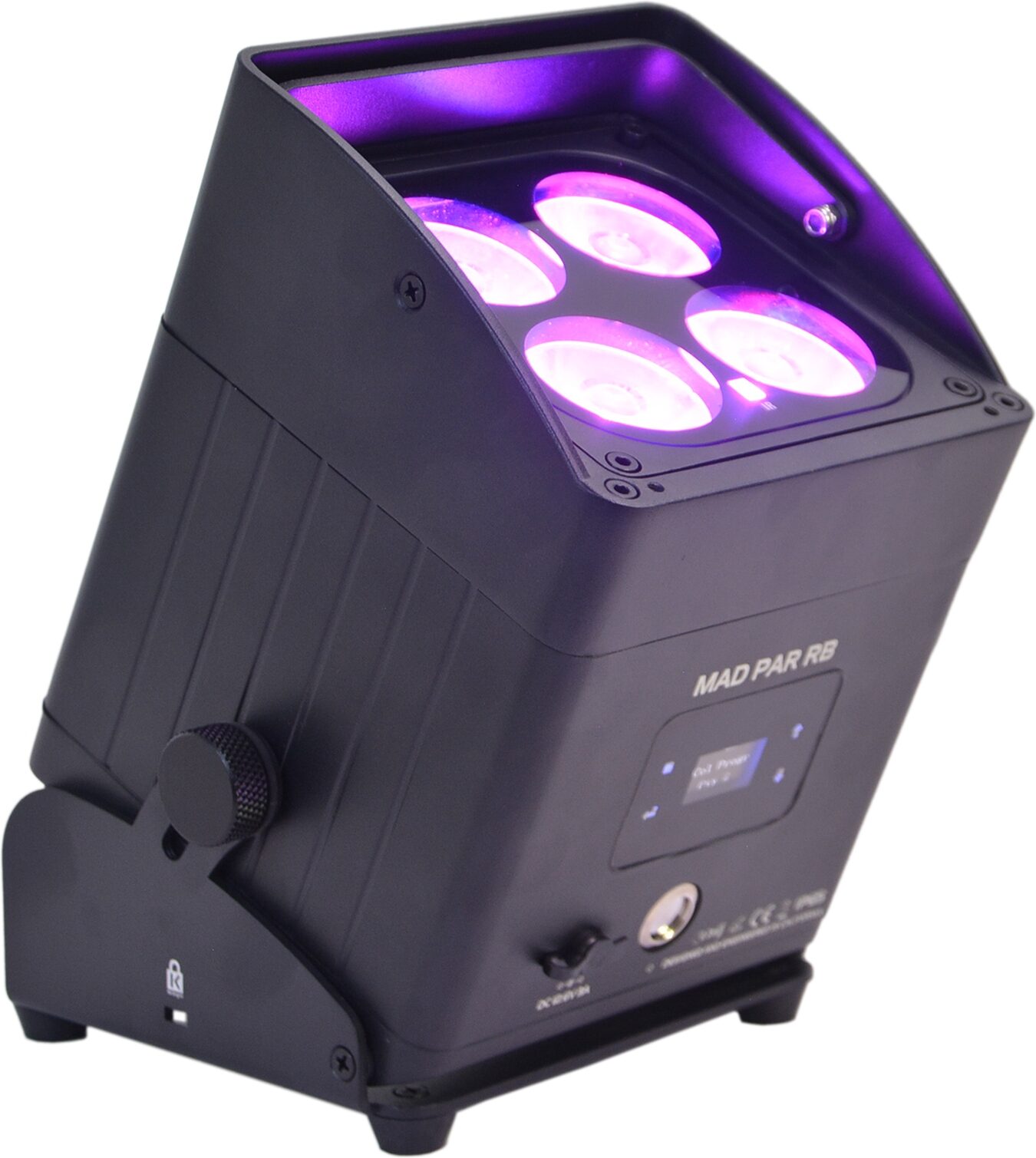

- Adjustable Tilt Base: 0-40 Degree
- IP Rating: 65
- Cooling: Fanless
- Power Input: 12.6V 3Ah (Fixture), 100 – 240V AC, 50/60Hz (External Power Supply)
- Cable Length: Power 3 feet (1 meter);
- Dimensions: 6.8 x 5.5 x 7.9, 172 x 138 x 200
- Weight: 10 lbs (4.5kg)
- Certification / Qualifications
- RoHS, CE, FCC
- IP Rating: IP 65
- Operating Temperature: 40 ° C ( 104 °F)
- Minimum Temperature: – 10 ° C ( 14 ° F)
- Maximum Temperature: 60 ° C ( 140 ° F)

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 10 lbs; Shipping Dimensions: 10 x 6 x 6 in; Manufacturer Part Number (MPN): JZ1037
6-pack, with Case: Shipping Weight: 110.3 lbs; Shipping Dimensions: 36 x 19 x 17 in; Manufacturer Part Number (MPN): JZ1038
