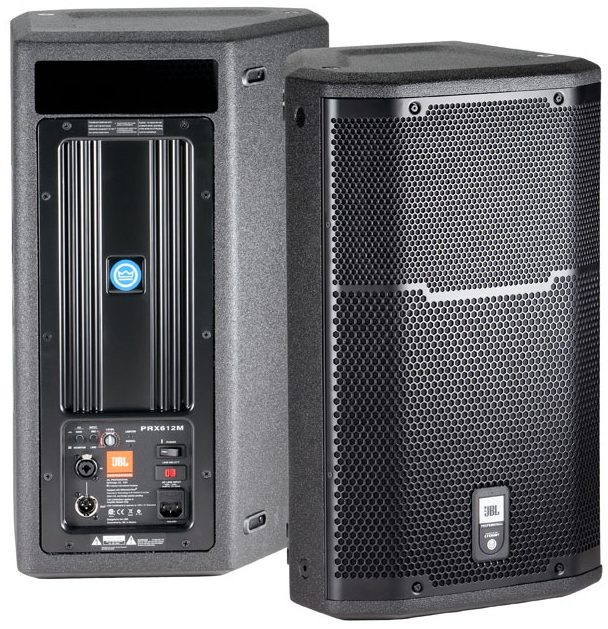

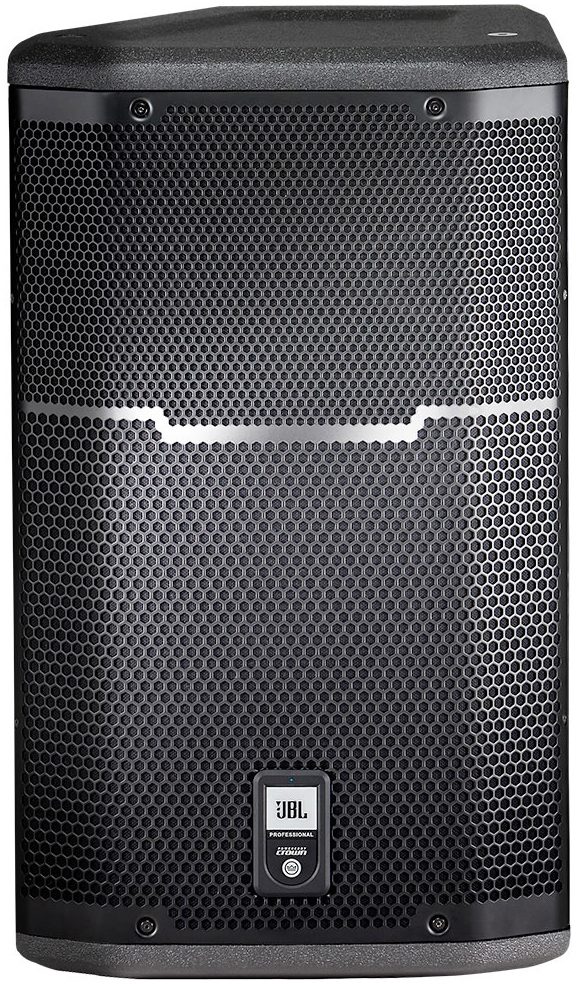

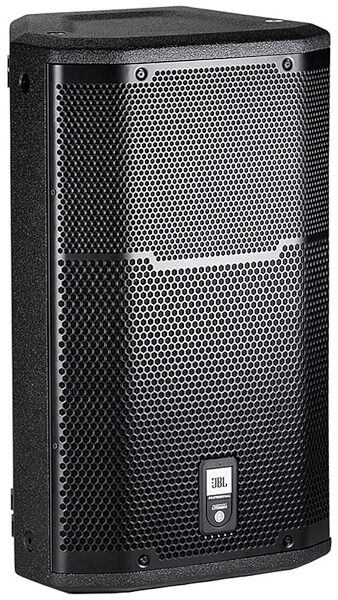

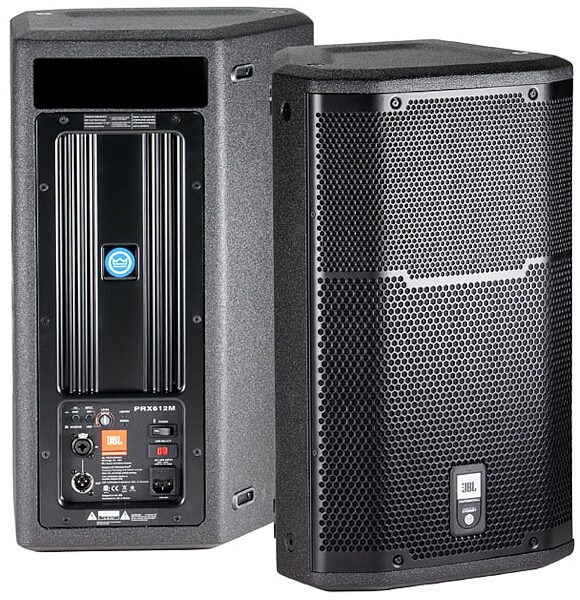

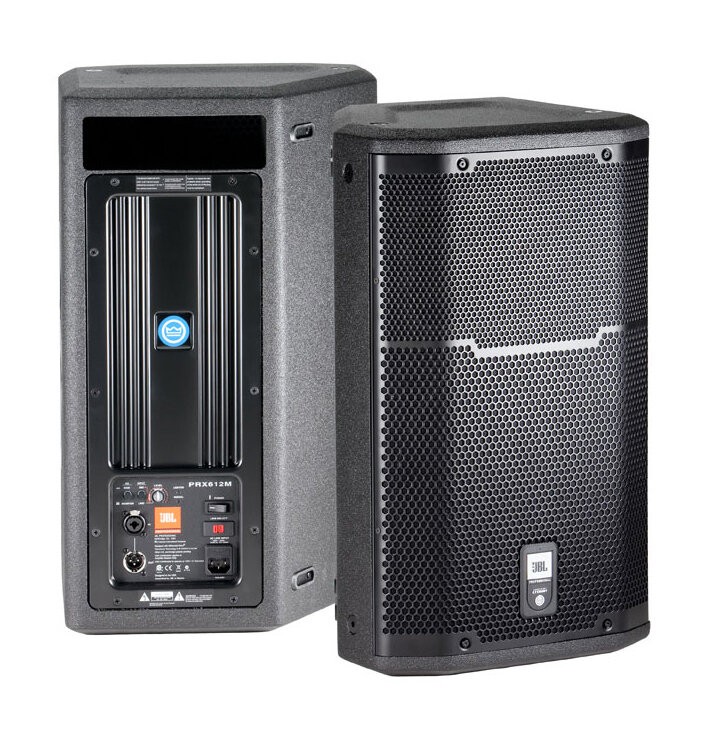

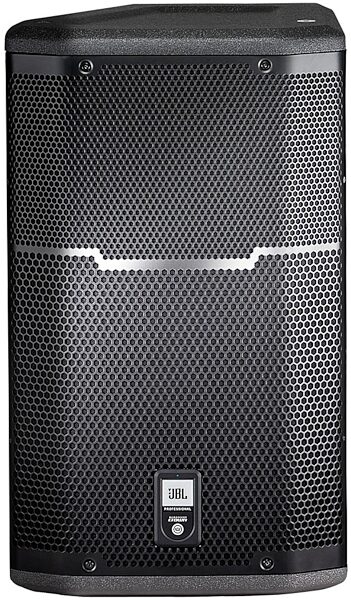

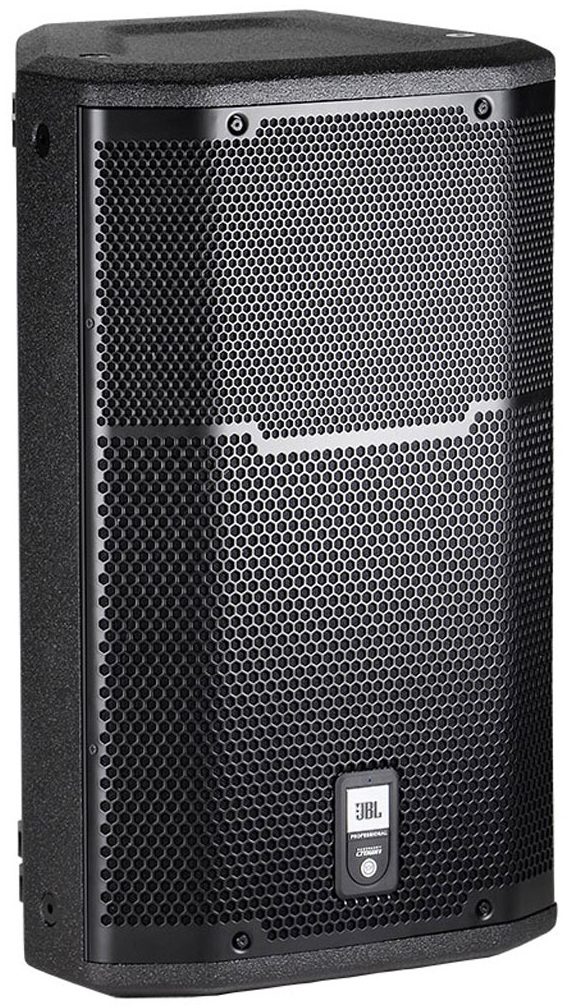

JBL PRX612M 2-Way Powered Speaker (1000 Watts, 1x12")
No longer available at zZounds
zZounds Gear Experts Say...
With a 1000 watt class-D Crown amplifier, an optimized EQ, and a 12" differential drive dual voice-coil speaker, the JBL PRX612M speaker is a step above.
Overview

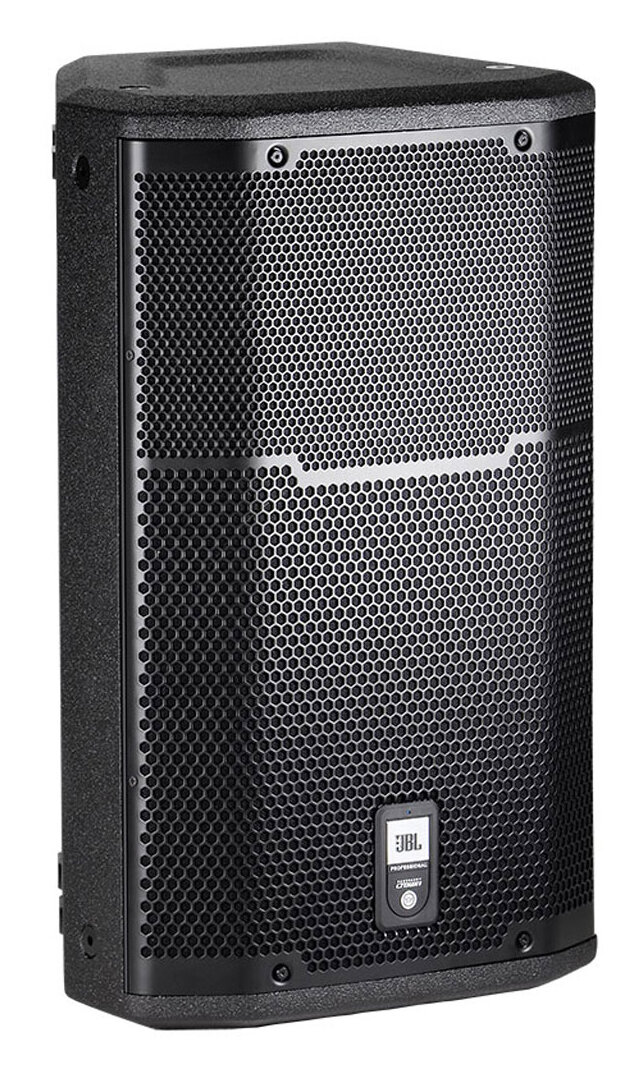

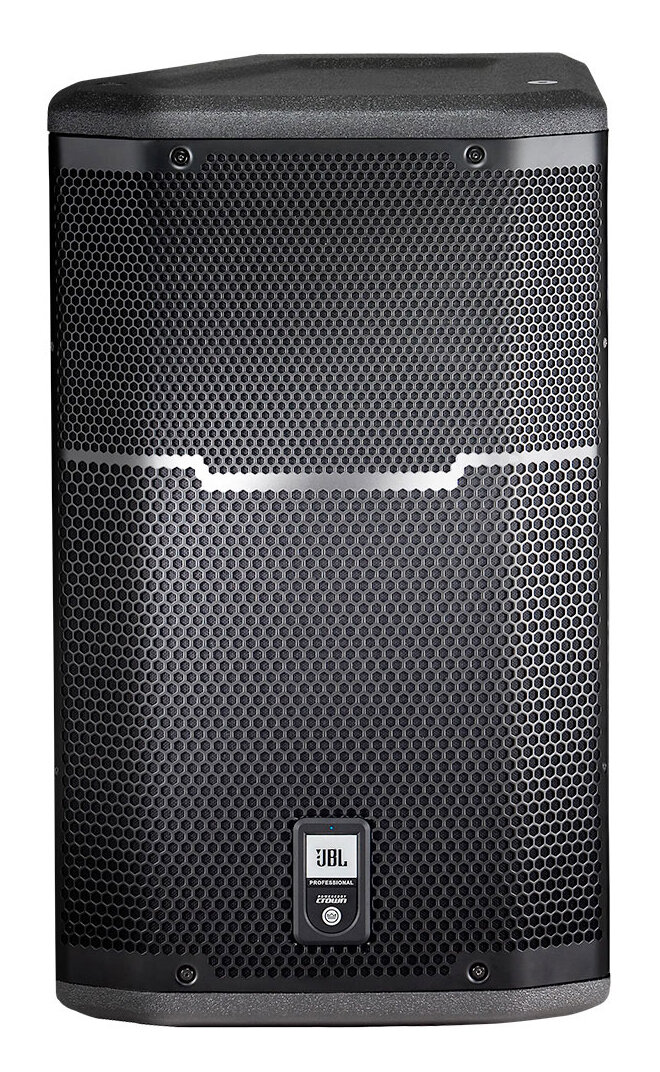

Compact, durable and powerful the PRX612M from JBL offers an incredible active PA speaker that is designed for multi-purpose use as a monitor or a front-of-house main. Providing the user an incredible speaker with pristine crown amplification built right in, the PRX speakers are a powerful solution for both installed and portable setups. Don't bother with inferior speaker designs; JBL PRX has the power, the clarity and a name that's trusted.

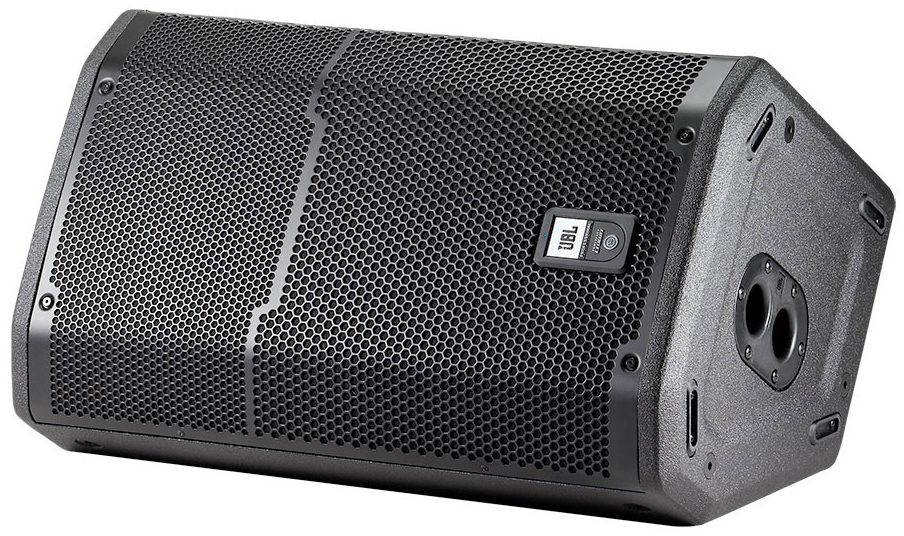

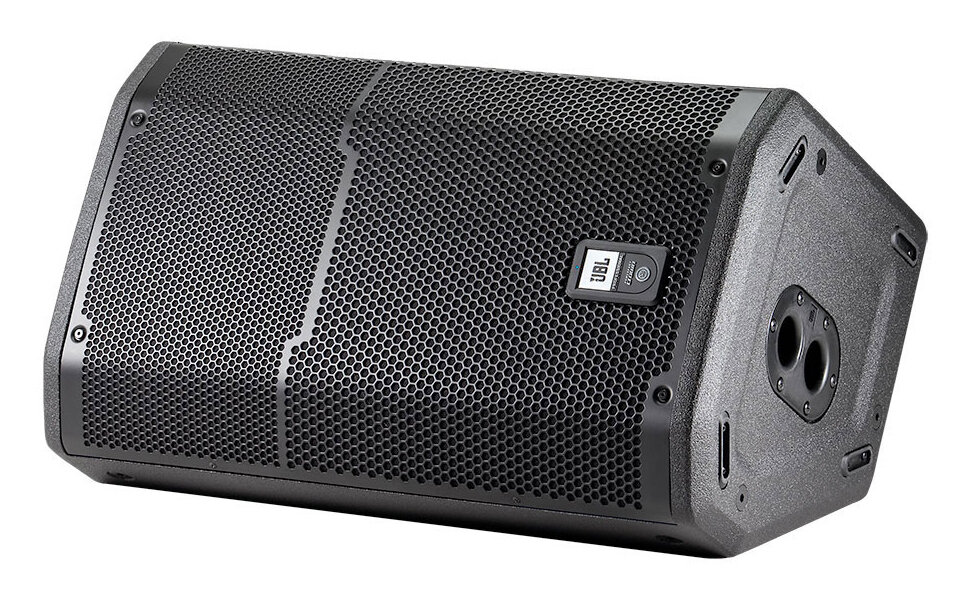

- Dual purpose enclosure for both front-of house and floor monitor applications
- Optimized EQ for monitor for front-of-house applications
- 12 inch Differential Drive dual voice-coil and magnetic gap, neodymium woofer
- 1.5 inch annular polymer diaphragm, neodymium, compression driver
- DSP input section, crossover and dynamic limiting
- Component optimization and selectable system EQ
- Professional XLR line and 1/4 inch Mic/Instrument inputs, with loop through
- Eight M10 fly points for horizontal or vertical suspension
- One M10 pull-back point
- Dual-angle pole mount socket
All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL's tour proven DuraFlex finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
The amplifier input panel offers XLR or 1/4 inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob. read less
Features
- 1000 Watt Class-D, Crown amplifier with 134db peak SPL- Dual purpose enclosure for both front-of house and floor monitor applications
- Optimized EQ for monitor for front-of-house applications
- 12 inch Differential Drive dual voice-coil and magnetic gap, neodymium woofer
- 1.5 inch annular polymer diaphragm, neodymium, compression driver
- DSP input section, crossover and dynamic limiting
- Component optimization and selectable system EQ
- Professional XLR line and 1/4 inch Mic/Instrument inputs, with loop through
- Eight M10 fly points for horizontal or vertical suspension
- One M10 pull-back point
- Dual-angle pole mount socket
Applications
The PRX612M is comprised of a 305 mm (12 inch) 265F Differential Drive woofer, a 2408H-1, 37.5 mm (1.5 inch) annular polymer diaphragm, neodymium compression driver mounted to a 90 by 50 degree horn, all driven by 1000 watt (dual 500 watt) Crown Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system… read more EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL's tour proven DuraFlex finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
The amplifier input panel offers XLR or 1/4 inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob. read less
Specs
Specifications
System Type: Self powered 12 inch, two-way, bass-reflex
Maximum SPL Output:
- Full Range: 134 dB peak
- Monitor: 133 dB peak
Frequency Range (-10 dB):
- Full Range 50-20 kHz
- Monitor (vertical orientation) 60-20 kHz
- Monitor (monitor orientation) 51-20 kHz
Frequency Response (+/-3 dB):
- Full Range 60-17.5 kHz
- Monitor (vertical orientation) 90-18 kHz
- Monitor (monitor orientation) 61-18.5 kHz
Input Connectors: Balanced XLR-1/4 inch combo jack with XLR loop through
Input Impedance: 20K ohms (balanced), 10K ohms (unbalanced)
Signal indicators:
- Limit: Red LED indicates limiter active condition
- Signal: Green LED indicates signal present
EQ: Presets for use in Main and Monitor position
Dynamic Control (Input): dbx Type IV limiter circuit
Crossover Modes: DSP controlled
- LF: 48 dB/Oct filter slope High & Low Pass
- HF: 36 dB/Oct High Pass
Crossover Frequency: 2 kHz
Amplifier Design: Crown Class D
Power Rating: 1000 Watts (2 x 500)
LF Driver: 1 x JBL 262F-1 380 mm (12 in)
- Differential Drive dual voicecoil
- Magnetic gap, neodymium woofer
HF Driver: 1 x JBL 2408H 37.5 mm (1.5 in)
- Annular polymer diaphragm
- Neodymium compression driver
Coverage Pattern: 90 x 50 degrees nominal
Directivity Index (DI): 9.8 dB
Directivity Factor (Q): 9.6
Enclosure: Asymmetrical, 18 mm, plywood
Suspension/Mounting:
- Dual 36 mm pole socket
- 8 x M10 Suspension Points
- 1 x M10 Pull-Back Point
Transport: Integrated handle with backing cup
Finish: Obsidian DuraFlex finish
Grille: Powder coated, Obsidian
- 16 gauge perforated steel
- Acoustically transparent black cloth backing.
Dimensions (HxWxD): 23.3 x 13.9 x 13.4 inches (592 x 353 x 340 mm)
Weight: 34.5 lbs (15.6 kg)
System Type: Self powered 12 inch, two-way, bass-reflex
Maximum SPL Output:
- Full Range: 134 dB peak
- Monitor: 133 dB peak
Frequency Range (-10 dB):
- Full Range 50-20 kHz
- Monitor (vertical orientation) 60-20 kHz
- Monitor (monitor orientation) 51-20 kHz
Frequency Response (+/-3 dB):
- Full Range 60-17.5 kHz
- Monitor (vertical orientation) 90-18 kHz
- Monitor (monitor orientation) 61-18.5 kHz
Input Connectors: Balanced XLR-1/4 inch combo jack with XLR loop through
Input Impedance: 20K ohms (balanced), 10K ohms (unbalanced)
Signal indicators:
- Limit: Red LED indicates limiter active condition
- Signal: Green LED indicates signal present
EQ: Presets for use in Main and Monitor position
Dynamic Control (Input): dbx Type IV limiter circuit
Crossover Modes: DSP controlled
- LF: 48 dB/Oct filter slope High & Low Pass
- HF: 36 dB/Oct High Pass
Crossover Frequency: 2 kHz
Amplifier Design: Crown Class D
Power Rating: 1000 Watts (2 x 500)
LF Driver: 1 x JBL 262F-1 380 mm (12 in)
- Differential Drive dual voicecoil
- Magnetic gap, neodymium woofer
HF Driver: 1 x JBL 2408H 37.5 mm (1.5 in)
- Annular polymer diaphragm
- Neodymium compression driver
Coverage Pattern: 90 x 50 degrees nominal
Directivity Index (DI): 9.8 dB
Directivity Factor (Q): 9.6
Enclosure: Asymmetrical, 18 mm, plywood
Suspension/Mounting:
- Dual 36 mm pole socket
- 8 x M10 Suspension Points
- 1 x M10 Pull-Back Point
Transport: Integrated handle with backing cup
Finish: Obsidian DuraFlex finish
Grille: Powder coated, Obsidian
- 16 gauge perforated steel
- Acoustically transparent black cloth backing.
Dimensions (HxWxD): 23.3 x 13.9 x 13.4 inches (592 x 353 x 340 mm)
Weight: 34.5 lbs (15.6 kg)
