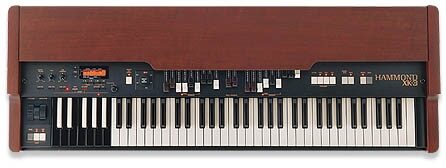

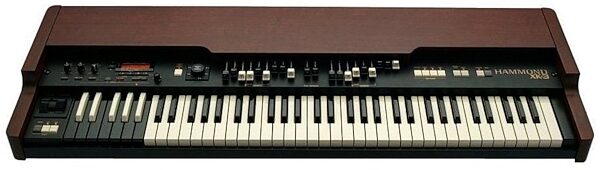

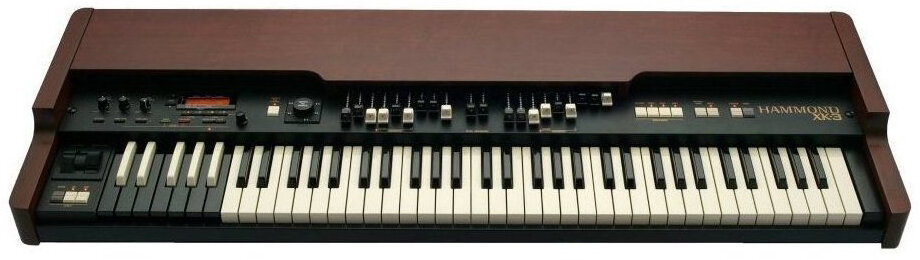

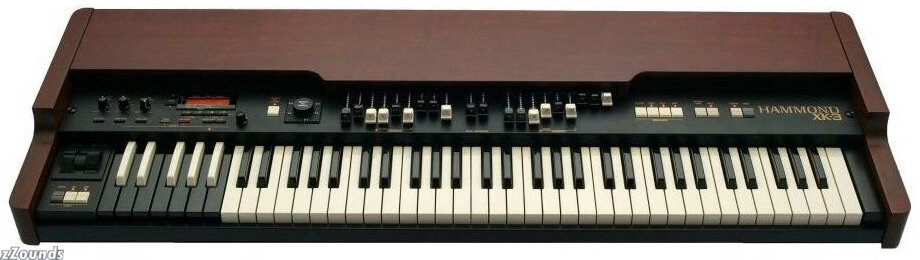

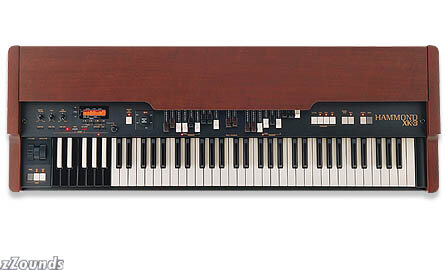

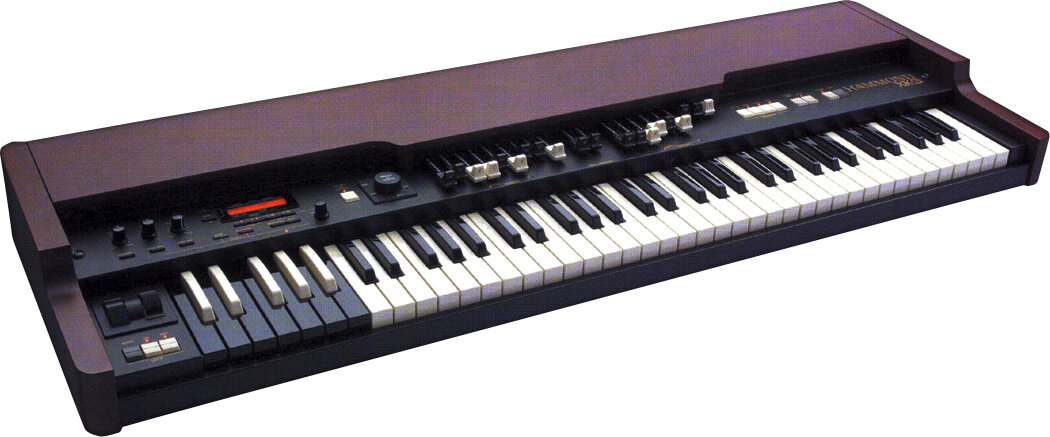

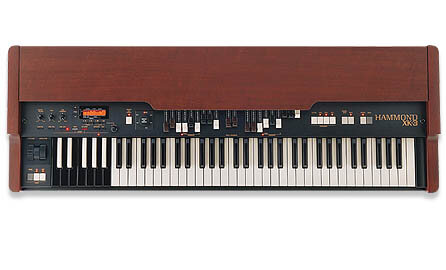

Hammond XK3 61-Key Modeling Organ
No longer available at zZounds
zZounds Gear Experts Say...
61 keys. 96 digital tone wheels.
Overview

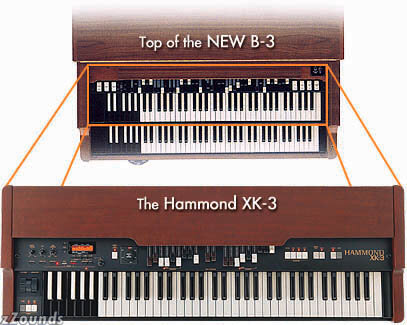

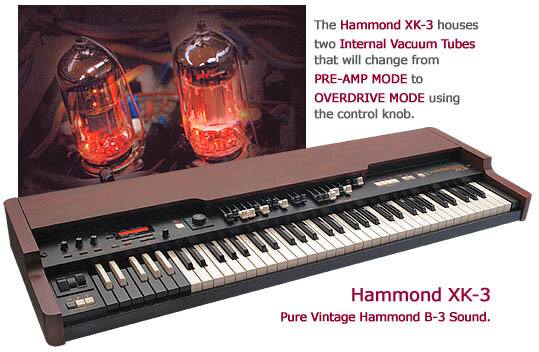

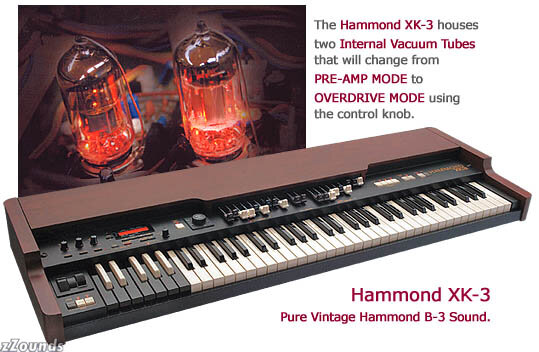

This new instrument does what has never been done before, offering you the classic "tone-wheel" sound by utilizing 96-digital tone wheels! This new Vase III sound-generator now makes it possible to reproduce all of the characteristics of the vintage Hammond B-3. Additionally, the Hammond XK-3 houses two internal vacuum tubes that will change continuously from pre-amp mode to overdrive mode via control knob.
But wait! The new Hammond XK-3 also includes 12 reverse color key presets, 3 sets of drawbars, a 2-rotor digital Leslie, and a 6-position rotary vibrato-chorus knob, all the features you would expect to find on a Hammond Vintage B-3.
But there's more. The XK-3 will perform like no previous tone-wheel Hammond could ever do -- a library of 132 programmable patches allows you to save and store your own drawbar combinations, MIDI information, whatever you like. And just think, all this in a 43-pound package that won't break your back or your budget.
Features
73 keys (61 + 12 preset keys)
Waterfall keys with velocity
Drawbars: 2 sets of 9 and 1 set of 2 drawbars
Sound Generator: Vase III sound generator creates 96 digital tone wheels. Tone-wheel leakage noise and motor-noise are adjustable wheel by wheel
Presets: original B-3 reverse colour keys, 11 presets x 12 banks + cancel
Polyphony: full polyphony (unlimited)
Leslie R: next generation digital Leslie and scanner vibrato
Pre-amp & Overdrive: real dual tube amp for pre amplification and Leslie overdrive
Reverb:… read more 8 Modes
Tone controls: bass, mid range, treble
Sustain controls: pedal drawbars
Wheel controls: pitch bend, modulation
Leslie controls: slow / fast, on / off, break / thru, effect, send / return
Vibrato / chorus controls: on, V1, V2, V3, C1, C2, C3 with 6-position rotary knob
Percussion controls: second, third, decay fast, soft
Control controls: Manual bass, split
Effect controls: tube amp, reverb on
Demo controls: demo / pedal sustain
Display switch controls: page up / down, parameter, value + / -, rotary encoder, memo / exit, play, rec, bank
Volume control: master volume, tone control, tube overdrive
Display: 20-character, 2-line back-light LCD
Terminal: AC input, line out L / R, Leslie switch, adding lower keyboard and pedal possible via midi compact flash
Power supply: 230V (CE), 240V (BS)
Dimensions: 46.85 in. (W) x 15.75 in. (D) X 4.72 in. (H)
Weight: 43 lbs
Finish: walnut finish read less
But wait! The new Hammond XK-3 also includes 12 reverse color key presets, 3 sets of drawbars, a 2-rotor digital Leslie, and a 6-position rotary vibrato-chorus knob, all the features you would expect to find on a Hammond Vintage B-3.
But there's more. The XK-3 will perform like no previous tone-wheel Hammond could ever do -- a library of 132 programmable patches allows you to save and store your own drawbar combinations, MIDI information, whatever you like. And just think, all this in a 43-pound package that won't break your back or your budget.
Features
73 keys (61 + 12 preset keys)
Waterfall keys with velocity
Drawbars: 2 sets of 9 and 1 set of 2 drawbars
Sound Generator: Vase III sound generator creates 96 digital tone wheels. Tone-wheel leakage noise and motor-noise are adjustable wheel by wheel
Presets: original B-3 reverse colour keys, 11 presets x 12 banks + cancel
Polyphony: full polyphony (unlimited)
Leslie R: next generation digital Leslie and scanner vibrato
Pre-amp & Overdrive: real dual tube amp for pre amplification and Leslie overdrive
Reverb:… read more 8 Modes
Tone controls: bass, mid range, treble
Sustain controls: pedal drawbars
Wheel controls: pitch bend, modulation
Leslie controls: slow / fast, on / off, break / thru, effect, send / return
Vibrato / chorus controls: on, V1, V2, V3, C1, C2, C3 with 6-position rotary knob
Percussion controls: second, third, decay fast, soft
Control controls: Manual bass, split
Effect controls: tube amp, reverb on
Demo controls: demo / pedal sustain
Display switch controls: page up / down, parameter, value + / -, rotary encoder, memo / exit, play, rec, bank
Volume control: master volume, tone control, tube overdrive
Display: 20-character, 2-line back-light LCD
Terminal: AC input, line out L / R, Leslie switch, adding lower keyboard and pedal possible via midi compact flash
Power supply: 230V (CE), 240V (BS)
Dimensions: 46.85 in. (W) x 15.75 in. (D) X 4.72 in. (H)
Weight: 43 lbs
Finish: walnut finish read less
Reviews
Reviewers gave this product an overall rating of 4.5 out of 5 stars.
(98 ratings)
Submitted April 8, 2007 by a customer from epix.net
"Short of a B-3, this is it!"
This is a keeper. If and when I have the bucks and the space I'll gie in and buy the lower, case, stand and pedals.
Sound
Having owned several B-3's over the years I feel qualified rate the XK3 sound. Overall, it's as good as it gets. It's also nice to have reverb, both percussion choices at once, and all the other things that are not available on a "real" Hammond console. There's no way anyone might be disappointed if sound is all you care about.
Features
Paying extra for the volume (swell) pedal sucks. Positioning of the Leslie switch is fine if you've never played the real thing. If you have, it takes some getting used to. I thought Suzuki's having placed another switch on the optional volume pedal would be an advantage. It's not unless you're a ballet dancer.
Ease of Use
Real Hammond players will find most menu options useless and confusing. Just sit down and play. Use the drawbars, and pre-sets... percussion, etc. You'll feel right at home until you reach for the lower manual. Having it is a must for former Hammond players. Too bad that 2nd manual, little more than a controller keyboard, is so expensive.
Quality
Seems well built. Very heavy, therefor easy to damage. Keep the box. It's as good or better than most cases. Electronic controls seem hefty enough. Surface is easily marred, but that's the price you pay if you're careless. Not as easy to… read more cover up as the old woodies.
Value
I love it. Right combination of portability, sound, and price for the main unit, but lower keyboard and all accessories is too expensive for what you get. Hopefully prices on those will be adjusted downward.
Manufacturer Support
Mine actually died the first day I had it. Not DOA, but all effects, Leslie, volume control and more, died within 12 hours of plugging it in. I tried a re-set with no results. Had to send it back to Hammond at my expense. They claimed diagnostics failed to locate the cause of the problem so they replaced EVERYTHING, one component at a time. It took a month, but I had told them there was no hurry. (I'm retired form playing professionally) There have been no problems since. They were friendly, accessible and seemed to really appreciate my patience since this was one of the first off the line. (I dealt direct with Hammond)
The Wow Factor
Keep in mind you "play" this keyboard. You "ride" a real B-3. It just don't feel the same.
Musical Background:
Composer, studio owner, former touring musician.
Musical Style:
Playing Hammonds for 47 years. Rock read less
Sound
Having owned several B-3's over the years I feel qualified rate the XK3 sound. Overall, it's as good as it gets. It's also nice to have reverb, both percussion choices at once, and all the other things that are not available on a "real" Hammond console. There's no way anyone might be disappointed if sound is all you care about.
Features
Paying extra for the volume (swell) pedal sucks. Positioning of the Leslie switch is fine if you've never played the real thing. If you have, it takes some getting used to. I thought Suzuki's having placed another switch on the optional volume pedal would be an advantage. It's not unless you're a ballet dancer.
Ease of Use
Real Hammond players will find most menu options useless and confusing. Just sit down and play. Use the drawbars, and pre-sets... percussion, etc. You'll feel right at home until you reach for the lower manual. Having it is a must for former Hammond players. Too bad that 2nd manual, little more than a controller keyboard, is so expensive.
Quality
Seems well built. Very heavy, therefor easy to damage. Keep the box. It's as good or better than most cases. Electronic controls seem hefty enough. Surface is easily marred, but that's the price you pay if you're careless. Not as easy to… read more cover up as the old woodies.
Value
I love it. Right combination of portability, sound, and price for the main unit, but lower keyboard and all accessories is too expensive for what you get. Hopefully prices on those will be adjusted downward.
Manufacturer Support
Mine actually died the first day I had it. Not DOA, but all effects, Leslie, volume control and more, died within 12 hours of plugging it in. I tried a re-set with no results. Had to send it back to Hammond at my expense. They claimed diagnostics failed to locate the cause of the problem so they replaced EVERYTHING, one component at a time. It took a month, but I had told them there was no hurry. (I'm retired form playing professionally) There have been no problems since. They were friendly, accessible and seemed to really appreciate my patience since this was one of the first off the line. (I dealt direct with Hammond)
The Wow Factor
Keep in mind you "play" this keyboard. You "ride" a real B-3. It just don't feel the same.
Musical Background:
Composer, studio owner, former touring musician.
Musical Style:
Playing Hammonds for 47 years. Rock read less
28 of 28 people (100%) people found this review helpful. Did you?
