Hammond XK1 61-Key Modeling Organ

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

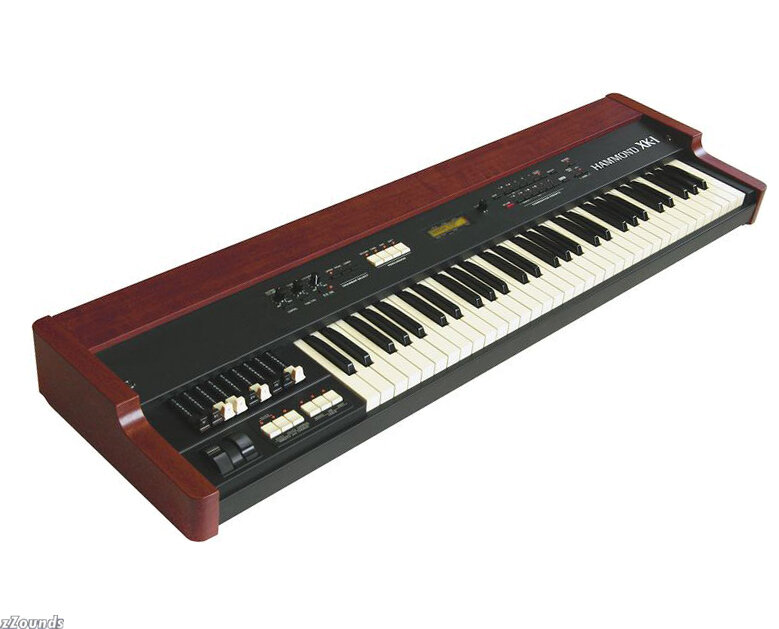

Hammond XK1 61-Key Modeling Organ, Main

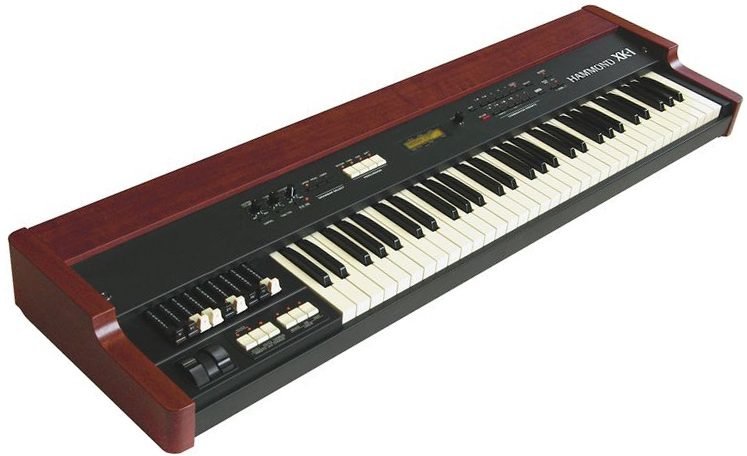

Hammond XK1 61-Key Modeling Organ, Main
zZounds Gear Experts Say...
Get all the classic Hammond sounds you need in a portable 61-key keyboard with the XK1.

This exciting new pro keyboard is powered by the most advanced VASE III digital tone wheel generator. The XK-1 utilizes many of the outstanding sounds and features found in Hammond's famous XK-3 keyboard. A new lightweight cabinet, 8 extra voice sounds such as electric piano, and real Hammond drawbars make the XK-1 the best buy in its product class.

Features

- Sound generator: 2 x VASE III as digital tone wheel
- Keyboard: 61-note waterfall-type keys with velocity
- Display: 20 characters, 2 lines with 9 control switches and rotary encoder
- MIDI: Templates: 3 modes zoned 3 parts and keyboard ch.
- Connections: AC inlet, MIDI in 1, in 2, out, expression pedal (phone jack), foot switch, line out L/R, headphones, 8-pin Leslie
- Dimensions (W x D x H): 45-5/8 x 13-1/8 x 4-3/8 in.
- Weight: 33 lbs
- Extra voice: 8 instruments

Harmonic drawbars:
- 1-set: 9 adjustable pitches
- Drawbar select: tabs upper, lower, pedal
- Waveform: B-type, mellow, brite (upper and lower), muted, normal, synth (pedal)

Percussion:
- Tabs: second on, third on, fast decay, soft
- Adjustable: touch, velocity, decay (fast, slow), level (soft, normal)

Tuning:
- Master: 430 ~ 450 (1 Hz steps)
- Transpose: -6 ~ 0 ~ +6

Effects:
- Internal Leslie: on, fast, brake, digital 2 rotors
- Vibrato and chorus: V1, V2, V3, C1, C2, C3, upper & lower on/off, speed: 5 (6.10 Hz ~ 7.25 Hz)
- Overdrive: digital overdrive
- Equalizer: 3 bands
- Reverb: 10 programs
- Sustain: 5 lengths (pedal)

Internal zone:
- Tabs:… read more split, manual bass
- Adjustable: map low, high, split point, lower octave, pedal top key

Combination preset:
- 12 banks x 11 numbers + adjust
- Switchable: link/independent

Controllers:
- Switches: power on/off
- Rotary controllers: master volume, overdrive, tone
- Wheels: pitch bend, modulation

Power Supply: AC Power Cord (Included) read less

- Sound generator: 2 x VASE III as digital tone wheel
- Keyboard: 61-note waterfall-type keys with velocity
- Display: 20 characters, 2 lines with 9 control switches and rotary encoder
- MIDI: Templates: 3 modes zoned 3 parts and keyboard ch.
- Connections: AC inlet, MIDI in 1, in 2, out, expression pedal (phone jack), foot switch, line out L/R, headphones, 8-pin Leslie
- Dimensions (W x D x H): 45-5/8 x 13-1/8 x 4-3/8 in.
- Weight: 33 lbs
- Extra voice: 8 instruments

Harmonic drawbars:
- 1-set: 9 adjustable pitches
- Drawbar select: tabs upper, lower, pedal
- Waveform: B-type, mellow, brite (upper and lower), muted, normal, synth (pedal)

Percussion:
- Tabs: second on, third on, fast decay, soft
- Adjustable: touch, velocity, decay (fast, slow), level (soft, normal)

Tuning:
- Master: 430 ~ 450 (1 Hz steps)
- Transpose: -6 ~ 0 ~ +6

Effects:
- Internal Leslie: on, fast, brake, digital 2 rotors
- Vibrato and chorus: V1, V2, V3, C1, C2, C3, upper & lower on/off, speed: 5 (6.10 Hz ~ 7.25 Hz)
- Overdrive: digital overdrive
- Equalizer: 3 bands
- Reverb: 10 programs
- Sustain: 5 lengths (pedal)

Internal zone:
- Tabs: split, manual bass
- Adjustable: map low, high, split point, lower octave, pedal top key

Combination preset:
- 12 banks x 11 numbers + adjust
- Switchable: link/independent

Controllers:
- Switches: power on/off
- Rotary controllers: master volume, overdrive, tone
- Wheels: pitch bend, modulation

Power Supply: AC Power Cord (Included)

For support or warranty questions, please contact the manufacturer:
Phone: 630-543-0277
Manual

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (44 ratings)
Submitted April 17, 2011 by a customer from verizon.net

"This is an excellent instrument. To call it a clone-wheel is actually a little degrading. It is just that much better than the r"

Overall: 4.5 out of 5 stars
(see rating details)
Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.
I will never replace this instrument. I can't see how anyone could make a clone-wheel much better. Again, I've been told the the XK-3c is even better due to real tube preamp and additional draw-bars but, for most the XK-1 will be with you for life. At least for myself. Only time will tell though.

Sound
Excellent B-3 and C-3 emulation. Notes could use more decay or sustain to them. Very staccato at times. I'm Classically and Jazz trained on the piano with excellent chops and even I find the notes decay a bit too quick. Now running through 2(Stereo)BK Butler Blue Tube II Preamps and much better note decay. Preamps create an incredible reproduction of Emerson, Lord, and Rainbow Organ Sounds. Much better sound than the VK-8 I owned. Excellent Leslie Simulation. Interested to hear how it would sound through a BOSS RT-20. Definitely the best clone-wheel I've ever heard or played. Though I've heard that the XK-3c is even better. Hard to believe you could get much netter than the sound that comes from the XK-1. Great, just a great sounding instrument.

Features
No accessories included. I thought a pedal to control the Leslie on/off should have been included. I remember when most keyboards and synths came with a sustain pedal so that was my only disappointment. The display screen is very good. My VK-8 did not have one and was difficult to set up when changing midi or internal sound parameters. I like that you can name patches… read more and that the presets have patch names or drawback settings displayed.

Ease of Use
Simple and the manual is fine.

Quality
Excellent build quality. An instrument you can feel proud to own. Beautiful.

Value
Well worth the money. This board is an ax. It rocks. From classical, & church, to jazz and rock. Great board. Try running through various outboard processors especially tube preamps. Can create monstrous and powerful classic rock organ sounds. You really get your monies worth with this instrument. Excellent price, quality build, great sound. Very realistic. This is a Pro-Level Instrument all the way for a very reasonable price.

Manufacturer Support
Haven't had to deal with any issues yet so I can't comment.

The Wow Factor
I had to have one. Sold my VK-8 for one. Very satisfied. No regrets. Great sound, beautiful build. Would have liked to have gone for the XK-3C but, the XK-1 is perfect for me. I'm a multi-keyboardist and needed to strike a balance between price and performance. I wouldn't call myself strictly a Hammond player and have been rebuilding my setup so price and performance were important as I recently have purchased several other synths needed to complete my home studio. Best bang for buck. Buy an XK-1. You won't be dissapointed.

Musical Background:
From professional to hobby now. Years of lessons and experience.

Musical Style:
Prog Rock, Hard Rock, Classic Rock, Classical, Jazz, Blues., Synth Music read less
9 of 9 people (100%) people found this review helpful. Did you?
