Gemini PMX1800 Professional Stereo Preamp Mixer

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

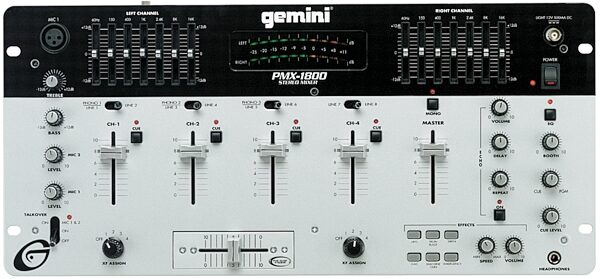

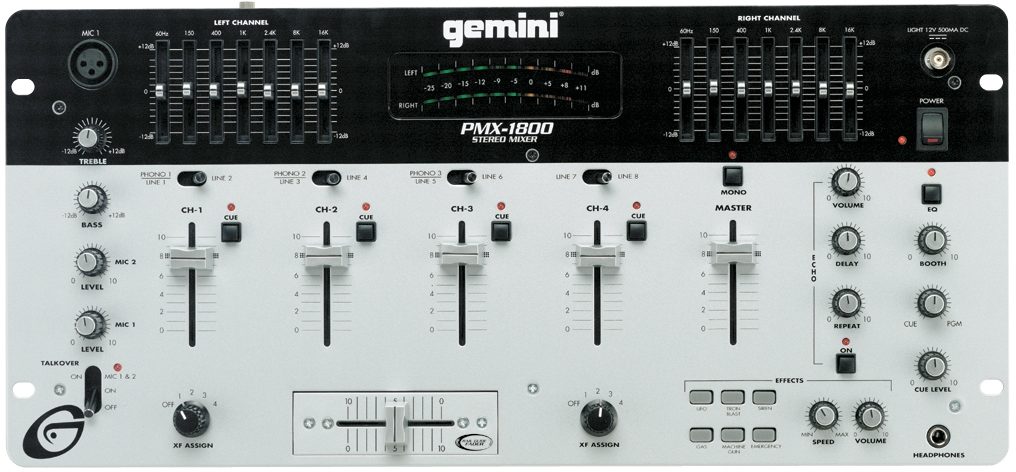

Gemini PMX1800 Professional Stereo Preamp Mixer, Main
Gemini PMX1800 Professional Stereo Preamp Mixer, Main
zZounds Gear Experts Say...
4 stereo channels. Echo section with repeat and delay. 3 phono, 8 line, and 2 mic inputs.

Created with professional DJ's in mind, the Gemini DJ PMX-1800 has a host of features that will expand your creative abilities.

Features
4 Stereo Channels

Echo unit with repeat and delay

3 Phono / 8 Line / 2 Mic inputs

Dual 7 band graphic equalizer

Tone & level control for microphones

Push button cueing with cue / program slide control

Separate Master, Booth, and Record outputs

Assignable RAIL-GLIDE removable cross-fader

Mic talkover feature

Balanced output

BNC lamp connector

Fits into standard 19 in. racks

Inputs
Phono: 3 mV, 47 KOhm

Line: 150 mV, 27 KOhm

MIC 1 & MIC 2: 1.5 mV, 2 K Ohm Balanced

Bass: +/- 12dB

High: +/- 12dB

Outputs
Amp/Booth: 0 dB 1V, 400 Ohm

Max: 20V Peak-to-Peak

Rec: 225 mV, 5 kOhm

General
Frequency Response: 20Hz - 20KHz +/- 2 dB

Distortion: 0.02%

S/N Ratio: Better Than 80 dB

Talkover Attenuation: -16 dB

Headphone Impedance: 16 Ohm

Echo: 600m sec

Power Source: 115/230V, 50/60Hz, 10W

Unit Dimensions: 19 in. W x 4 in. H x 9 in. D (483mm x 94mm x 221mm)

Weight: 10.17 lbs (4.6 kg), Shipping Weight: 12.2 lbs (5.5 kg)
