Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

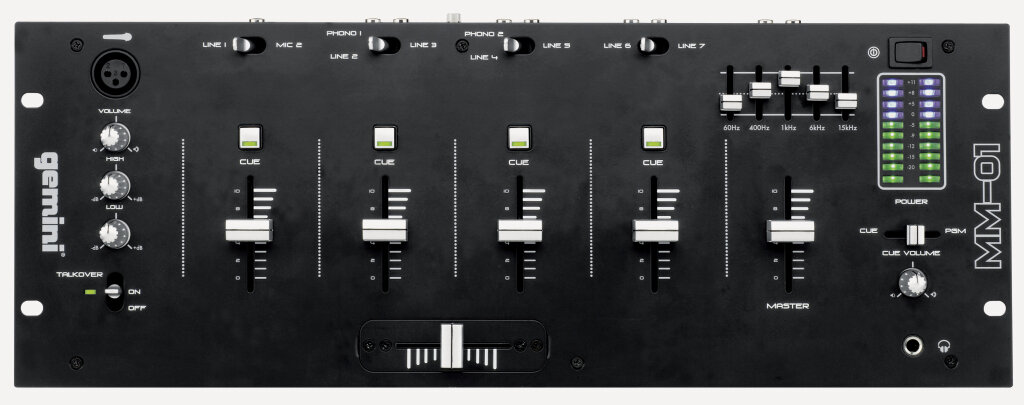

Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Main

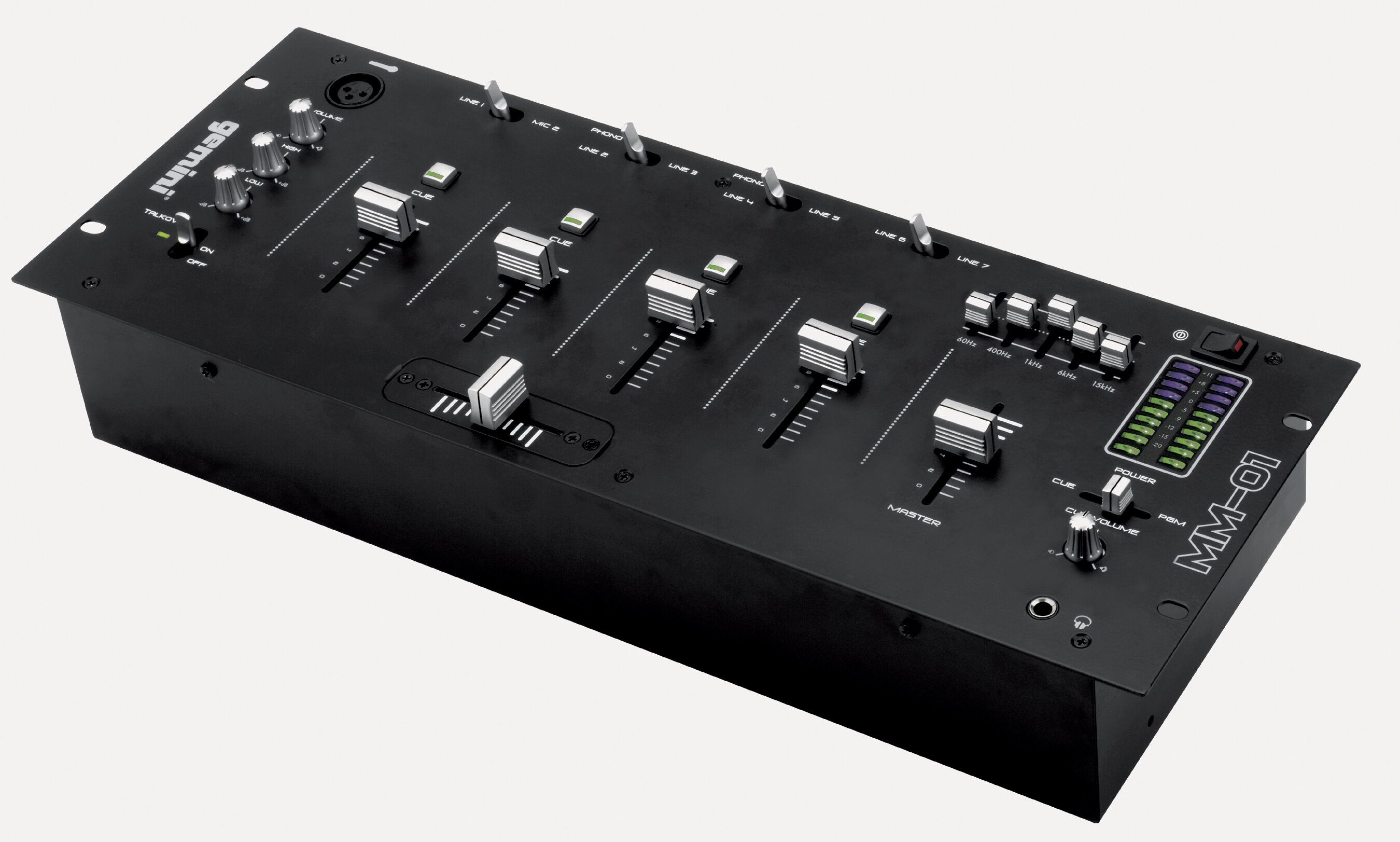

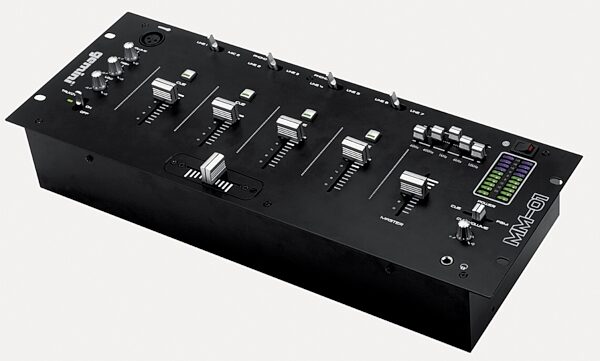

Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Angle

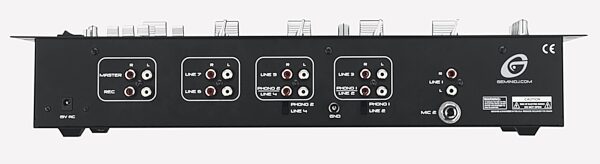

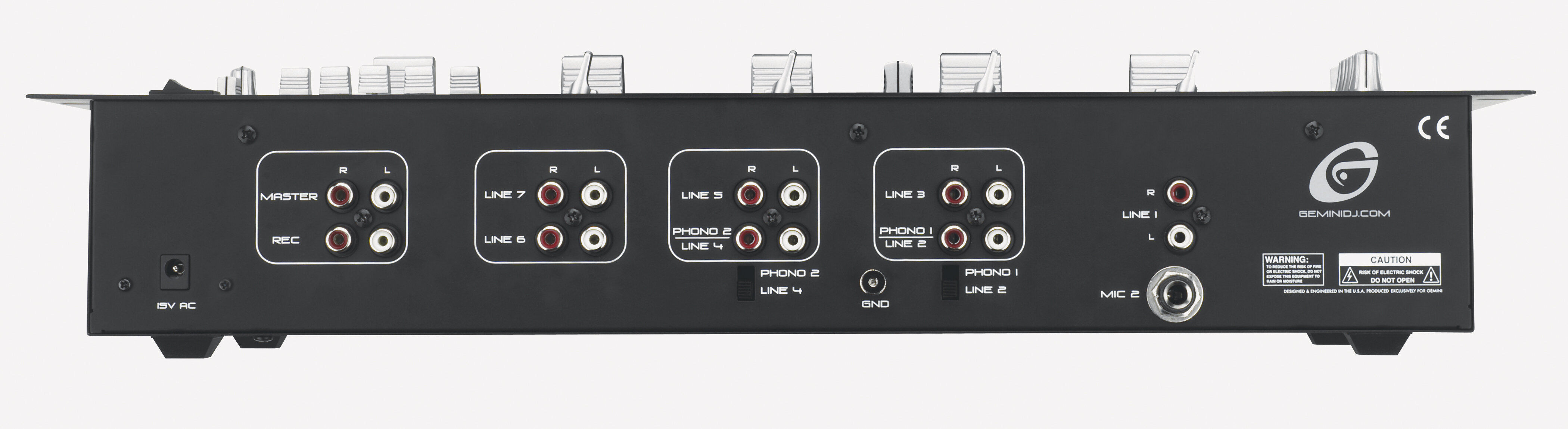

Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Back
Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Main
Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Angle
Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Back
Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Main Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Angle Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Back Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Main Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Angle Gemini MM01 4-Channel 19 in. Rackmount DJ Mixer, Back
zZounds Gear Experts Say...
7 line, 2 mic, 2 convertible phono/line RCA inputs. 5 band master graphic EQ.

Introducing the MM-01, 4U, 19 in. rack mounted club mixer from Gemini. This 4 channel mixer is perfect for the versatile DJ offering the latest advancements. With 7 line, 2 mic, 2 convertible phono/line, RCA inputs, 5 band master graphic EQ, and mic inputs with talkover feature, the MM-01 is just the right mixer for your club setup.

Features
7 line, 2 mic, 2 convertible phono/line RCA inputs

Master & record RCA outputs

4U 19 in. rack mounted club/mobile mixer

4 stereo channels

5 band master graphic EQ

XLR mic input

Removable, user replaceable Rail Glide cross fader

Dual VU display with bright LED

Push button cue section with CUE/PGM fader control

Rotary Mic volume & EQ controls

Talkover feature

1/4 in. headphone output

Inputs:
-- Mic 1: 1.5mV 1 kilohm balanced

-- Mic 2: 1.5mV 1 kilohm balanced

-- Phono: 3 mV 47 kilohms

-- Line: 150 mV 10 kilohms

Outputs:
-- Amp: 0 dB 1V 400Ohm

-- Max: 20V peak to peak

-- Rec: 225mV 5 kilohm

General:
-- 5-band EQ: +/- 12dB

-- Frequency response: 20Hz - 20KHz +/- 2dB

-- Distortion: less Than 0.02%

-- S/N ratio: better Than 80dB

-- Talkover attenuation: -16dB

-- Power source: adapter-115V/15V AC 0.5A

Weights & dimensions:

-- Dimensions (W x H x D): 19 x 3.4 x 7 in.

-- Weight: 7.04 lbs

For support or warranty questions, please contact the manufacturer:
Phone: 732-346-0061 or 844-GEMINI-9
Email: hello@geminisound.com
Web: https://support.geminisound.com
Owner's Manual
