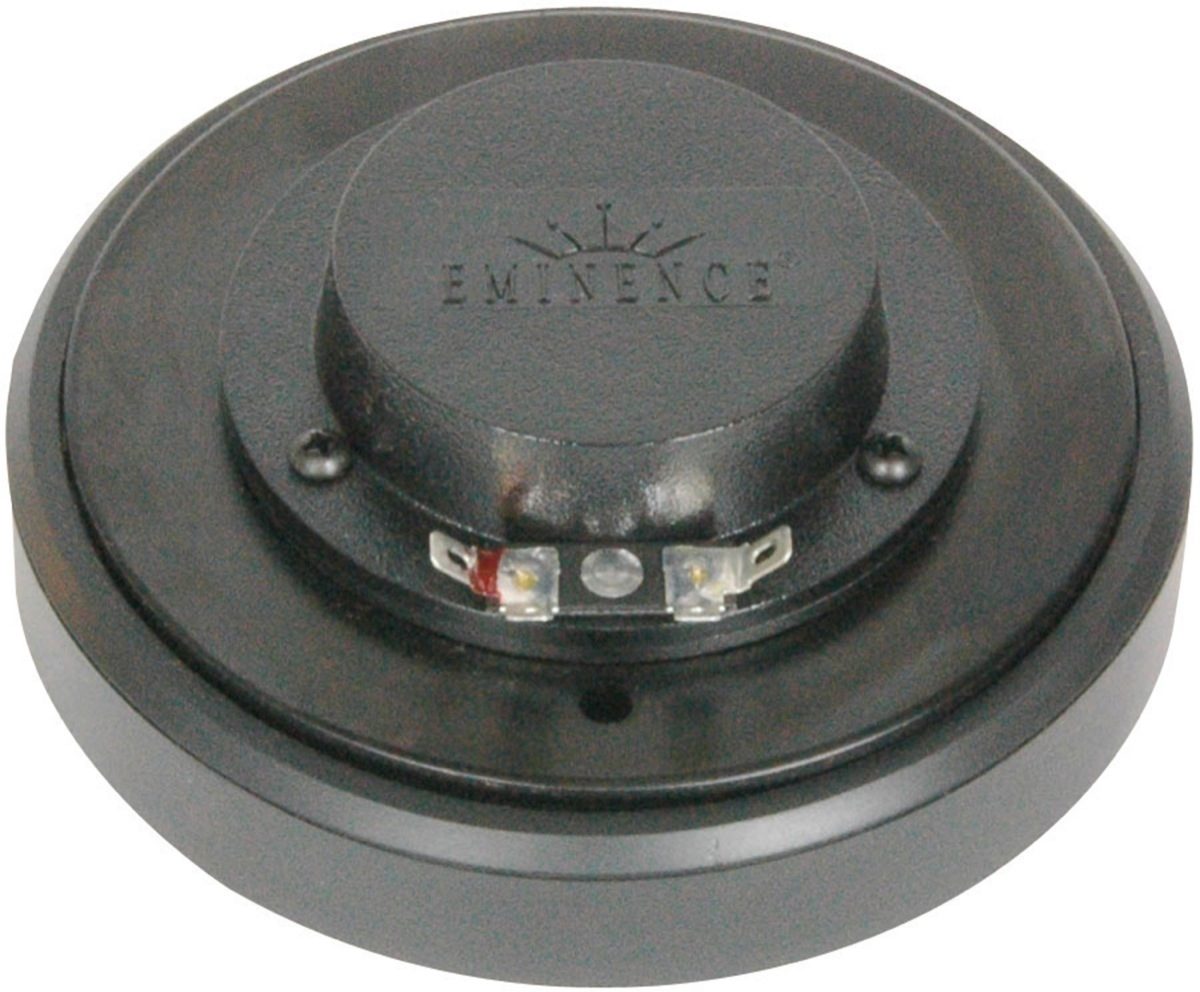

Eminence PSD 2002S-8 HF Driver (80 Watts)

zZounds Gear Experts Say...

Modify the high-frequency response of your speaker configuration. This 1" throat driver from Eminence is a perfect enhancement for pro audio enclosures.

Overview

The PSD2002S-8 is developed for totally Eminence loaded cabinets, or as upgrades to an existing device, Eminence HF drivers achieve extraordinary levels of audio performance with the same unrivaled durability you demand from Eminence bass and midrange transducers.

Take an in-depth tour of the Eminence speaker factory:

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Throat Size: 1", 25.4mm
- Nominal Impedance: 8 Ohm
- Minimum Impedance: 7.9 ohm @ 2.9 kHz Ohm
- Power Rating: 80 W (AES)
- Resonance : 0.54kHz
- Usable Frequency Range: 1200Hz-20kHz
- Recommended Crossover: 1.2 kHz / 12 dBkHz
- Sensitivity: 105.1
- Magnet Material: Ferrite
- Magnet Weight: 34oz, 0.96kg
- Voice Coil Diameter: 2" / 51mm
- Voice Coil Former: Polyimide
- Diaphragm Material: Titanium
- DC Resistance (Re) : 6.1Ohm
- Overall Diameter: 5.25", 133.4mm
- Driver Volume Displaced: 0.018 cu.ft., 0.5 liters
- Depth: 2.8", 71.1mm
- Weight: 5 lbs, 2.3 kg
- Mounting Thread: 1 3/8 in. 18 ext.

Dimensions and Weight in Packaging
1 inch, 8 Ohms: Shipping Weight: 6 lbs; Shipping Dimensions: 7 x 6 x 3 in; Manufacturer Part Number (MPN): PSD2002S-8
