Eminence Legend B810 Bass Speaker (400 Watts, 10")

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

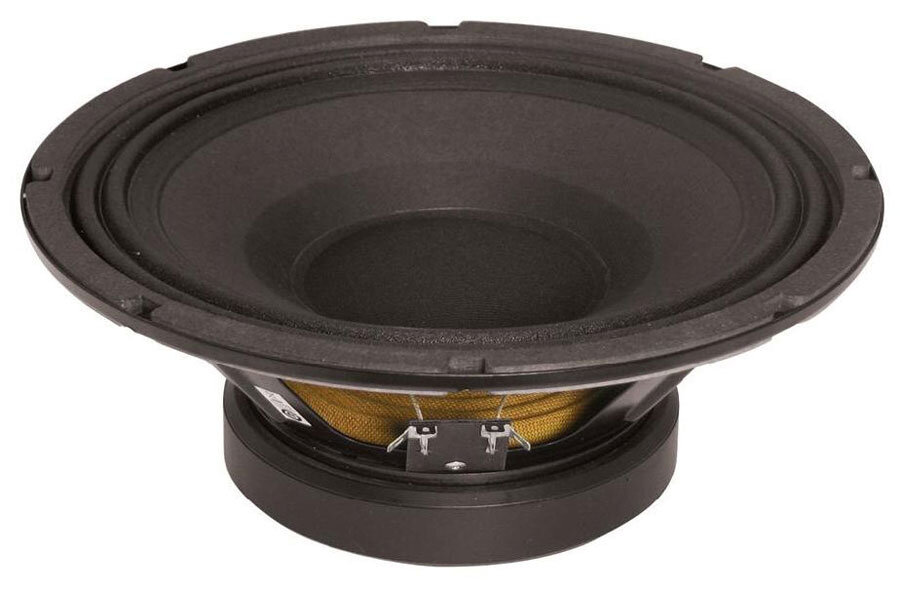

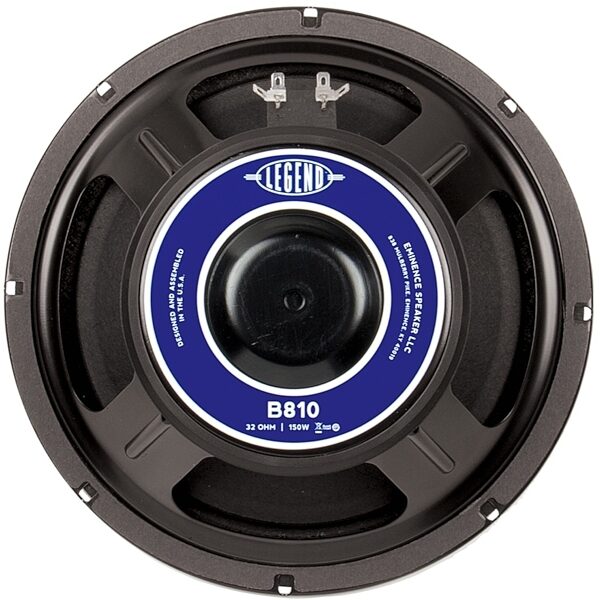

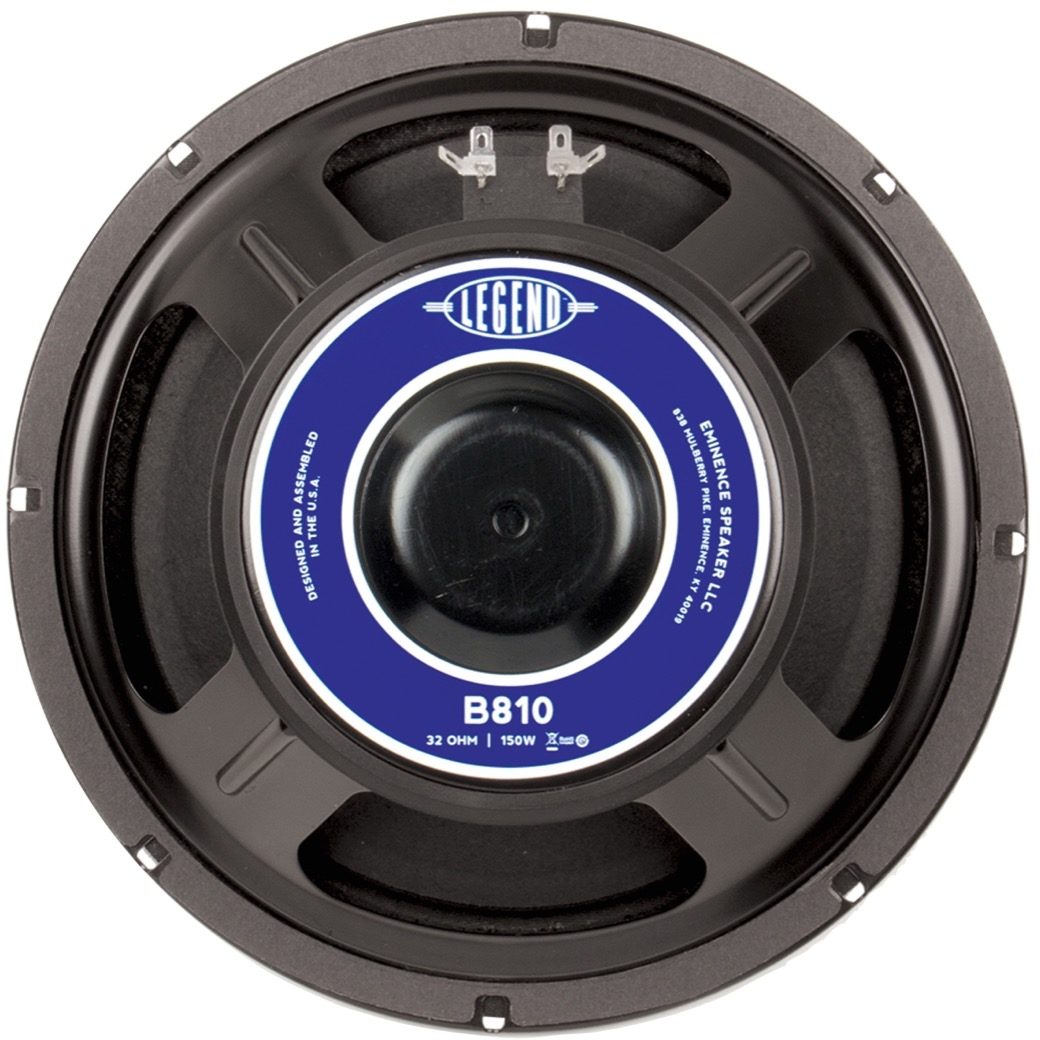

Eminence Legend B810 Bass Speaker (400 Watts, 10"), 32 Ohms, Main

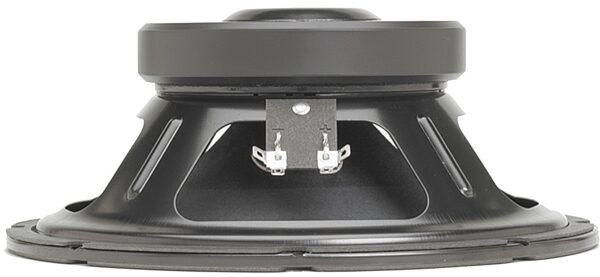

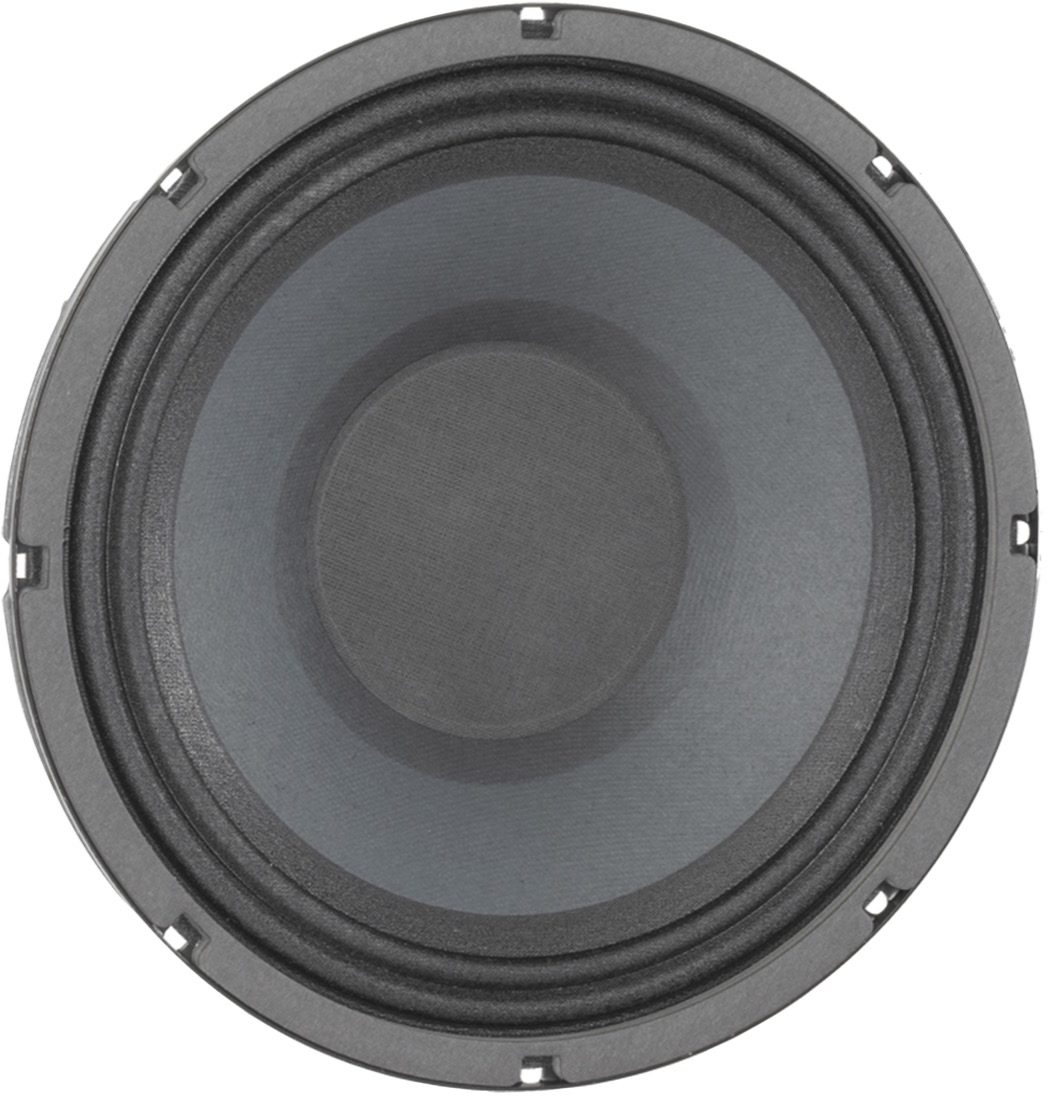

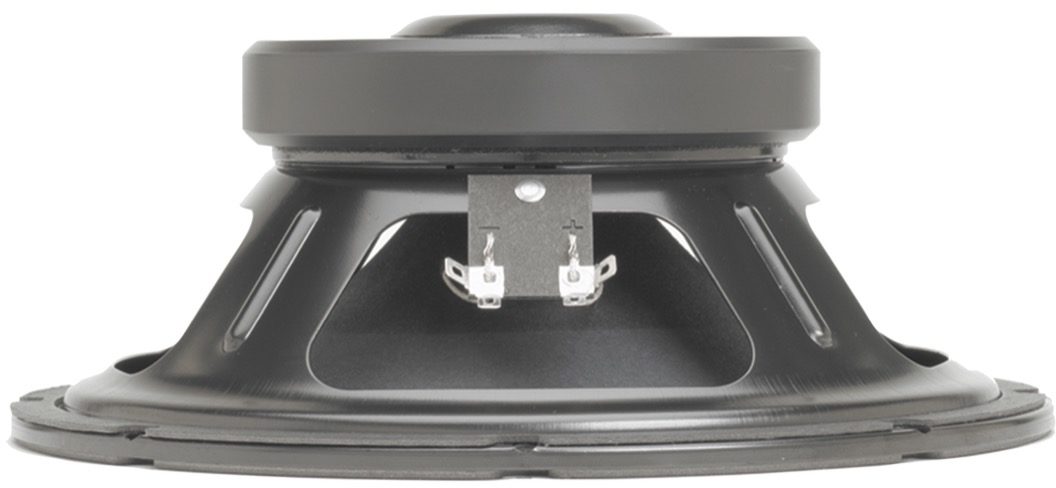

Eminence Legend B810 Bass Speaker (400 Watts, 10"), 32 Ohms, Main Eminence Legend B810 Bass Speaker (400 Watts, 10"), 32 Ohms, Front Eminence Legend B810 Bass Speaker (400 Watts, 10"), 32 Ohms, Side
full image
zZounds Gear Experts Say...
Rugged and reliable, the Legend B-810 Bass speaker can be connected in parallel with 4 or 8 other Legend B-810's to get an 8 or 4 ohm load respectively.

Eminence Legend B810 is a 32 ohm, 10-inch stamped frame bass guitar driver with a true classic design. It's modern features include an M-roll surround for higher excursion and less cone breakage, a double dipped cone apex for a really strong cone neck, and a bumped back plate for greater incursion before damage.

Use the Legend B810 four at a time, connected in parallel, to get an 8 ohm load. Use them 8 at a time, connected all in parallel, to get a 4 ohm load.

Take an in-depth tour of the Eminence speaker factory:

Nominal Impedance: 32 ohms

Power Rating:
- RMS: 150 Watts
- Peak: 400 Watts

Resonance: 52Hz

Usable Frequency Range: 49Hz-5.1kHz

Sensitivity: 92.7

Magnet Weight: 30 oz

Gap Height: 0.312 inch, 7.94mm

Voice Coil Diameter: 2 inches, 50.8mm

Overall Diameter: 10.11 inches (256.8mm)

Depth: 4.08 inches (103.6mm)

Weight: 6.7 lbs (3.04 kg)

Construction Materials
Coil Construction: Copper voice coil

Coil Former: Kapton

Magnet Composition: Ferrite magnet

Core Details: Bumped

Basket Materials: Pressed steel basket

Cone Composition: Paper Cone

Cone Edge Composition: Cloth cone edge

Dustcap Composition: Zurette dust cap
Dimensions and Weight in Packaging
32 Ohms
Shipping Weight: 7.5 lbs
Shipping Dimensions: 12 x 12 x 6 in
Manufacturer Part Number (MPN): LEGENDB810
