Eminence Basslite C2515 Bass Speaker (300 Watts, 15")

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

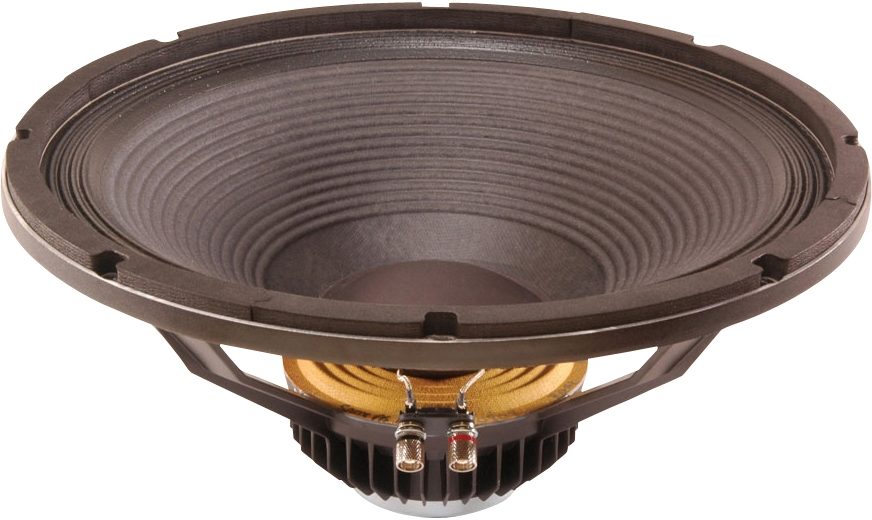

Eminence Basslite C2515 Bass Speaker (300 Watts, 15"), Main
Eminence Basslite C2515 Bass Speaker (300 Watts, 15"), Main
zZounds Gear Experts Say...
The Eminence Basslite C2515 Speaker delivers great tone and is very light in weight due to its neodymium magnet.

The Eminence Basslite C2515 Speaker delivers great tone and is very light in weight due to its neodymium magnet. Recommended for bass guitar amplifiers as a replacement speaker, the Basslite is excellent in either sealed or vented enclosures.

Eminence recommends the Basslite C2515 as a replacement speaker for the Kustom Groove 215H speaker cabinet, Behringer Ultrabass BXL3000, Fender Rumble 100, Ampeg BA115T, Ampeg B200R combo amps, and many more.

Features

- Materials Of Construction
- Coil Construction Copper voice coil
- Coil Former Polyimide former
- Magnet Composition Neodymium magnet
- Core Details Vented core
- Basket Materials Die-cast aluminum basket
- Cone Composition Paper Cone
- Cone Edge Composition Cloth cone edge
- Dustcap Composition Solid composition paper dust cap

Nominal Basket Diameter: 15", 381mm

Nominal Impedance: 4 ohms

Power Rating:
- Watts: 300W
- Music Program: 600W

Resonance: 38Hz

Usable Frequency Range: 52Hz-2.5kHz

Sensitivity: 98

Magnet Weight: 7 oz.

Gap Height: 0.28 inches, 7mm

Voice Coil Diameter: 2.5 inches, 63.5mm

Thiele and Small Parameters

Resonant Frequency (fs): 38Hz

DC Resistance (Re): 3.72

Coil Inductance (Le): 0.39mH

Mechanical Q (Qms): 4.7

Electromagnetic Q (Qes): 0.50

Total Q (Qts): 0.45

Compliance Equivalent Volume (Vas): 260 liters / 9.2 cu.ft.

Mechanical Compliance of Suspension (Cms): 0.26mm/N

BL Product (BL): 11.1 T-M

Diaphram Mass inc. Airload (Mms): 70 grams

Efficiency Bandwidth Product (EBP): 76

Maximum Linear Excursion (Xmax): 4.5mm

Surface Area of Cone (Sd): 856 cm2

Maximum Mechanical Limit (Xlim): 8.5mm

Mounting Information

Recommended Enclosure:
- Sealed: 45-82 liters/ 1.6-2.9 cu.ft.
- Vented: 85-119 liters/ 3-4.2 cu.ft.

Overall Diameter: 5.32 inches, 389.1mm

Baffle Hole Diameter: 14.0 inches, 355.6mm

Front Sealing Gasket: Fitted as standard

Rear Sealing Gasket: Fitted as standard

Mounting Holes Diameter: 0.28 inhes, 7.0mm

Mounting Holes B.C. D.: 14.56 inches, 369.9mm

Depth: 6.9 inches, 175mm

Net Weight: 5.7 lbs., 2.6 kg

For support or warranty questions, please contact the manufacturer:
Phone: 502-845-5622
