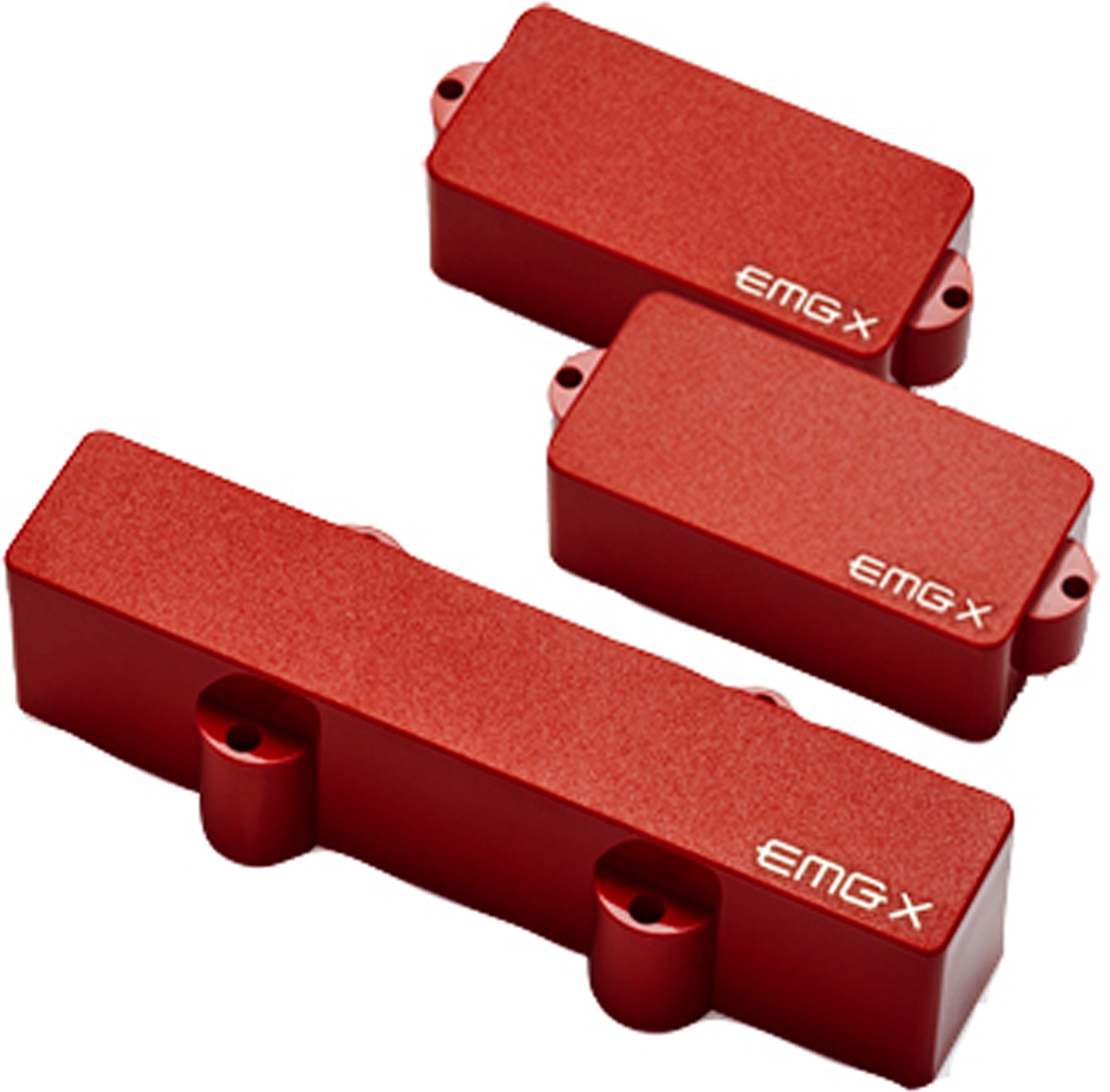

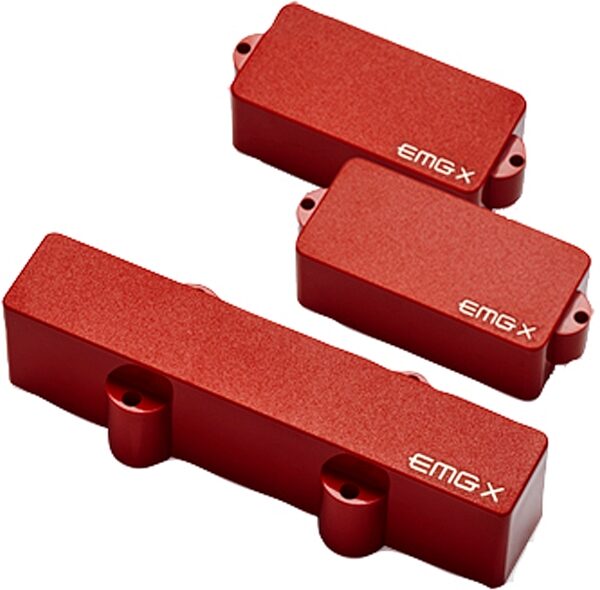

EMG Active X Series Frank Bello Bass Pickup Set

Add the thundering tones of EMG to your bass with the Active X Series Frank Bello pickup set. The PCSX and LJAX pairing gives you a range of tonal options.

The original EMG PJ-Set was a staple of heavy metal bass giant Frank Bello's legendary tone. A long-time EMG family member, he was one of the first artists to switch to X series pickups for the added headroom they provide. EMG began to experiment with different PJ combinations for Bello and the result was a pairing of epic proportions, the FB Signature Set.

Loaded in a red housing, the PCSX paired with the LJAX gave him the ultimate tonal spectrum with the aesthetic he'd always wanted. The thundering chest-punch from the PCSX coupled with the articulate growl of the LJAX was the knockout combo.

Note: This pickup is the short shaft version.

- Models: PCS-X / LJA-X
- Logo Color: Silver / Gold
- Magnet Type: Ceramic and Steel / Alnico
- Resonant Frequency (KHz): 2.61 / 3.48
- Output Voltage (String): 2.00 / 1.75
- Output Voltage (Thump): 8.50 / 6.50
- Output Noise (60 Hz): -101 / -101
- Output Impedance (Kohm): 2.00 / 2.00
- Current @9V (Microamps): 80 / 80
- Battery Life (Hours): 3000 / 3000
- Maximum Supply (Volts DC): 27 / 27
- Included with each Set: (2) 25k Solderless Volume Controls (1) VLPF Active Tone control, adjustment screws, output jack & solderless wiring harness
Dimensions and Weight in Packaging
Red
Shipping Weight: 1.25 lbs
Shipping Dimensions: 7 x 5 x 3 in
Manufacturer Part Number (MPN): 6662.00
