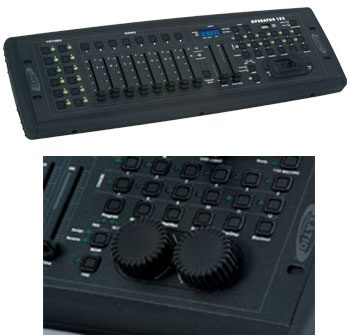

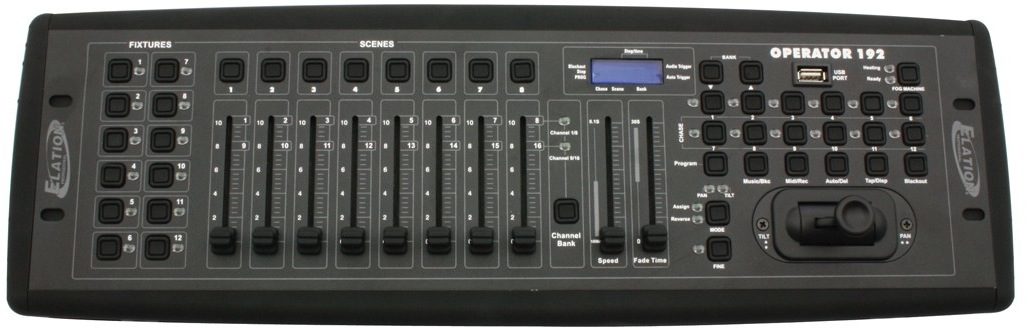

Elation DMX Operator 192 Lighting Controller
No longer available at zZounds


zZounds Gear Experts Say...
Based on the DMX Operator, the Elation DMX Operator 192 adds an assignable joystick, RCA input for sound triggering, fog machine control, and more.
Overview
The Elation DMX Operator 192 Lighting Controller provides great features including an assignable joystick for pan and tilt options, 30 programmable scene banks and much more, all at a great price. The 12 programmable chases and 8 control faders give the DMX Operator 192 a great feel designed for small to medium-sized lighting systems. If you are looking for an affordable, high quality DMX controller, look no further than this great unit from Elation.
- Pan/Tilt Fine button
- 192 DMX channels
- 12 Fixtures
- 16 DMX channels each
- 30 programmable scene banks
- 240 total programmable scenes
- 12 programmable chases
- 8 control faders
- Speed and Fade faders
- USB input for optional "USB Lite" or "USB MemStick"
- Built-in microphone for sound trigger
- Line level RCA audio input for music trigger
- MIDI input for scene, chase or blackout trigger
- LCD display
- DMX polarity switch
- Power failure memory
- Tap Sync button for chase speed override
- Fog Machine input and trigger button (compatible with select ADJ foggers)
- RS-232 input
- Blackout button
Features:
- Assignable Joystick- Pan/Tilt Fine button
- 192 DMX channels
- 12 Fixtures
- 16 DMX channels each
- 30 programmable scene banks
- 240 total programmable scenes
- 12 programmable chases
- 8 control faders
- Speed and Fade faders
- USB input for optional "USB Lite" or "USB MemStick"
- Built-in microphone for sound trigger
- Line level RCA audio input for music trigger
- MIDI input for scene, chase or blackout trigger
- LCD display
- DMX polarity switch
- Power failure memory
- Tap Sync button for chase speed override
- Fog Machine input and trigger button (compatible with select ADJ foggers)
- RS-232 input
- Blackout button
Specs
Power input: DC 9~15V, 500mA
Internal fuse: 500mA 250V, 5x20mm
DMX Out: 3-pin XLR female DMX connector
MIDI In: 5-pin MIDI connector
Sound input: RCA connector
External Step Controller: DB-9 connector "FC-192"
Dimensions: 483 x 135 x 82 mm
Weight: 2.2 kg
Internal fuse: 500mA 250V, 5x20mm
DMX Out: 3-pin XLR female DMX connector
MIDI In: 5-pin MIDI connector
Sound input: RCA connector
External Step Controller: DB-9 connector "FC-192"
Dimensions: 483 x 135 x 82 mm
Weight: 2.2 kg
Reviews
Reviewers gave this product an overall rating of 5 out of 5 stars.
(1 ratings)
Submitted April 8, 2015 by Ronald Bobo in Oklahoma city, OK
"great control board"
Verified Purchaser
zZounds has verified that this reviewer purchased this specific product from us.
This board is great, easy to program. Will bring your light show from the " oh pretty lights to the omg killer light show!!!" Oh and yes it is rack mountable, I put all my light stuff in its own skb case works great.
Musical Background:
dj, karaoke,live band
Musical Style:
Rock, country , dance
