Edirol SD90 Studio Canvas USB MIDI/Audio Module
No longer available at zZounds

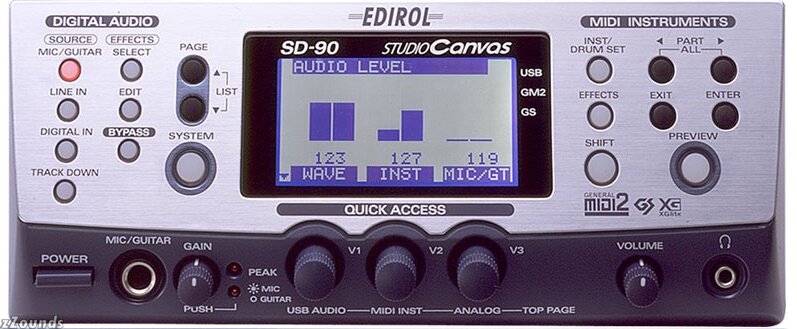

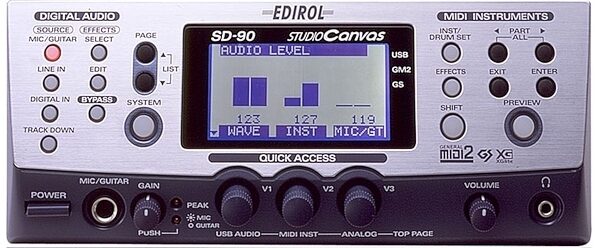

![Edirol SD90 Studio Canvas USB MIDI/Audio Module, Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/sd90_lg-e71fac8fedeecfea445859caf0585dff.jpg)

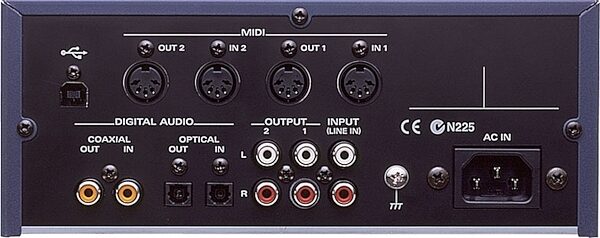

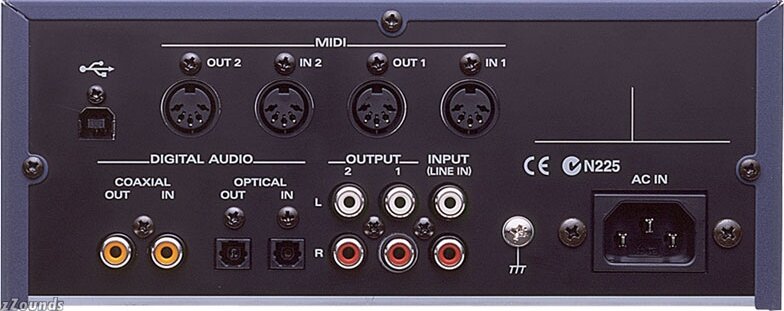

![Edirol SD90 Studio Canvas USB MIDI/Audio Module, Rear](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/sd90rear_lrg-2c135f5e17282e64cfbef53432dcb6ba.jpg)
![Edirol SD90 Studio Canvas USB MIDI/Audio Module, Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/sd90_lg-e71fac8fedeecfea445859caf0585dff.jpg)
![Edirol SD90 Studio Canvas USB MIDI/Audio Module, Rear](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/sd90rear_lrg-2c135f5e17282e64cfbef53432dcb6ba.jpg)
![Edirol SD90 Studio Canvas USB MIDI/Audio Module, Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/sd90_lg-e71fac8fedeecfea445859caf0585dff.jpg)
![Edirol SD90 Studio Canvas USB MIDI/Audio Module, Rear](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/sd90rear_lrg-2c135f5e17282e64cfbef53432dcb6ba.jpg)
24-bit AD/DA converters.
Overview
Complete digital audio/MIDI solution for your desktop studio
The SD-90 effectively integrates in one unit a top-quality MIDI synthesizer, a complete USB digital audio mixer, and audio effect processor -ideal for making music. The 'Studio Canvas' is the ideal audio/MIDI solution for your desktop.
Audio Interface and Multi Effects
A 24-bit audio interface with a large selection of audio multi effects. Audio and MIDI digital effects for Guitar, Vocals, Mastering multi effects, and surround reverb not only for audio input/output, but also for its sound source.
Sound Module
The SD-90 has the highest quality MIDI sound generator with up to 128 polyphony and 32 multi-timbral parts. GM2/GS/Xglite compatible rich sound source with 32 multi-timbral parts, 128 voices, and 3 insertion effects: 3 multi-effects (90 types). The SD-90 features over 1,000 instruments and 30 drum set selections.
Easy to Use
Quick Access supports easy operation and fast editing. Easily control all studio elements (USB Audio, MIDI Instruments, and Analog) via a large high-definition LCD display and Quick Access encoder knobs on the front panel.
ASIO2.0/WDM Compatible Drivers
Drivers are compatible with ASIO 2.0 (Win/Mac) and WDM (Windows 2000), allowing high performance with applications such as Cubase, Logic, and SONAR.
Features:
24-bit AD/DA converters
2 input - 2 output MIDI connections
Optical/coaxial S/P DIF input and output jacks plus
The SD-90 effectively integrates in one unit a top-quality MIDI synthesizer, a complete USB digital audio mixer, and audio effect processor -ideal for making music. The 'Studio Canvas' is the ideal audio/MIDI solution for your desktop.
Audio Interface and Multi Effects
A 24-bit audio interface with a large selection of audio multi effects. Audio and MIDI digital effects for Guitar, Vocals, Mastering multi effects, and surround reverb not only for audio input/output, but also for its sound source.
Sound Module
The SD-90 has the highest quality MIDI sound generator with up to 128 polyphony and 32 multi-timbral parts. GM2/GS/Xglite compatible rich sound source with 32 multi-timbral parts, 128 voices, and 3 insertion effects: 3 multi-effects (90 types). The SD-90 features over 1,000 instruments and 30 drum set selections.
Easy to Use
Quick Access supports easy operation and fast editing. Easily control all studio elements (USB Audio, MIDI Instruments, and Analog) via a large high-definition LCD display and Quick Access encoder knobs on the front panel.
ASIO2.0/WDM Compatible Drivers
Drivers are compatible with ASIO 2.0 (Win/Mac) and WDM (Windows 2000), allowing high performance with applications such as Cubase, Logic, and SONAR.
Features:
24-bit AD/DA converters
2 input - 2 output MIDI connections
Optical/coaxial S/P DIF input and output jacks plus
Specs
System Requirements
Macintosh
Operating System: MacOS 8.6 or later
Computer: USB read Apple Macintosh
CPU/clock: PowerPC G3/233 MHz or higher
Memory (RAM): 96 MB or more
Windows
Operating System: Microsoft Windows Me/98/98SE/2000/XP
Computer: Windows compatible equipped with a *USB port
CPU/clock: Pentium, Celeron, Intel-compatible processor 400MHz or higher
Memory (RAM): 128 MB or more
* Must have a compatible USB host controller.
Macintosh
Operating System: MacOS 8.6 or later
Computer: USB read Apple Macintosh
CPU/clock: PowerPC G3/233 MHz or higher
Memory (RAM): 96 MB or more
Windows
Operating System: Microsoft Windows Me/98/98SE/2000/XP
Computer: Windows compatible equipped with a *USB port
CPU/clock: Pentium, Celeron, Intel-compatible processor 400MHz or higher
Memory (RAM): 128 MB or more
* Must have a compatible USB host controller.
Reviews
Reviewers gave this product an overall rating of 5 out of 5 stars.
(16 ratings)
Submitted October 23, 2004 by a customer from aol.com
"The SD-90 was exactly what I was looking for a couple years ago. I am still happy with it. I can't wait until Edirol makes anot"
If it breaks down I would buy a new one ASAP. Like I said, they only reason I would buy something new is if Edirol makes a new model. It is almost everything I need.
The only thing I would like to see is a phantom powered XLR jack
Sound
There are so many sounds there should be a little something for everyone. If you can only afford one module I would say get this one.
Since you have so much polyphony you can easily combine different sounds to make all new sounds!
Features
It would be nice to have an XRL input with phantom power. Also, multiple audio inputs would be great.
Quality
This unit has traveled many miles with me. One of the buttons has fallen off but it still works so I keep using it. I love that fact that it is so portable. You can set up a studio anywhere you go.
Value
The price was a little high but I am getting my money's worth out of it.
Manufacturer Support
THE BEST! When I was not sure whether I wanted to order it I called up the company and asked for more info. One of their representatives spent a lot of time explaining things to me and I bought it immediately. The only thing I wish for these days is for them to make a newer model with even more features and sounds. I will buy it as soon as it becomes available.
The Wow Factor
It is the primary part of my little studio. I love having everyone in one little box! I bought it because of its portability.
Musical Background:
Professional comopser/arranger
Musical Style:
All styles-Film composer
11 of 11 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
