Edirol PCR50 49-Key USB MIDI Keyboard Controller
No longer available at zZounds

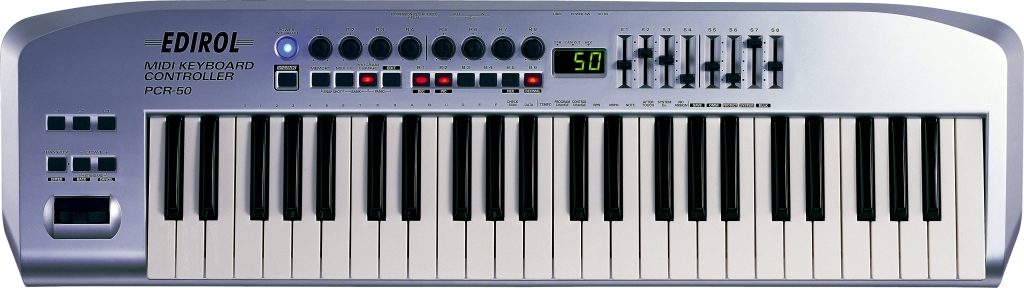

![Edirol PCR50 49-Key USB MIDI Keyboard Controller, Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/pcr50_top-cf1ad830ccc5d3134785b029a9041723.jpg)

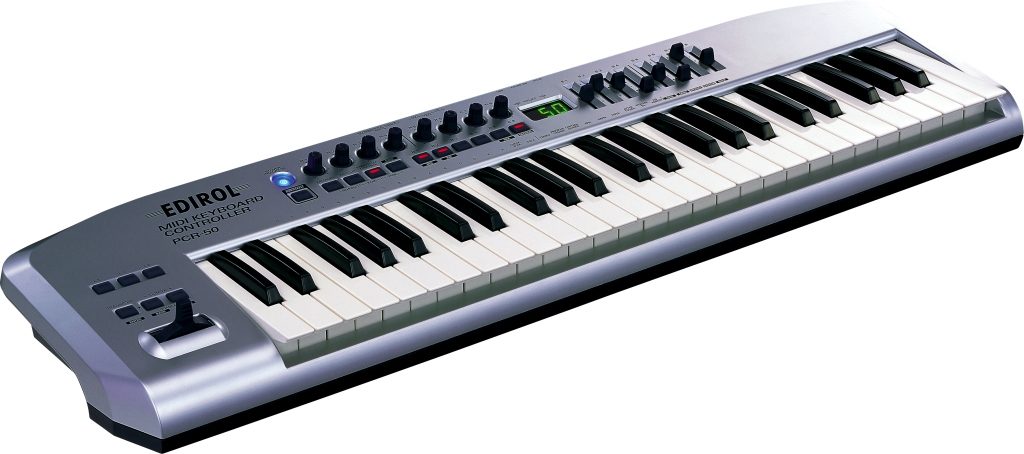

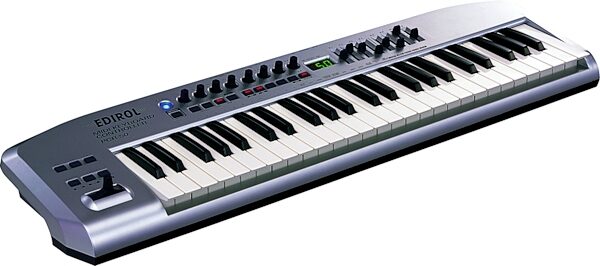

![Edirol PCR50 49-Key USB MIDI Keyboard Controller, Angle](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/pcr50_diagonal-21411cc2716bcabc15926c02b20bb0d6.jpg)

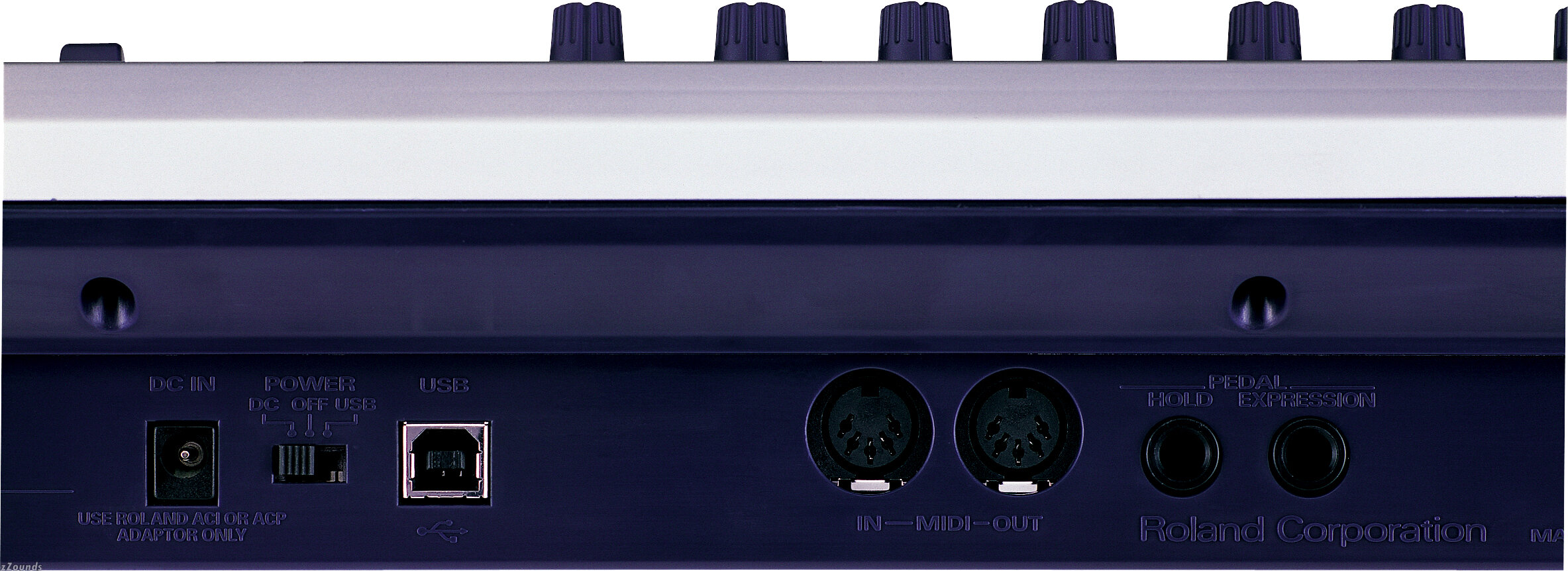

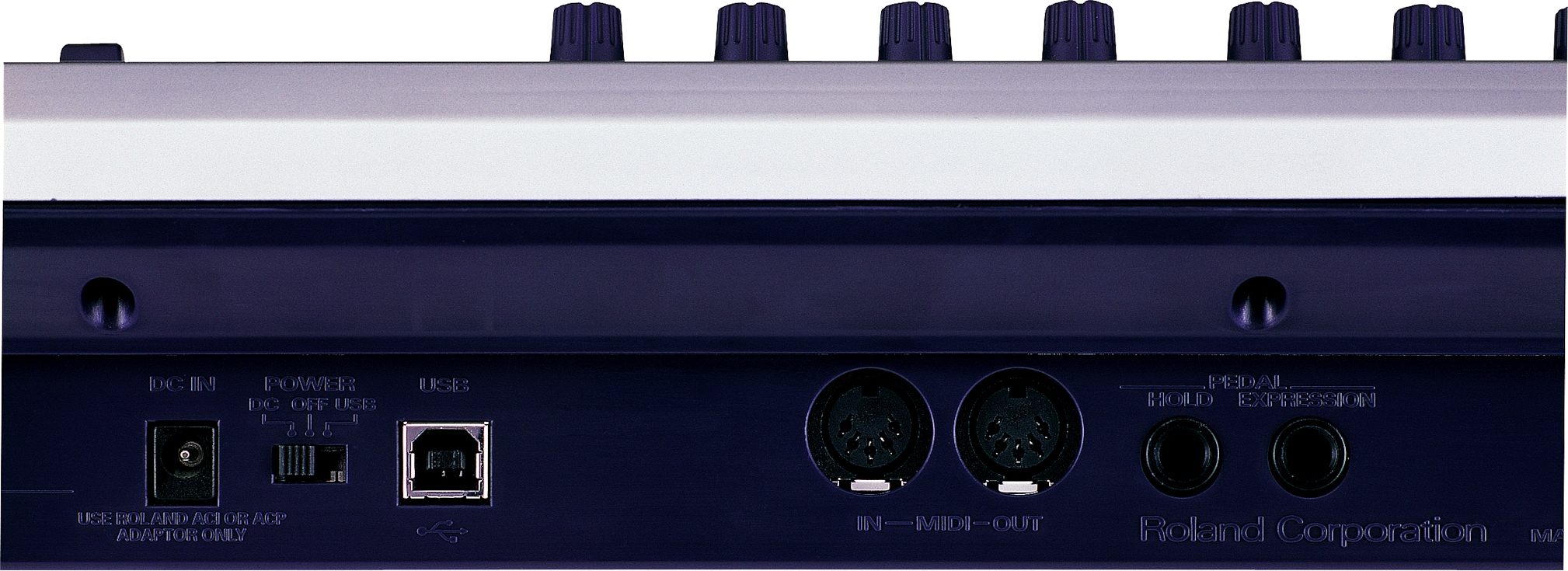

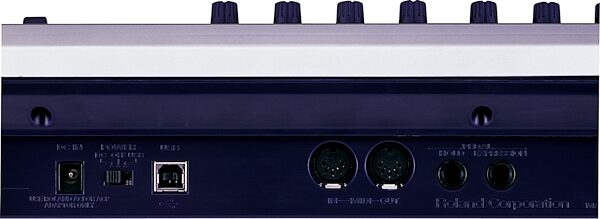

![Edirol PCR50 49-Key USB MIDI Keyboard Controller, Rear](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/pcr50_rear-5b07985c44519e23cb2adaf681ab7275.jpg)
49 keys. 8 assignable rotary knobs. 8 assignable faders.
Overview
The Edirol PCR-50 keyboard - the most advanced 49-key MIDI keyboard controller available. Never before has there been a better compact keyboard for use with popular sequencers and software synthesizers. The PCR-50 takes MIDI control to a new level with unprecedented versatility.
Features:
49 full-sized, velocity sensitive keys
8 assignable rotary knobs (cut off, resonance, pan, tempo, etc.)
8 assignable faders (volume, EFX send, etc.)
9 assignable buttons (program change, track mute, start, stop, etc.)
1 sustain pedal connection
1 expression pedal connection
MIDI in & MIDI out
Pitch & Modulation controls (Newly redesigned to be linearly controlled for more accurate performance)
1 Preset Memory & 15 User Memory locations
USB Bus powered or AC adaptor
Template sheets for controls
The PCR-50 can control a number of parameters not accessible from other controller keyboards at this price point; such as RPN, NRPN, SysEx.
The PCR-50 is fully compatible with all the latest operating systems including WinXP and Mac OSX. It is the ideal keyboard for use with Arturia Storm, SONAR, Cubase, Reason, FruityLoops, and most other popular sequencers and software synthesizers. As such it comes equipped with templates for these and other programs.
It can also run from either the included power supply or draw power from the USB port for maximum portability.
The PCR-50 is also equipped with V-LINK that allows you to trigger and control video material in real-time via the… read more DV-7PR (sold separately). read less
Features:
49 full-sized, velocity sensitive keys
8 assignable rotary knobs (cut off, resonance, pan, tempo, etc.)
8 assignable faders (volume, EFX send, etc.)
9 assignable buttons (program change, track mute, start, stop, etc.)
1 sustain pedal connection
1 expression pedal connection
MIDI in & MIDI out
Pitch & Modulation controls (Newly redesigned to be linearly controlled for more accurate performance)
1 Preset Memory & 15 User Memory locations
USB Bus powered or AC adaptor
Template sheets for controls
The PCR-50 can control a number of parameters not accessible from other controller keyboards at this price point; such as RPN, NRPN, SysEx.
The PCR-50 is fully compatible with all the latest operating systems including WinXP and Mac OSX. It is the ideal keyboard for use with Arturia Storm, SONAR, Cubase, Reason, FruityLoops, and most other popular sequencers and software synthesizers. As such it comes equipped with templates for these and other programs.
It can also run from either the included power supply or draw power from the USB port for maximum portability.
The PCR-50 is also equipped with V-LINK that allows you to trigger and control video material in real-time via the… read more DV-7PR (sold separately). read less
Specs
Keyboard: 49 Velocity Sensitive Keys
Controller
Memory Button
MIDI Channel Button
Program Change Button
Edit Button
V-LINK Button
Octave Shift Button (+/-)
Transpose Button
Assignable Button (B1--6, L1--3)
Bender/Modulation Lever
Assignable Rotary Volume (R1--8)
Assignable Slider (S1--8)
Assignable Pedal (P1--2)
Display
7 segments, 3 characters (LED)
Power Indicator
Connectors
Hold Pedal Jack
Expression Pedal Jack
MIDI Jacks (IN/OUT)
USB Jack
DC IN Jack
Rear Panel: Power Switch (USB BUS/OFF/DC IN)
Power Supply: DC 9 V (AC adapter) or USB Bus Powered
Current Draw: 300 mA (AC adapter), 300 mA (USB Bus Power)
Dimensions:
833 (W) x 232 (D) x 86.4 (H) mm
32-13/16 (W) x 9-3/16 (D) x 3-7/16 (H) in.
Weight: 3.3 kg / 7 lbs 5 oz (excluding AC adapter)
Accessories
AC Adaptor (ACP Series)
CD-ROM
USB Cable
Owner's Manual
Template Sheets (GM2/BLANK)
Options
Pedal Switch: DP-2/6
Expression Pedal: EV-5/7
System Requirements
Macintosh
Operating System: MacOS 8.5, 8.6, 9.x, and OS X
Computer: USB ready Apple Macintosh
CPU/clock: PowerPC G3/233 MHz or higher
Memory (RAM): 64 MB or more
OMS 2.3.3 or later. FreeMIDI 1.35 or later*
* For MacOS 8.5, 8.6, 9.x. Plug and play on MacOS X.
Windows
Operating System: Microsoft Windows Me/98/98SE/2000/XP
Computer: Windows compatible equipped with a USB* port
CPU/clock: Pentium Processor 200 MHz or higher
Memory (RAM): 64 MB or more
USB Chipset: Intel's USB chipset is recommended
* Must have a compatible USB host controller.
EDIROL designs its USB devices in accordance with USB specifications and has passed all compatibility tests, which are continuously held and organized by USB Implementers Forum (USB-IF).
Controller
Memory Button
MIDI Channel Button
Program Change Button
Edit Button
V-LINK Button
Octave Shift Button (+/-)
Transpose Button
Assignable Button (B1--6, L1--3)
Bender/Modulation Lever
Assignable Rotary Volume (R1--8)
Assignable Slider (S1--8)
Assignable Pedal (P1--2)
Display
7 segments, 3 characters (LED)
Power Indicator
Connectors
Hold Pedal Jack
Expression Pedal Jack
MIDI Jacks (IN/OUT)
USB Jack
DC IN Jack
Rear Panel: Power Switch (USB BUS/OFF/DC IN)
Power Supply: DC 9 V (AC adapter) or USB Bus Powered
Current Draw: 300 mA (AC adapter), 300 mA (USB Bus Power)
Dimensions:
833 (W) x 232 (D) x 86.4 (H) mm
32-13/16 (W) x 9-3/16 (D) x 3-7/16 (H) in.
Weight: 3.3 kg / 7 lbs 5 oz (excluding AC adapter)
Accessories
AC Adaptor (ACP Series)
CD-ROM
USB Cable
Owner's Manual
Template Sheets (GM2/BLANK)
Options
Pedal Switch: DP-2/6
Expression Pedal: EV-5/7
System Requirements
Macintosh
Operating System: MacOS 8.5, 8.6, 9.x, and OS X
Computer: USB ready Apple Macintosh
CPU/clock: PowerPC G3/233 MHz or higher
Memory (RAM): 64 MB or more
OMS 2.3.3 or later. FreeMIDI 1.35 or later*
* For MacOS 8.5, 8.6, 9.x. Plug and play on MacOS X.
Windows
Operating System: Microsoft Windows Me/98/98SE/2000/XP
Computer: Windows compatible equipped with a USB* port
CPU/clock: Pentium Processor 200 MHz or higher
Memory (RAM): 64 MB or more
USB Chipset: Intel's USB chipset is recommended
* Must have a compatible USB host controller.
EDIROL designs its USB devices in accordance with USB specifications and has passed all compatibility tests, which are continuously held and organized by USB Implementers Forum (USB-IF).
Reviews
Reviewers gave this product an overall rating of 5 out of 5 stars.
(26 ratings)
Submitted January 9, 2004 by a customer from hotmail.com
"A Near Perfect buy!"
I don't think I will even look for another product, I think that the technology put into this keyboard will outlast my interest in recording music! I will use it till it's toast and then probably try and find another one! I didn't even consider anyone elses midi controllers, nothing compares for the price right now! My favorite thing about it is how portable it is with USB power, and my least favorite thing about it is just that I wanted the pedals to come with it and they didn't.
Sound
the sound depends what you use it with, but the quality of sound is nearing perfect. It responds intensely quick to my playing, very expressive. I can be fluent in many types of music with this tool and the exciting thing is I can use this as a live midi trigger or for just about any instrument or drum vst I have. Finally a keyboard without a mandatory dc adapter - usb rules! - I love Edirols!
Features
I only wish It shipped with the expression and sustain pedals... I don't have extra cash to use for those, and I would really like to try them out.
Quality
The Quality of the keyboard seems pretty excellent other than it does not have wieghted keys, I have had similar feeling keyboards with keys that would break too easily, this is the only worry I have, I am a bit aprehensive at taking it touring or anything.
Value
Very worth the price, I bought it as soon as I could… read more afford it!
Manufacturer Support
I don't know how the company's support system is, I have never had to use it. I guess that is a good thing.
The Wow Factor
This is really a good looking keyboard, I love the amazing power indicator. It's space-age! Edirol has come a long way! Also a very practical necessity for a small studio.
Musical Style:
My music style is electronic folk, emo, indie, etc. read less
Sound
the sound depends what you use it with, but the quality of sound is nearing perfect. It responds intensely quick to my playing, very expressive. I can be fluent in many types of music with this tool and the exciting thing is I can use this as a live midi trigger or for just about any instrument or drum vst I have. Finally a keyboard without a mandatory dc adapter - usb rules! - I love Edirols!
Features
I only wish It shipped with the expression and sustain pedals... I don't have extra cash to use for those, and I would really like to try them out.
Quality
The Quality of the keyboard seems pretty excellent other than it does not have wieghted keys, I have had similar feeling keyboards with keys that would break too easily, this is the only worry I have, I am a bit aprehensive at taking it touring or anything.
Value
Very worth the price, I bought it as soon as I could… read more afford it!
Manufacturer Support
I don't know how the company's support system is, I have never had to use it. I guess that is a good thing.
The Wow Factor
This is really a good looking keyboard, I love the amazing power indicator. It's space-age! Edirol has come a long way! Also a very practical necessity for a small studio.
Musical Style:
My music style is electronic folk, emo, indie, etc. read less
