EBS Billy Sheehan Signature Drive Pedal

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

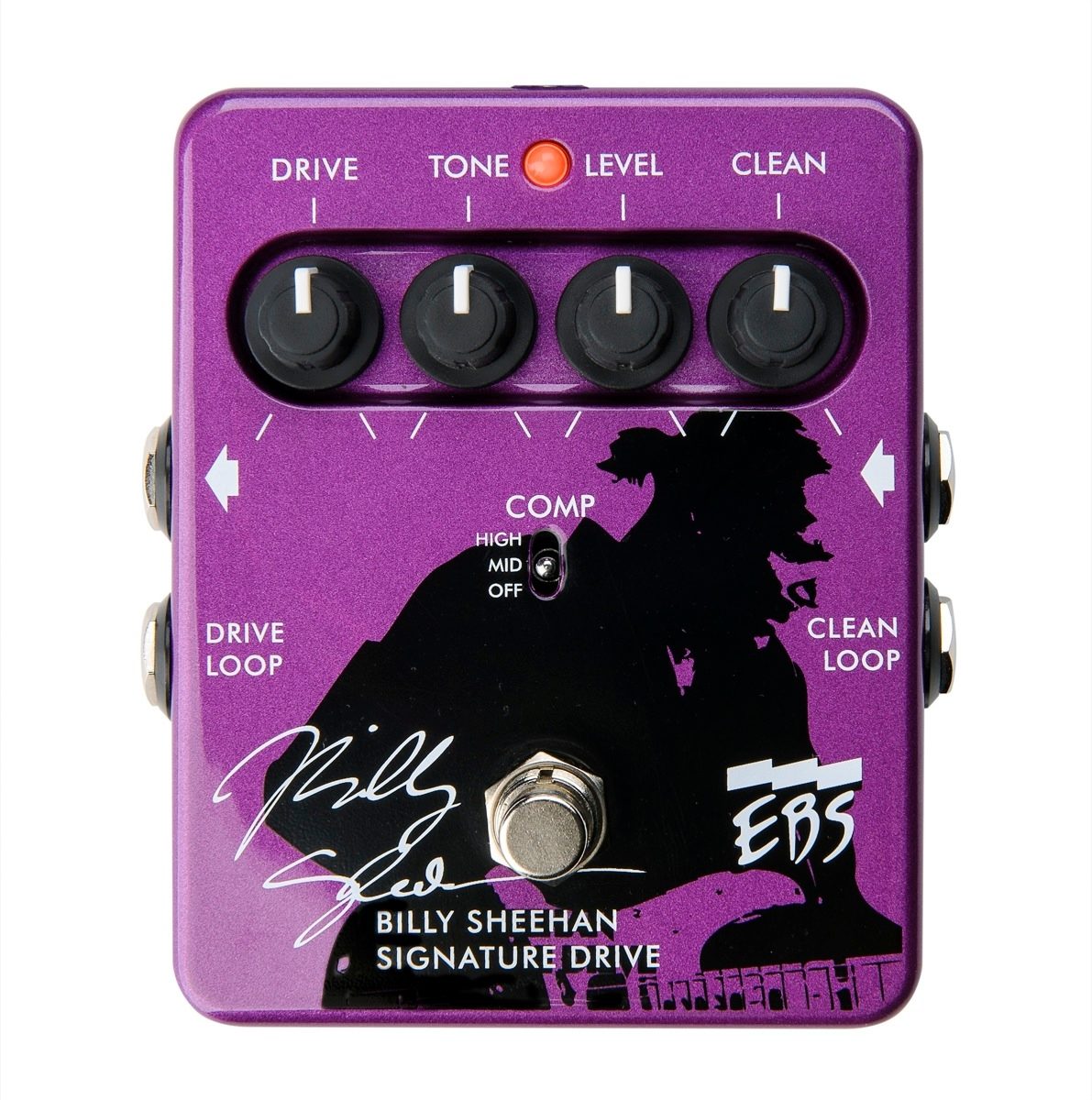

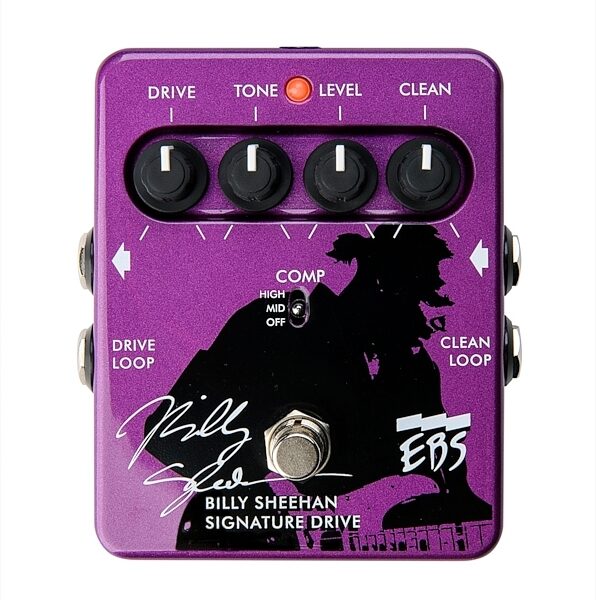

EBS Billy Sheehan Signature Drive Pedal, Main

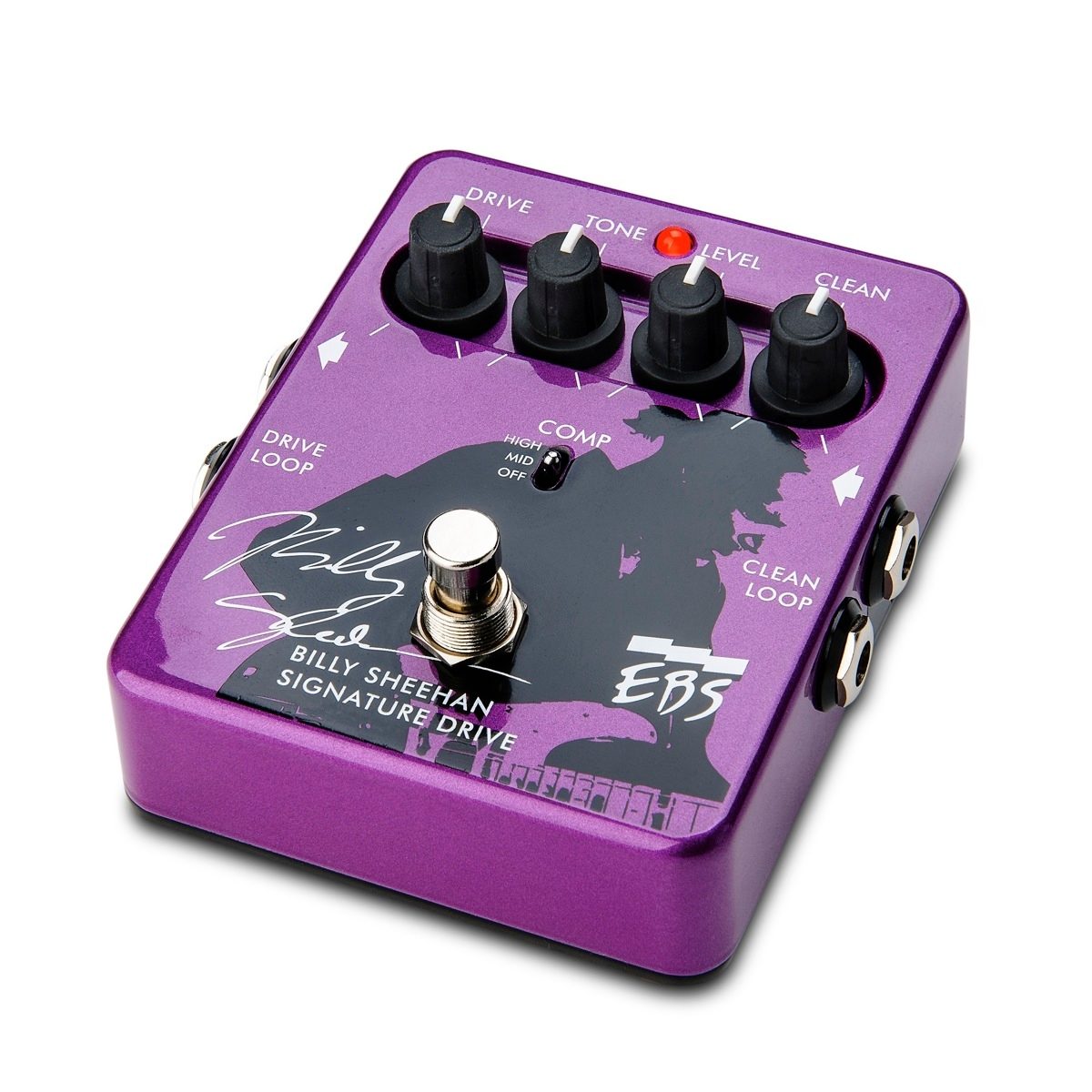

EBS Billy Sheehan Signature Drive Pedal, Angle
EBS Billy Sheehan Signature Drive Pedal, Main EBS Billy Sheehan Signature Drive Pedal, Angle
zZounds Gear Experts Say...
Channel bass guitarist Billy Sheehan's technique of blending clean sounds and distortion with this pedal's drive, tone, level, and compression controls.

For their 25th anniversary, among other great products, EBS releases the Billy Sheehan Bass Overdrive pedal for bassists who want to add extra meat to their bass tone. Complete with drive, tone, level and compression controls, the Sheehan Overdrive offers a dual loop input and an all analog design for an assortment connection options and tonal possibilities.

Features:

- Overdrive and Compression
- Dual Loop Input (Drive/Clean)
- EQ Control
- All Analog Design
- Mechanical Switching

- Nominal Input Level: - 8 dBv
- Input Impedance: 700 kohms
- Gain Range Drive: 20 - 40 dB
- Tone Filter Range: 175 - 4500 Hz
- Nominal Loop Level: -8 dB
- Output Impedance Loops: 2 kohms
- Input Impedance Loops: 47 kohms

Mix Level:
- Drive Channel: +3 dB max
- Clean Channel: +6 dB max

Compressor:
- Ratio 5:1: (max)
- Threshold: -25 +6 dB
- Attack Time (80%): < 10 ms
- Release Time (80%): 100 ms typ
- Makeup gain: 0, +3, +6 dB
- Output Impedance: < 100 ohms

Dimensions:
- W x H x D: 3.5" x 4.5" x 1.4" (90 x 115 x 35 mm)
- Weight: 480g (1.07 lb.)
- Type: Analog Effect, Mechanical Switching
- Power Requirements: 9 - 12 V DC Regulated, 15 mA max*

For support or warranty questions, please contact the manufacturer:
Phone: 212-253-8138

Reviewers gave this product an overall rating of 5 out of 5 stars. (2 ratings)
Submitted March 9, 2015 by Taylor Hansen in Winston-Salem, NC

"Exactly what I was looking for"

Overall: 5 out of 5 stars
(see rating details)
Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.
I've been wanting to try one of these pedals for a while now but I haven't found them in any of my local shops so I decided to go for it and order one. I watched several video demos of it so I was fairly certain I wanted it. I'm so glad I finally got one because this thing rocks! I've always been frustrated with the distortion options for bass out there but I can get an awesome gritty tone with this pedal without sacrificing any of the bottom end. The pedal feels well made and is fairly compact. I love that it has effects loops for both channels, as well as true bypass. The true bypass can be an issue for some since the effects loops won't work with the pedal turned off. You won't get a super high-gain distortion with this box, but more of a mid-gain smooth overdrive. It gives me just the right amount of "dirt" in my tone and gives it an added edge while also making it sound a bit "fatter." It's a bit expensive, but it was well worth the price to me. I love it!

Musical Background:

I've been playing bass for about 8 years.

Musical Style:

Progressive metal, death metal
2 of 2 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
