Denon DNX1500 4-Channel DJ Mixer with Effects

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

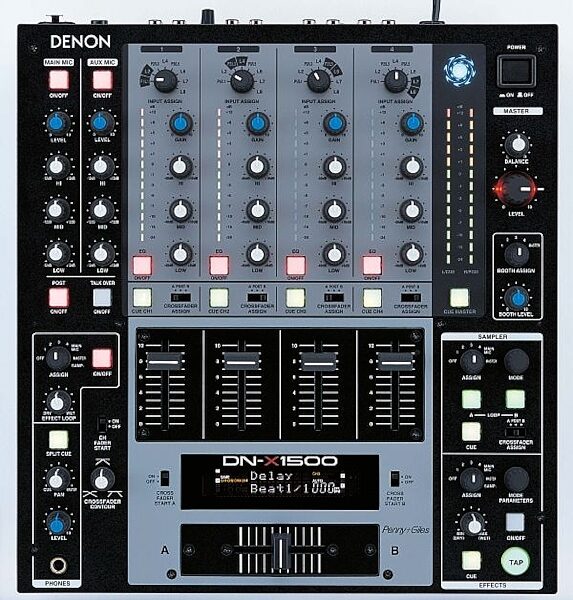

Denon DNX1500 4-Channel DJ Mixer with Effects, Main

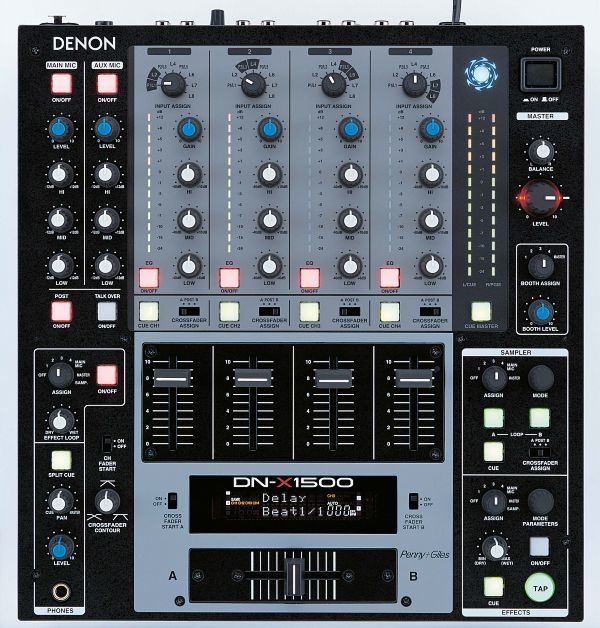

Denon DNX1500 4-Channel DJ Mixer with Effects, Main
zZounds Gear Experts Say...
World's first 12 in. Matrix Mixer. 3-band parametric EQ with kills. 9 on-board effects.

To equal the incredible abilities of its renowned DN-S5000 and DN-S3000 single CD/MP3 players, Denon has hit the mark once again with the DNX1500. Advanced features, unprecedented functionality and flexibility team with the entirely digital circuitry. The Effector and Sampler are built in to further boost the DJ's creative powers. Denon has strictly selected the cross fader to provide high sound quality and reliability, even under heavy usage. The Denon DNX1500 even has a USB port for future software updates!

Features:
World's first 12 in. Matrix Mixer

4-channel Club/Mobile/Battle DJ Mixer

5 line / 3 switchable phono-to-line inputs

High performance 45mm Penny & Giles crossfader

45mm VCA channel faders

3 Band parametric EQ with kills

9 on-board effects

External send/return effects loop

Individual input gains w/PFL meters

FL Tube Display to manage effects (World's First)

8 Sec on-board Sampler w/edit options

Multi channel assignable crossfader

2 Mic inputs w/eq adjustments

Talk Over & Mic Post switch

Digital Output (coaxial)

Assignable Booth output w/volume control

Balanced XLR output w/trim

Stereo/Mono output switch

Headphone EQ adjustment by preset

Split cue H/P monitor w/program pan

3-way BPM counter, Auto/TAP/Manual

4 Fader start inputs

USB port to add free future plug-ins such as effects (World's First)

Optional 19 in. rack mount kit (RMDJ-1500)

General Specifications
Dimensions (W x D x H): 12.2 x 4.3 x 12.9 in.
Weight: 14.7 lbs
Power Supply: AC120V +/-10%, 60 Hz
Power Consumption: 45 w

Input Level and Impedance
8-Line: -14 dBV (200mV) 50k ohms
3-Phono: -50 dBV (3.0mV) 50k ohms
Effect (Return): -14 dBV (200mV) 50k ohms
Main Mic: -54 dBV (2.0 mV) 2k ohms
Aux Mic: -60 dBV(1.0 mV) 1k ohms

Output Level and Impedance
Balanced: 4 dBu (1.23V) 150 ohms
Unbalanced: 0 dBV (1.0V) 1k ohms
Effect (Send): -14 dBV (200mV) 1k ohms
Headphone: 0 dBV (1.0V) 100 ohms

Frequency Response Line: 20 to 20 kHz +/- 2 dB
Phono: 20 to 20 kHz RIAA +/- 2 dB
Mic: 20 to 20 kHz +/-3 dB

Signal to Noise Ratio
Line: 85 dB (at Noise Gate ON)
Phono: 73 dB(at Noise Gate ON)
Main Mic: 65 dB (at Noise Gate ON)

THD
Line: Below 0.02%
Phono: Below 0.05%
Crosstalk: Over 70 dB

Channel Equalizer
Hi: +10 dB (8 kHz), -33 dB (15 kHz)
Mid: +10 dB (8 kHz), -40 dB (1 kHz)
Low: +6 dB (8 kHz), -40 dB (60 Hz)

Microphone Equalizer
Hi: +12 dB, -12 dB (10 kHz)
Mid: +12 dB, -12 dB (1 kHz)
Low: +12 dB, -12 dB (100 Hz)

Digital Ouput
Signal format: IEC958 Type II
Output Level: 0.5 Vp-p 75 ohms
Output Signal Level: -6 dB

For support or warranty questions, please contact the manufacturer:
Phone: 201-762-6665
Web: https://support.denondj.com

Reviewers gave this product an overall rating of 5 out of 5 stars. (48 ratings)
Submitted May 18, 2005 by a customer from munis.com

"I cannot say enough good things about this mixer"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
For sound quality, build quality, and variety of features the mixer is a must have for the "dj mixer under $1500" league.
Sound
The sound is incredible, crystal clear, with masses of headroom.
Features
The input matrix is great. You can have one input play on all 4 channels if you wish, eq them differently, add effects to one, assign them to the crossfader however you like. The mixer is so adaptable. The effects sound great and are easy to use. The presets are remarkable. You can change the headphone eq settings, changes to eq ranges of the highs, mids, and lows knobs. You can add new effects. The screen is very helpful too. The USB plug in has been invaluable in adding desired upgrades.
Quality
This one's solid as a rock. The quality stands out as soon as you open the box.
Value
This blows the Pioneer 600 out of the water. It should be twice as much.
Manufacturer Support
I needed advice from Support to get the software update. They were helpful and quick to respond.
The Wow Factor
Play with it for 30 minutes and you will rob a convenience store to buy one.

Musical Background:

professional dj & sound tech

Musical Style:

soul, jazz, house
5 of 5 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
