Cerwin-Vega CVM1224FXUSB USB Mixer with Effects (12-Channel)

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

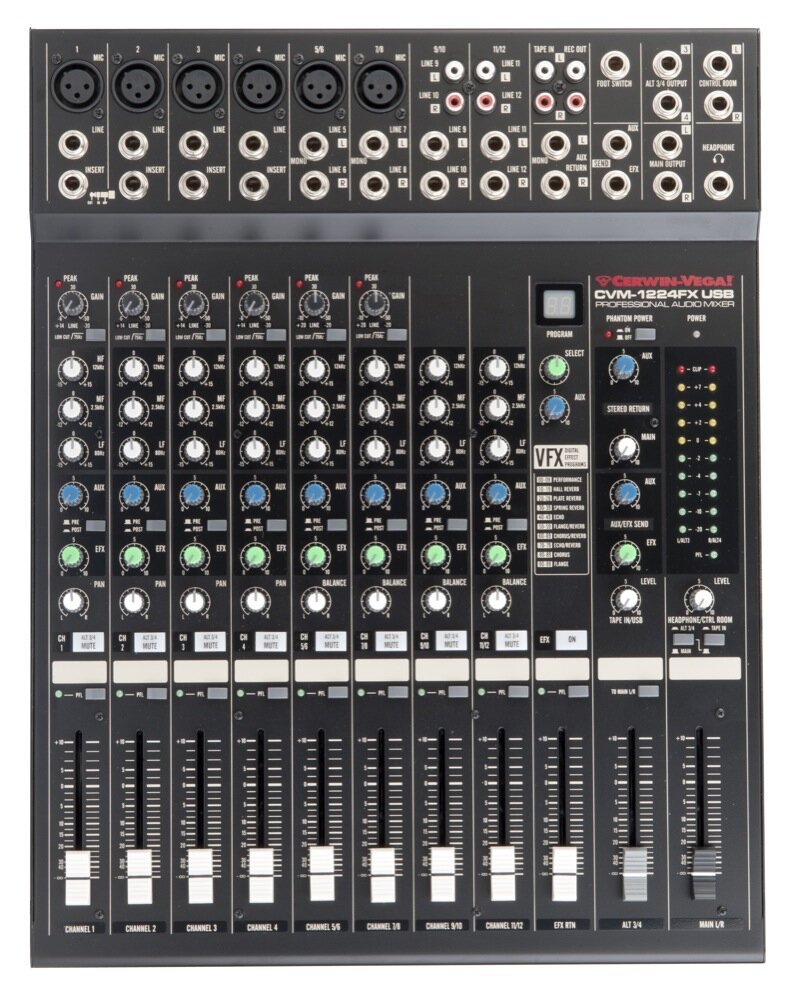

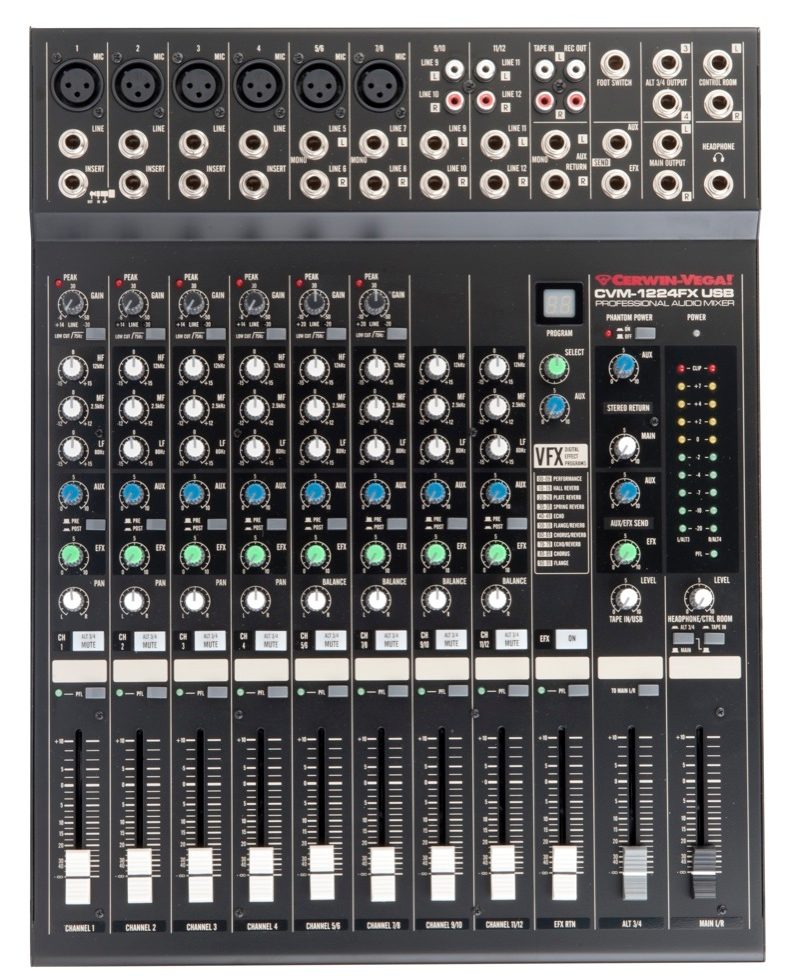

Cerwin-Vega CVM1224FXUSB USB Mixer with Effects (12-Channel), Main

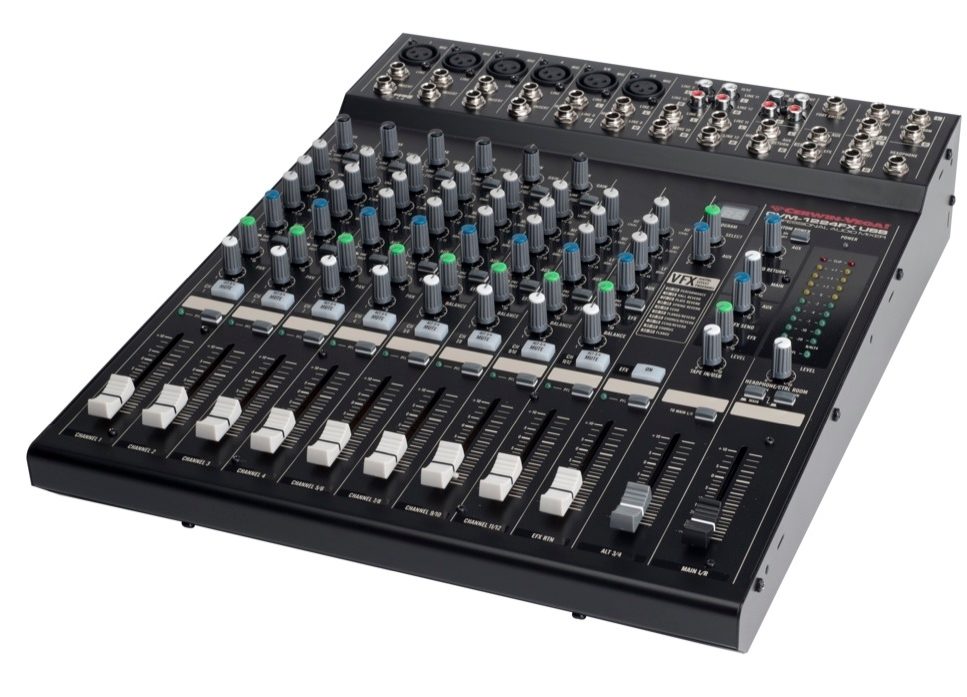

Cerwin-Vega CVM1224FXUSB USB Mixer with Effects (12-Channel), Angle
Cerwin-Vega CVM1224FXUSB USB Mixer with Effects (12-Channel), Main Cerwin-Vega CVM1224FXUSB USB Mixer with Effects (12-Channel), Angle
Add 100 reverbs and other effects to your live setup with this rackmountable 12-channel mixer, complete with six mic preamps and USB output to your computer.

The Cerwin-Vega CVM-1224FXUSB is a professional 12-Channel rackmountable mixer. Designed to support live mixing applications, the CVM1224FXUSB 12-Channel Professional Audio Mixer delivers VEGA effects and fine level adjustment with the 60mm faders. Featuring the same 3-band equalization and AUX & EFX bus flexibility found in all Cerwin-Vega! professional audio mixer line, this 12-channel mixer is everything you need to take control of your sound.

Performance Data:

- 4 mono and 4 stereo line input with 6 XLR microphone inputs
- MAIN L/R 1/4 in. jack and XLR output
- ALT 3-4 1/4 in. jack output
- TAPE IN stereo RCA jacks for connection to a CD or MP3 player
- REC OUT stereo RCA jacks for connection to a recorder
- 1/4 in. Stereo headphone & Balanced 1/4 in. control room out

Features:

- 3-Band channel equalizer providing +/-15 dB (HF, LF) and +/-12 dB (MF) per channel
- Peak LED indicator to check on the signal input of each microphone channel
- Individual channel and main level control using 60mm faders
- Gain (trim) level control with sensitivity markings for both microphone and line inputs
- Low Cut (HPF) switch @75Hz to eliminate background microphone rumble
- AUX and EFX controls to adjust the level of the signal sent to the respective bus
- PAN control (mono channel) to position the signal across the master left and right bus
- BALANCE control (stereo channel) to adjust the level between left and right signals
- Switchable Phantom power (+48V) switch for safe and… read more easy connection of condenser microphones
- Level control for headphone and control room connections

Advanced Features:

- PRE/POST switch to set the AUX signal as pre- or post-fader for foldback /monitoring mix or to preserve the wet-to-dry ratio on AUX sends
- PFL (pre-fade listen) switch with adjacent indicator to allow the engineer to listen to each channel before it reaches the main mix
- Built-in VEGA-effects 24-bit digital signal processor with 100 selectable programs including reverb, echo, chorus and flange
- 100mm VEGA-effects master fader and remote footswitch on/off control for effects return
- 16-bit, 44.1kHz USB connection for computer playback and recording (class compliant)
- Detachable rack ears for mounting in a standard 19 in. rack enclosure read less

- Mic/Line Inputs: 6
- Line Inputs: 4 mono + 4 stereo
- Mixer Input Channels: 12
- Group Busses: ALT3/4, AUX, EFX
- MAIN Busses: Stereo
- Maximum Output: 24 dBm
- Frequency Response: 20 Hz - 20 kHz
- T.H.D.: < 0.01%
- Crosstalk : > 70 dB
- Hum & Noise:
-- EIN: > 127 dB
-- Residual: > 100 dB
-- Main, AUX Output: > 80dB
- Equalization:
-- High: 12 kHz +/-15 dB
-- Mid: 2.5 kHz +/-12 dB
-- Low: 80 Hz +/-15 dB
- Digital Input / Output: USB B Type, Audio 44.1/48 kHz
- Vega Effects (VFX): 24-Bit Resolution, 100 Program Selection
- Rack Ears: Included
- Power Source: 100-120VAC, 50/60Hz
- Weight: 3.4 kg (7.5 lbs.)
- Dimensions (W x H x D): 436 328 x 65 x 420 mm (12.9 x 2.5 x 16.5 in.)

For support or warranty questions, please contact the manufacturer:
Phone: 800-444-2766
Manual
