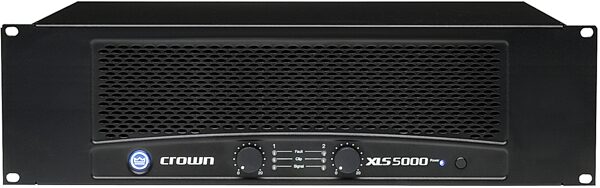

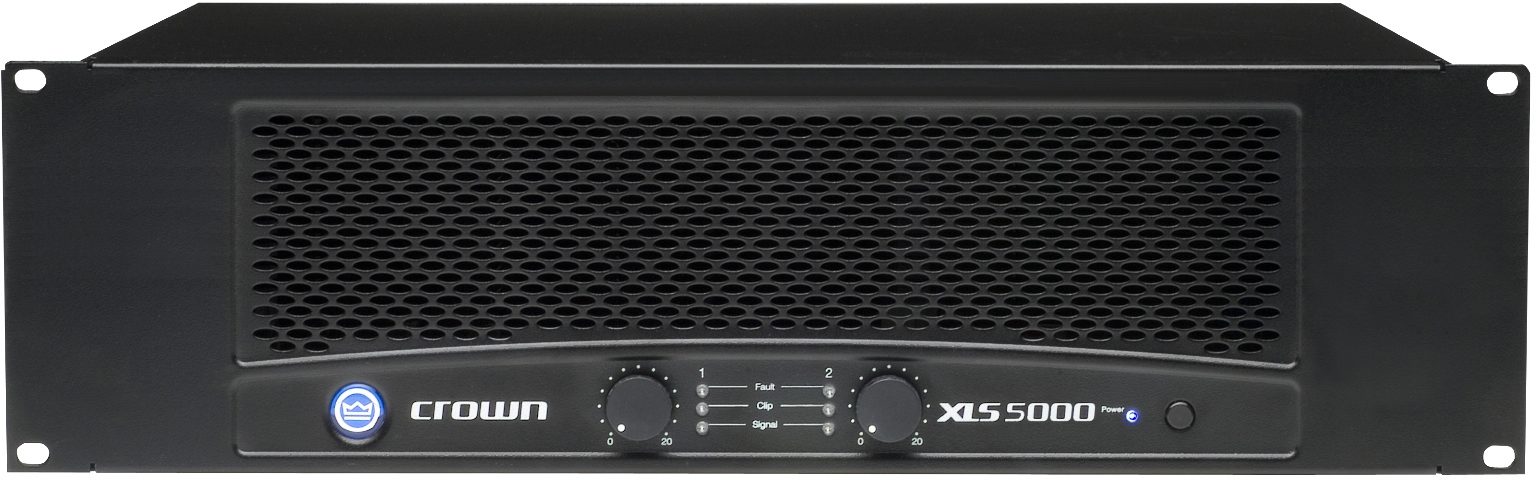

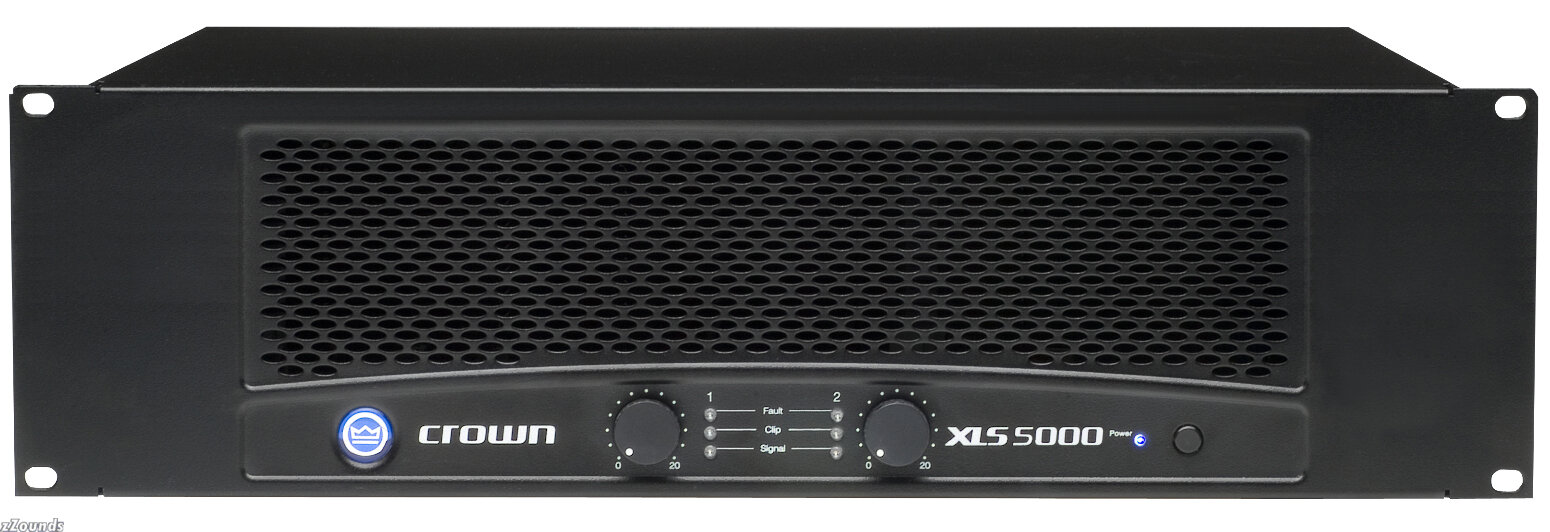

Crown XLS5000 Power Amplifier (5000 Watts)
No longer available at zZounds
1100W @ 8 ohms stereo, 1800W @ 4 ohms stereo, 3600W @ 8 ohms bridged. 20A power outlet required for use.
Overview
Crown XLS5000 Power Amplifier (5000 Watts)
Features
Reliable design incorporates many popular features
Housed in a rugged, all-steel 3U chassis
Efficient forced-air fans prevent excessive thermal buildup
Electronically balanced XLR inputs; touchproof binding post and Speakon outputs
Precision detented level controls, power switch, power LED, and six LEDs which indicate signal, clip and fault for each channel.
Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
Features
Reliable design incorporates many popular features
Housed in a rugged, all-steel 3U chassis
Efficient forced-air fans prevent excessive thermal buildup
Electronically balanced XLR inputs; touchproof binding post and Speakon outputs
Precision detented level controls, power switch, power LED, and six LEDs which indicate signal, clip and fault for each channel.
Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
Specs
The following applies to units in Stereo mode with 8-ohm loads unless otherwise specified.
Performance
2500W @ 2 ohms stereo
1100W @ 8 ohms stereo
1800W @ 4 ohms stereo
3600W @ 8 ohms bridged
5000W @ 4 ohms bridged
Sensitivity (volts RMS) for full rated power at 4 ohms: 1.25 V.
Frequency Response (at 1 watt) 22 Hz to 20 kHz: +0 dB, 0.8 dB.
Signal-to-Noise Ratio (20 Hz to 20 kHz)
A-weighted, below rated power:
>98 dB.
No weighting, below rated power:
>93 dB.
Total Harmonic Distortion (THD): <0.5%.
Intermodulation Distortion (IMD):
(60 Hz and 7 kHz at 4:1) from full rated output to +40 dB: < 0.3%.
Damping Factor (8 ohm) 10 Hz to 400 Hz: >200.
Crosstalk (below rated power)
at 1 kHz: +76 dB. at 20 kHz: +58 dB.
Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced.
Load Impedance: Rated for 2 to 8 ohms per channel in Stereo, 4 to 8 ohms in Bridge Mono.
Note: Users must have an available 20A power outlet (same outlet large appliances that use them i.e. refrigerators, washer/dryers, etc. use)
Weight XLS 5000: Net - 62.0 lb (27.7 kg), Shipping - 74.0 lb (33.6 kg)
Performance
2500W @ 2 ohms stereo
1100W @ 8 ohms stereo
1800W @ 4 ohms stereo
3600W @ 8 ohms bridged
5000W @ 4 ohms bridged
Sensitivity (volts RMS) for full rated power at 4 ohms: 1.25 V.
Frequency Response (at 1 watt) 22 Hz to 20 kHz: +0 dB, 0.8 dB.
Signal-to-Noise Ratio (20 Hz to 20 kHz)
A-weighted, below rated power:
>98 dB.
No weighting, below rated power:
>93 dB.
Total Harmonic Distortion (THD): <0.5%.
Intermodulation Distortion (IMD):
(60 Hz and 7 kHz at 4:1) from full rated output to +40 dB: < 0.3%.
Damping Factor (8 ohm) 10 Hz to 400 Hz: >200.
Crosstalk (below rated power)
at 1 kHz: +76 dB. at 20 kHz: +58 dB.
Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced.
Load Impedance: Rated for 2 to 8 ohms per channel in Stereo, 4 to 8 ohms in Bridge Mono.
Note: Users must have an available 20A power outlet (same outlet large appliances that use them i.e. refrigerators, washer/dryers, etc. use)
Weight XLS 5000: Net - 62.0 lb (27.7 kg), Shipping - 74.0 lb (33.6 kg)
