Constructed with a beautiful figured maple top and mahogany back, this ML1 Modern offers players contemporary tones from a set of Sonorous Zero humbuckers.
What's special about this item?
Feature: | What it does: |
---|---|
Mahogany body with flamed maple top | Bright, smooth mids; rich overall tone & resonance |
Maple neck | Bright tone, full sustain and strength |
Macassar ebony fretboard | High-density wood; smooth playing feel |
Strings-thru-body hardtail bridge | Strings seated in body; more resonance and control |
Overview
A perfect blend of maple and mahogany, the ML1 Modern is the answer to your every-day, multi-genre requirements. Design features such as a lightweight mahogany body, an upper access spoon cut, and updated specially voiced Chapman Sonorous Zero pickups really show an attention to detail worthy of even the most discerning of players.
Specs

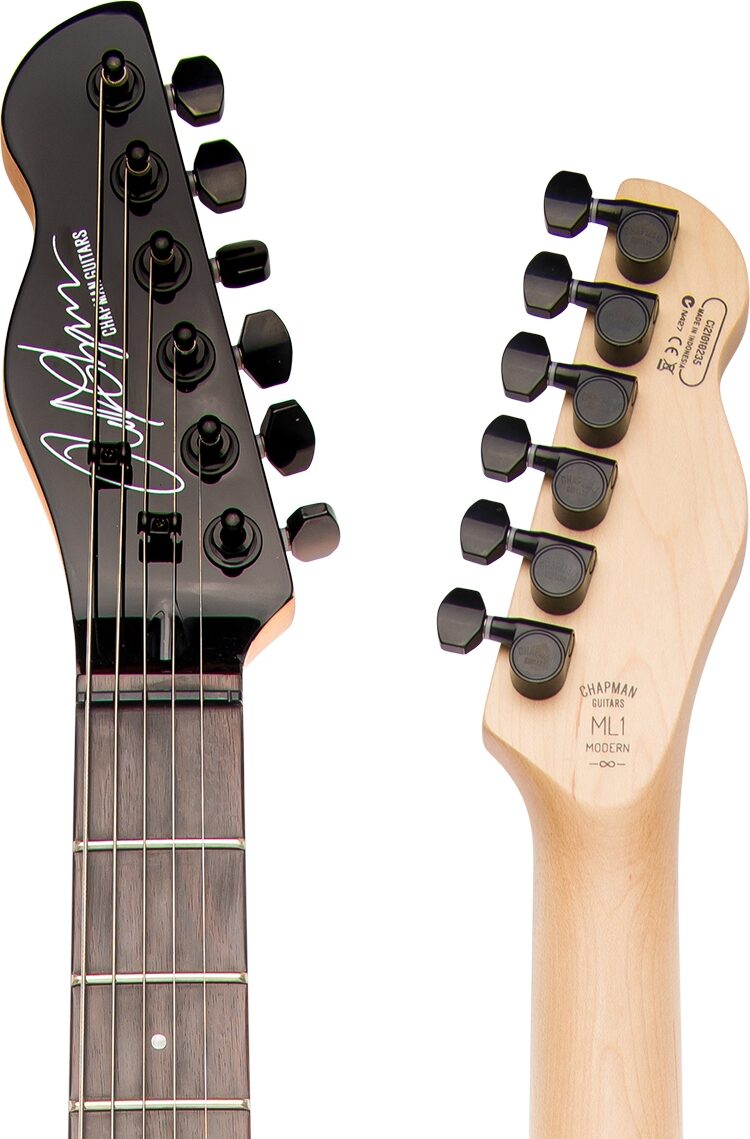

Headstock: Straight Heritage Headstock
Tuners: Chapman Classic Closed (18:1 Gearing)
String Nut: 42mm Graph Tech Black TUSQ XL Nut
Neck: Maple with Satin Finish
Neck Joint: Recessed Bolt-on Neck
Neck Size Width: NUT 42mm 24F 57mm
Thickness: 1F 23mm 12F 24mm
Neck Profile: C Shape
Truss Rod: Dual Action
Fretboard: Macassar Ebony Fretboard with Rolled Edges
Fretboard Radius: 350mm
Frets: 24 Jumbo Nickel Frets
Fret Markers: Pearl Side Dots and Pearl Front Dot Inlays
12th Fret Inlay: Pearl Infinity
Scale Length: 648mm (~25.5")
Body Top: Flame Maple Veneer On Flat Top with Gloss Finish
Body Back: Mahogany with Gloss Finish
- Body Binding: Reveal
Body Carves: Arm Carve, Front Lower Spoon Cut, Rear Tummy Cut, Rear Lower Spoon Cut, Rear Heel Contour
Bridge: Chapman String-Through Hardtail
Neck Pickup: Chapman Sonorous Zero Humbucker
Magnet: Ceramic OUTPUT: 10.5k ohms
Bridge Pickup: Chapman Sonorous Zero Humbucker
Magnet: Ceramic OUTPUT: 12.5k ohms
Pickup Switch: 3 Way Blade Switch with Coil Split on Push-Pull Tone Knob
Controls: Master Volume (500k), Master Tone with Push-Pull (500k)
Strap Buttons: Chapman Classic Strap Buttons
Strings: Ernie Ball Regular Slinky Nickel Wound, 10-46
Guitar Weight: Approx. 3.5kg (7.7lbs)
Pickup Switching: Tone Knob In, Tone Knob Out
- Position 1: Bridge Bridge Coil Split (Outer Coil)
- Position 2: Bridge + Neck Bridge + Neck Both Split (Outer Coils)
- Position 3: Neck Neck Coil Split (Outer Coil)
Tuners: Chapman Classic Closed (18:1 Gearing)
String Nut: 42mm Graph Tech Black TUSQ XL Nut
Neck: Maple with Satin Finish
Neck Joint: Recessed Bolt-on Neck
Neck Size Width: NUT 42mm 24F 57mm
Thickness: 1F 23mm 12F 24mm
Neck Profile: C Shape
Truss Rod: Dual Action
Fretboard: Macassar Ebony Fretboard with Rolled Edges
Fretboard Radius: 350mm
Frets: 24 Jumbo Nickel Frets
Fret Markers: Pearl Side Dots and Pearl Front Dot Inlays
12th Fret Inlay: Pearl Infinity
Scale Length: 648mm (~25.5")
Body Top: Flame Maple Veneer On Flat Top with Gloss Finish
Body Back: Mahogany with Gloss Finish
- Body Binding: Reveal
Body Carves: Arm Carve, Front Lower Spoon Cut, Rear Tummy Cut, Rear Lower Spoon Cut, Rear Heel Contour
Bridge: Chapman String-Through Hardtail
Neck Pickup: Chapman Sonorous Zero Humbucker
Magnet: Ceramic OUTPUT: 10.5k ohms
Bridge Pickup: Chapman Sonorous Zero Humbucker
Magnet: Ceramic OUTPUT: 12.5k ohms
Pickup Switch: 3 Way Blade Switch with Coil Split on Push-Pull Tone Knob
Controls: Master Volume (500k), Master Tone with Push-Pull (500k)
Strap Buttons: Chapman Classic Strap Buttons
Strings: Ernie Ball Regular Slinky Nickel Wound, 10-46
Guitar Weight: Approx. 3.5kg (7.7lbs)
Pickup Switching: Tone Knob In, Tone Knob Out
- Position 1: Bridge Bridge Coil Split (Outer Coil)
- Position 2: Bridge + Neck Bridge + Neck Both Split (Outer Coils)
- Position 3: Neck Neck Coil Split (Outer Coil)
