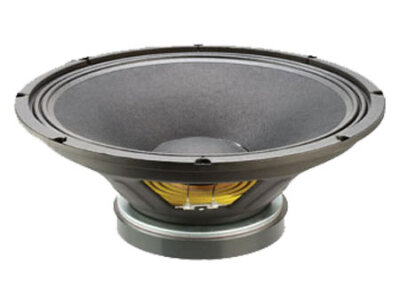

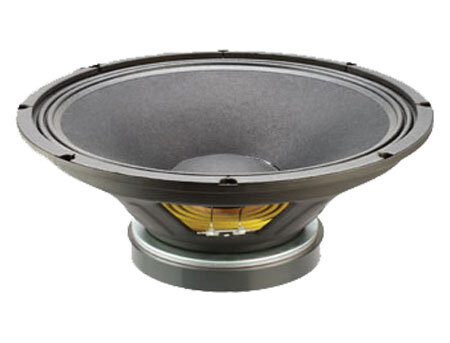

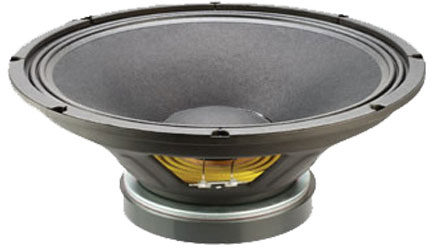

Celestion TF1530 Replacement PA Speaker (400 Watts)
No longer available at zZounds
![Celestion TF1530 Replacement PA Speaker (400 Watts), Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/CELTF1530-debd15d9ebb0a1cd3488ca45f4047b17.jpg)
Throw away that old PA speaker for this excellent replacement from Celestion. Includes double roll surrounds for great excursion control.
Overview
The Celestion TF1530 is a 15 Inch-400 Watt RMS High Output PA Speaker, with 8 Ohms of resistance. The Celestion TF is a closed-back midrange design to provide system builders with a dependable, comprehensive range of conventional, pressed steel, Ferrite magnet drivers.
Celestion TF drivers employ Kevlar-impregnated cones with sealed surround and damping for reduced distortion, and double roll surrounds for greater excursion control. Rigid chassis designs ensure maximum energy transfer.
Celestion TF drivers employ Kevlar-impregnated cones with sealed surround and damping for reduced distortion, and double roll surrounds for greater excursion control. Rigid chassis designs ensure maximum energy transfer.
Features
- - High output 15 inch bass and mid-range driver
- - Efficient magnet assembly enables 99dB sensitivity and 400Wrms (AES standard) power handling
- - 3 inch high temperature copper voice coil wound on polyimide for increased reliability
- - Double roll surround for greater excursion control
- - Superb price/performance ratio
Specs
- - General:
- - Nominal diameter: 381mm/15in
- - Power rating: 400Wrms
- - Nominal impedance: 8 Ohms
- - Sensitivity: 99dB
- - Frequency range: 40-3000Hz
- - Voice coil diameter: 75mm/3in
- - Chassis type: Pressed steel
- - Magnet type: Ferrite
- - Magnet weight: 2.44kg/86oz
- - Coil material: Round copper
- - Former material: Polyimide
- - Cone material: Kevlar loaded paper
- - Surround material: Cloth-sealed
- - Suspension: Single
- - Xmax: 2mm/0.08in
- - Gap depth: 8mm/0.31in
- - Voice coil winding width: 12mm/0.47in
- - Mounting Information:
- - Overall diameter: 385mm/15.16in
- - Overall depth: 163mm/6.42in
- - Cut-out diameter: 352mm/13.86in
- - Mounting slot dimensions: 9.2mm x 6.2mm/0.36in x 0.24in
- - Number of mounting slots: 8
- - Mounting PCD range: 369mm/14.56in
- - Unit weight: 6.1kg/13.4lb
- - Packed Dimensions & Weight:
- - Single pack size W x D x H: 16.1 x 16.1 x 7.1 in. (410mm x 410mm x 180mm)
- - Single pack weight: 8kg/17.6lb
