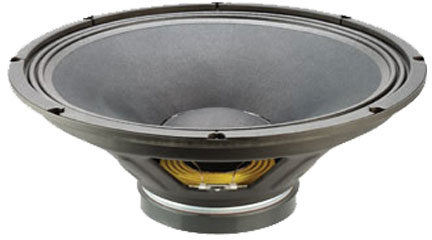

Celestion TF1525E Replacement PA Speaker (300 Watts)
No longer available at zZounds
![Celestion TF1525E Replacement PA Speaker (300 Watts), Main](https://cf1.zzounds.com/media/productmedia/fit,2018by3200/quality,85/CELTF1525E-30353ae6ccccb82422610f8a9f2b6f4e.jpg)
Upgrade your PA speakers with these 15" replacement speaker cones from Celestion. The TF1525E's rigid chassis is designed to ensure maximum energy transfer.
Overview
The Celestion TF1525E is a 15 Inch-300 Watt RMS Speaker with 8 ohms of resistance. The Celestion TF is a closed-back midrange design to provide system builders with a dependable, comprehensive range of conventional, pressed steel, Ferrite magnet drivers.
Celestion TF drivers employ Kevlar-impregnated cones with sealed surround and damping for reduced distortion, and double roll surrounds for greater excursion control. Rigid chassis designs ensure maximum energy transfer.
Celestion TF drivers employ Kevlar-impregnated cones with sealed surround and damping for reduced distortion, and double roll surrounds for greater excursion control. Rigid chassis designs ensure maximum energy transfer.
Features
- - 15 inch driver provides extended low frequency range
- - 2.5 inch edgewound voice coil enables 97dB efficiency and 300Wrms (AES standard) power handling
- - Vented magnet assembly for enhanced cooling
- - Kevlar-loaded cone with sealed surround and damping for reduced distortion
- - Suitable for use in 2-way and 3-way systems
Specs
- - General:
- - Nominal diameter: 381mm/15in
- - Power rating: 300Wrms
- - Nominal impedance: 8 Ohms
- - Sensitivity: 97dB
- - Frequency range: 45-3500Hz
- - Voice coil diameter: 64mm/2.5in
- - Chassis type: Pressed steel
- - Magnet type: Ferrite
- - Magnet weight: 1.4kg/50oz
- - Coil material: Edgewound copper
- - Former material: Glass Fiber
- - Cone material: Kevlar loaded paper
- - Surround material: Cloth-sealed
- - Suspension: Single
- - Xmax: 3.5mm/0.14in
- - Gap depth: 8mm/0.31in
- - Voice coil winding width: 14.5mm/0.57in
- - Mounting Information:
- - Overall diameter: 385mm/15.16in
- - Overall depth: 163mm/6.42in
- - Cut-out diameter: 352mm/13.86in
- - Mounting slot dimensions: 9.2mm x 6.2mm/0.36in x 0.24in
- - Number of mounting slots: 8
- - Mounting PCD range: 369mm/14.56in
- - Unit weight: 4.8kg/10.6lb
- - Packed Dimensions & Weight:
- - Single pack size W x D x H: 16.1 x 16.1 x 7.1 in. (410mm x 410mm x 180mm)
- - Single pack weight: 5.5kg/12.1lb
