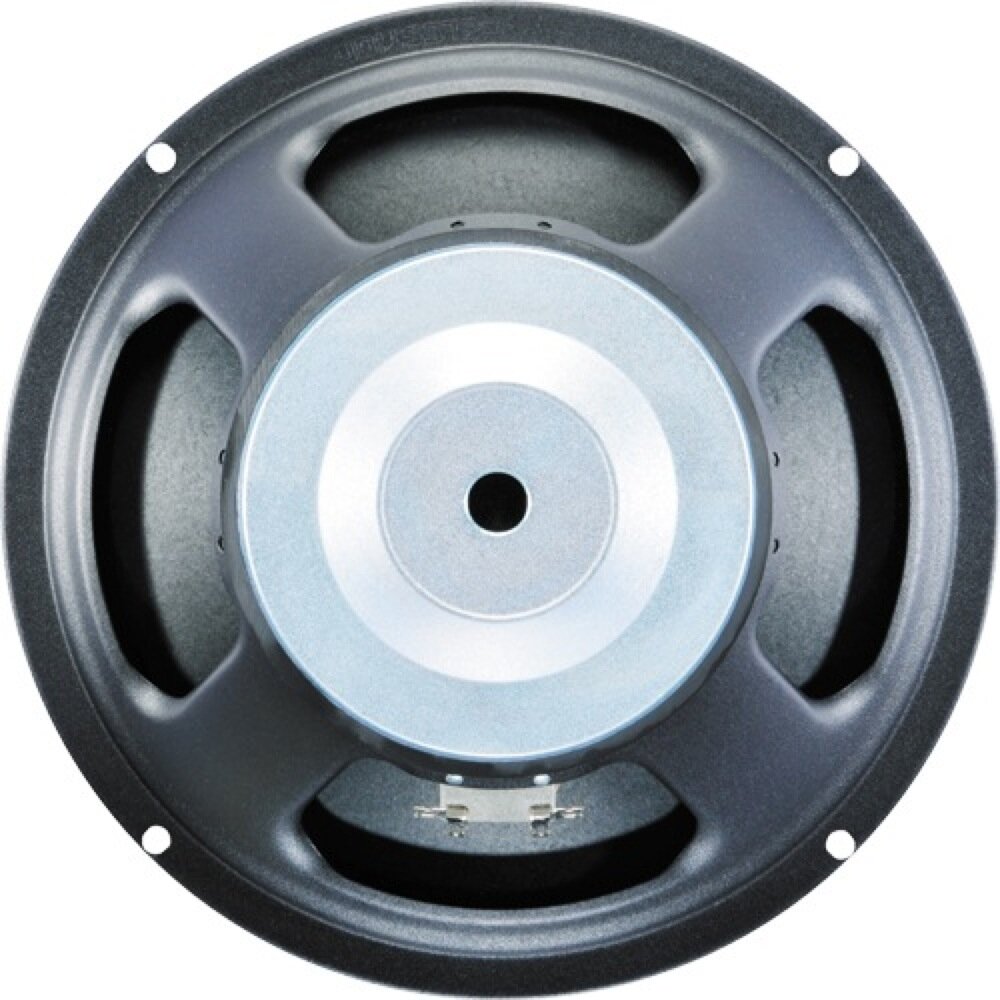

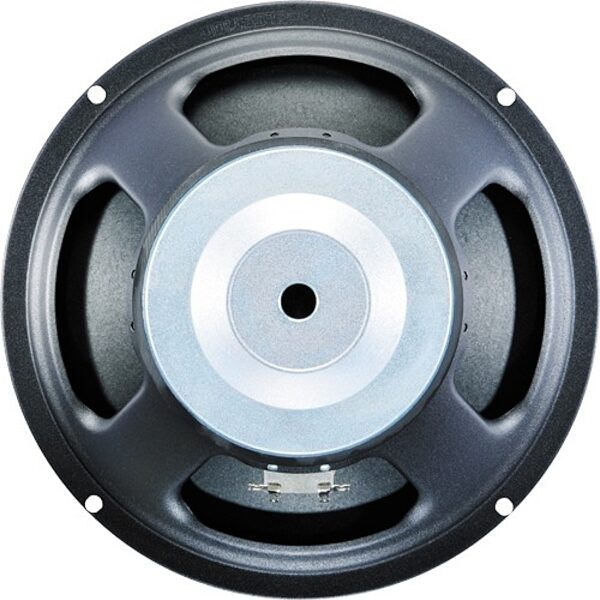

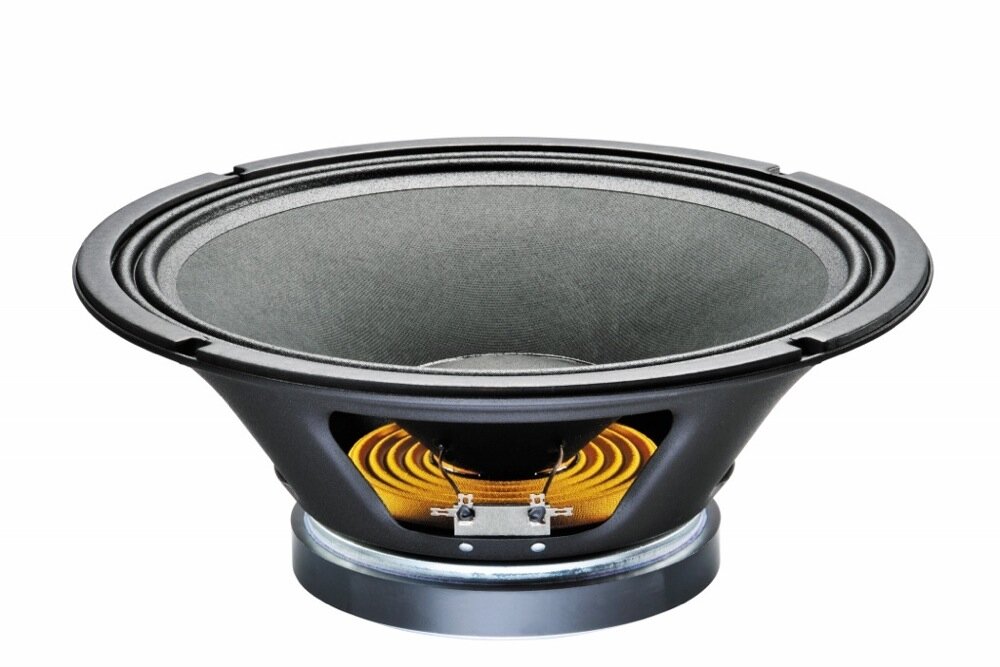

Celestion TF1220 Bass-Mid Speaker (300 Watts, 12")
No longer available at zZounds
Swap out the woofers in your 2-way or 3-way PA boxes with this replacement speaker. The Celestion TF1220 is one of the most affordable 12" drivers around.
Overview
Put the Celestion TF1220 replacement speaker in your cab and hear the difference! This outstanding speaker provides optimal reliability, audio clarity and punch. The Celestion TF1220 is the perfect replacement speaker for your bass or PA cabinet.
- 2-inch high temperature copper voice coil wound on polyimide for increased reliability
- Ideal for use in 2-way high pass systems
- Rigid chassis design for maximum energy transfer
- Excellent performance at cost-effective price point
Features:
- 12-inch Bass and mid-range driver providing 97 dB sensitivity and 150 Wrms (AES standard) power handling- 2-inch high temperature copper voice coil wound on polyimide for increased reliability
- Ideal for use in 2-way high pass systems
- Rigid chassis design for maximum energy transfer
- Excellent performance at cost-effective price point
Specs
General:
- Nominal diameter: 305mm/12in
- Power rating: 150Wrms
- Nominal impedance: 8 ohms
- Sensitivity: 97dB
- Frequency range: 60-4000Hz
- Voice coil diameter: 50mm/2in
- Chassis type: Pressed steel
- Magnet type: Ferrite
- Magnet weight: 1.2kg/42oz
- Coil material: Round copper
- Former material: Polyimide
- Cone material: Kevlar loaded paper
- Surround material: Cloth-sealed
- Suspension: Single
- Xmax: 2mm/0.08in
- Gap depth: 8mm/0.31in
- Voice coil winding width: 12 mm/0.47in
Mounting Information:
- Diameter: 309mm/12.17in
- Overall depth: 131mm/5.16in
- Cut-out diameter: 283mm/11.14in
- Mounting slot dimensions: 7.9mm/0.31in
- Number of mounting slots: 4
- Mounting PCD range: 297mm/11.69in
- Weight: 5kg/11lb
- Nominal diameter: 305mm/12in
- Power rating: 150Wrms
- Nominal impedance: 8 ohms
- Sensitivity: 97dB
- Frequency range: 60-4000Hz
- Voice coil diameter: 50mm/2in
- Chassis type: Pressed steel
- Magnet type: Ferrite
- Magnet weight: 1.2kg/42oz
- Coil material: Round copper
- Former material: Polyimide
- Cone material: Kevlar loaded paper
- Surround material: Cloth-sealed
- Suspension: Single
- Xmax: 2mm/0.08in
- Gap depth: 8mm/0.31in
- Voice coil winding width: 12 mm/0.47in
Mounting Information:
- Diameter: 309mm/12.17in
- Overall depth: 131mm/5.16in
- Cut-out diameter: 283mm/11.14in
- Mounting slot dimensions: 7.9mm/0.31in
- Number of mounting slots: 4
- Mounting PCD range: 297mm/11.69in
- Weight: 5kg/11lb
