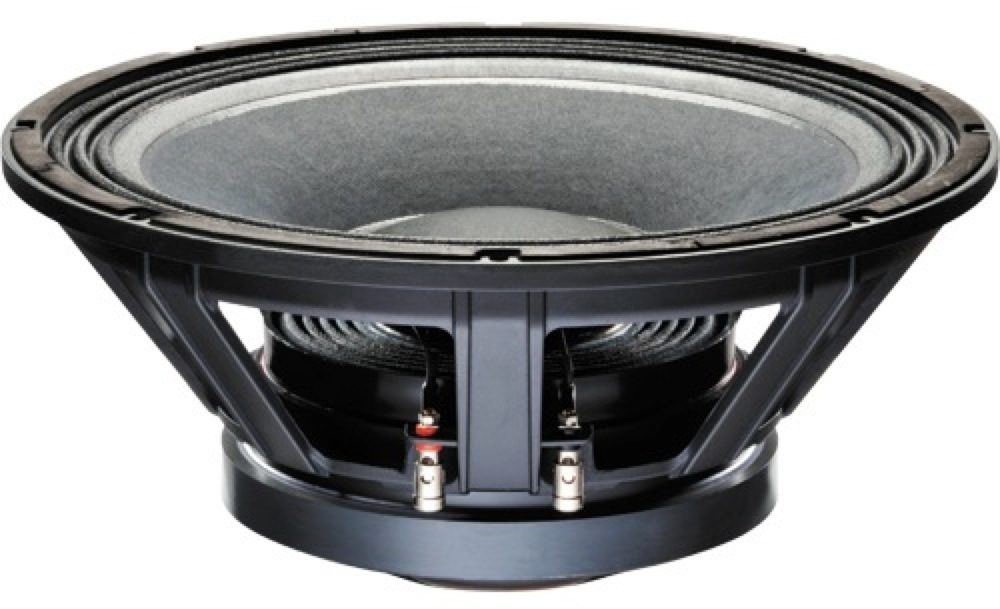

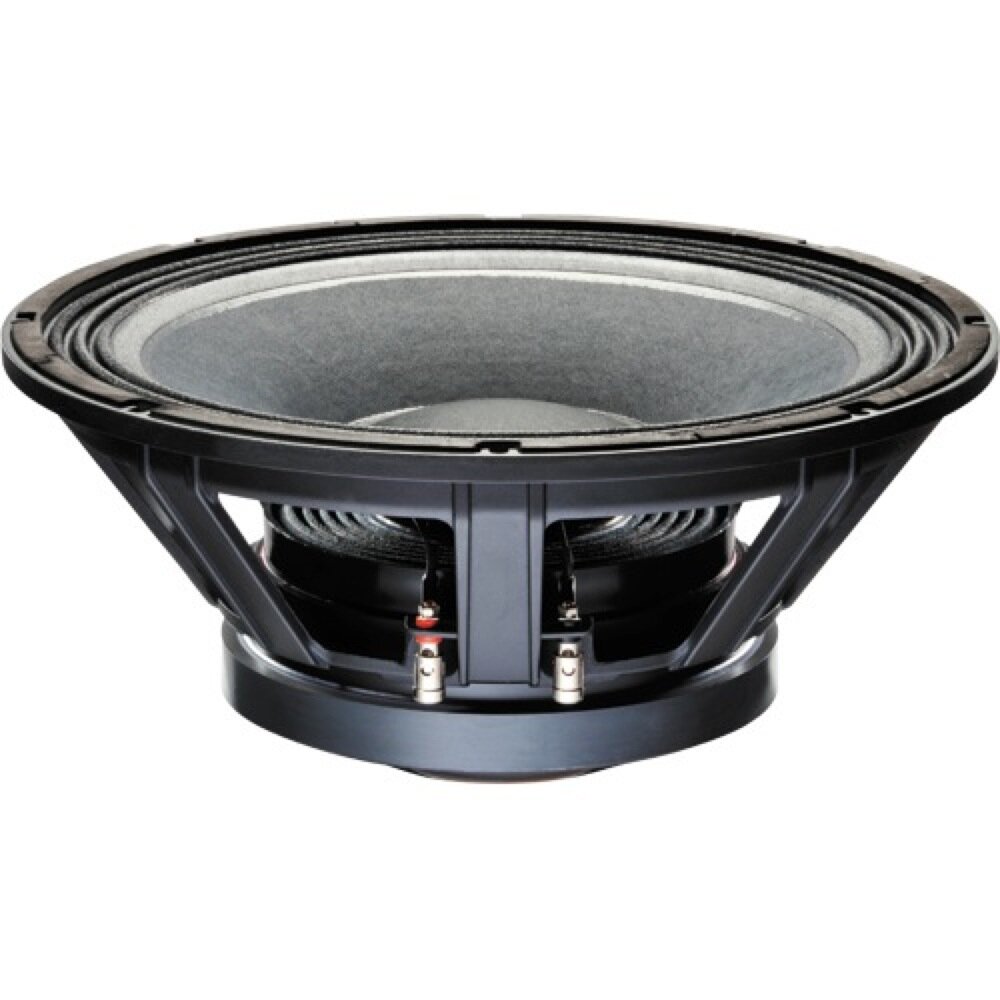

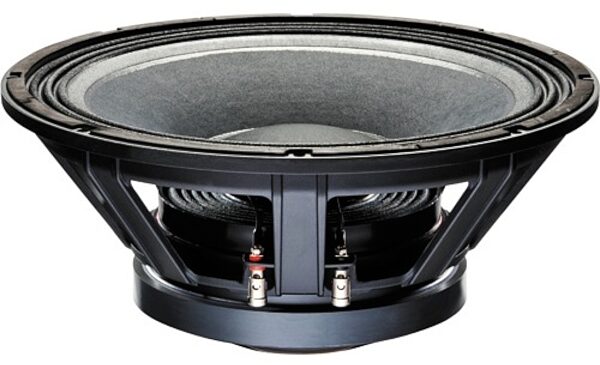

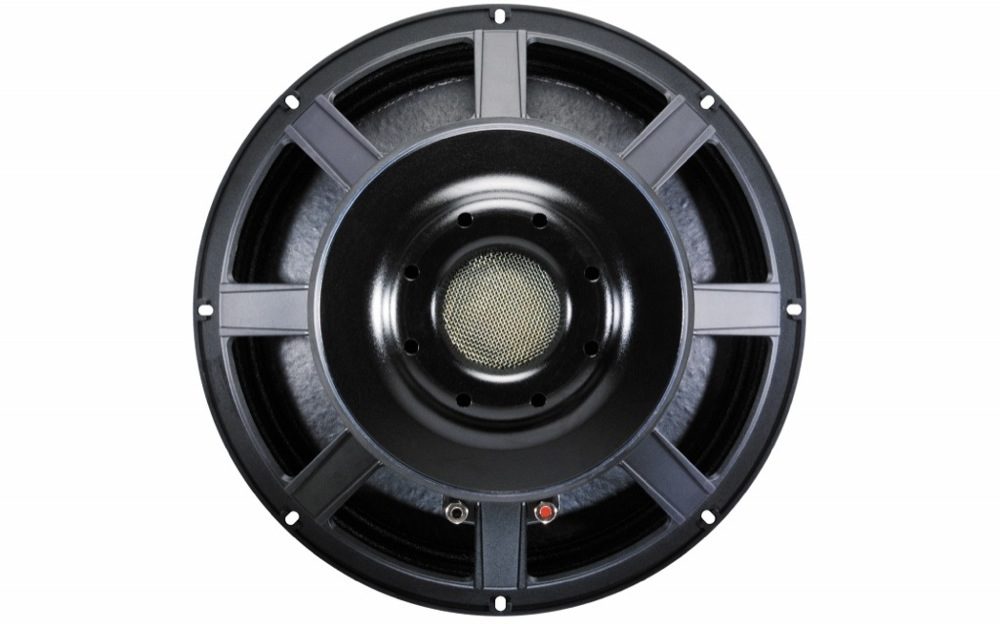

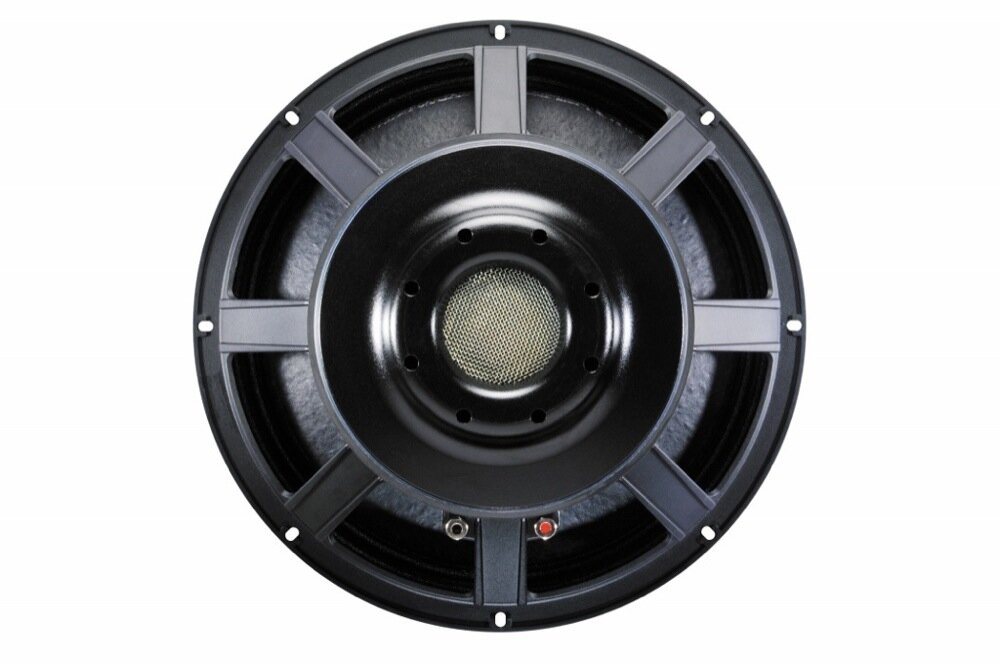

Celestion FTR15-4080HDX Pro Audio LF Speaker (2000 Watts, 15")
No longer available at zZounds
Fill the venue with bass and mids with less distortion, thanks to this 15-inch woofer's intelligent heat management and high power handling.
Overview
The Celestion FTR15-4080HDX replacement speaker provides high power, reliable performance while remaining very lightweight. You can expect extremely low distortion no matter how hard you push this speaker. With the FTR15 4080HDX, Celestion has once again exceeded the expectations of live sound engineers worldwide.
- 4 inch high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression
- Double suspension and a multi-roll surround provide exceptional linearity at extremes of cone excursion
- Intelligent heat management in both chassis and magnet assembly design further minimizes distortion
- Less than 10kg -- very low weight for this product class
Features:
- 15 inch ferrite woofer provides 1000Wrms power handling and a frequency response of 40Hz-2500Hz- 4 inch high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression
- Double suspension and a multi-roll surround provide exceptional linearity at extremes of cone excursion
- Intelligent heat management in both chassis and magnet assembly design further minimizes distortion
- Less than 10kg -- very low weight for this product class
Specs
General:
- Nominal diameter: 381mm/15in
- Power rating: 1000Wrms
- Nominal impedance: 8 ohms
- Sensitivity: 96dB
- Frequency range: 40-2500Hz
- Voice coil diameter: 100mm/4in
- Chassis type: Cast aluminium
- Magnet type: Ferrite
- Magnet weight: 3.1kg/110oz
- Coil material: Round copper
- Former material: Glass fiber
- Cone material: Glass loaded paper with weather-resistant impregnation
- Surround material: Cloth-sealed
- Suspension: Double
- Xmax: 8mm/0.33in
- Gap depth: 9.5mm/0.37in
- Voice coil winding width: 25mm/0.99in
Mounting Information:
- Diameter: 385mm/15.16in
- Overall depth: 180mm/7.1in
- Cut-out diameter: 351mm/13.82in
- Mounting slot dimensions: 10mm x 7mm/0.39in x 0.27in
- Number of mounting slots: 8
- Mounting PCD range: 365-375mm/14.37-14.76in
- Weight: 9.7kg/21.3lb
- Nominal diameter: 381mm/15in
- Power rating: 1000Wrms
- Nominal impedance: 8 ohms
- Sensitivity: 96dB
- Frequency range: 40-2500Hz
- Voice coil diameter: 100mm/4in
- Chassis type: Cast aluminium
- Magnet type: Ferrite
- Magnet weight: 3.1kg/110oz
- Coil material: Round copper
- Former material: Glass fiber
- Cone material: Glass loaded paper with weather-resistant impregnation
- Surround material: Cloth-sealed
- Suspension: Double
- Xmax: 8mm/0.33in
- Gap depth: 9.5mm/0.37in
- Voice coil winding width: 25mm/0.99in
Mounting Information:
- Diameter: 385mm/15.16in
- Overall depth: 180mm/7.1in
- Cut-out diameter: 351mm/13.82in
- Mounting slot dimensions: 10mm x 7mm/0.39in x 0.27in
- Number of mounting slots: 8
- Mounting PCD range: 365-375mm/14.37-14.76in
- Weight: 9.7kg/21.3lb
